Plan 82209KA

Lovely and Spacious

2,909 4-5 4 2 2
Print
Compare
...

Lovely and Spacious

Plan 82209KA

  • 2,909

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • Formal and informal living areas both have an open concept design in this lovely one story Southern house plan.
  • A half wall in the foyer lets you look right into the dining room as you enter.
  • A rear covered lanai can be reached through sliding glass doors in the living room, master suite and breakfast nook.
  • The well-appointed kitchen enjoys wonderful views right from the kitchen sink so you can keep tabs on the family gatherings.
  • Separated from the family bedrooms, the master suite has the left side of the home all to itself.
  • Two walk-in closets lie at the entrance to the spacious master bathroom.
  • On the other side of the home, three family bedrooms share two bathrooms.
  • Bonus space on the second floor can easily become a fifth bedroom.
  • Related Plans: Get different exteriors with house plans 82210KA and 82211KA.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

Floor Plan

Main Level

Reverse Floor Plan

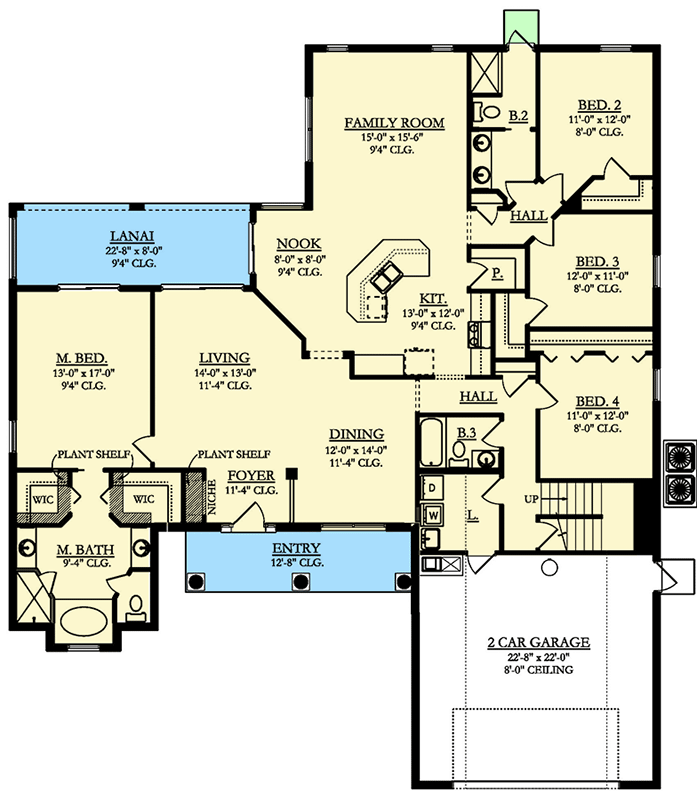

Lovely and Spacious - 82209KA floor plan - Main Level

2nd Floor

Reverse Floor Plan

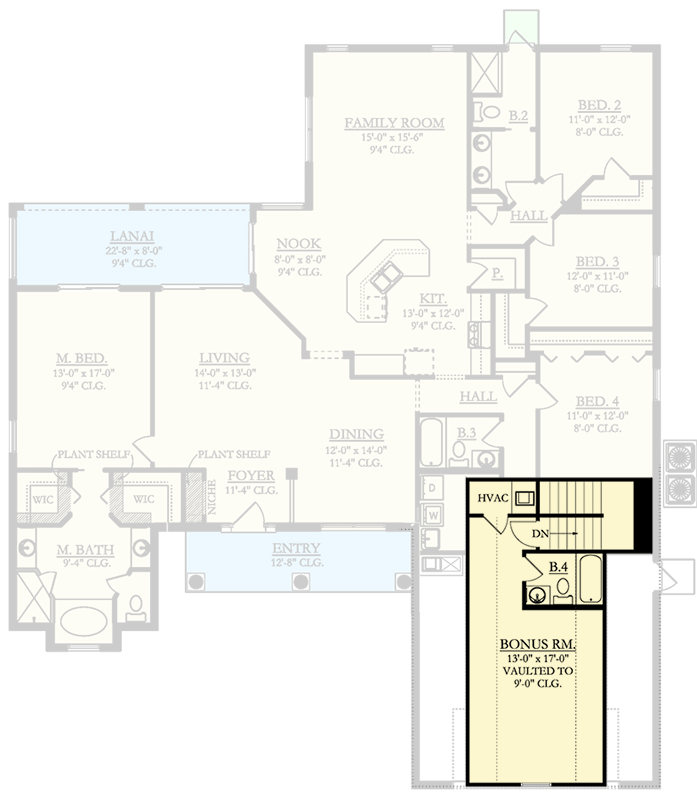

Lovely and Spacious - 82209KA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,909 sq. ft.
  • 1st Floor: 2,544 sq. ft.
  • 2nd Floor: 365 sq. ft.
  • Porch, Front: 149 sq. ft.
  • Porch, Rear: 189 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 63' 0"
  • Depth: 72' 0"
  • Max ridge height: 20' 9"

Garage

  • Type: Attached
  • Area: 544 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"
Room Type Height
Entry Flat 12' 8"
Foyer Flat 11' 4"
Living Room Flat 11' 4"
Dining Room Flat 11' 4"
Family Room Flat 9' 4"
Kitchen Flat 9' 4"
Nook Flat 9' 4"
Master Bedroom Flat 9' 4"

Roof Details

  • Primary Pitch: 7 on 12
  • Framing Type: Truss

Architectural Style

Special features



Lovely and Spacious

  • 2,909

    Heated s.f.

  • 4 - 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,765
  • CAD $2,055
  • PDF - single-use $2,055
  • CAD - multi-use $8,825
  • PDF - multi-use $8,825
  • View all purchase option online

About This Plan

  • Formal and informal living areas both have an open concept design in this lovely one story Southern house plan.
  • A half wall in the foyer lets you look right into the dining room as you enter.
  • A rear covered lanai can be reached through sliding glass doors in the living room, master suite and breakfast nook.
  • The well-appointed kitchen enjoys wonderful views right from the kitchen sink so you can keep tabs on the family gatherings.
  • Separated from the family bedrooms, the master suite has the left side of the home all to itself.
  • Two walk-in closets lie at the entrance to the spacious master bathroom.
  • On the other side of the home, three family bedrooms share two bathrooms.
  • Bonus space on the second floor can easily become a fifth bedroom.
  • Related Plans: Get different exteriors with house plans 82210KA and 82211KA.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,909 sq. ft.
  • 1st Floor: 2,544 sq. ft.
  • 2nd Floor: 365 sq. ft.
  • Porch, Front: 149 sq. ft.
  • Porch, Rear: 189 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 63' 0"
  • Depth: 72' 0"
  • Max ridge height: 20' 9"

Garage

  • Type: Attached
  • Area: 544 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss

Plan 82209KA
View this and more for this plan by visiting www.architechtecturaldesigns.com/82209KA
|
