Plan 59312ND
Lovely Duplex Design
Heated S.F.
3,308
Units
2
Width
98'
Depth
58' 6"
Cars
4
What's Included
Plan Details
  • Upon entering the foyer, a great room with an eleven-foot ceiling, built in media center and cozy fireplace awaits you.
  • Travel through the foyer to the kitchen open to a hearth and dining room with optional fireplace accessing a rear-covered porch.
  • The laundry room with a built in ironing board center is centrally located and just steps away from the kitchen.
  • For the utmost in privacy, the master suite is located away from the two additional bedrooms and full bath.
  • The luxurious master bathroom has a corner whirlpool tub with glass block, a separate shower, private toilet area, large walk-in closet and private access to the rear porch.
  • A double car garage with storage room complete this lovely design.
Unit A
1,654 Sq. Ft.
1654 Sq. Ft. 1st Floor
3 Beds
2 Full Baths
393 Sq. Ft.
49' w 58' 6" d 28' h
Unit B
1,654 Sq. Ft.
1654 Sq. Ft. 1st Floor
3 Beds
2 Full Baths
393 Sq. Ft.
49' w 58' 6" d 28' h
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Lovely Duplex Design

  • 3,308

    Heated s.f.

  • 2

    Units

  • 98'

    Width

  • 58' 6"

    Depth

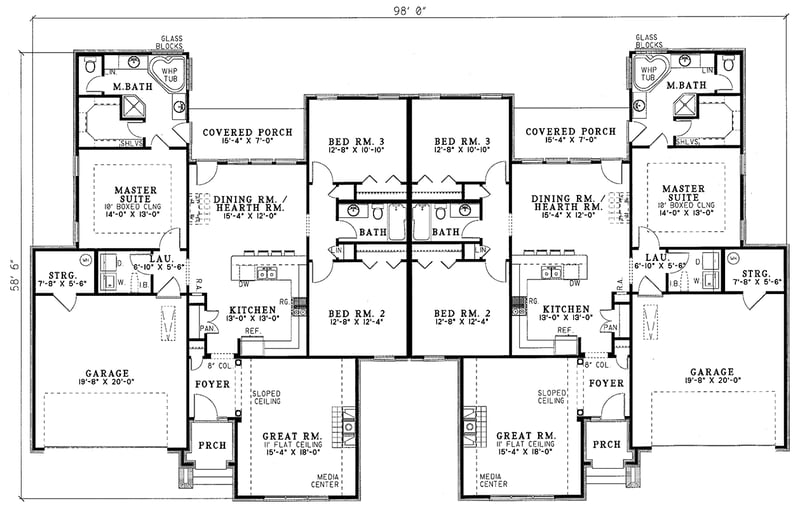

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,308 sq. ft.
  • 1st Floor: 3,308 sq. ft.

Dimensions

  • Width: 98' 0"
  • Depth: 58' 6"
  • Max ridge height: 28' 4"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 786 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
