Low Country Split Bedroom Plan

Plan 59422ND

  • 3,435

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Invite your friends for good times to this low country split bedroom home plan. The comfortable sun room with corner fireplace is a perfect gathering place. There is convenient deck access ifthe weather is nice.
  • The great room is the central gathering place. A fireplace is the focal point and the room shares an openness with the dining room and kitchen nearby.
  • Upstairs, you'll find two bedrooms with walk-in closets and two baths. A vaulted game room adds many possibilities.
  • Relax in your luxurious suite with elegant master bath and enormous walk-in closet.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Low Country Split Bedroom Plan - 59422ND floor plan - Basement

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

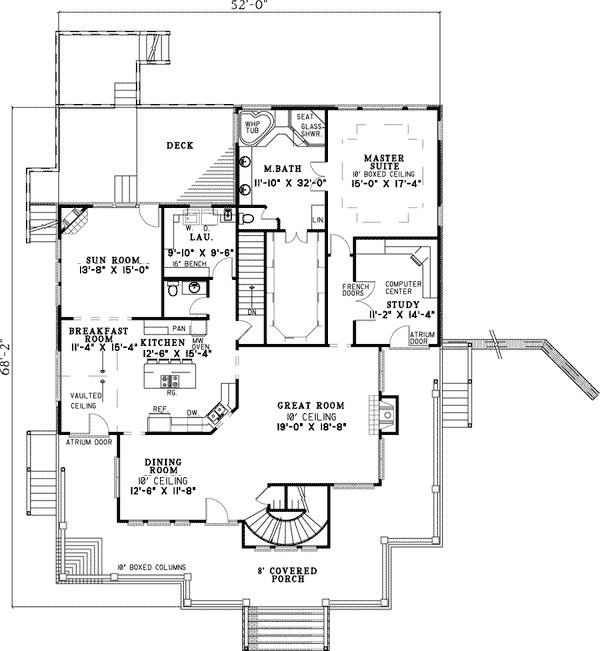

Low Country Split Bedroom Plan - 59422ND floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Low Country Split Bedroom Plan - 59422ND floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,435 sq. ft.
  • 1st Floor: 2,343 sq. ft.
  • 2nd Floor: 1,092 sq. ft.
  • Porch, Combined: 1,243 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Daylight
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 68' 2"
  • Max ridge height: 29' 2"

Garage

  • Type: Attached
  • Area: 845 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Low Country Split Bedroom Plan

  • 3,435

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,200
  • 5 Sets $1,300
  • 5 Sets + PDF $1,550
  • PDF - Unlimited Build $1,900
  • CAD Unlimited + PDF $2,400
  • View all purchase option online

About This Plan

  • Invite your friends for good times to this low country split bedroom home plan. The comfortable sun room with corner fireplace is a perfect gathering place. There is convenient deck access ifthe weather is nice.
  • The great room is the central gathering place. A fireplace is the focal point and the room shares an openness with the dining room and kitchen nearby.
  • Upstairs, you'll find two bedrooms with walk-in closets and two baths. A vaulted game room adds many possibilities.
  • Relax in your luxurious suite with elegant master bath and enormous walk-in closet.

Floor Plans

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,435 sq. ft.
  • 1st Floor: 2,343 sq. ft.
  • 2nd Floor: 1,092 sq. ft.
  • Porch, Combined: 1,243 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Daylight
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 68' 2"
  • Max ridge height: 29' 2"

Garage

  • Type: Attached
  • Area: 845 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
Plan 59422ND
View this and more for this plan by visiting www.architechtecturaldesigns.com/59422ND
|
