Plan 290008IY
Luxurious 6 Bed House Plan With 3 Levels Of Living
Heated S.F.
5,252
Beds
4-6
Baths
5.5 - 7.5
Stories
2
Cars
4
What's Included
Plan Details
  • Luxurious amenities abound in this sprawling 6 bed house plan, with three levels of living space to enjoy.
  • Ceilings are 10' high on the first floor with a vaulted and beamed great room as the crowning jewel.
  • Sliding glass doors in the large dining area and great room lead you to a big covered patio that is warmed by an outdoor fireplace.
  • The huge master suite gets its own private covered patio plus an elegant tray ceiling and a giant walk-in closet with built-in chest of drawers.
  • Upstairs, bedroom 2 has a reading nook while bedroom 4 enjoys an enormous amount of space.
  • The fun really begins on the ground level where there's a golf lab, a games room and a second kitchen plus two more bedrooms each with private bathrooms.
What's Included
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans

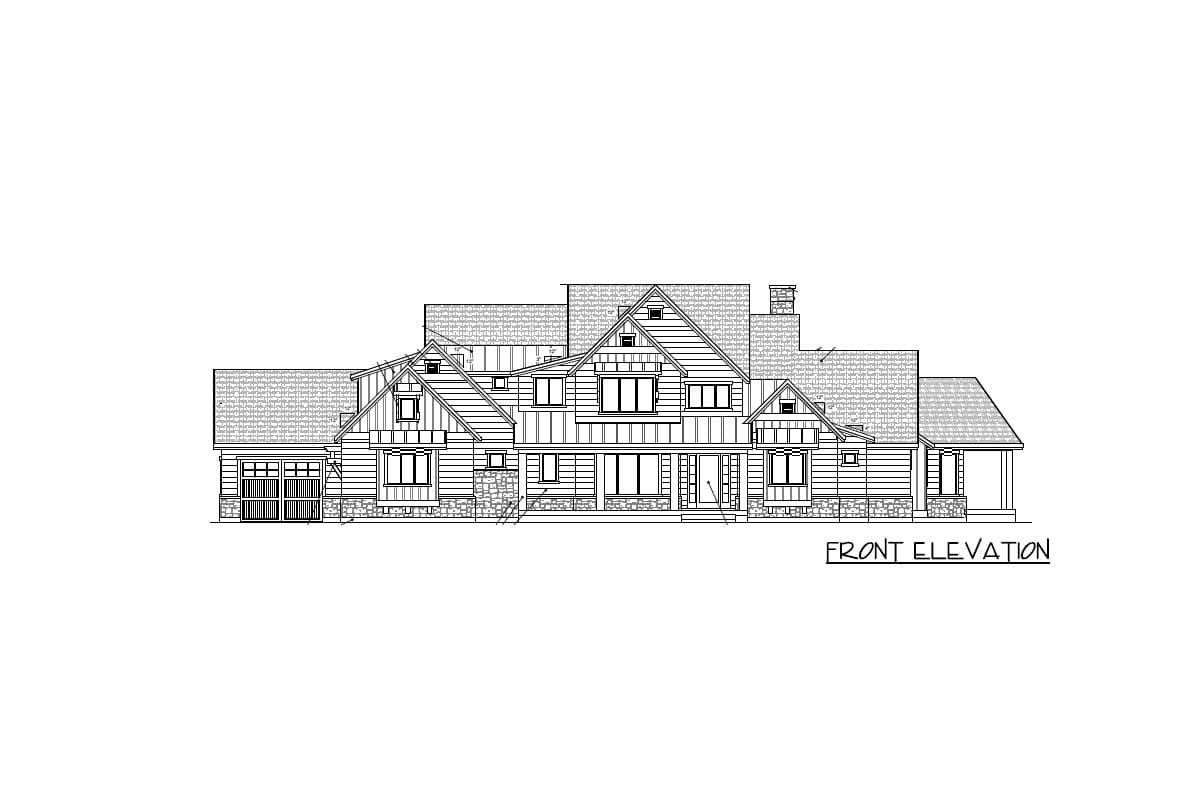

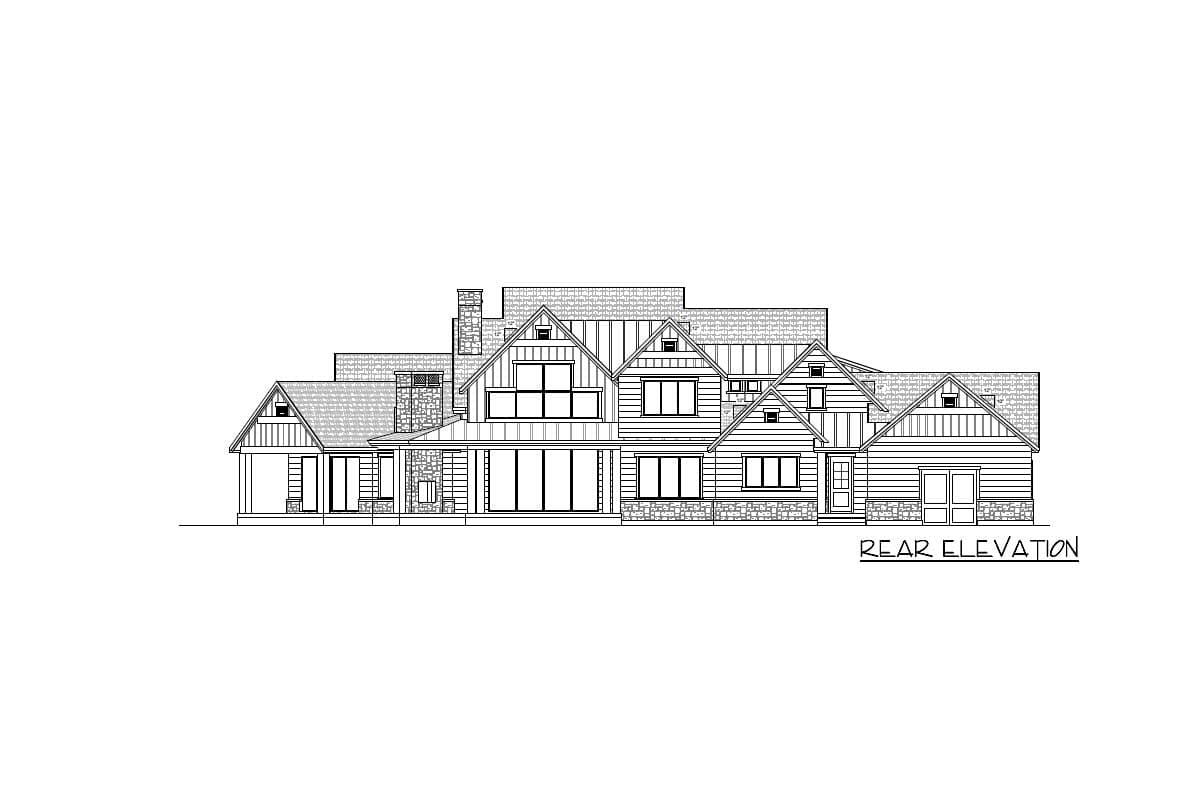

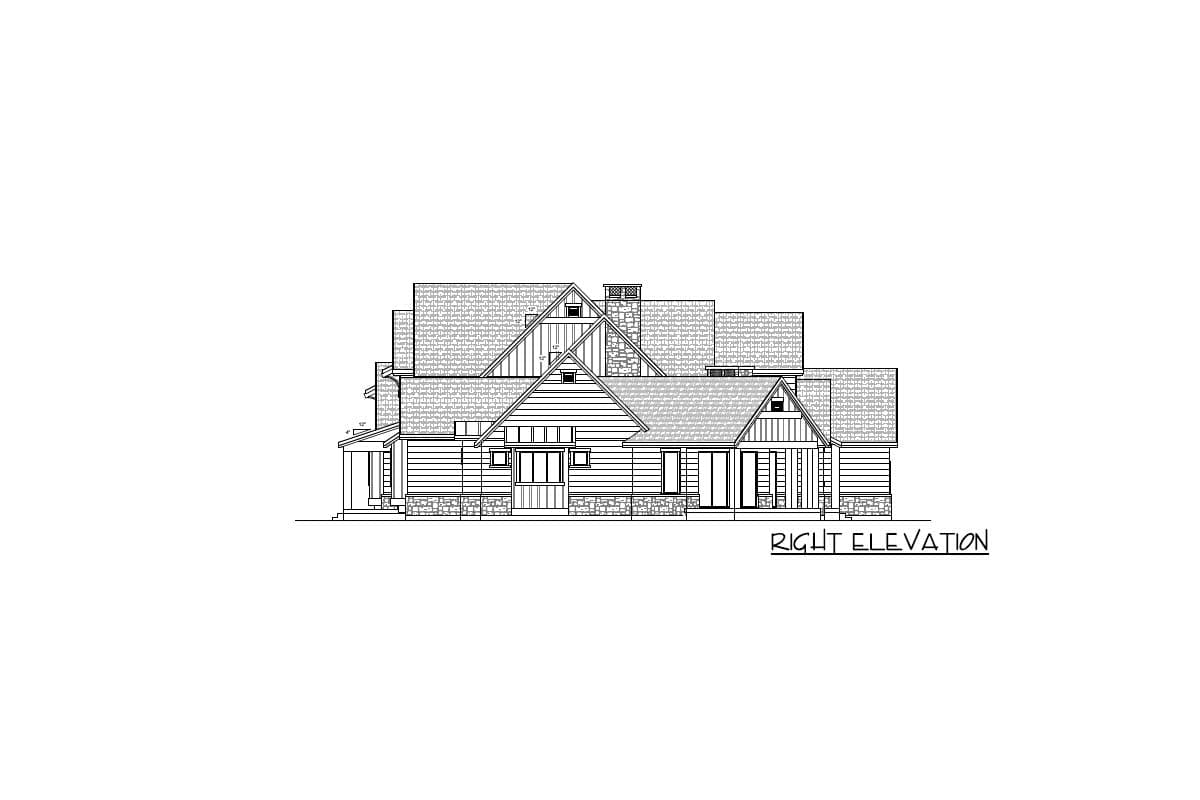

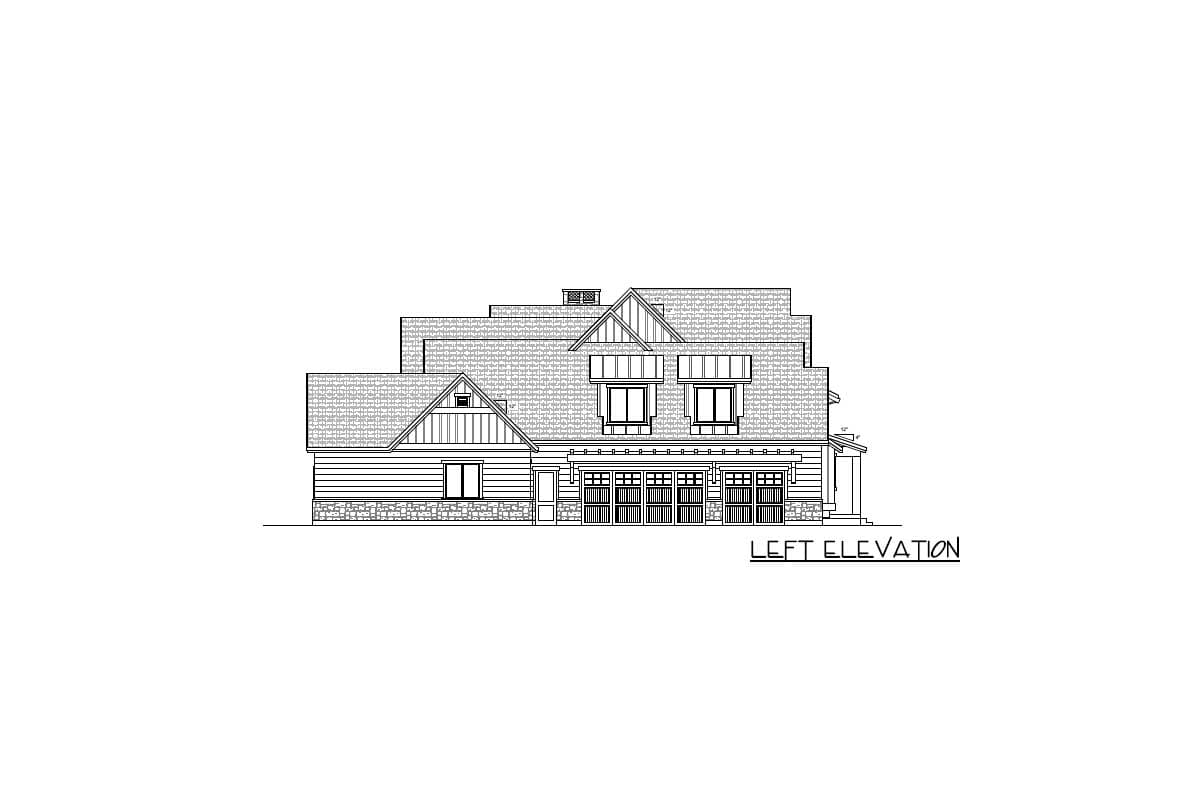

  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Luxurious 6 Bed House Plan With 3 Levels Of Living

  • 5,252

    Heated s.f.

  • 4-6

    Beds

  • 5.5 - 7.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

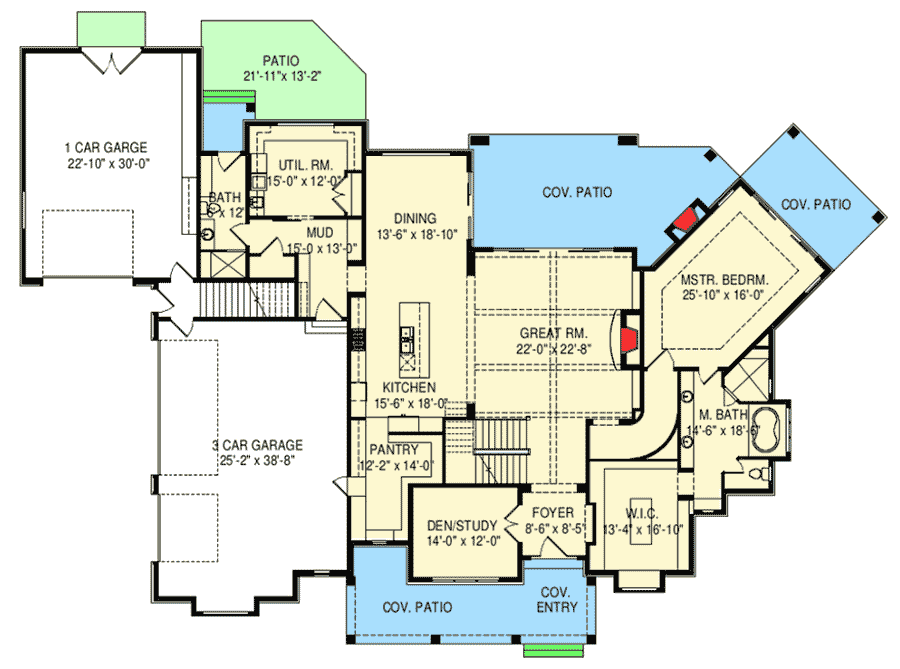

  • Main Level

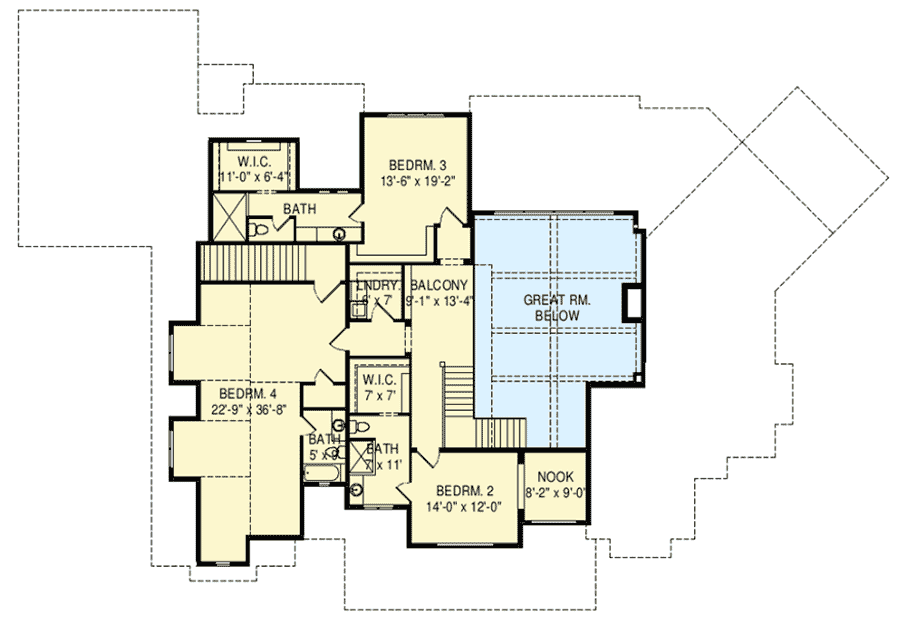

  • 2nd Floor

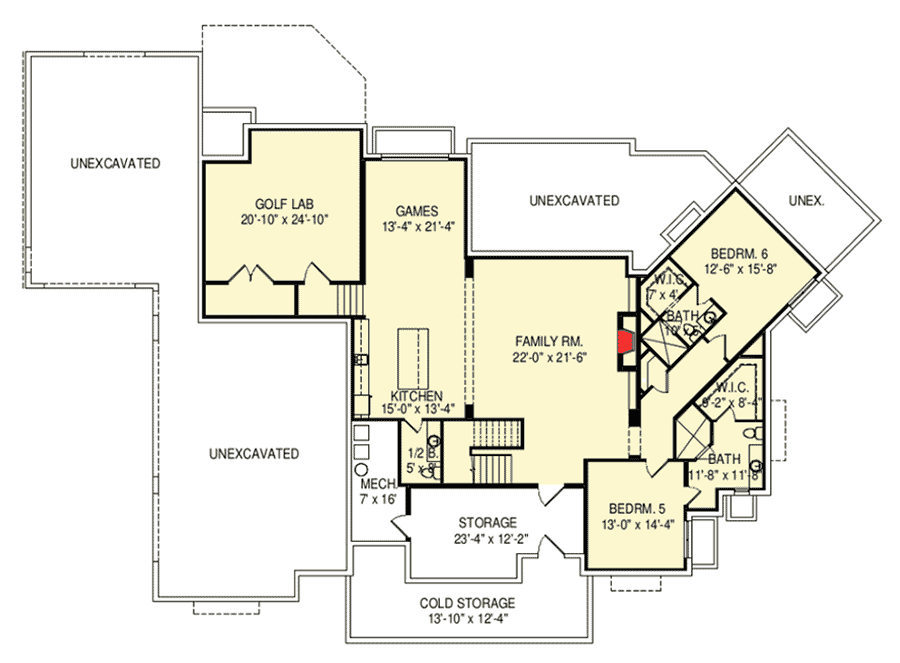

  • Lower Level
