Luxurious Craftsman Home Plan

Plan 11550KN

This plan plants 3 trees

8,031
Heated s.f.
5
Beds
5
Baths
2
Stories
2
Cars

Designed for maximum curb appeal, this outstanding home plan will command your attention from all angles.

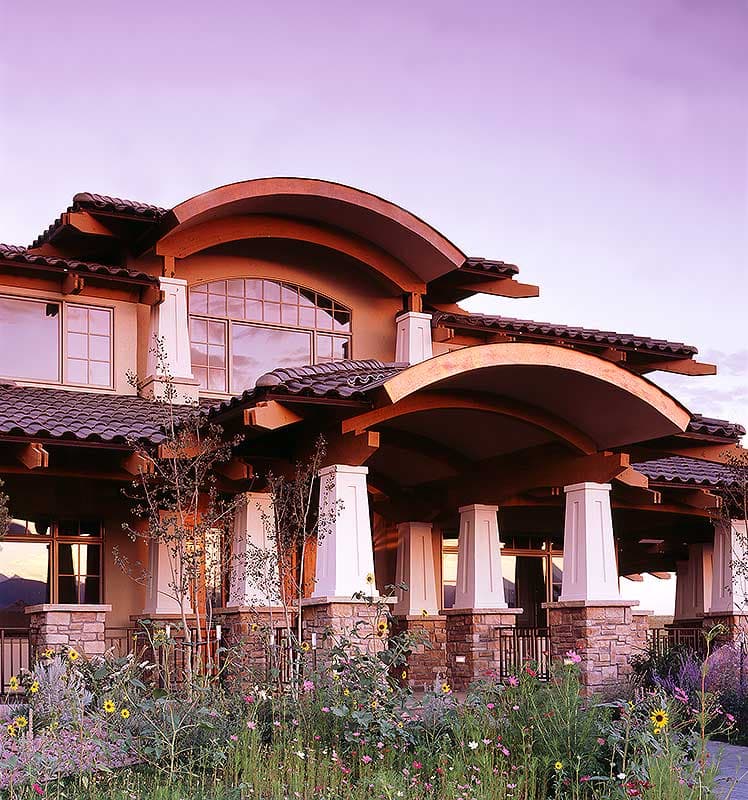

A clay tile roof covers a wraparound porch that extends across three sides of the home. Stacked stone columns add to the rustic appeal.
Walls of windows fill the two-story great room with light and let in the views from outside.
Note the huge walk-in pantry near the kitchen, sure to delight the family chef.
Enjoy breakfast in the light-filled nook brightened by windows on three sides.

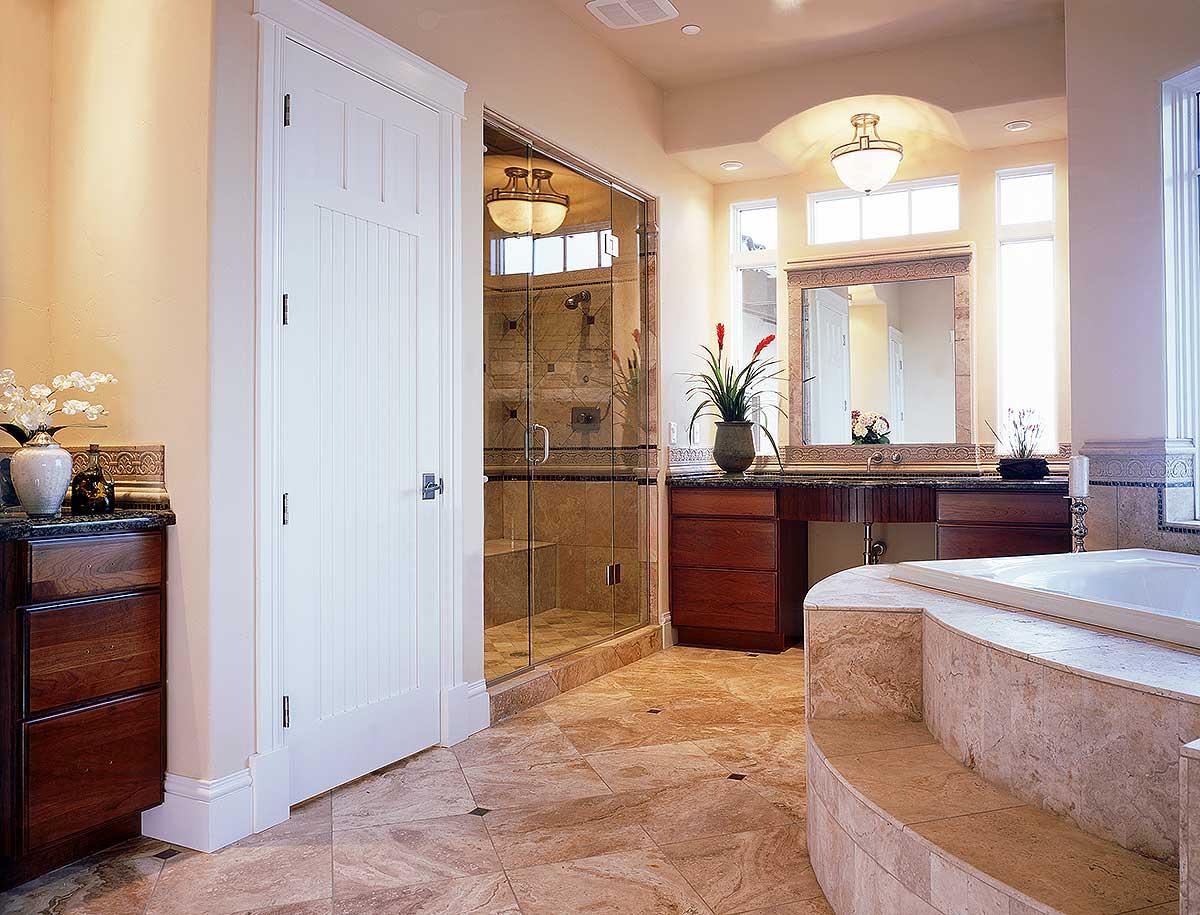

The first floor master suite has a tray ceiling and huge spa bath.
Three bedrooms and a reading nook that overlooks the great room can be found on the second level.
Entertain to your heart's content in the spacious lower level with plenty of room for a home theater, small kitchen and second master suite. This area would make a perfect in-law suite.

Floor plans at ¼" scale

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

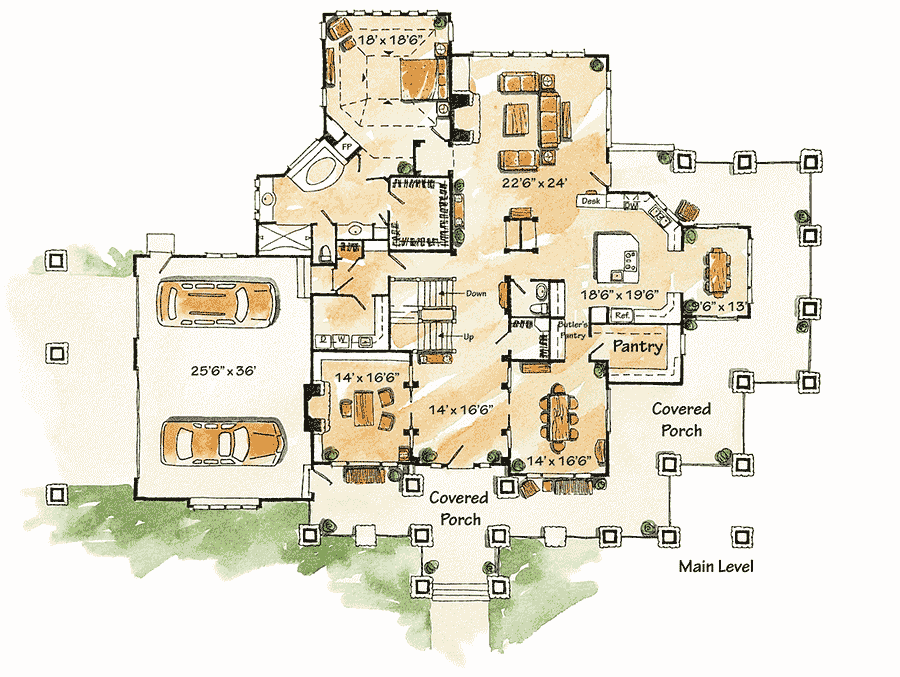

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Luxurious Craftsman Home Plan - 11550KN floor plan - Main Level

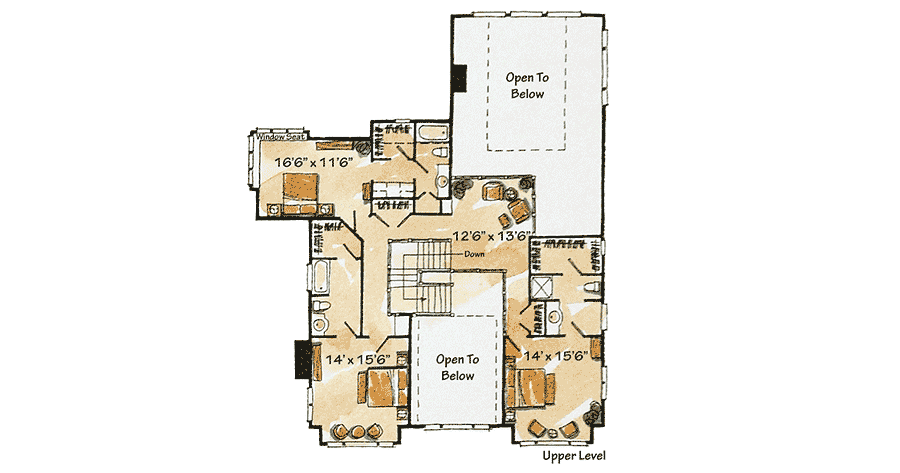

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Luxurious Craftsman Home Plan - 11550KN floor plan - 2nd Floor

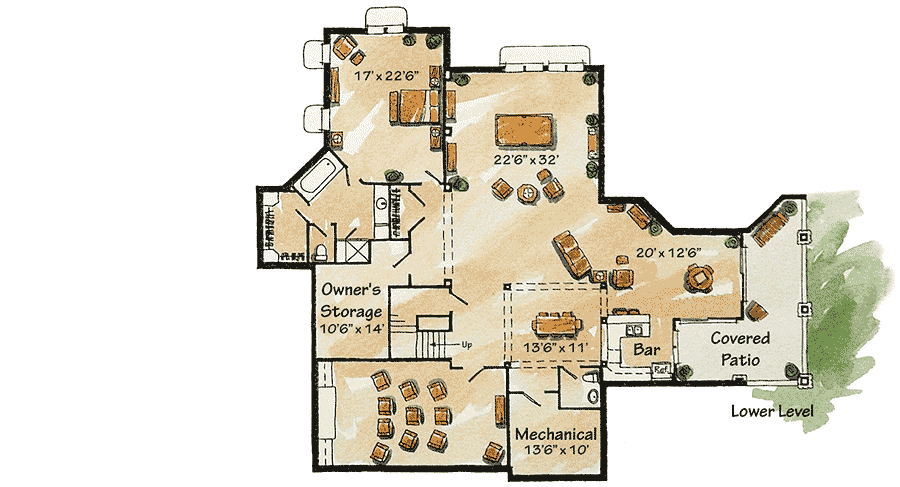

Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Luxurious Craftsman Home Plan - 11550KN floor plan - Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 8,031 sq. ft.
Lower Level: 3,177 sq. ft.
1st Floor: 3,356 sq. ft.
2nd Floor: 1,498 sq. ft.

Beds/Baths

Bedrooms: 5

Full bathrooms: 5

Foundation Type

Standard Foundations: Basement, Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 88' 0"
Depth: 122' 0"
Max ridge height: 30' 0"

Garage

Type: Attached
Area: 976 sq. ft.
Count: 2 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features
