Luxurious European New American House Plan with Split Beds, Bonus Room

Heated S.F.
3,426
Beds
3 - 4
Baths
2.5
Stories
1
Cars
3

Floor Plan

Plan 86419HH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 86419HH

M-F 9am-5pm EST |

1-203-761-8500

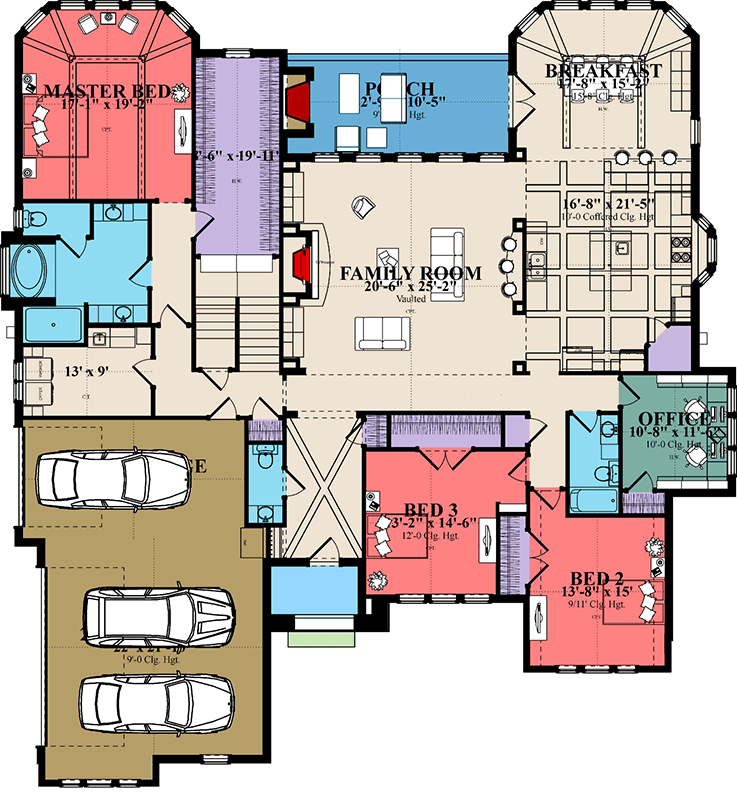

Main Level

Plan 86419HH: Luxurious European New American House Plan with Split Beds, Bonus Room - Floor Plan - Main Level - European, New American

2nd Floor

Plan 86419HH: Luxurious European New American House Plan with Split Beds, Bonus Room - Floor Plan - 2nd Floor - European, New American

Plan Details

  • This stately 3,426 sq. ft. European New American house plan offers 3-4 bedrooms, 2 full baths, 1 half bath, and a generous 842 sq. ft. 3-car side-entry garage, presenting a sophisticated facade of stone and light-toned brick.
  • Step inside to discover a grand foyer with 10-foot ceilings that extend throughout the main level, leading your gaze into an expansive open-concept living area designed for both intimate family life and grand entertaining, with a flexible space ideal for a home office or formal dining.
  • The heart of the home features a gourmet kitchen with a spacious island, seamlessly flowing into a sun-drenched breakfast nook and a comfortable great room, creating a cohesive living environment.
  • The private first-floor master suite is a serene retreat, thoughtfully separated from the secondary bedrooms for ultimate privacy, creating a desirable split bedroom layout. A convenient main-level laundry room enhances daily living.
  • Enjoy tranquil evenings and al fresco dining on the rear outdoor living space, complete with an inviting outdoor fireplace, perfect for gathering with loved ones.
  • An impressive 878 sq. ft. bonus room above the garage offers incredible potential for a future media room, additional bedroom, or a vibrant play area, allowing for tailored expansion as your needs evolve.

What's Included

  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,426 sq. ft.

1st Floor

3,426 sq. ft.

Bonus

878 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

73' 11"

Depth

79' 0"

Max Ridge Height

34' 4"

Garage

Type

Standard

Area

842 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

New American

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Outdoor Fireplace

Square Footage Breakdown

Total Heated Area

3,426 sq. ft.

1st Floor

3,426 sq. ft.

Bonus

878 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

73' 11"

Depth

79' 0"

Max Ridge Height

34' 4"

Garage

Type

Standard

Area

842 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

New American

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Outdoor Fireplace
