Plan: 40920DB

Luxurious French Chateau

7,004 5 7 2 3
Pageloader

Luxurious French Chateau

Plan 40920DB

  • 7,004

    Heated s.f.

  • 5

    Beds

  • 7

    Baths

  • 2

    Stories

  • 3

    Cars

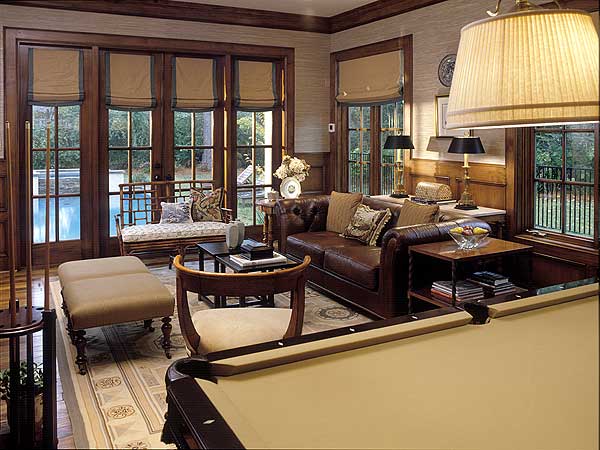

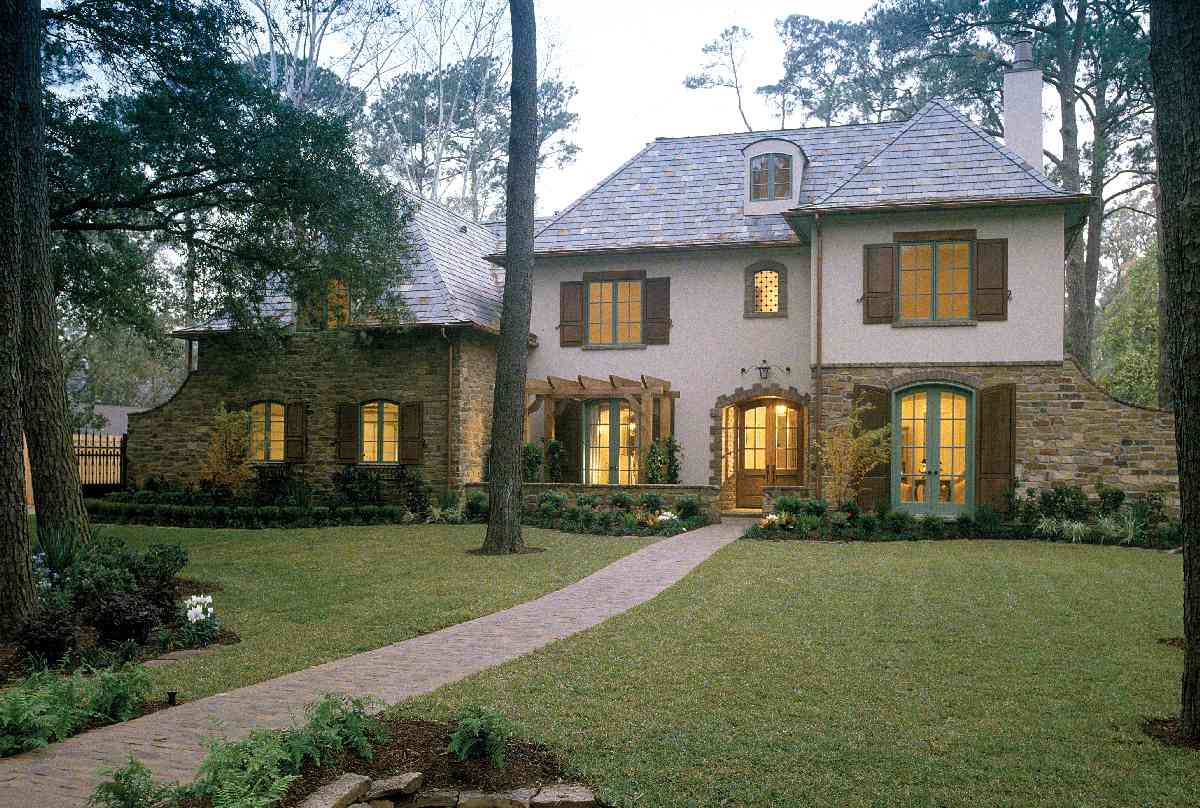

  • Luxurious amenities abound throughout this elegant French Chateau with five bedrooms, a game room, billiards room and private study.
  • The dramatic curved staircase creates a stunning focal point and leads to the second floor with 5 large bedrooms, a computer alcove and a game room that overlooks the back yard.

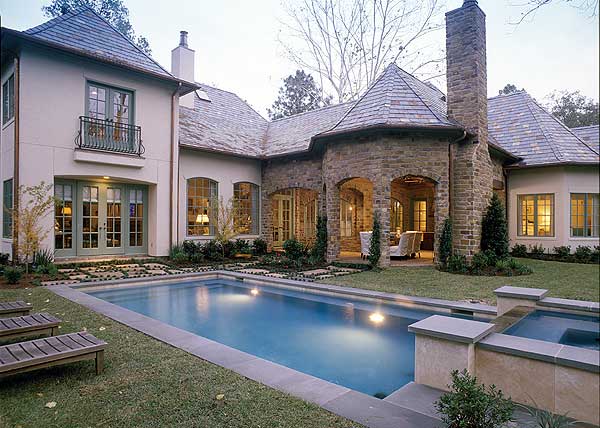

  • Off the informal eating area, an over-sized covered loggia is the perfect place to enjoy outdoor time with a warm fireplace and outdoor kitchen.
  • A wine closet and butler's pantry keep things flowing smoothly while entertaining.

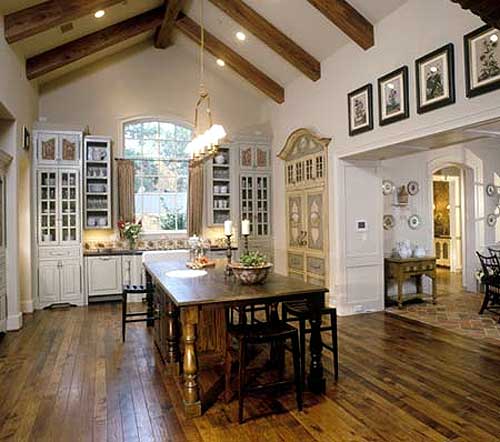

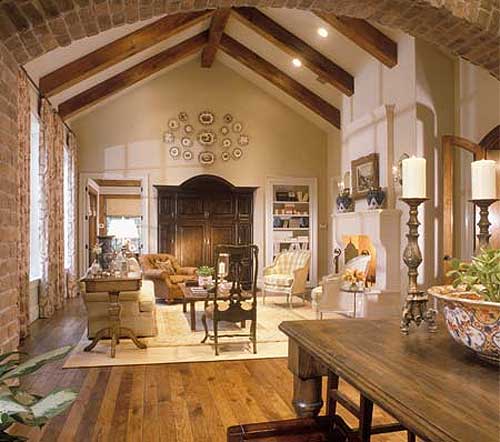

  • Beams highlight the cathedral ceiling in the family room and kitchen for a rustic feel.

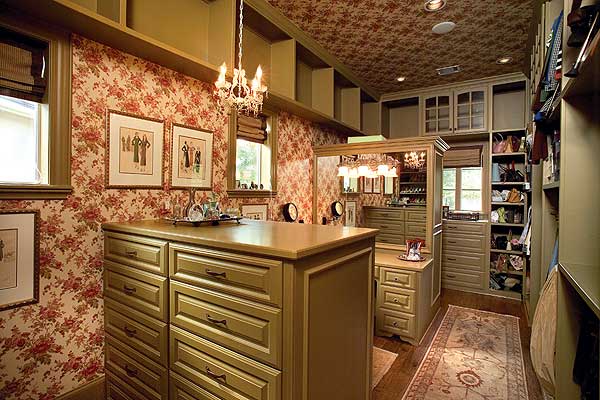

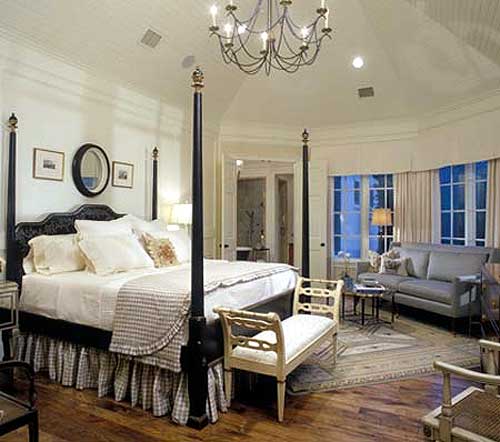

  • Tucked away in the rear, the master suite boasts a cathedral ceiling, two huge walk-in closets and a spa bath with two dressing areas.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

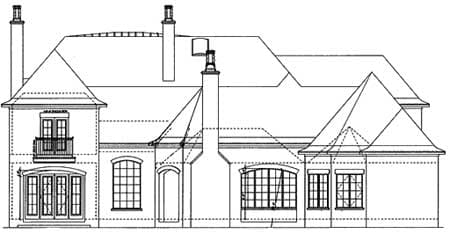

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Plan details



Luxurious French Chateau

  • 7,004

    Heated s.f.

  • 5

    Beds

  • 7

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $3,580
  • 5 Sets $3,730
  • 8 Sets $3,855
  • PDF - multi-use $4,080
  • CAD - multi-use $5,870
  • View all purchase option online

About This Plan

  • Luxurious amenities abound throughout this elegant French Chateau with five bedrooms, a game room, billiards room and private study.
  • The dramatic curved staircase creates a stunning focal point and leads to the second floor with 5 large bedrooms, a computer alcove and a game room that overlooks the back yard.
  • Off the informal eating area, an over-sized covered loggia is the perfect place to enjoy outdoor time with a warm fireplace and outdoor kitchen.
  • A wine closet and butler's pantry keep things flowing smoothly while entertaining.
  • Beams highlight the cathedral ceiling in the family room and kitchen for a rustic feel.
  • Tucked away in the rear, the master suite boasts a cathedral ceiling, two huge walk-in closets and a spa bath with two dressing areas.

Floor Plans

  • Basement

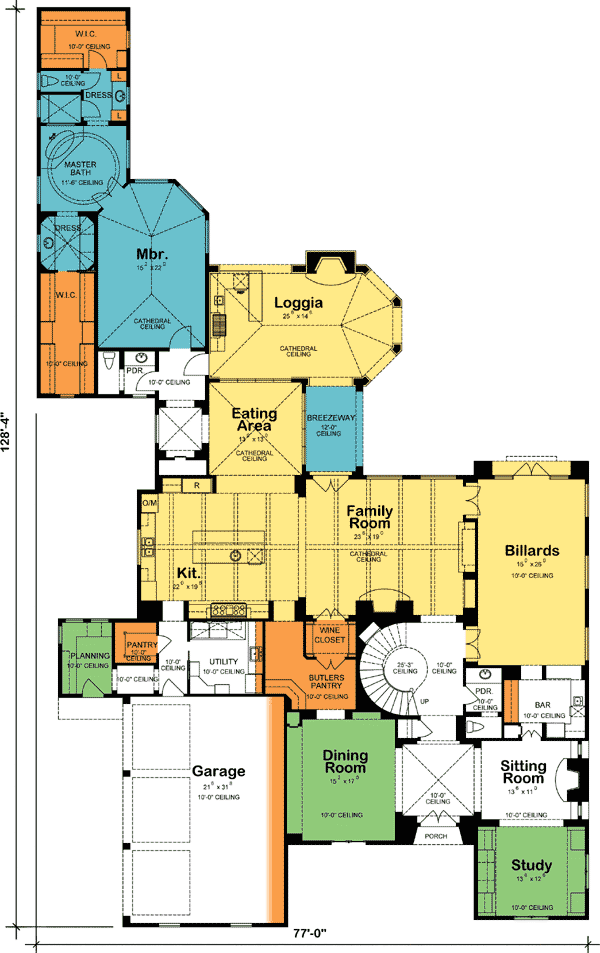

  • Main Level

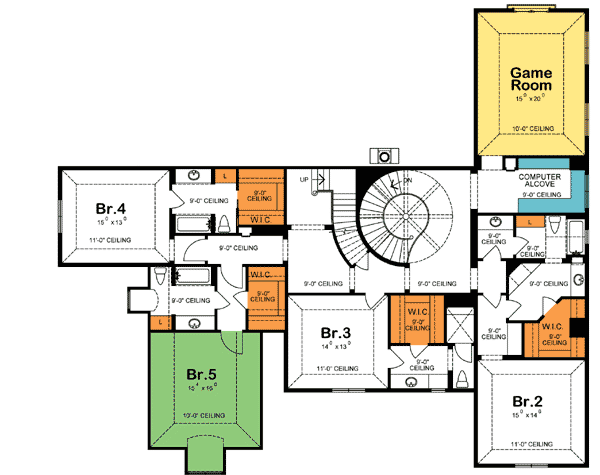

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,004 sq. ft.
  • 1st Floor: 4,323 sq. ft.
  • 2nd Floor: 2,681 sq. ft.
  • Storage: 400 sq. ft.
  • Porch, Front: 593 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 77' 0"
  • Depth: 128' 4"
  • Max ridge height: 34' 8"

Garage

  • Type: Attached
  • Area: 752 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

  • European
  • French Country

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • Media-Game-Home Theater
