Luxurious Mountain Home Plan

Plan 24107BG

  • 5,156

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • An open floor plan maximizes the views inside this luxurious Mountain home plan that leaves nothing out.
  • A residential elevator has been designed in so you can move easily to and from the lower level.
  • The largest of the rear lanais has room for an outdoor kitchen and a fireplace, while another lanai is accessed from the master suite and the vaulted great room.
  • A studt shares the 2-sided fireplace with the great room and has lanai access and great rear-facing views.
  • All the guest bedrooms are on the lower level along with a huge game room complete with wet bar. All bedrooms feature lanai access as does the game room.
  • Note: Plan restricted from construction in Buncombe County, North Carolina.

Plans include the following:

  • Cover page showing front elevation, contents and notes
  • Fully dimensioned floor plans including ceiling heights
  • Roof plan
  • All four exterior elevations
  • Typical cross section
  • Suggested electrical schematic
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Luxurious Mountain Home Plan - 24107BG floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

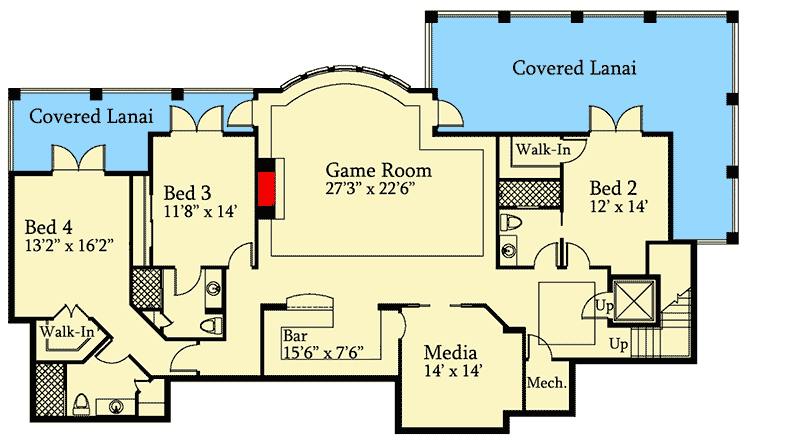

Luxurious Mountain Home Plan - 24107BG floor plan - Basement

Plan details

Luxurious Mountain Home Plan

  • 5,156

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,495
  • CAD - Single-Build $2,795
  • View all purchase option online

About This Plan

  • An open floor plan maximizes the views inside this luxurious Mountain home plan that leaves nothing out.
  • A residential elevator has been designed in so you can move easily to and from the lower level.
  • The largest of the rear lanais has room for an outdoor kitchen and a fireplace, while another lanai is accessed from the master suite and the vaulted great room.
  • A studt shares the 2-sided fireplace with the great room and has lanai access and great rear-facing views.
  • All the guest bedrooms are on the lower level along with a huge game room complete with wet bar. All bedrooms feature lanai access as does the game room.
  • Note: Plan restricted from construction in Buncombe County, North Carolina.

Floor Plans

  • Main Level

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,156 sq. ft.
  • Lower Level: 2,328 sq. ft.
  • 1st Floor: 2,828 sq. ft.
  • Lanai: 825 sq. ft.
  • Balcony / Veranda: 800 sq. ft.
  • Entry: 108 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 89' 4"
  • Depth: 84' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 971 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
