Plan 35415GH
Luxurious Mountain Lodge
Heated S.F.
6,246
Beds
6
Baths
5.5
Stories
1
Cars
4
What's Included
Plan Details
  • With over 6,246 square feet of luxury at your disposal, this Mountain lodge was designed to impress.
  • A grand view greets you when you step thru the foyer with sightlines that go back thru the living room to the rear covered porch.
  • Relax in the informal great room that is open to the kitchen and nook, united by tray ceilings.
  • The main floor " suite is totally opulent with a tray ceiling and a two-sided fireplace shared by the " bathroom.
  • Five more bedrooms are on the finished lower level, with a guest apartment that could function as a marvelous in-law suite.
  • There is even a dedicated exercise room with two windows to give you views while you work out.
What's Included
  • Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.
  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Luxurious Mountain Lodge

  • 6,246

    Heated s.f.

  • 6

    Beds

  • 5.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

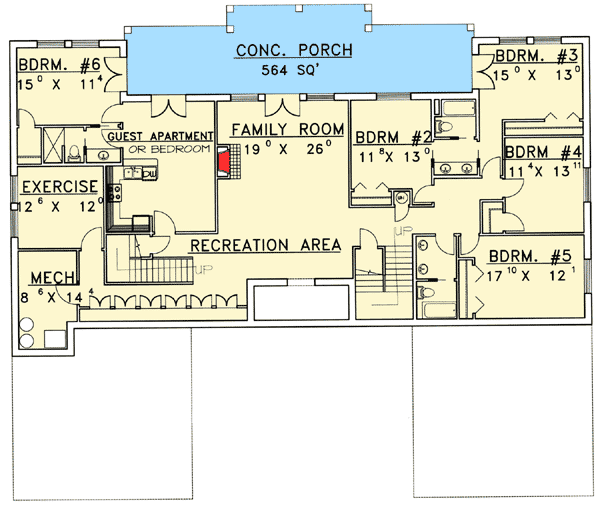

  • Basement

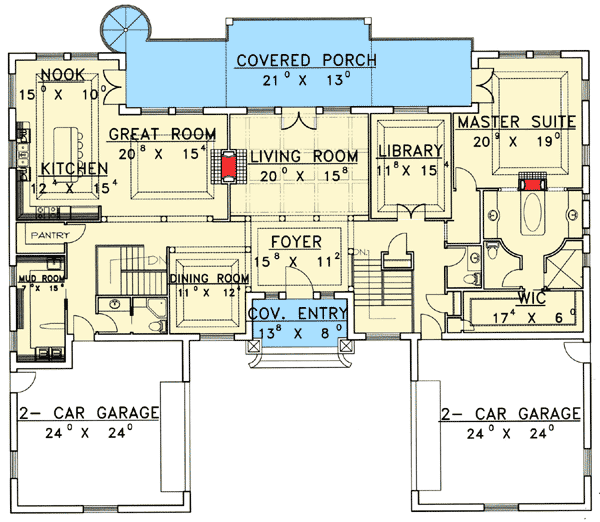

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 6,246 sq. ft.
  • Lower Level: 3,164 sq. ft.
  • 1st Floor: 3,082 sq. ft.

Dimensions

  • Width: 84' 0"
  • Depth: 72' 0"
  • Max ridge height: 23' 3"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1264 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement, Daylight

Exterior Walls

  • Standard Type(s): ICF

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
