Luxurious Retreat

Plan 3928ST

  • 2,587

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A brick and stone finish with arched windows, covered porch and shingle siding, decorate the exterior of this exciting home plan.
  • The foyer showcases the angled staircase and opens generously to the great room. High windows above the French doors in the great room combine with the many other features to create a wonderful view as you enter the home.
  • The spacious kitchen serves the breakfast room and dining room with equal ease and enjoys a snack bar, a window above the sink and a walk-in pantry.
  • The master bedroom suite boasts a sitting area with high ceiling and deluxe dressing area. The whirlpool tub, double bowl vanity and walk-in closet offer a luxurious retreat for the homeowner.
  • Three second floor bedrooms, one with a private bath, expands this home to serve a large family or one that enjoys having overnight guests.
  • Related Plan: Get an alternate version with house plan 39017ST.

  • General notes and specifications

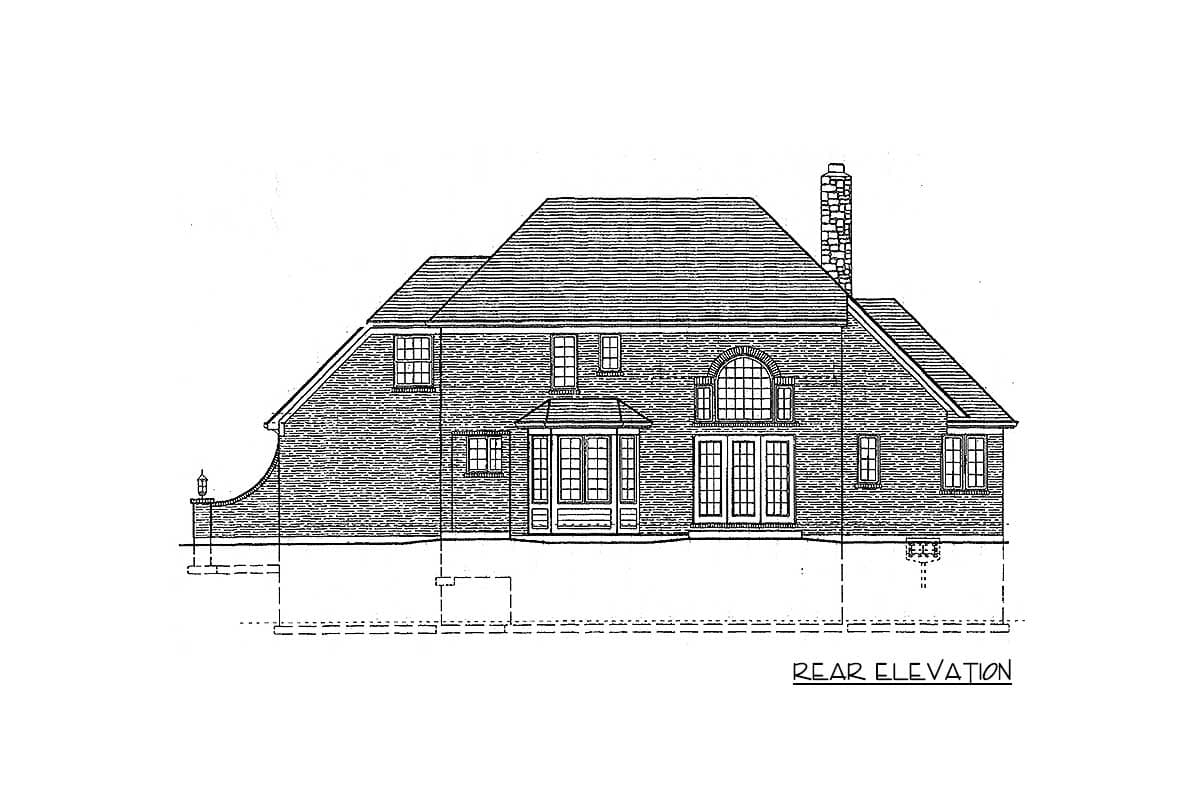

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

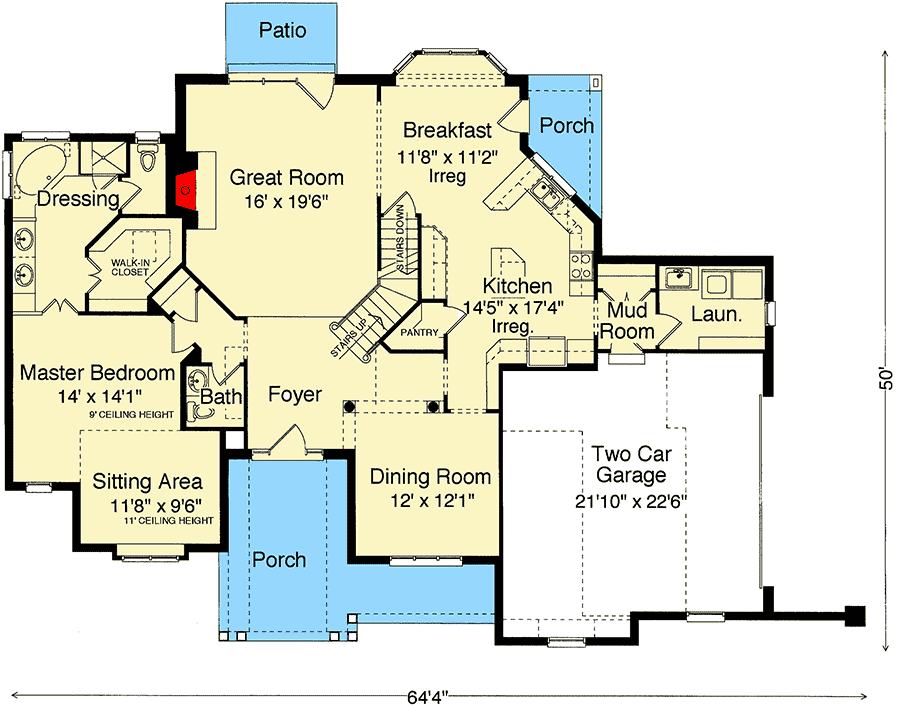

Luxurious Retreat - 3928ST floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

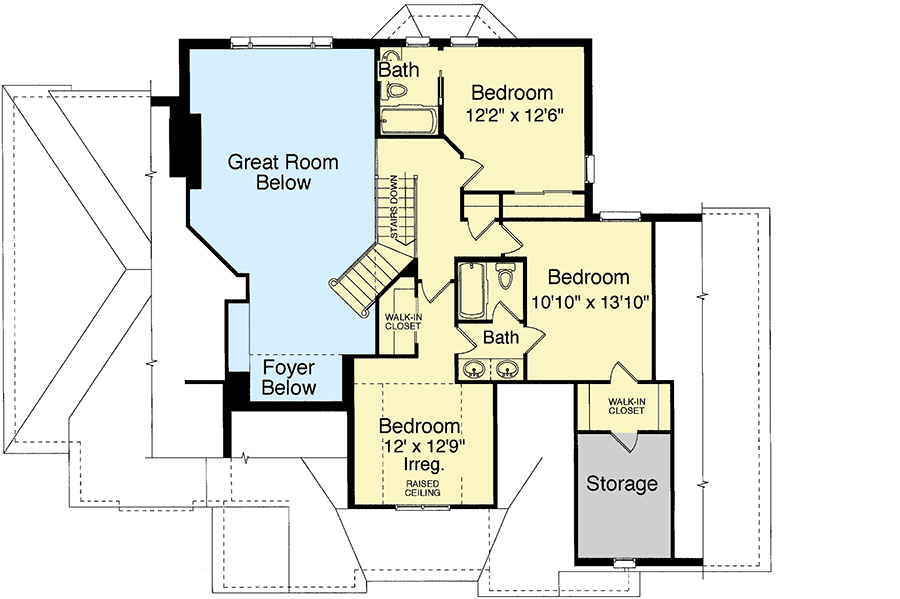

Luxurious Retreat - 3928ST floor plan - 2nd Floor

Luxurious Retreat

  • 2,587

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,587 sq. ft.
  • 1st Floor: 1,790 sq. ft.
  • 2nd Floor: 797 sq. ft.

Dimensions

  • Width: 64' 4"
  • Depth: 50' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 492 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement, Daylight
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
