Luxurious Two-Story Craftsman Home Plan for the Car Aficionado
Heated S.F.
5,295
Beds
5
Baths
5.5
Stories
2
Cars
6
What's Included
Plan Details

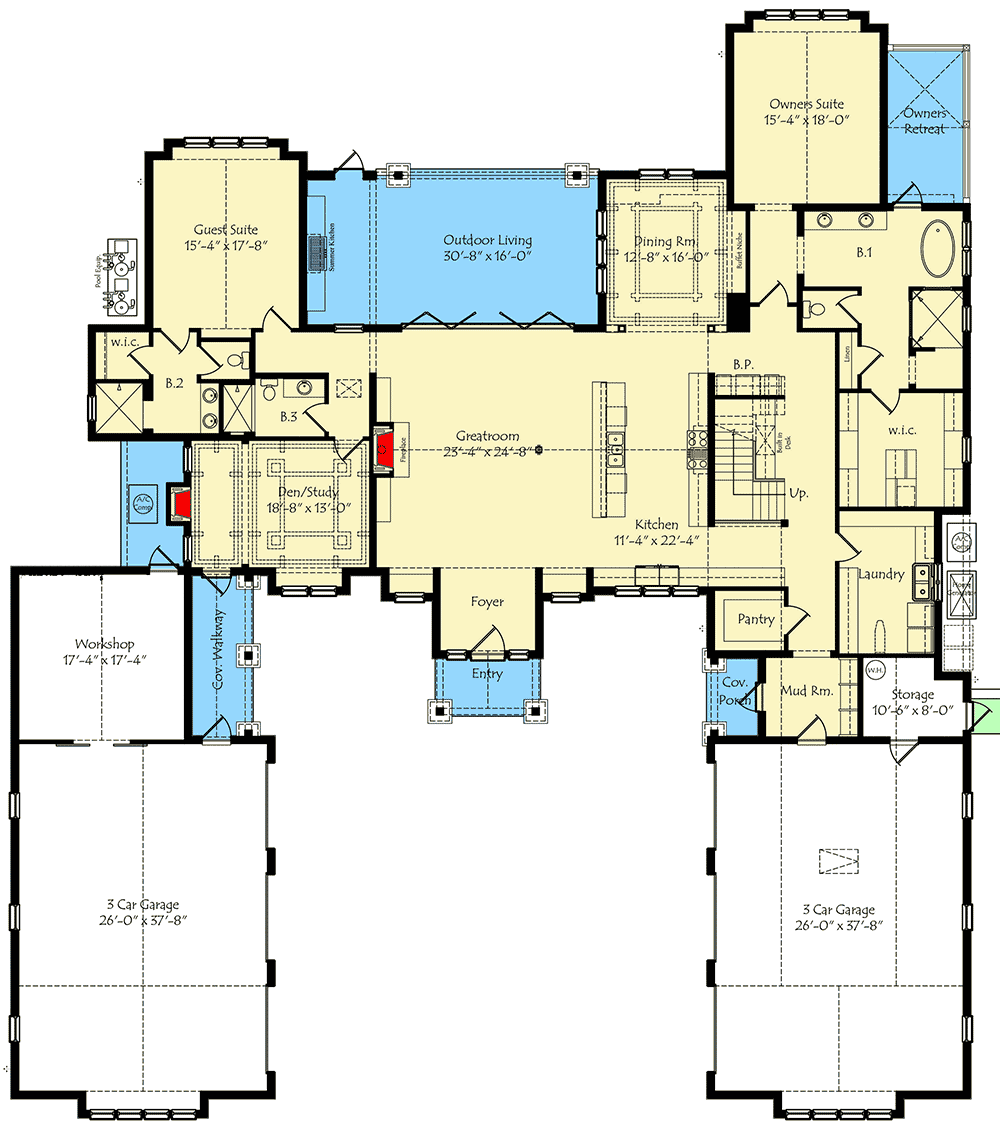

  • On either side of the home, a 3-car garage is attached, forming a U-shape design. A large workshop is included for the hobbyist.
  • The main entry opens to the heart of the home, consisting of a generously sized great room and kitchen; a large island resides in between the two rooms. The nearby dining room offers a built-in buffet.
  • A wall of sliding doors retracts to extend the living space to the covered porch, complete with a summer kitchen.
  • Retreat to the den for some peace and quiet, which neighbors a full bath and guest suite complete with a 4-fixture bath.
  • The owner's suite is on the main level, privately situated on the right side of the home. A lavish owner's bathroom features a freestanding tub, oversized shower with two heads, spacious walk-in closet, and a private patio.

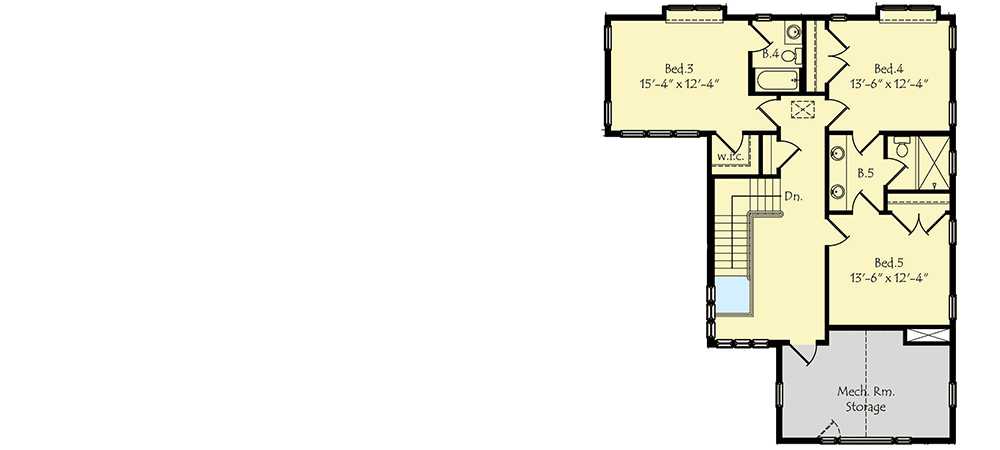

  • Upstairs, discover three bedrooms; two share a Jack-and-Jill bath, and one includes a full bath. Spacious service areas can accommodate any size of family.
What's Included
  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)

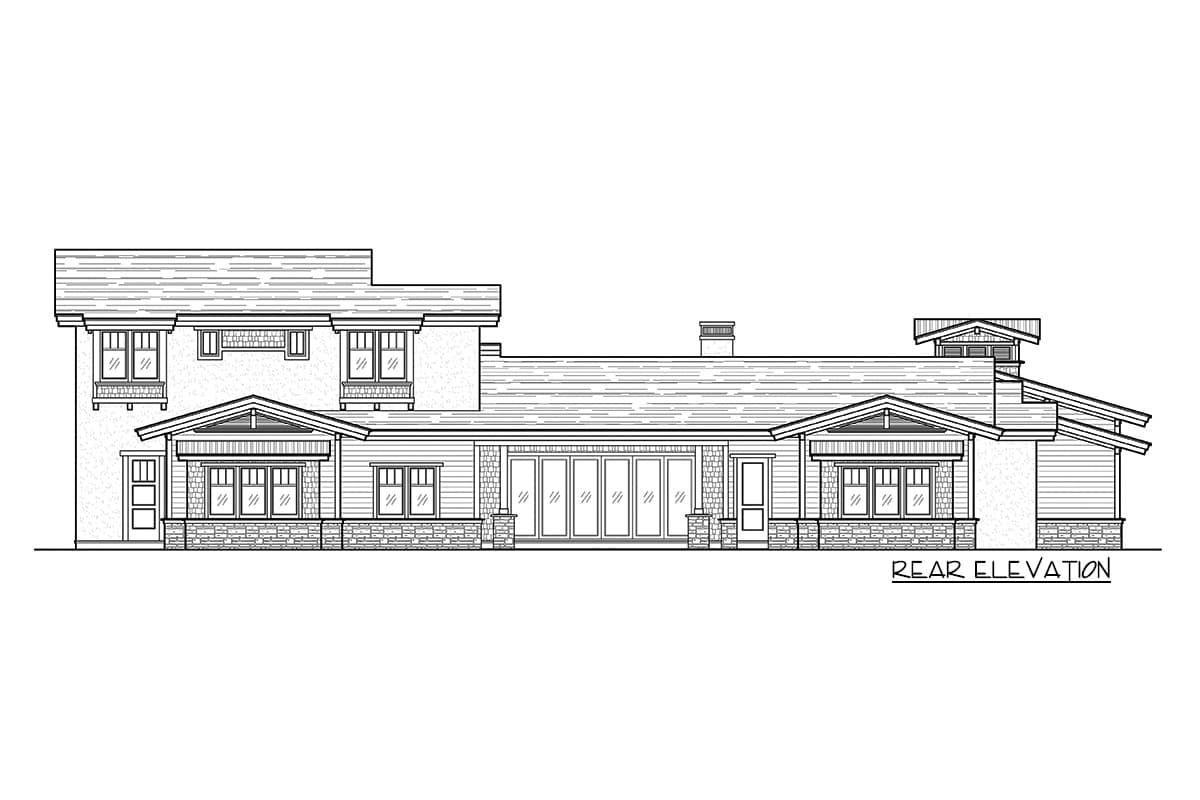

  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
