Plan 23931JD

Luxury 5-Bed House Plan with Walkout Basement and Rooftop Deck

Heated S.F.
9,505
Beds
5
Baths
6.5+
Stories
2
Cars
4

Floor Plan

Plan 23931JD

Basement
Basement
2nd Floor
2nd Floor
3rd Floor
3rd Floor
Floor Plan 4

Plan 23931JD

M-F 9am-5pm EST |

1-203-761-8500

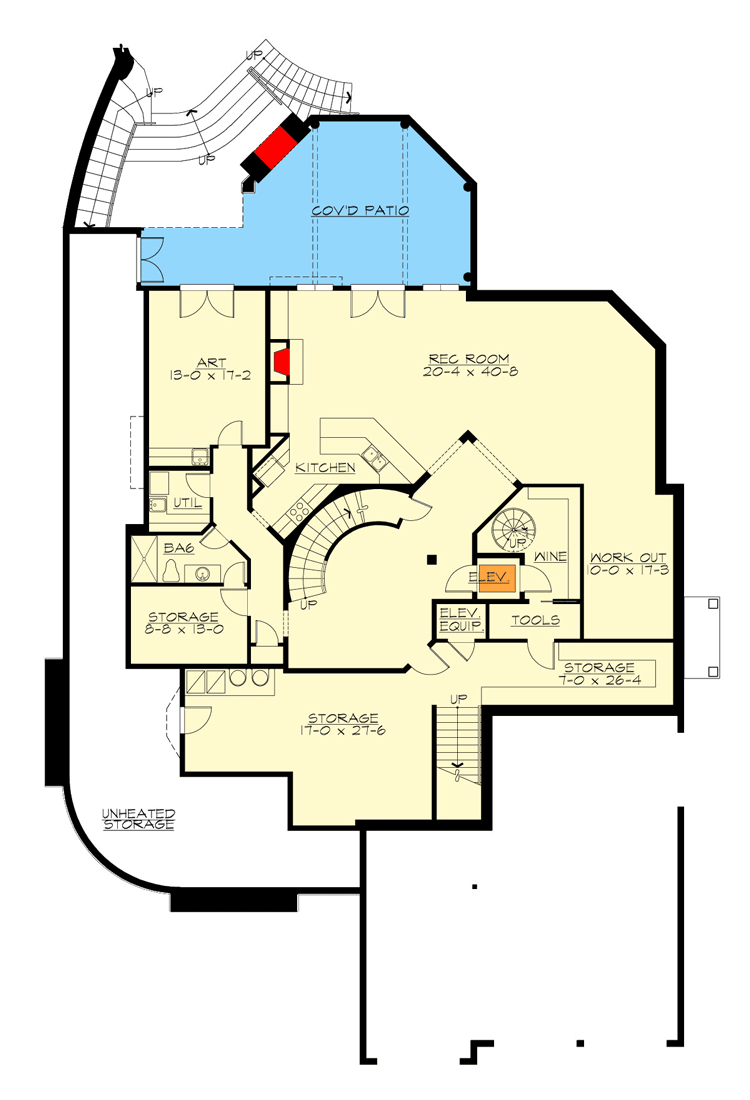

Basement

Plan 23931JD: Luxury 5-Bed House Plan with Walkout Basement and Rooftop Deck - Floor Plan - Basement

2nd Floor

Plan 23931JD: Luxury 5-Bed House Plan with Walkout Basement and Rooftop Deck - Floor Plan - 2nd Floor

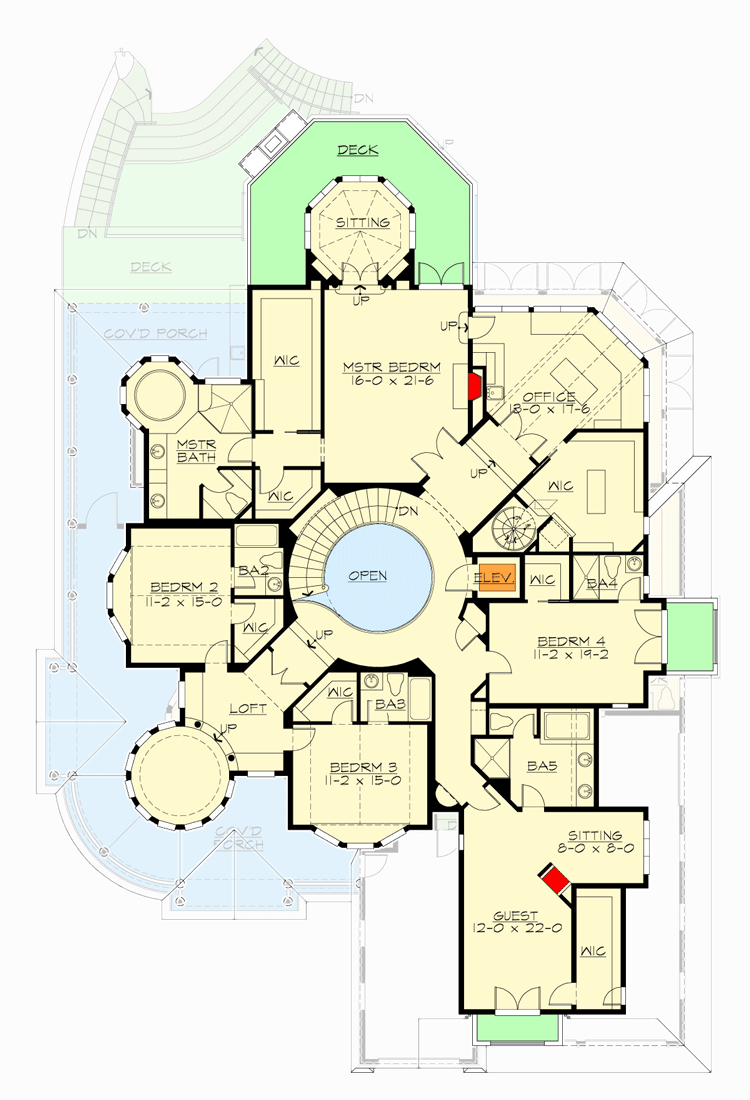

3rd Floor

Plan 23931JD: Luxury 5-Bed House Plan with Walkout Basement and Rooftop Deck - Floor Plan - 3rd Floor

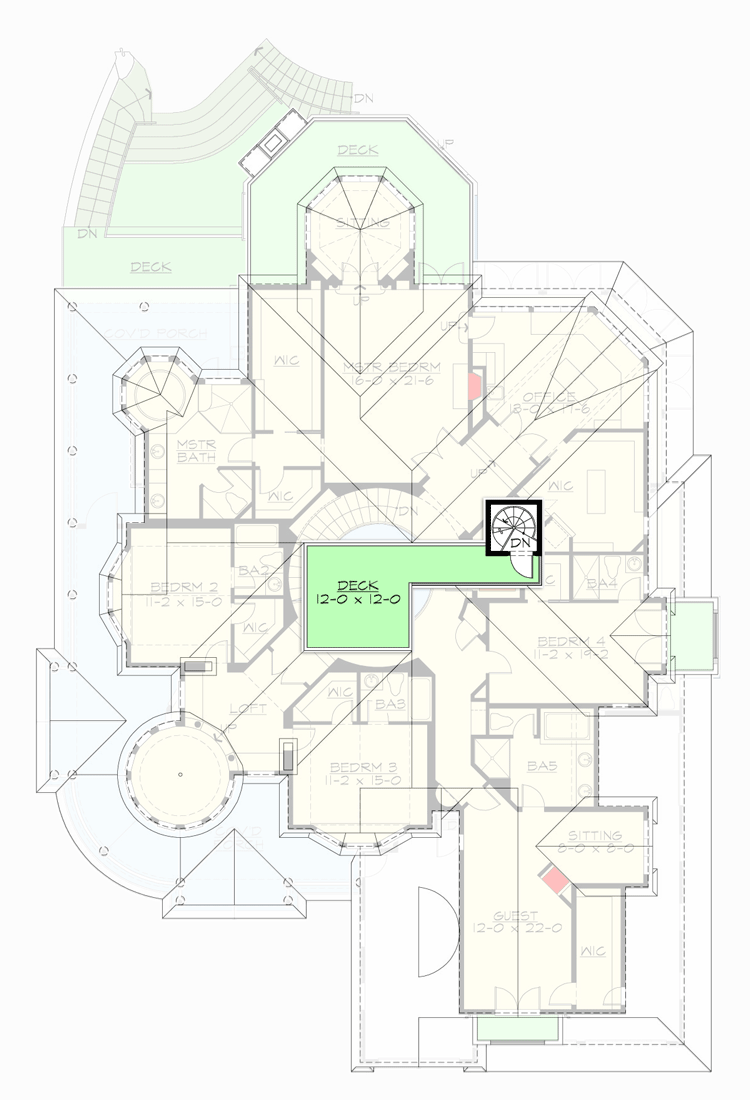

Plan 23931JD: Luxury 5-Bed House Plan with Walkout Basement and Rooftop Deck - Floor Plan - null

Plan Details

  • This luxury, 5-bedroom house plan features over 9,500 square feet with ample outdoor living space, including a rooftop deck accessible from a spiral staircase.

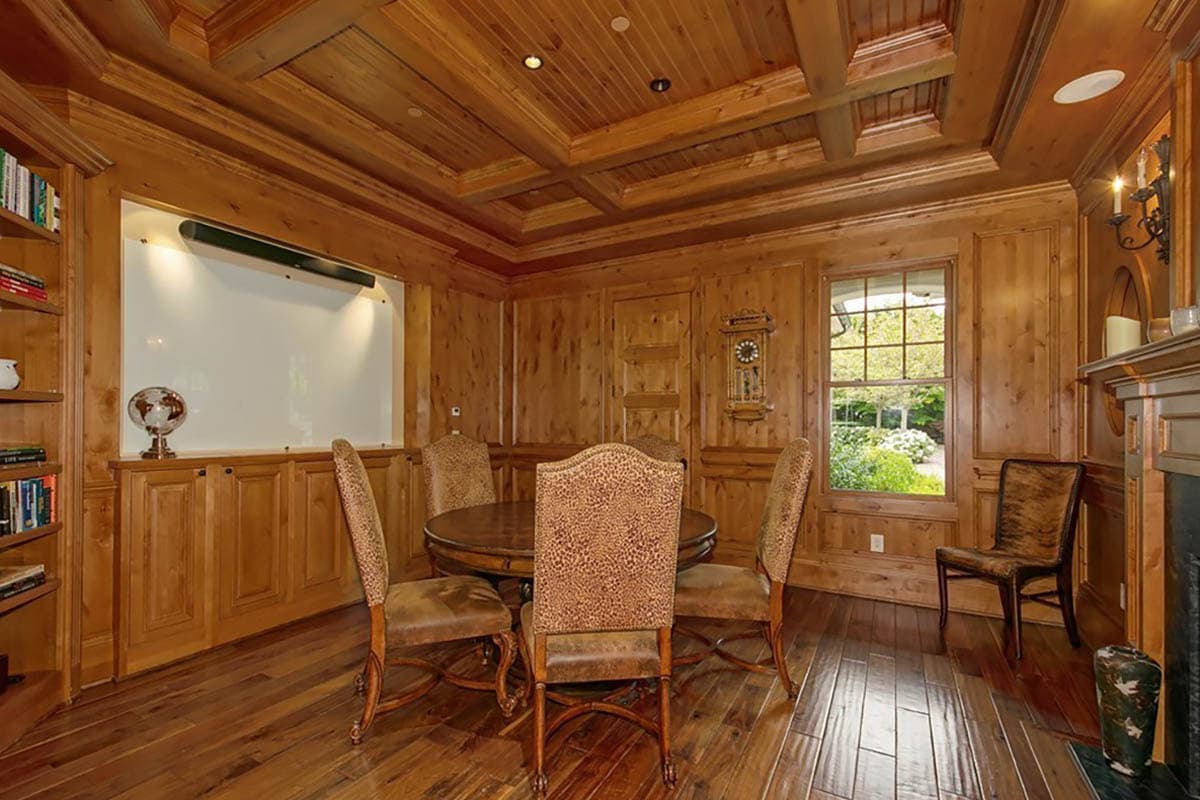

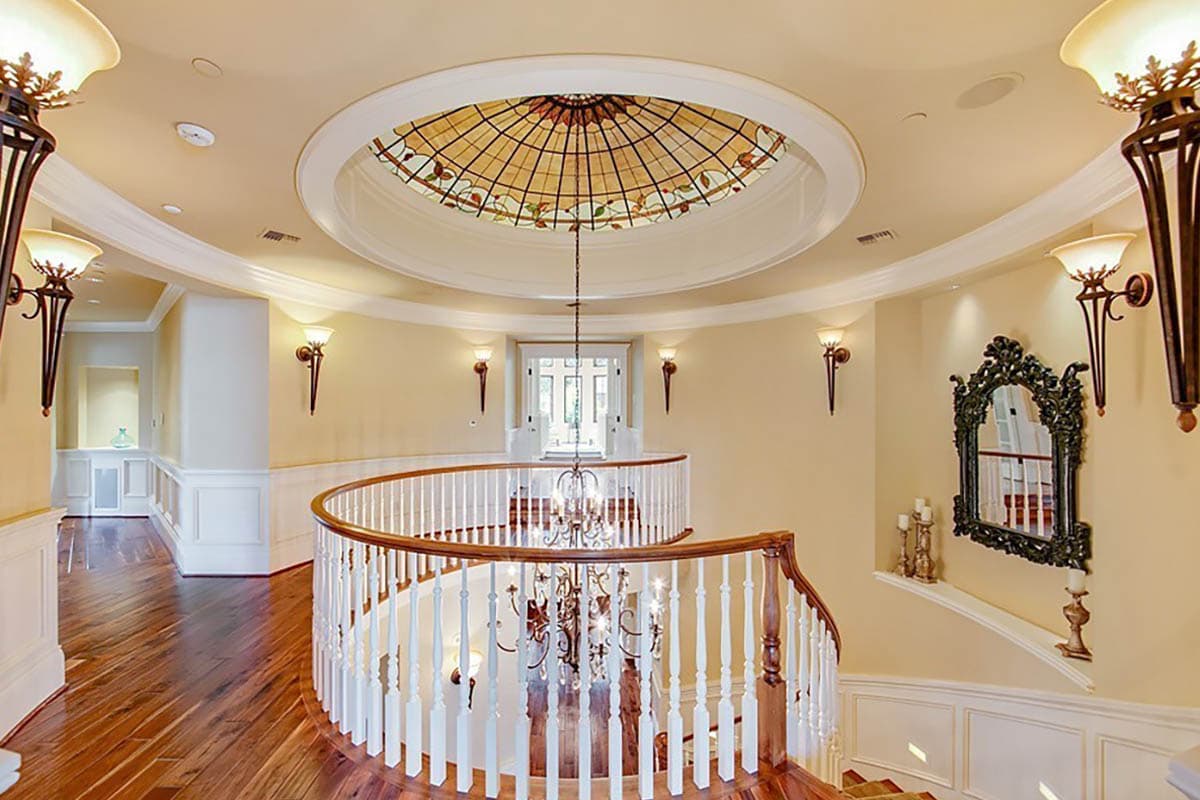

  • A circular rotunda rests in the center of the main level and connects you to multiple living areas; a family room with a darkened media area, formal living room, and a quiet den.

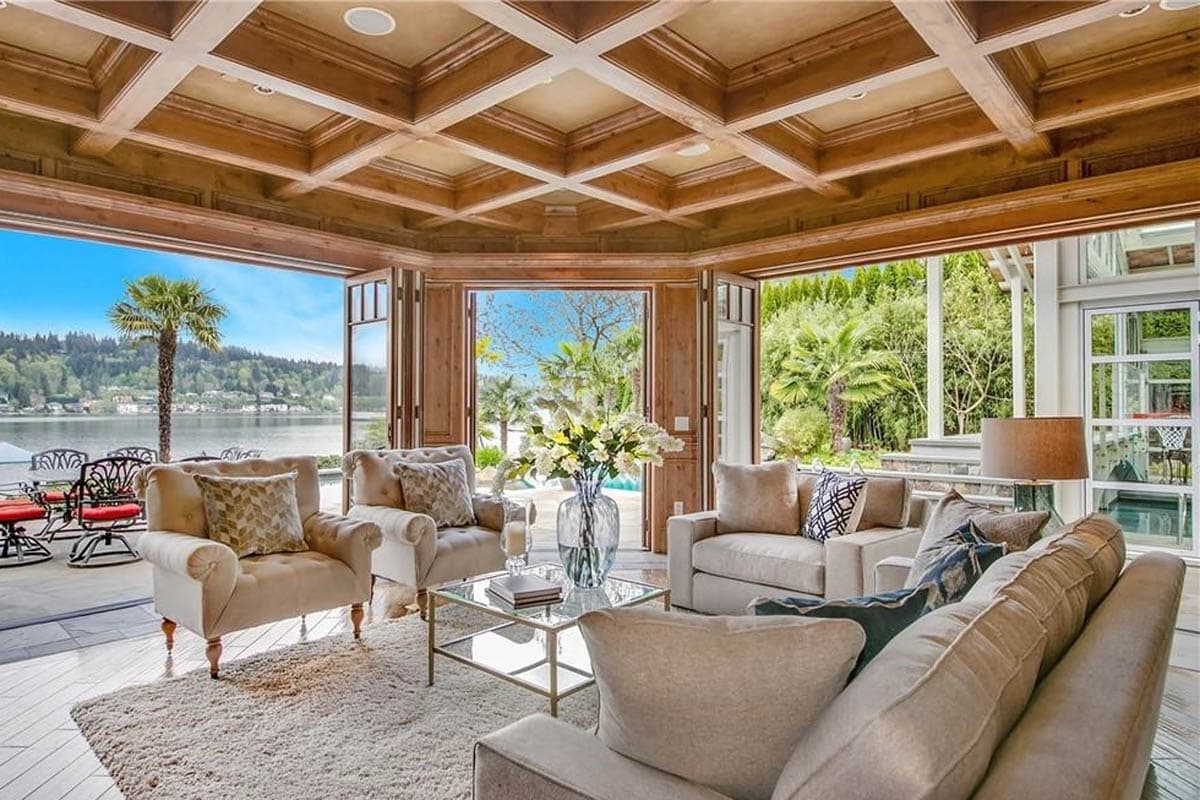

  • A coffered ceiling crowns the breakfast nook and kitchen, and each rear-facing room provides access to the outdoors.
  • Five bedrooms and a home office are located on the second level, which is accessible by an elevator, staircase, or secret spiral staircase. The deluxe master suite features an octagonal sitting room surrounded by a deck.
  • Loads of storage space can be found in the walkout basement, along with a rec room with a kitchenette, work out area, wine and art rooms, and a staircase with direct access to the 4-car garage.

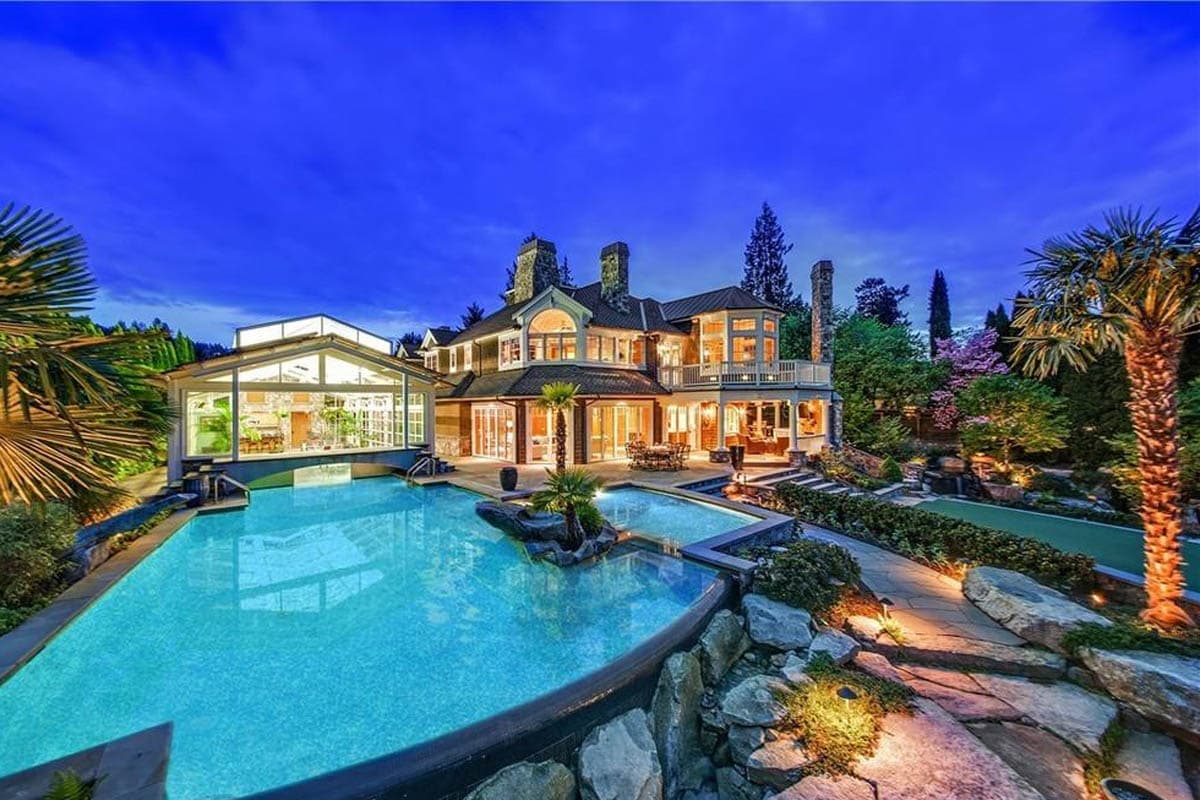

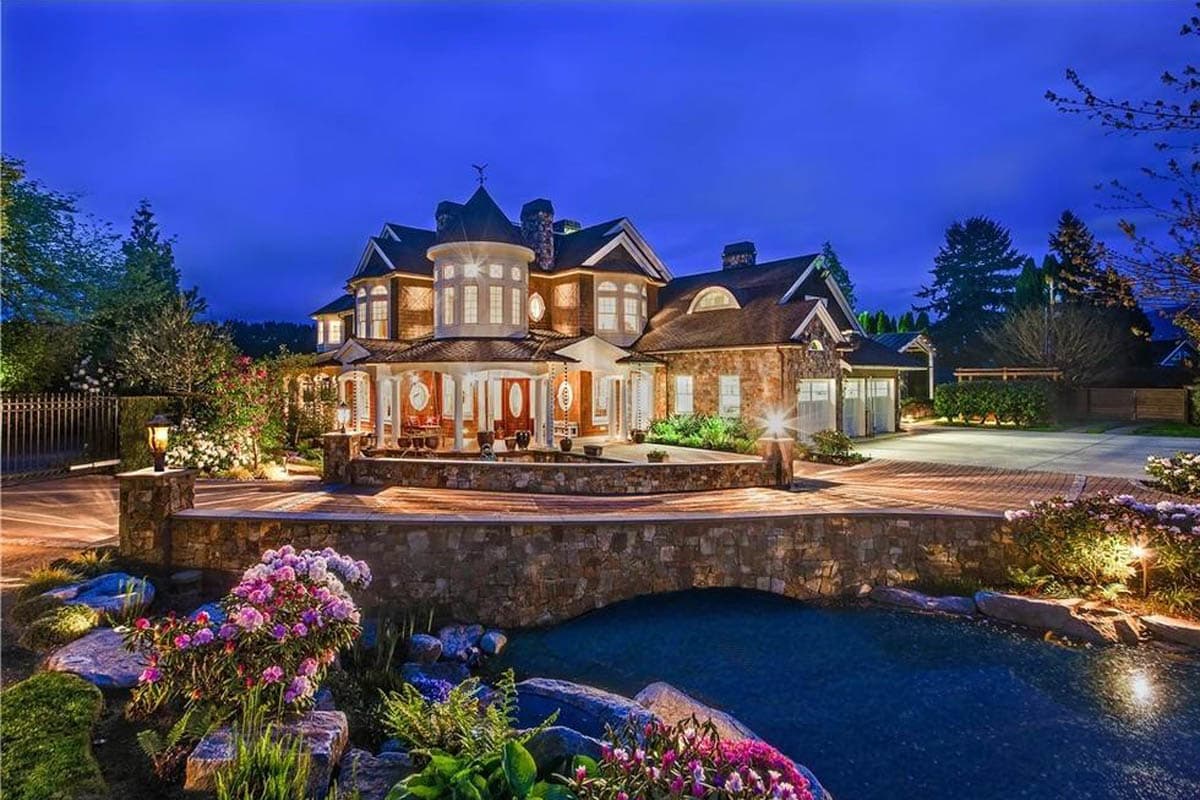

  • The build of this plan shown in the image gallery was completed by Parmenter Homes of Washington.
  • NOTE: If building in the state of Washington, your plan purchase cannot be done online.  Please contact us directly.

What's Included

  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

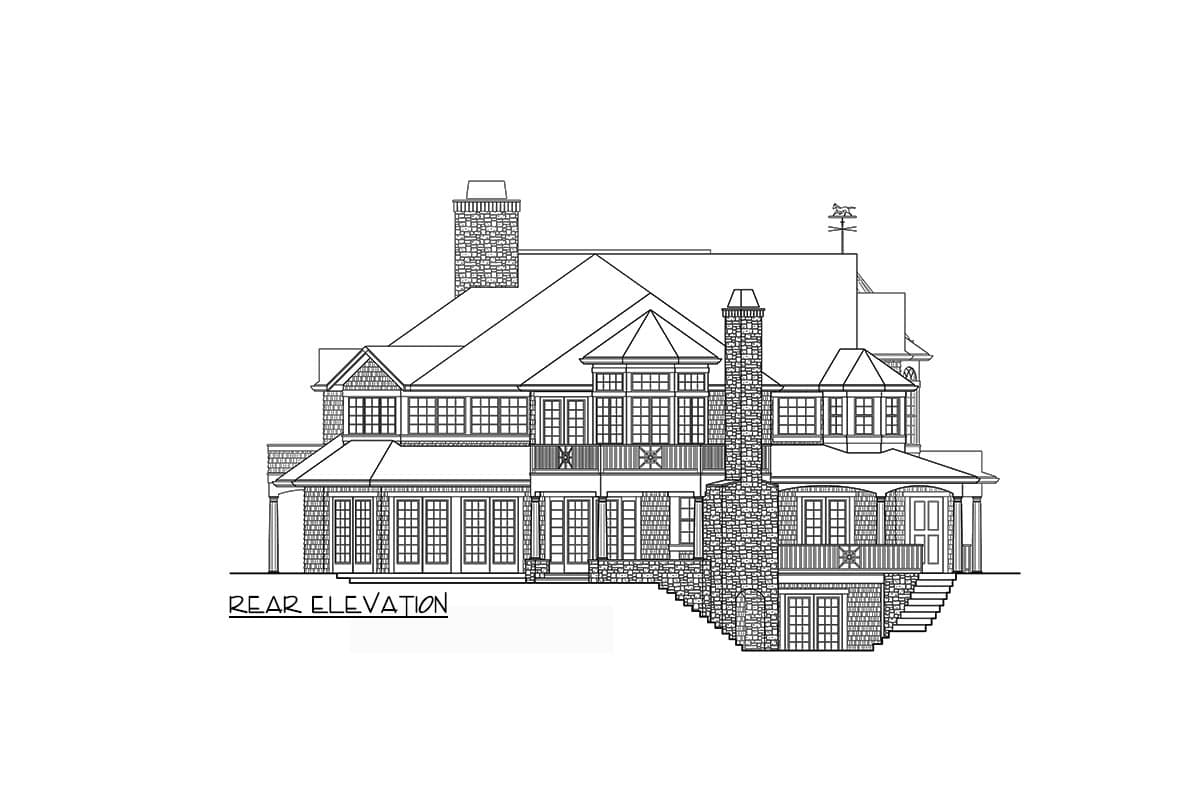

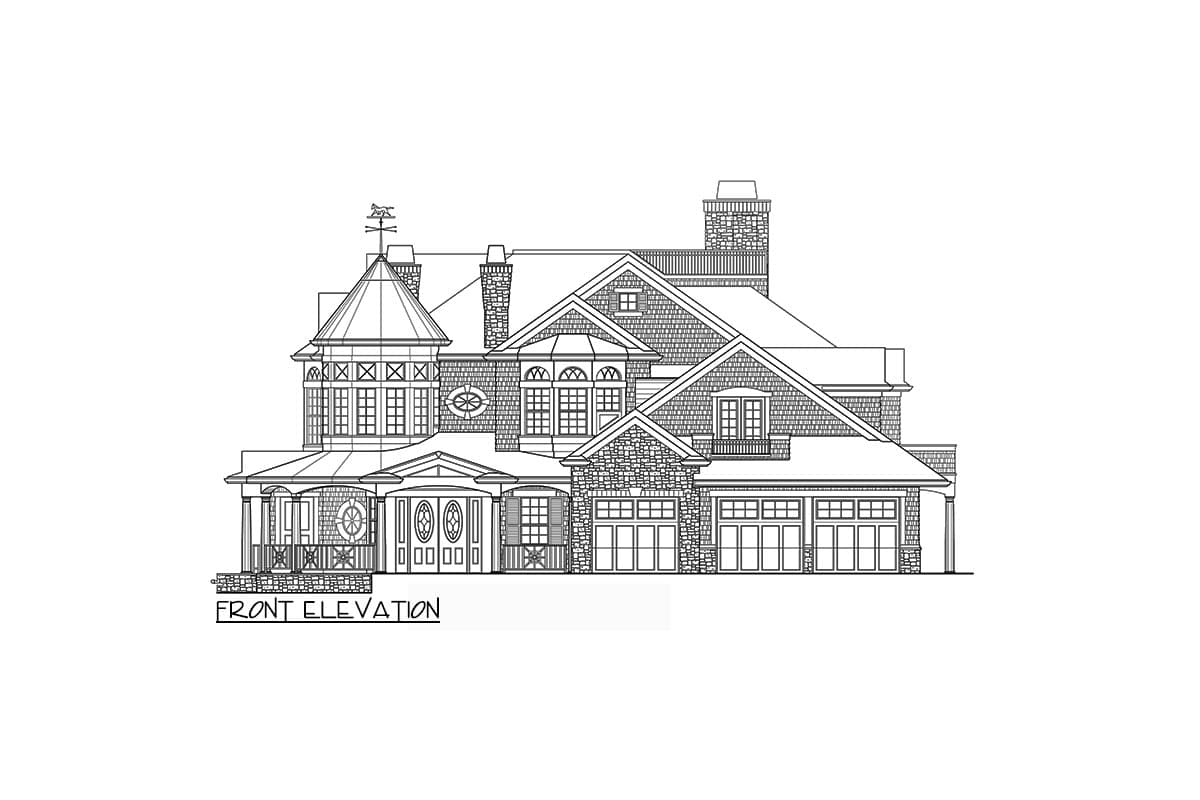

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
View Sample Plan

What's Not Included

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

9,505 sq. ft.

Lower Level

3,119 sq. ft.

1st Floor

2,983 sq. ft.

2nd Floor

3,503 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

75' 0"

Depth

105' 0"

Max Ridge Height

38' 11"

Garage

Type

Attached

Area

1154 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

15 on 12

Framing Type

Truss

Special Features

Breakfast Nook

Den

Game/Rec Room

Rooftop Deck

Square Footage Breakdown

Total Heated Area

9,505 sq. ft.

Lower Level

3,119 sq. ft.

1st Floor

2,983 sq. ft.

2nd Floor

3,503 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

75' 0"

Depth

105' 0"

Max Ridge Height

38' 11"

Garage

Type

Attached

Area

1154 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

15 on 12

Framing Type

Truss

Special Features

Breakfast Nook

Den

Game/Rec Room

Rooftop Deck
