Luxury Coastal House Plan: 5 Beds, Lanai and Master Suite Sitting Area

Name: Plan 66043WE: Luxury Coastal House Plan: 5 Beds, Lanai and Master Suite Sitting Area
Brand: Architectural Designs
SKU: 66043WE
Price: 2700.0 USD
Availability: InStock

Heated S.F.

4,118

Beds

5 - 6

Baths

Stories

Cars

Floor Plan

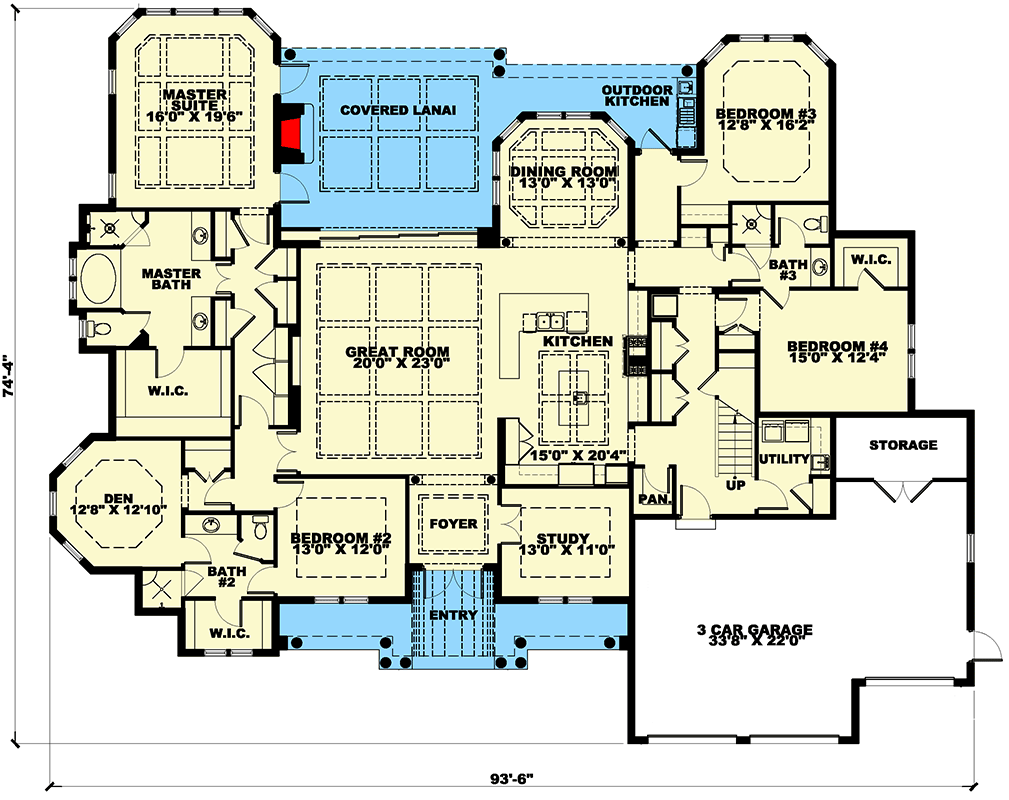

Main Level

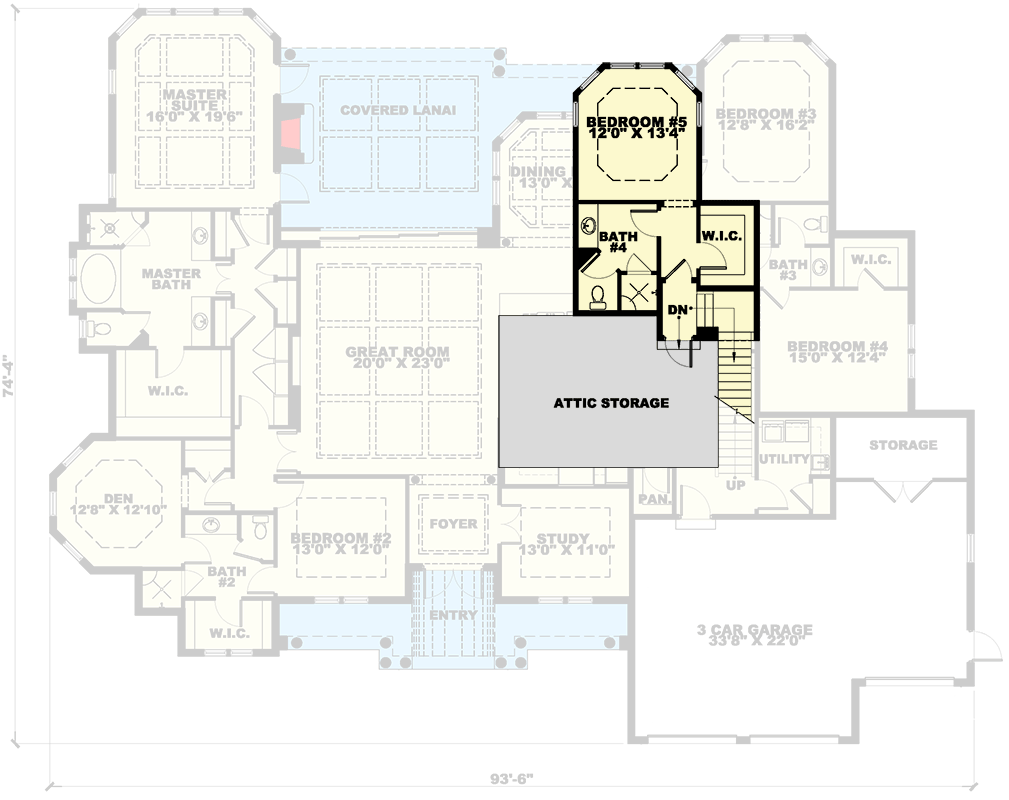

2nd Floor

Plan Details

This expansive 4,118 sq. ft. Coastal New American house plan features 5 bedrooms, 4 full bathrooms, and an attached 868 sq. ft. three-car garage, embodying luxurious Southern transitional design.
Upon entering, guests are greeted by a grand foyer that opens into a thoughtfully laid-out living space, where a dedicated den provides a quiet retreat for work or study, maintaining an elegant flow.
The heart of the home features a seamless connection between the gourmet kitchen and dining areas, creating an inviting environment for daily life and sophisticated entertaining, all beneath impressive 10-foot ceilings.
The luxurious first-floor master suite offers a private sanctuary complete with a dedicated sitting area, strategically separated from the secondary bedrooms for optimal privacy, which include a convenient Jack & Jill bath.
Experience elevated outdoor living on the expansive 532 sq. ft. lanai, complete with an inviting outdoor fireplace and a fully-equipped outdoor kitchen, perfect for year-round alfresco dining and relaxation.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
