Luxury Craftsman with 2nd floor Guest Suite

Plan 25644GE

3,480
Heated s.f.
2-3
Beds
2.5 - 3.5
Baths
1-2
Stories
3
Cars

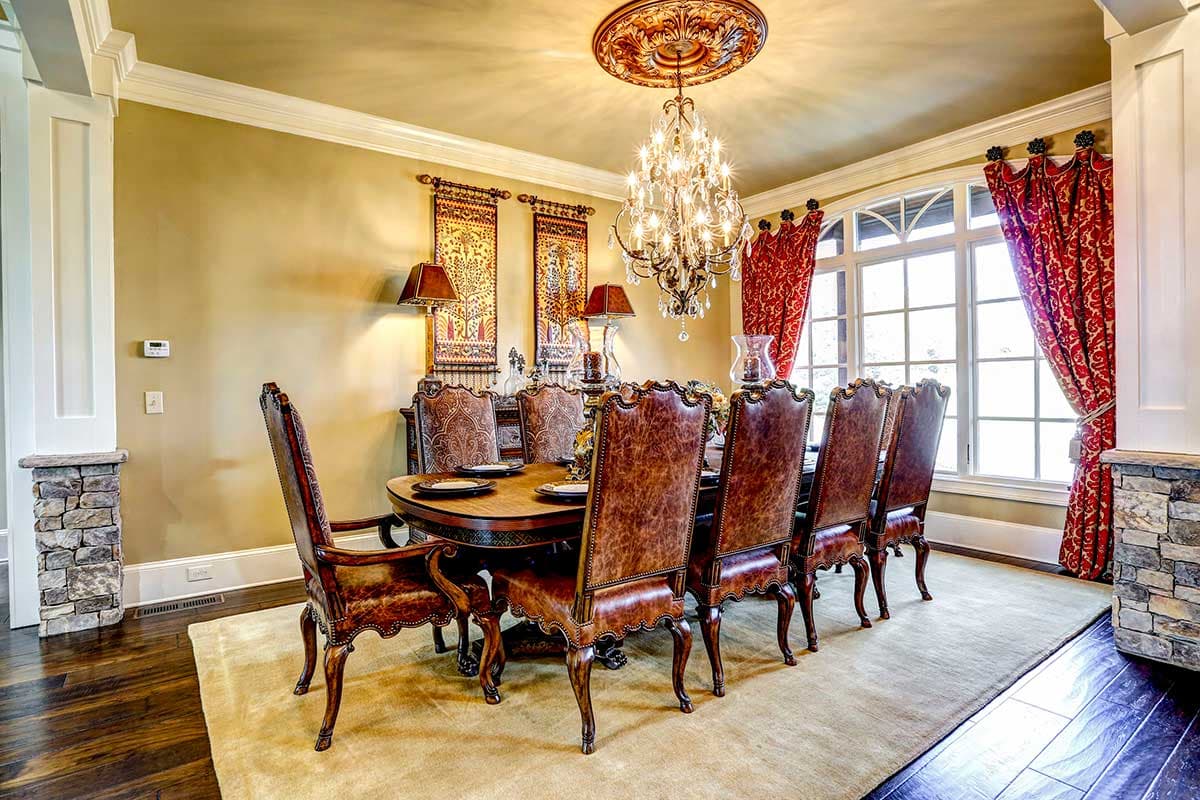

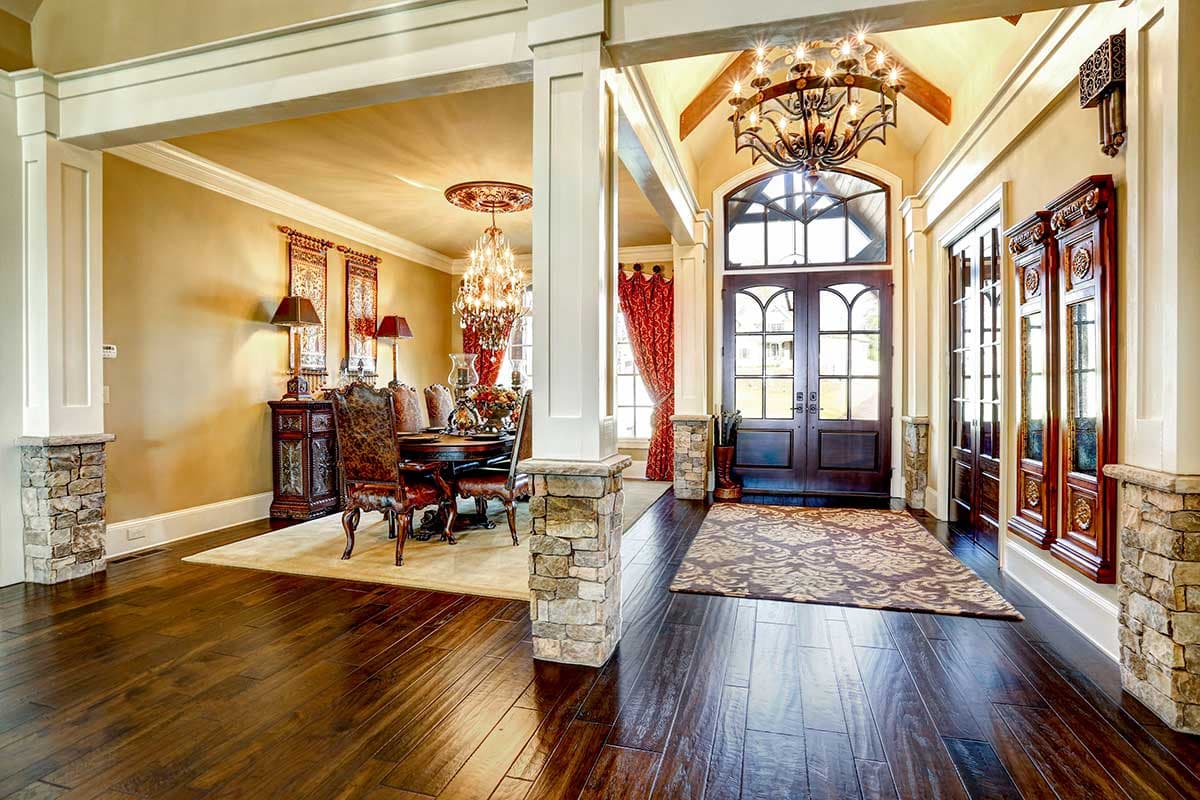

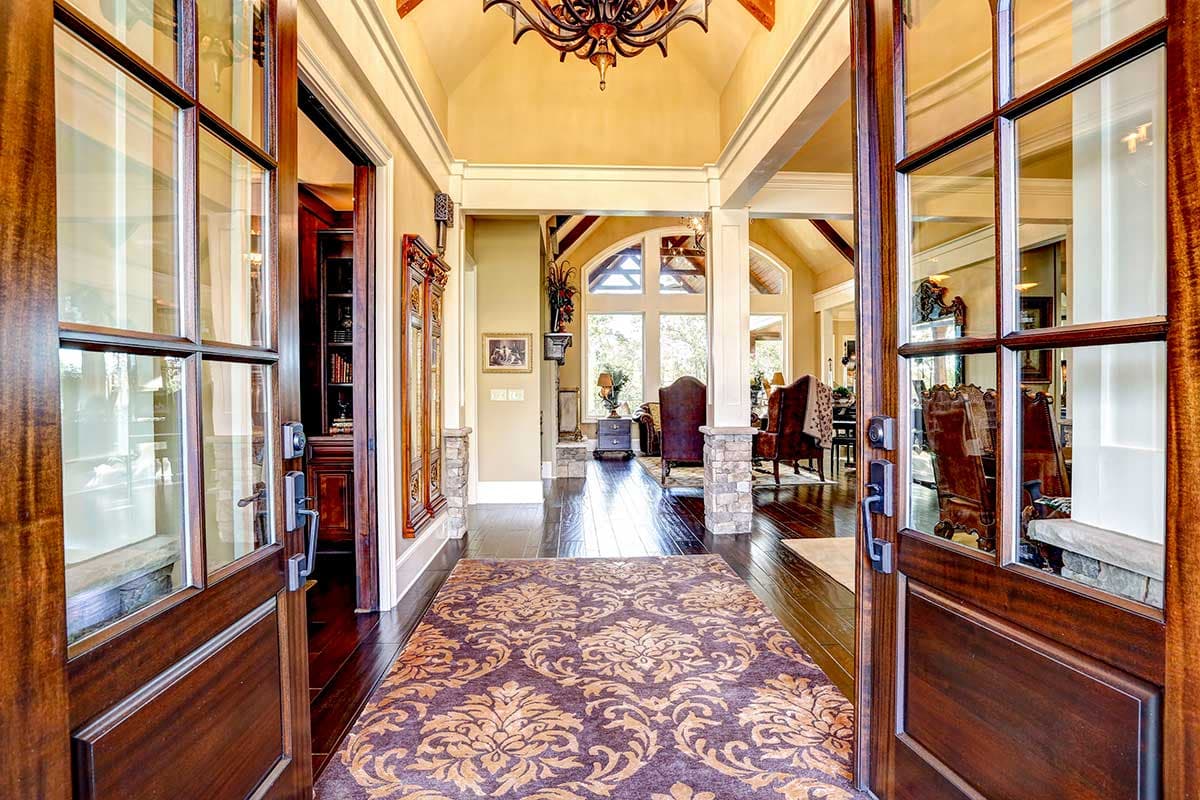

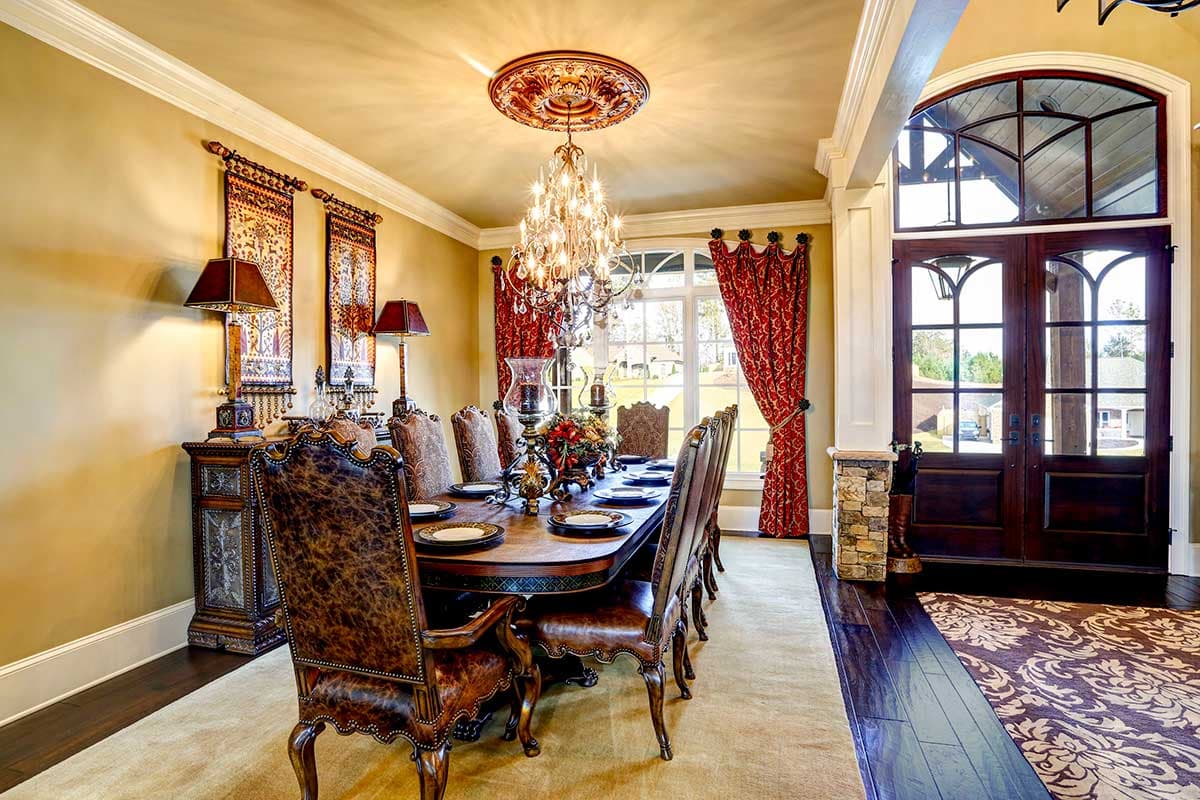

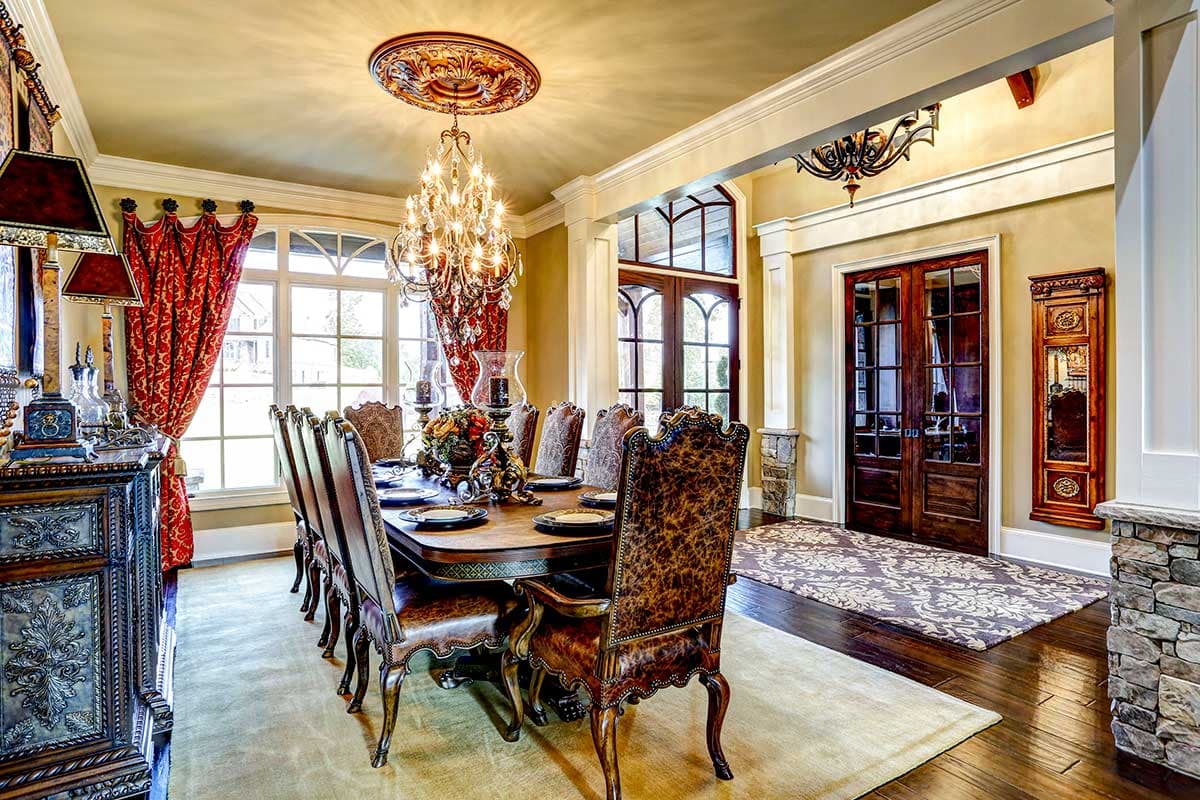

This luxury Craftsman home plan has it all! Upon entering the home, a foyer with coffered ceiling and adjacent dining room greet guests.

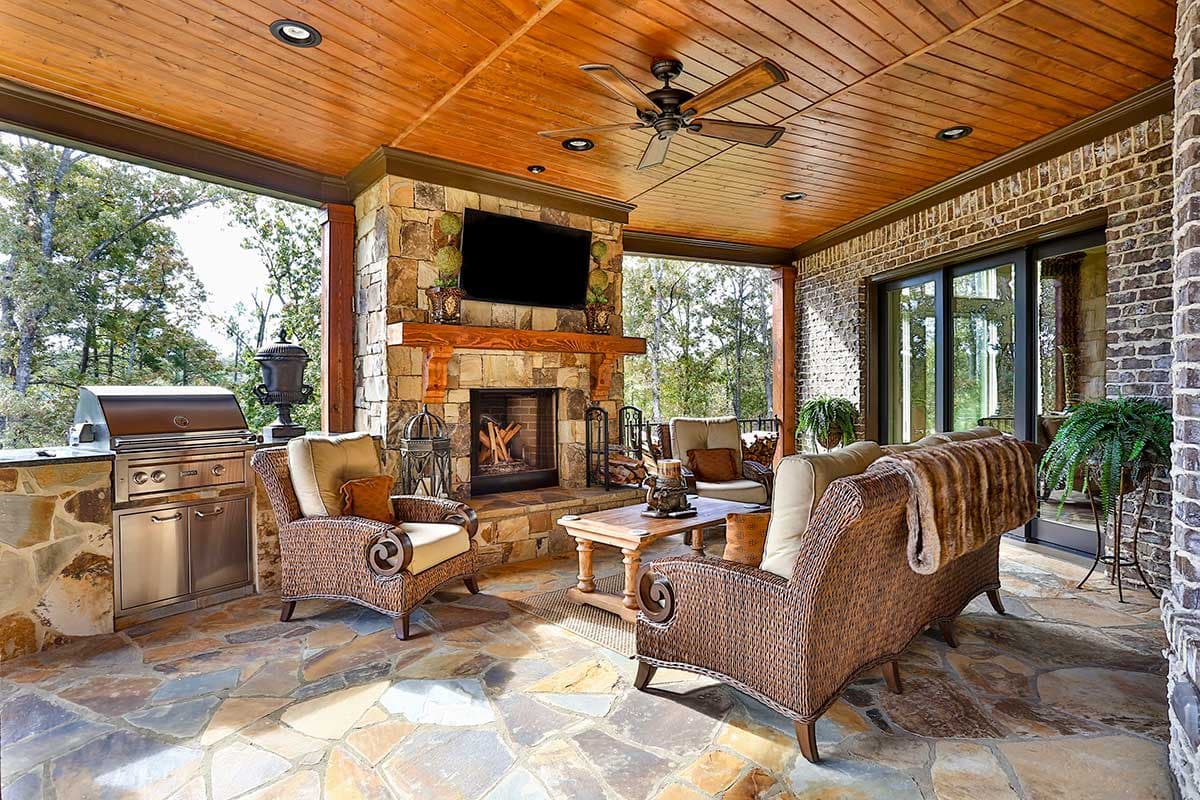

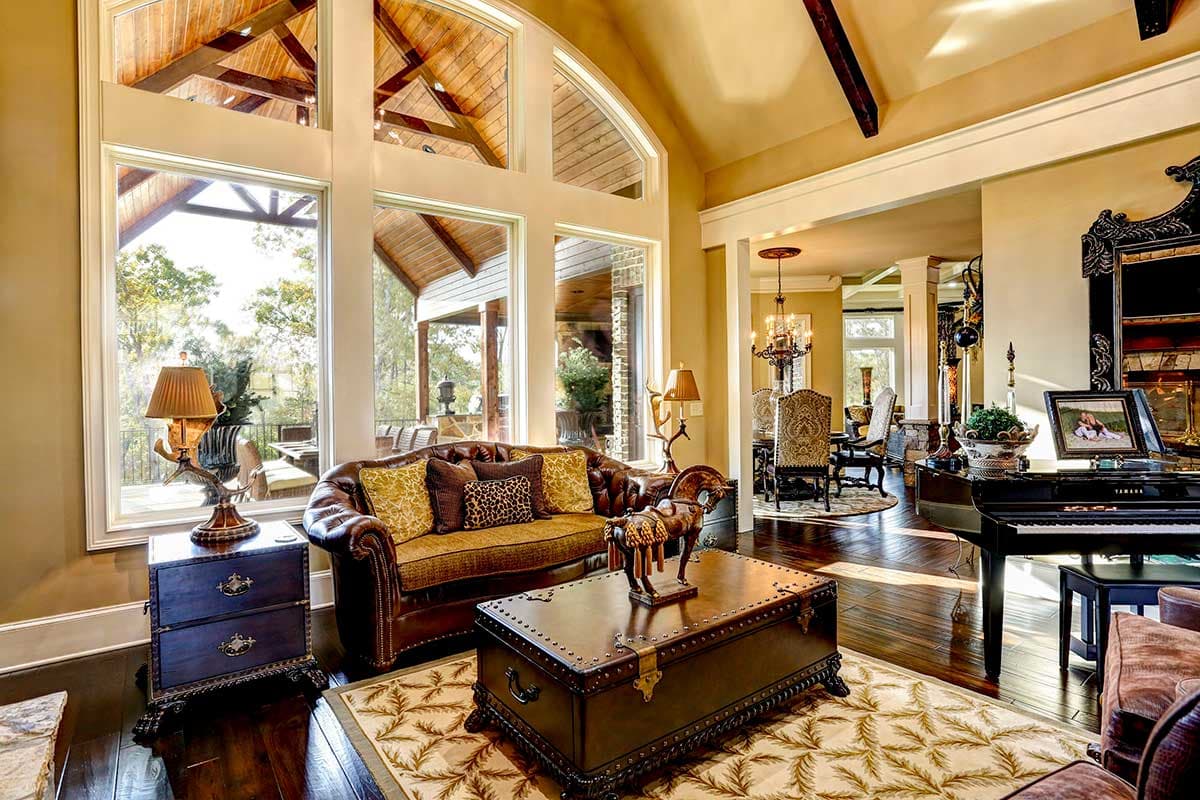

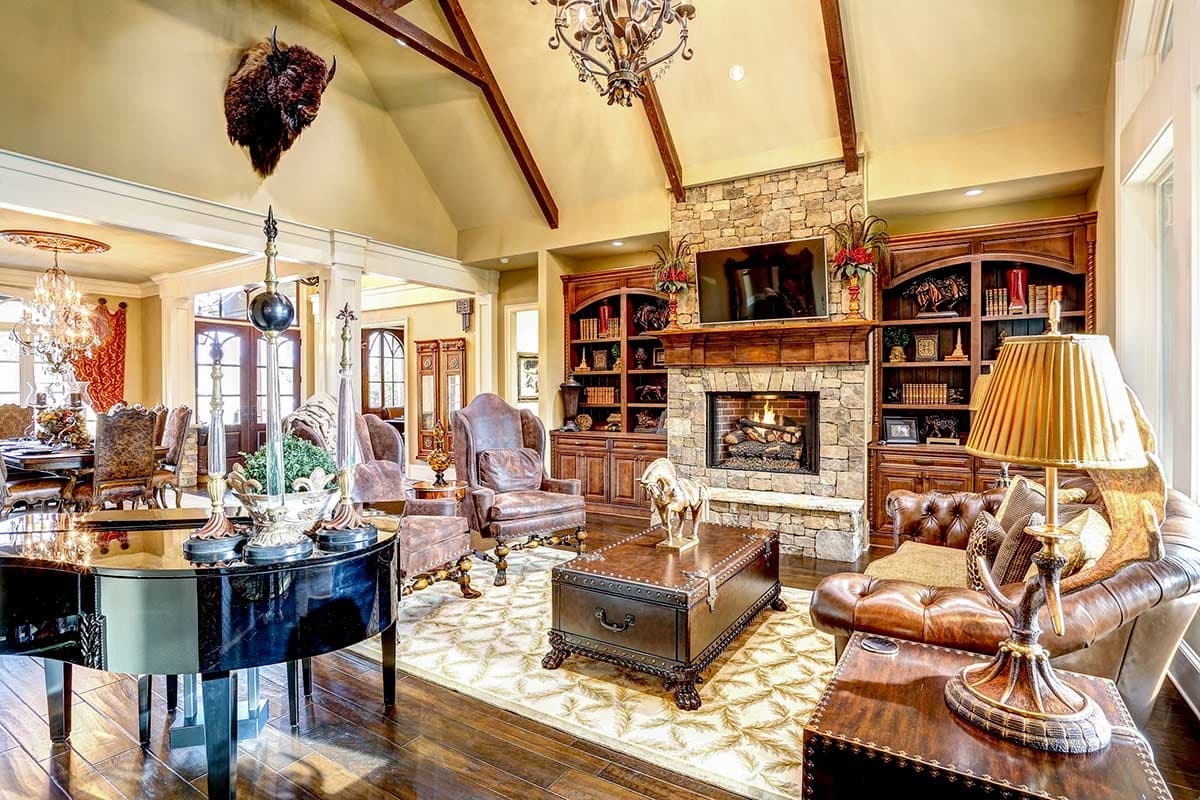

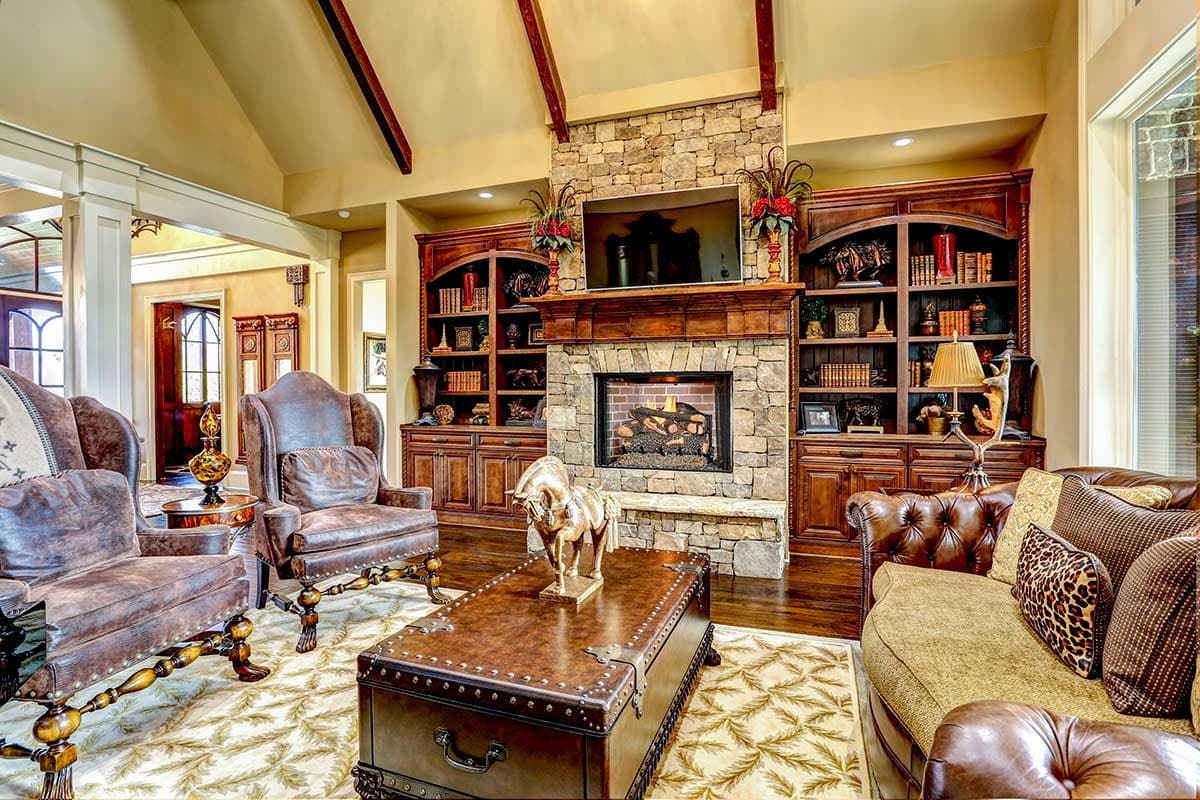

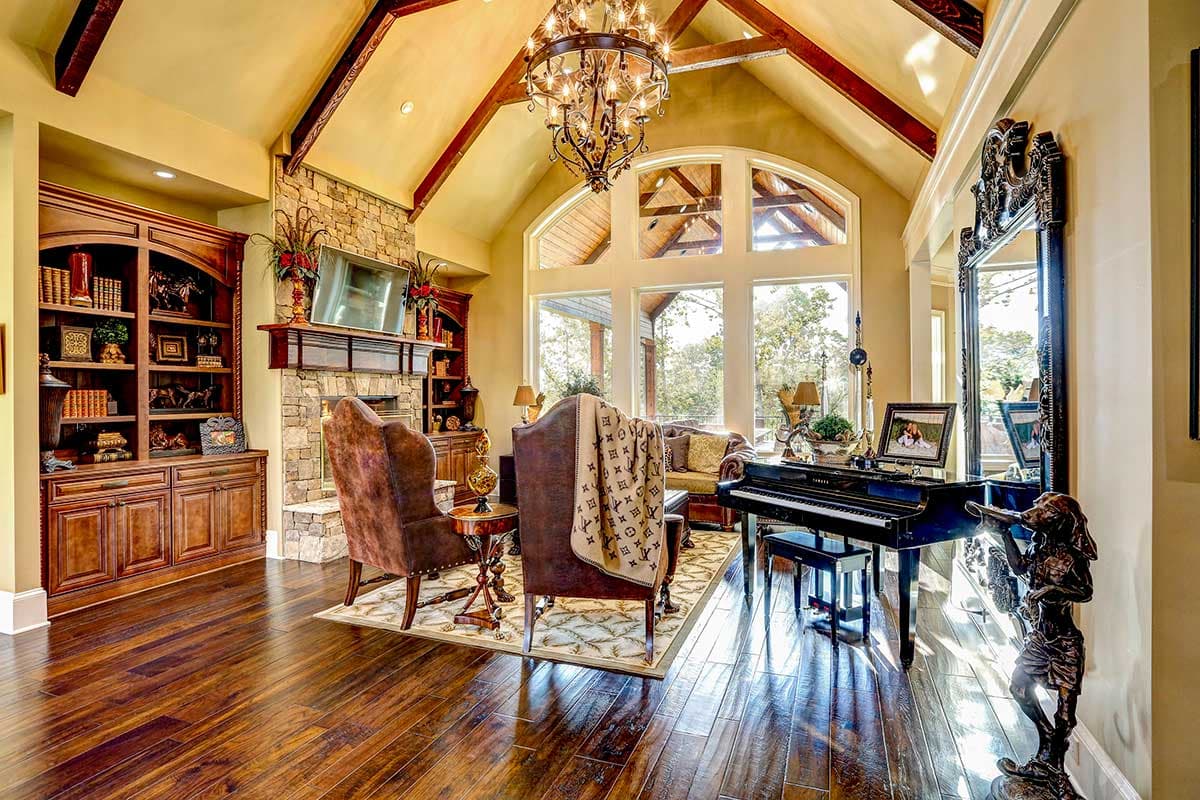

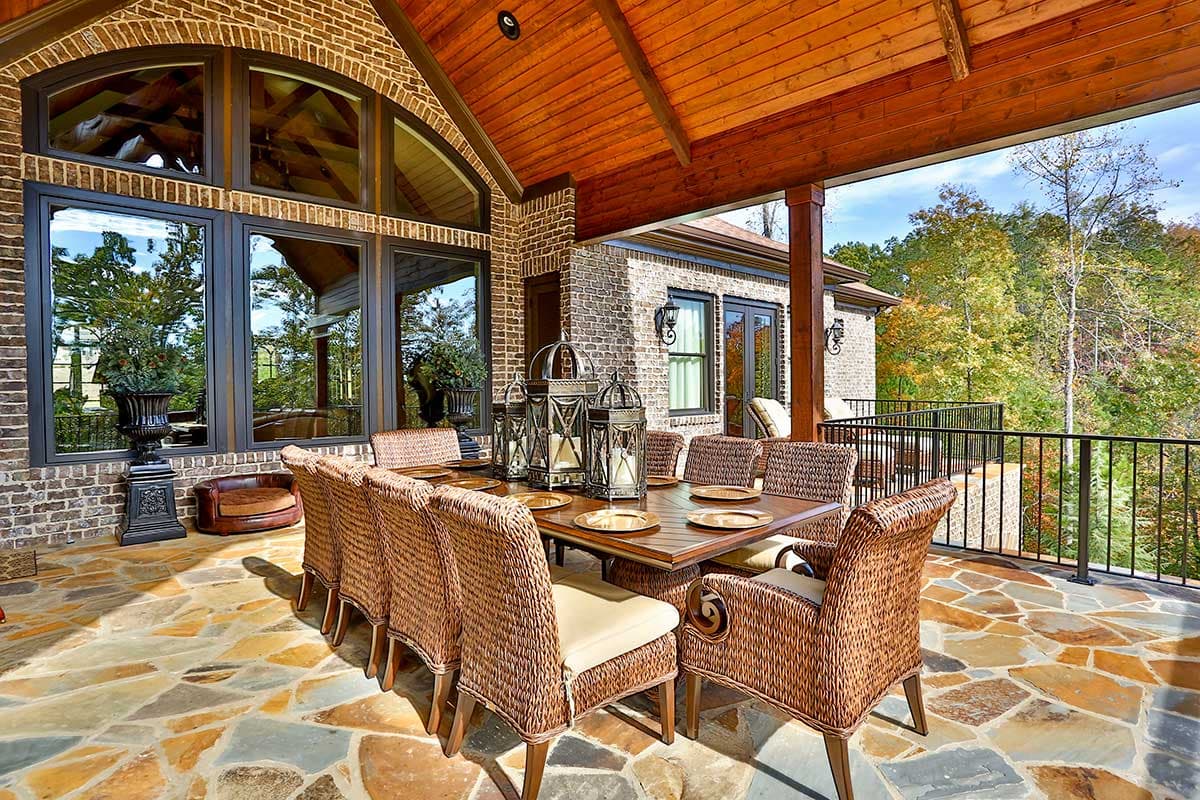

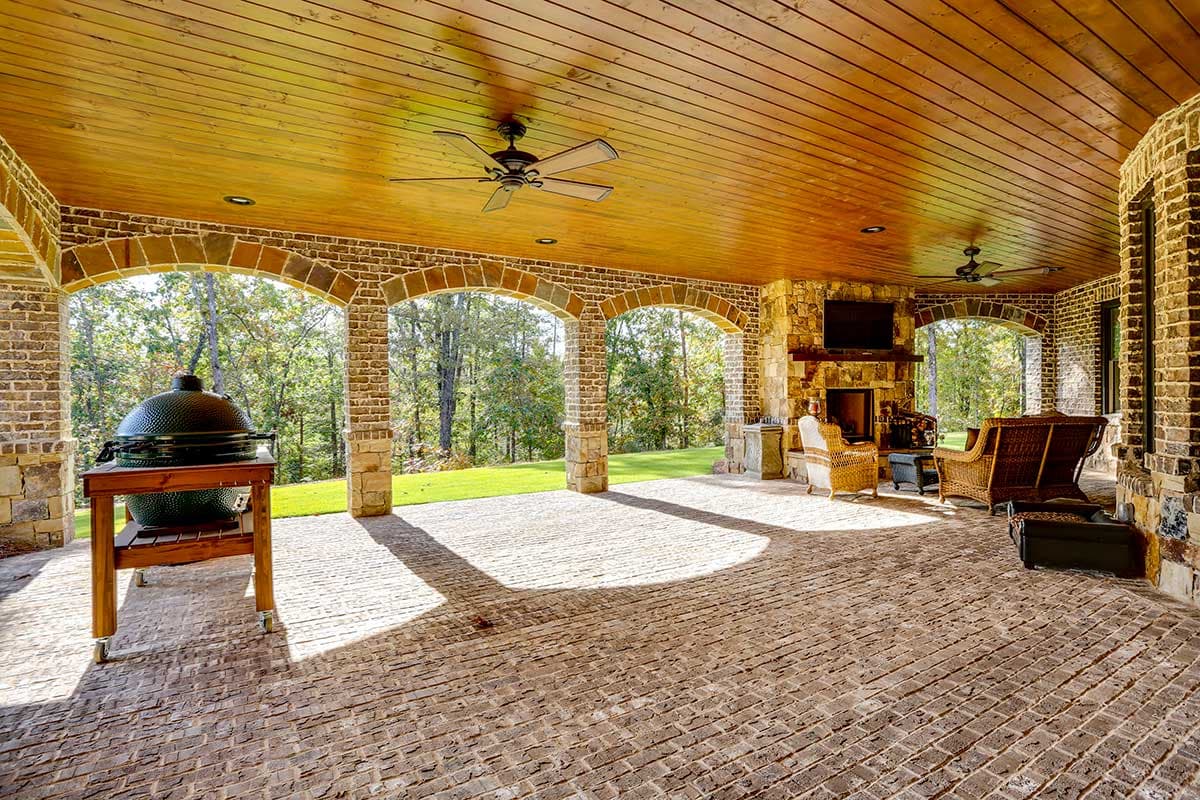

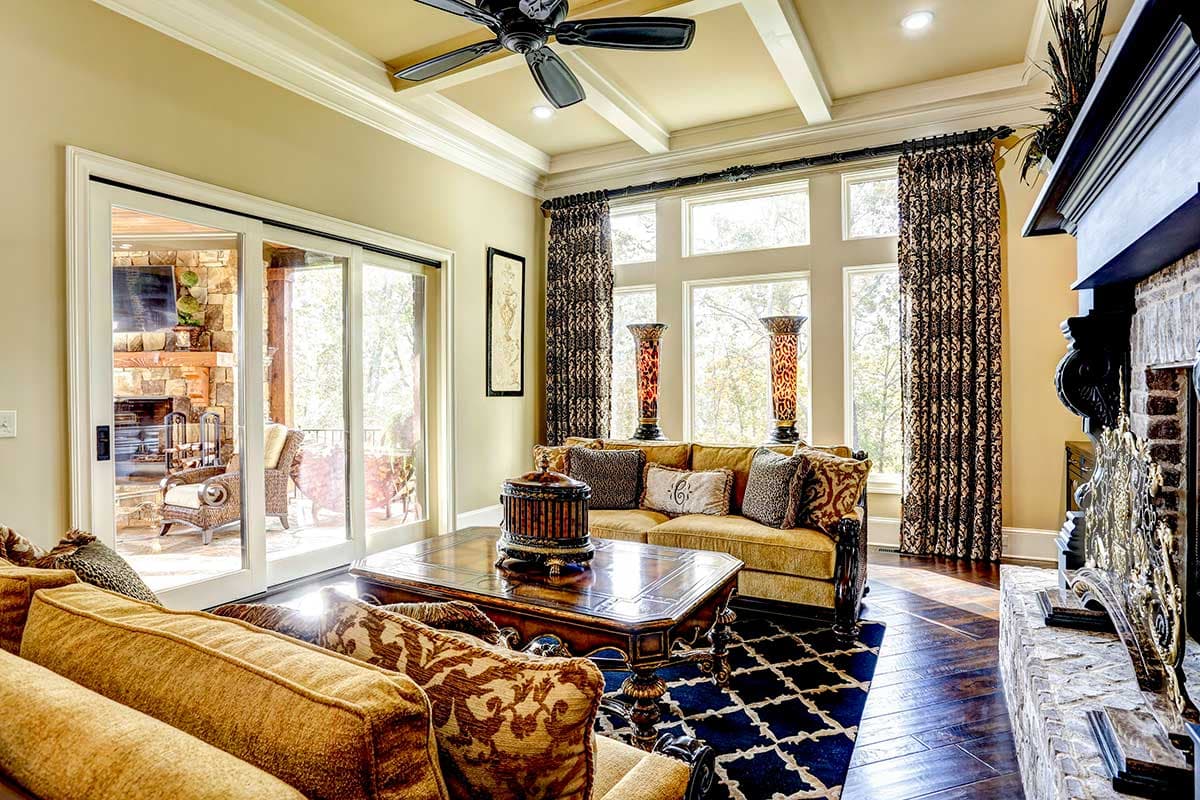

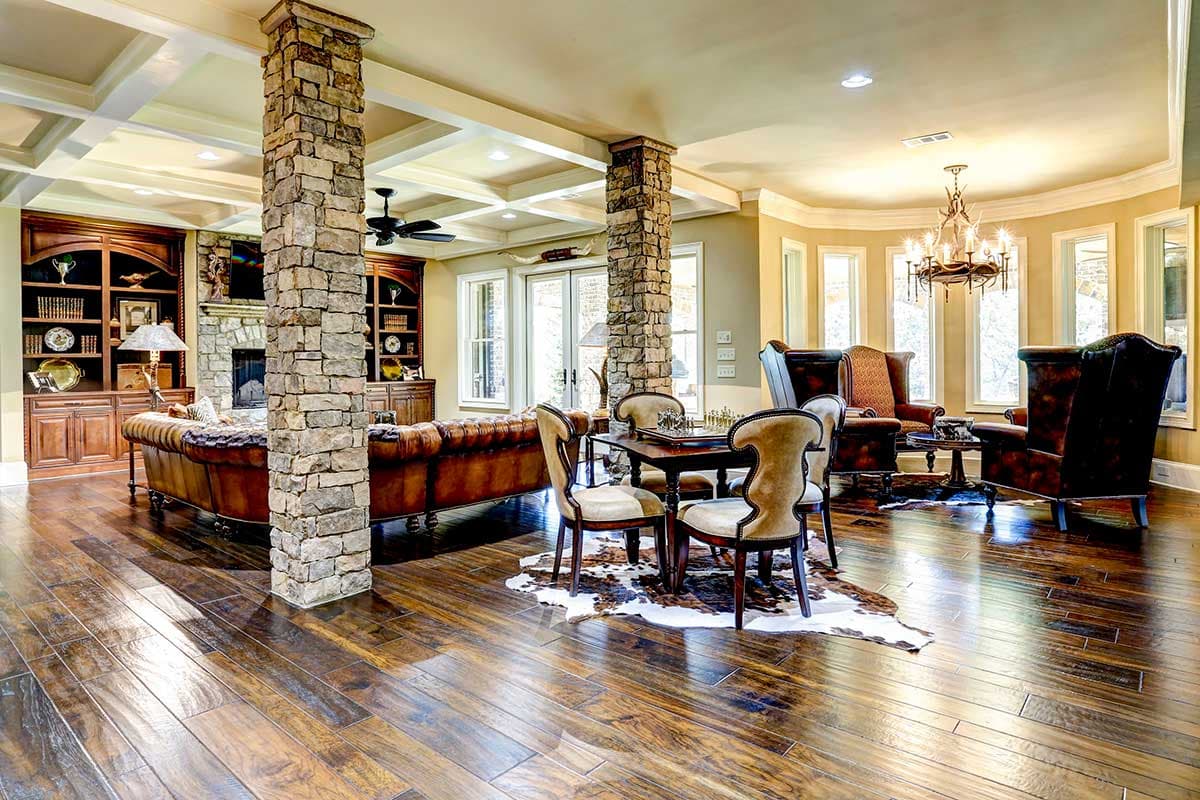

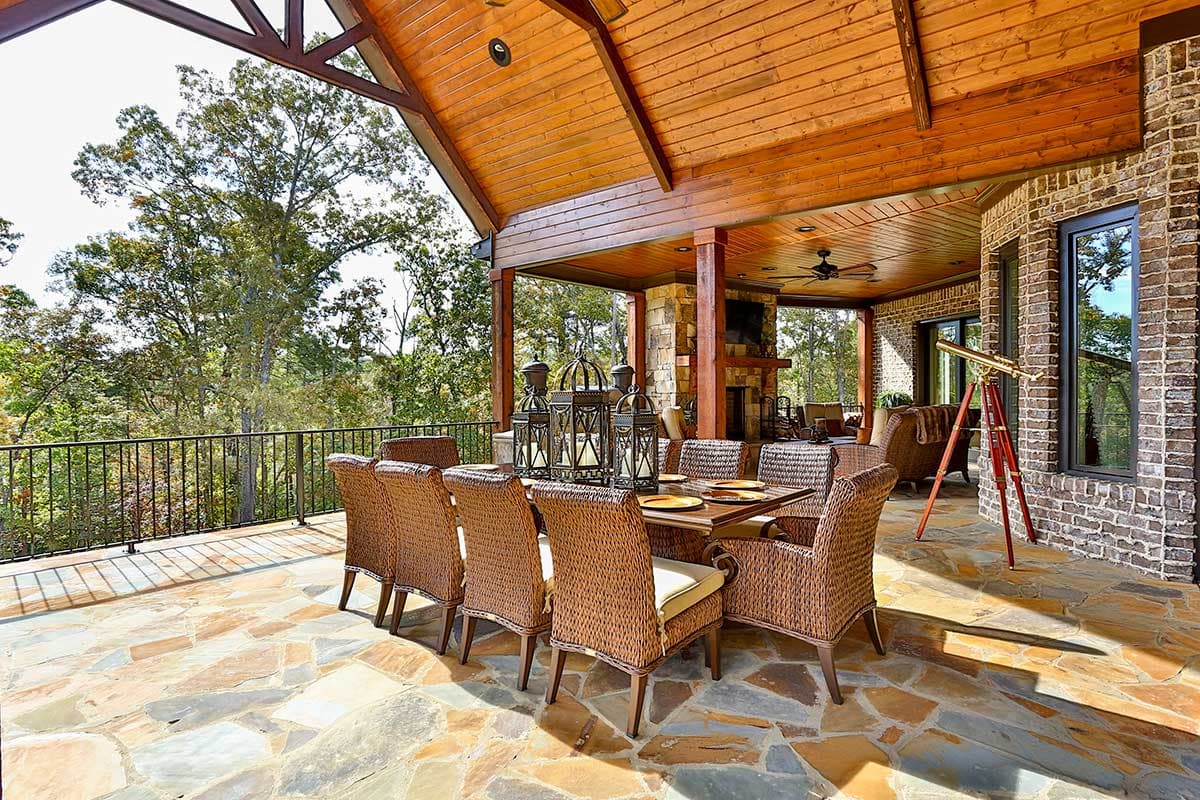

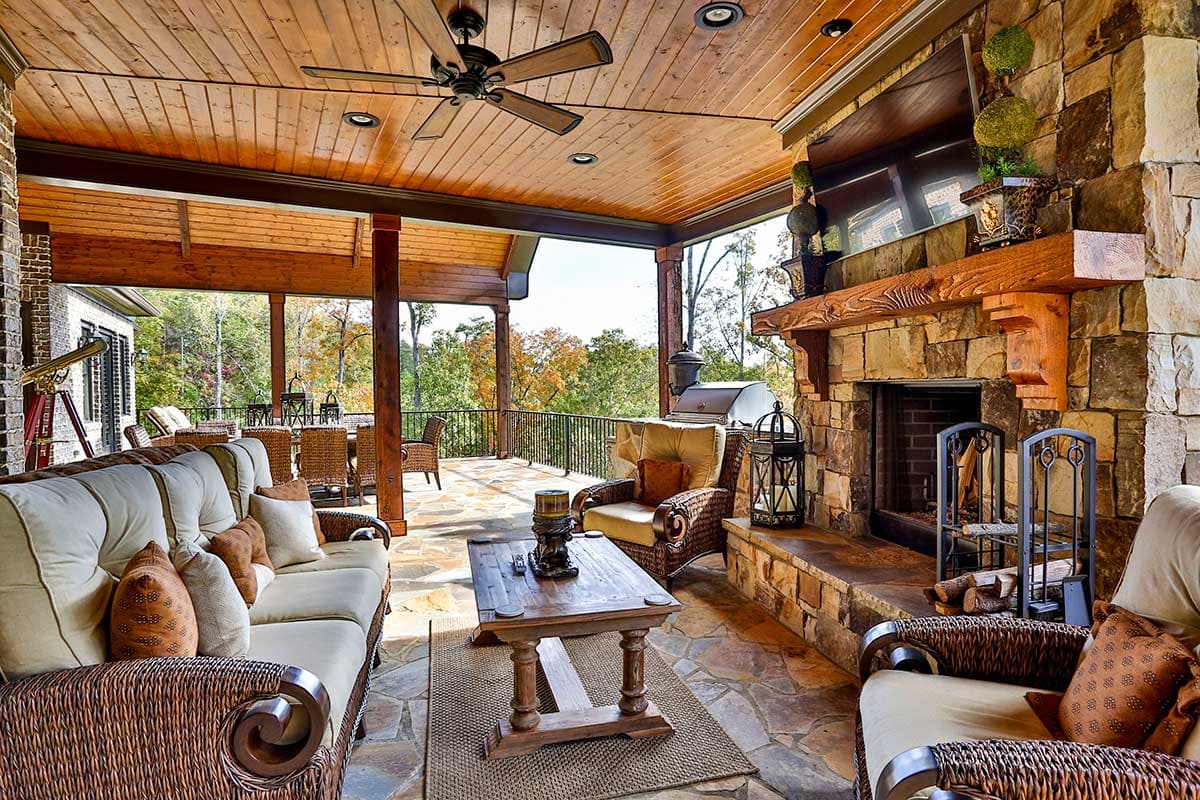

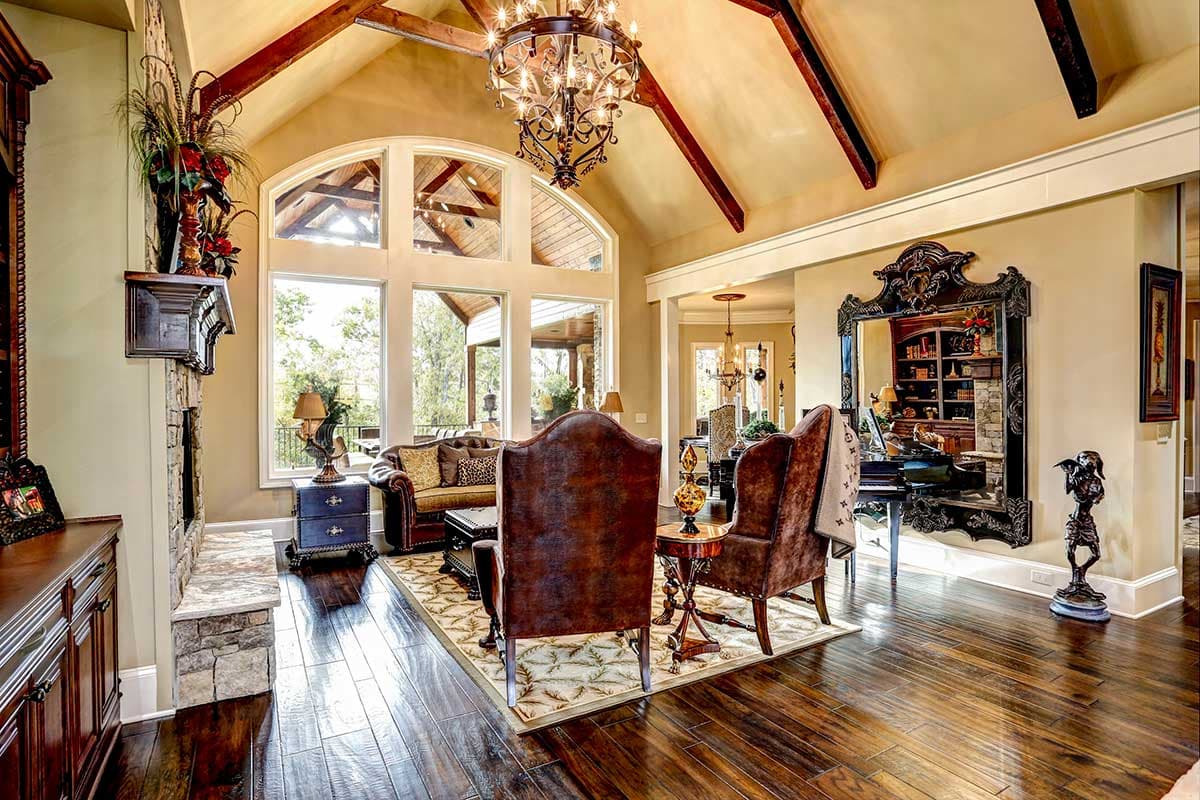

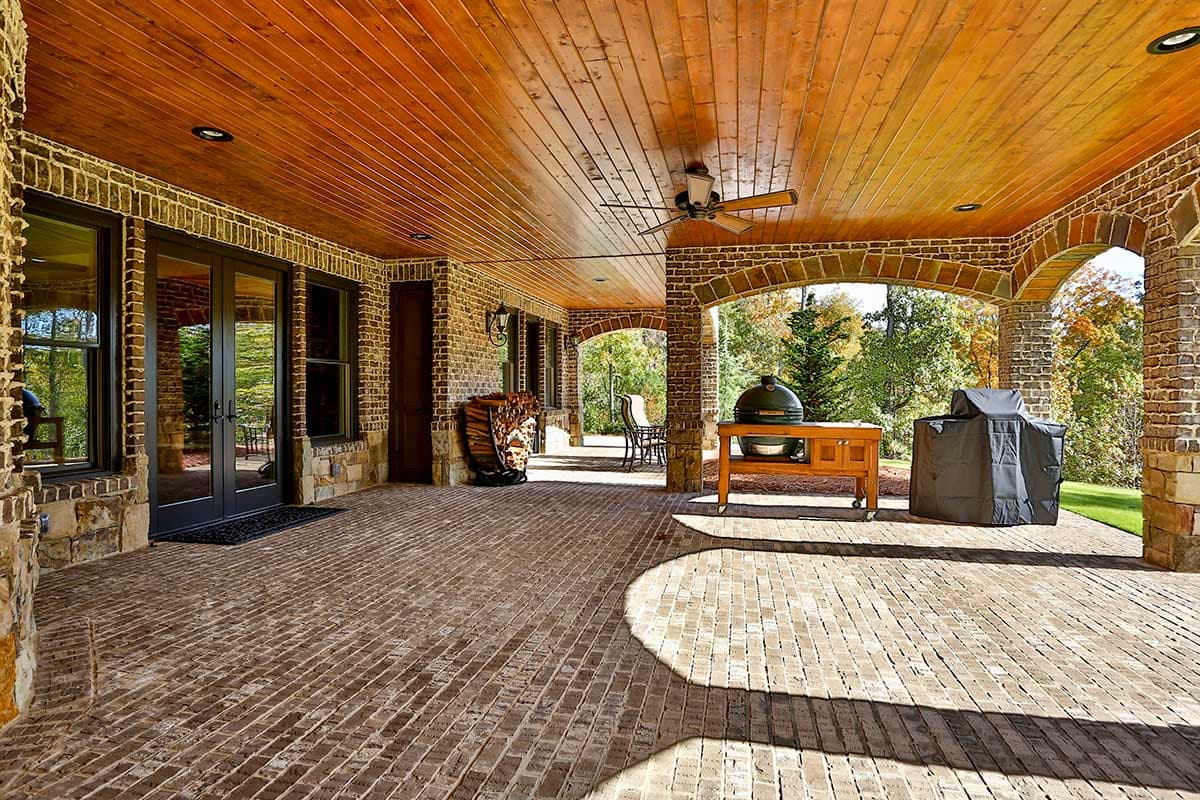

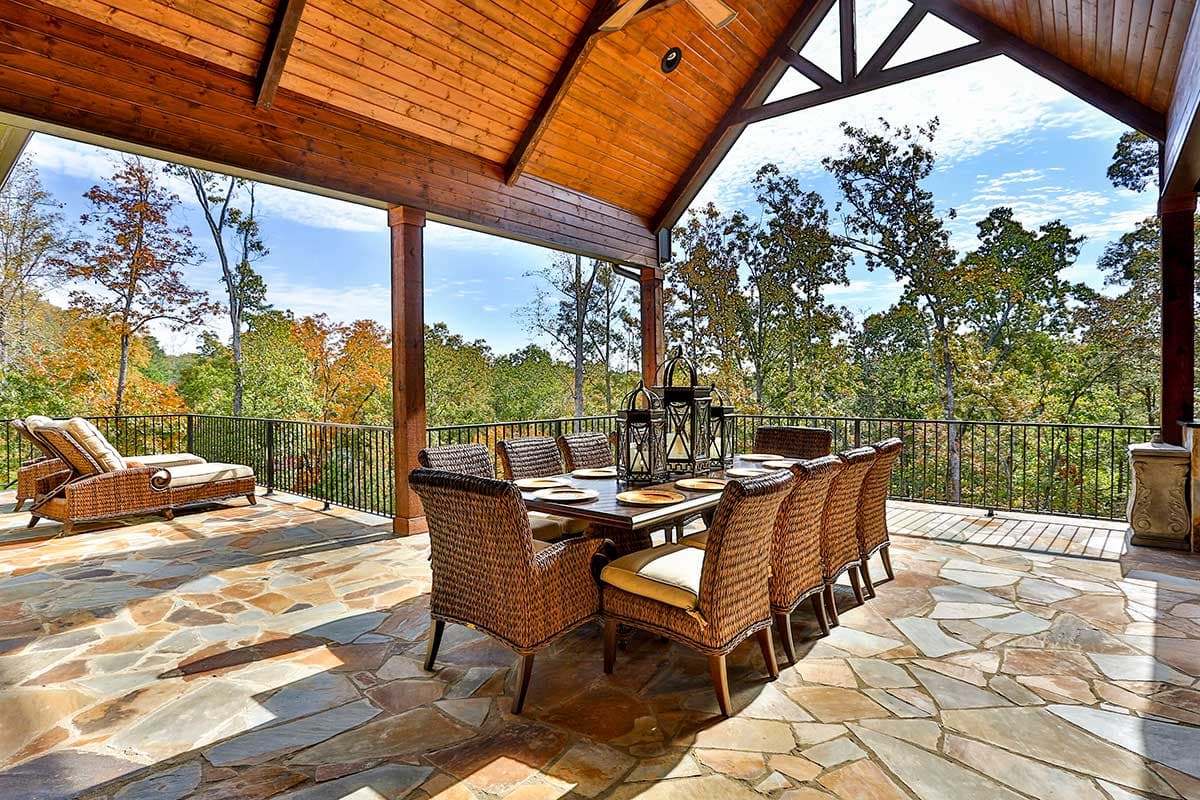

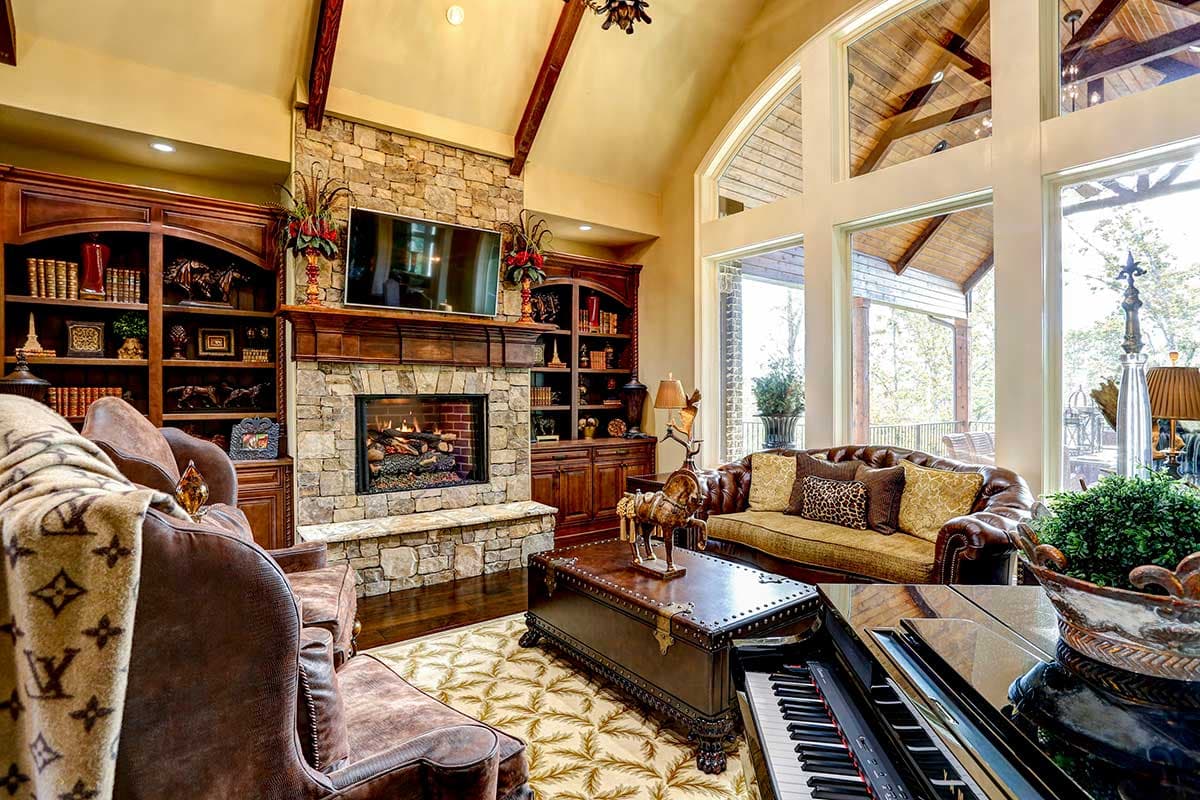

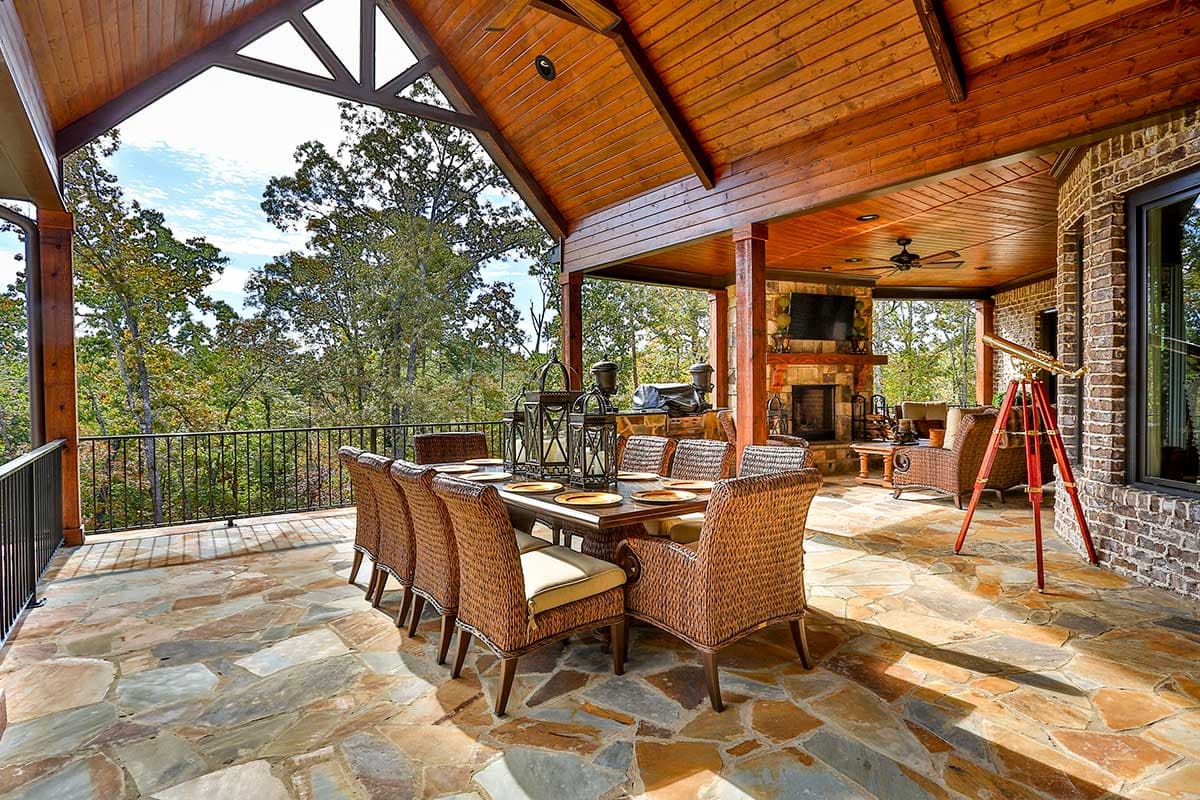

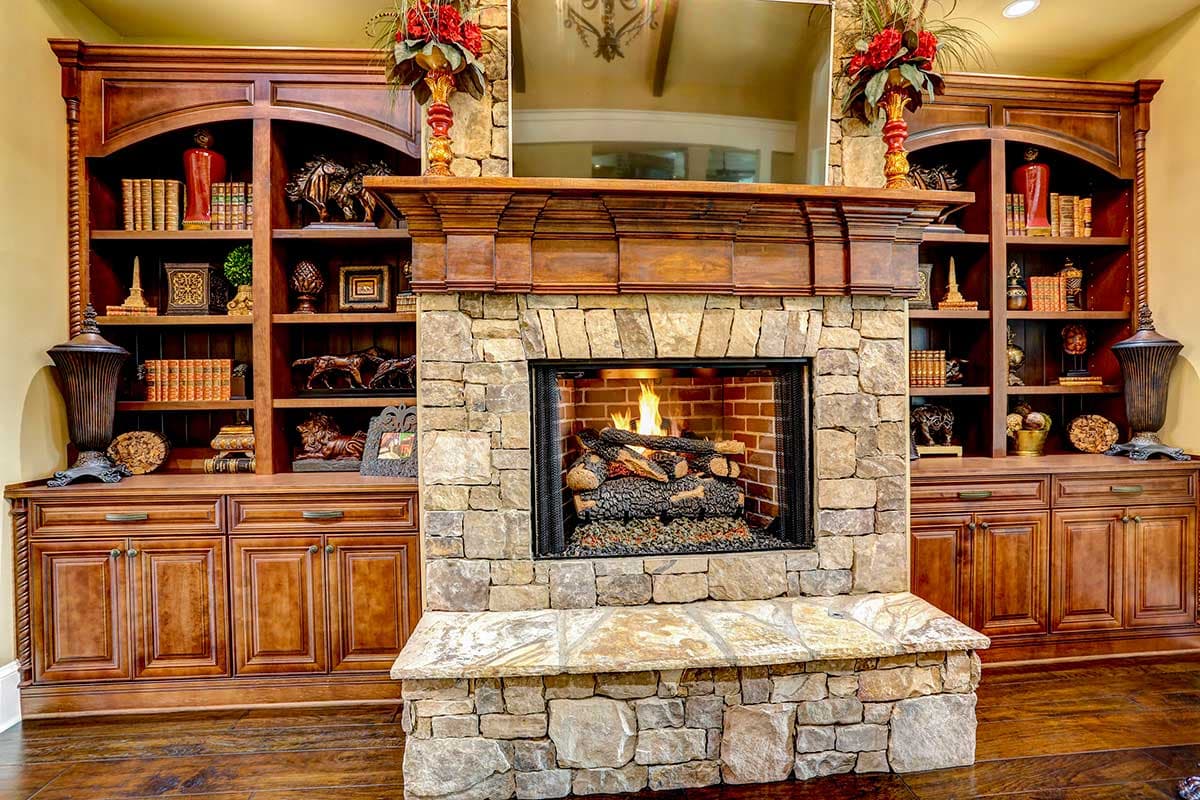

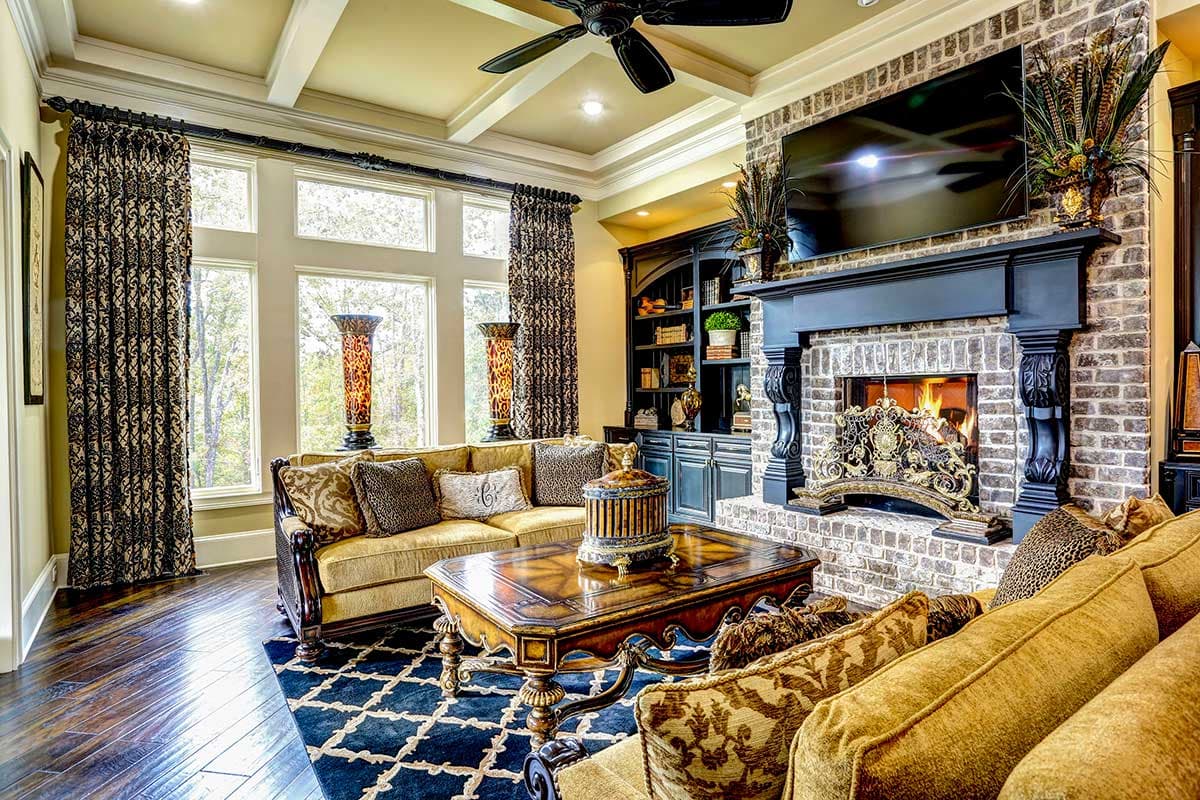

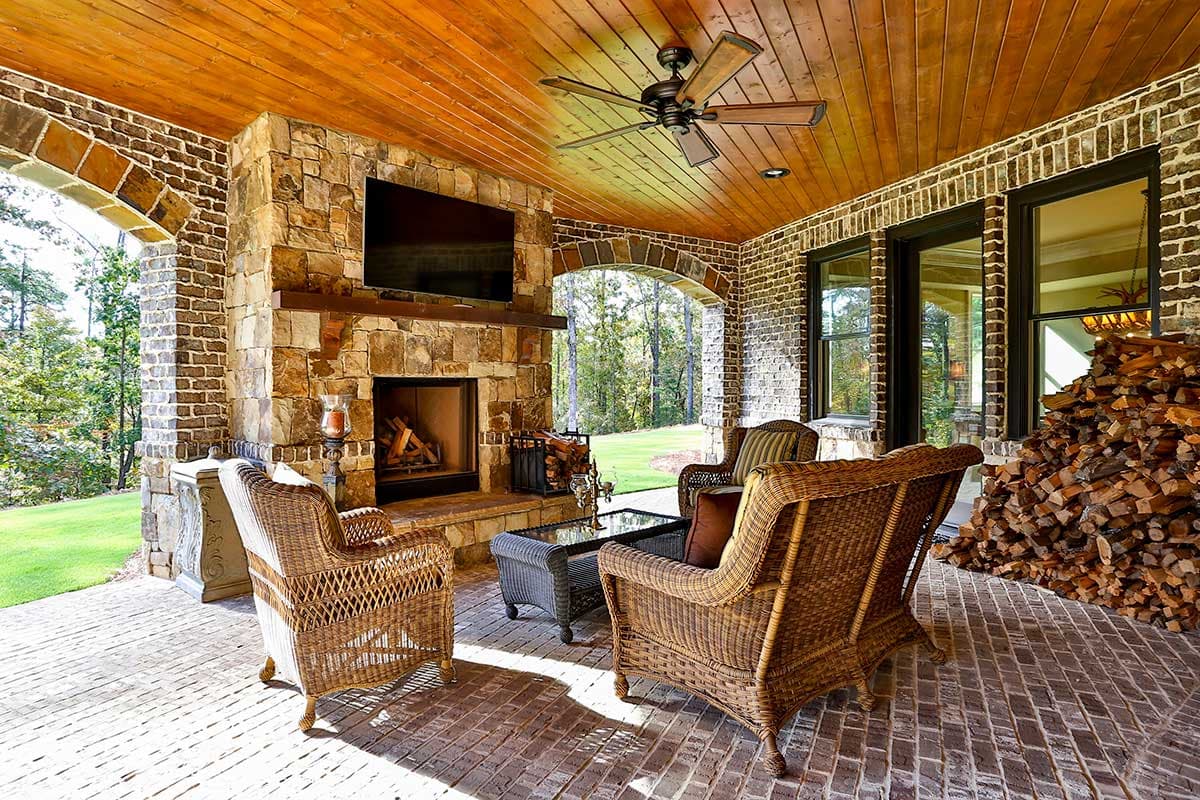

The light-filled lodge room has a fireplace flanked by built-ins. Doors leading to a generously-sized covered porch is an ideal location for entertaining.

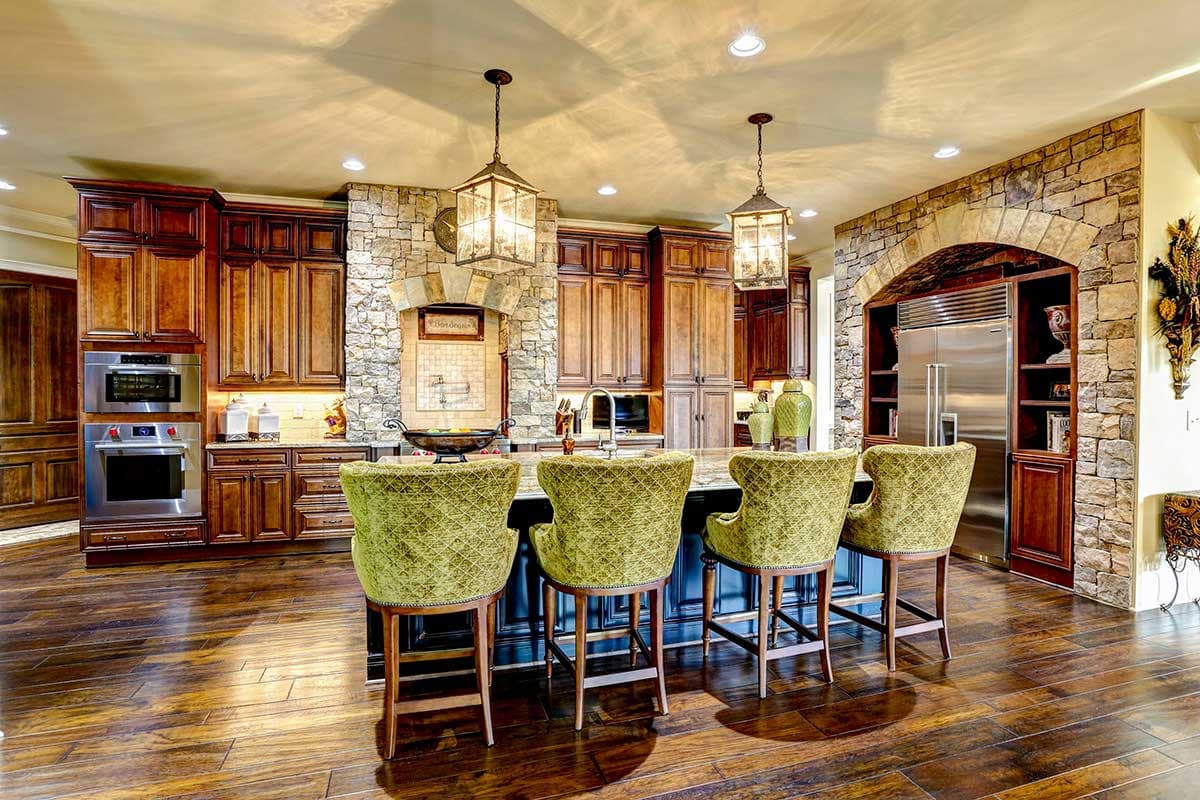

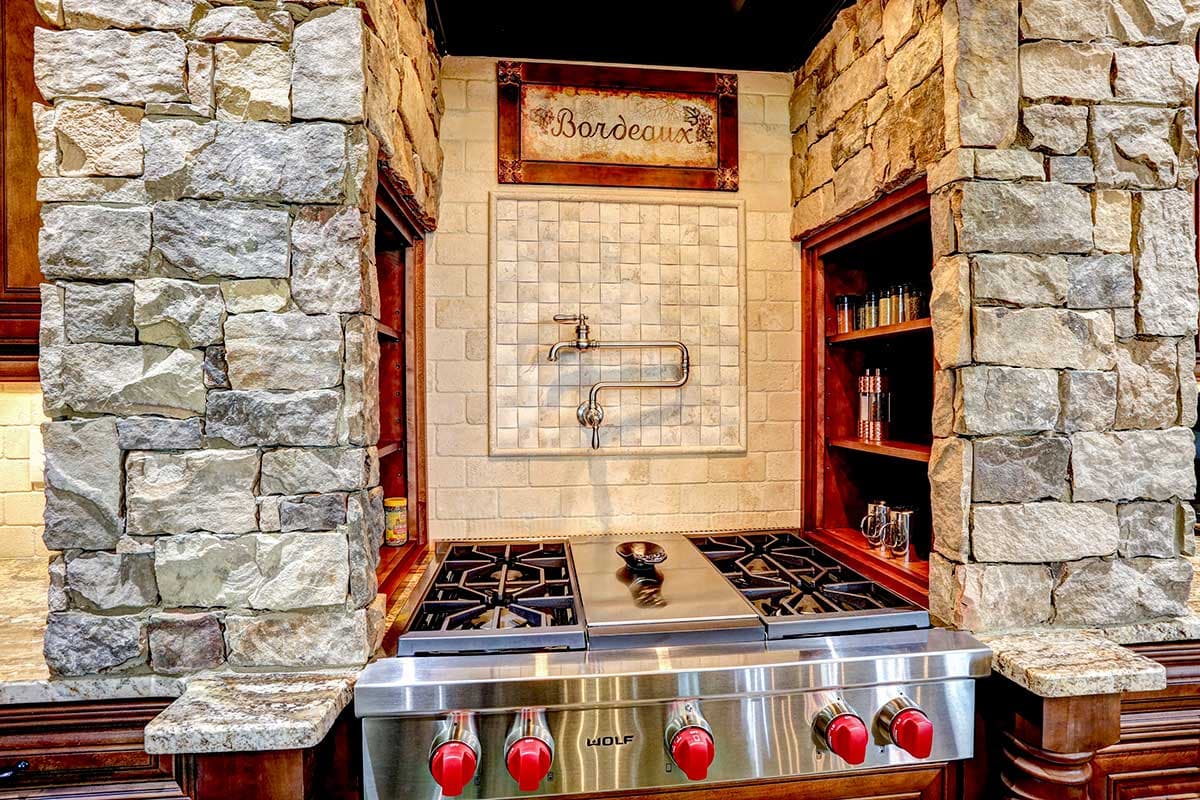

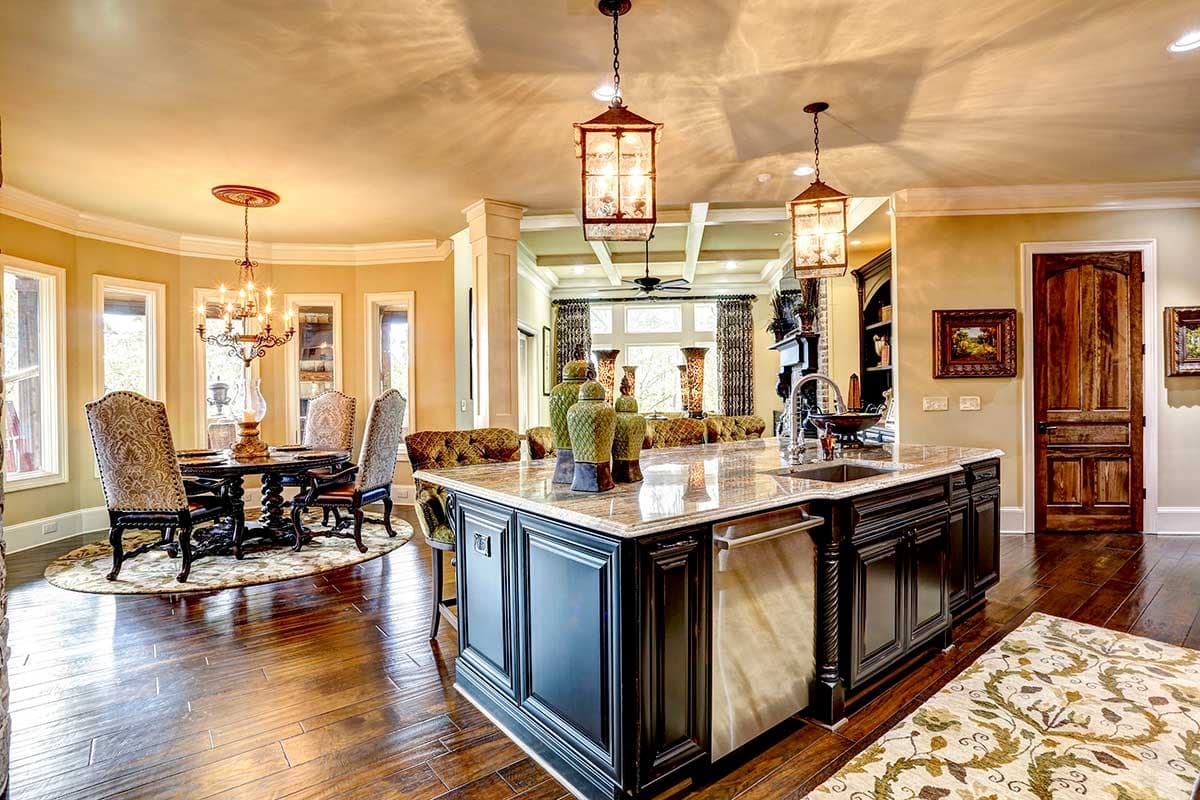

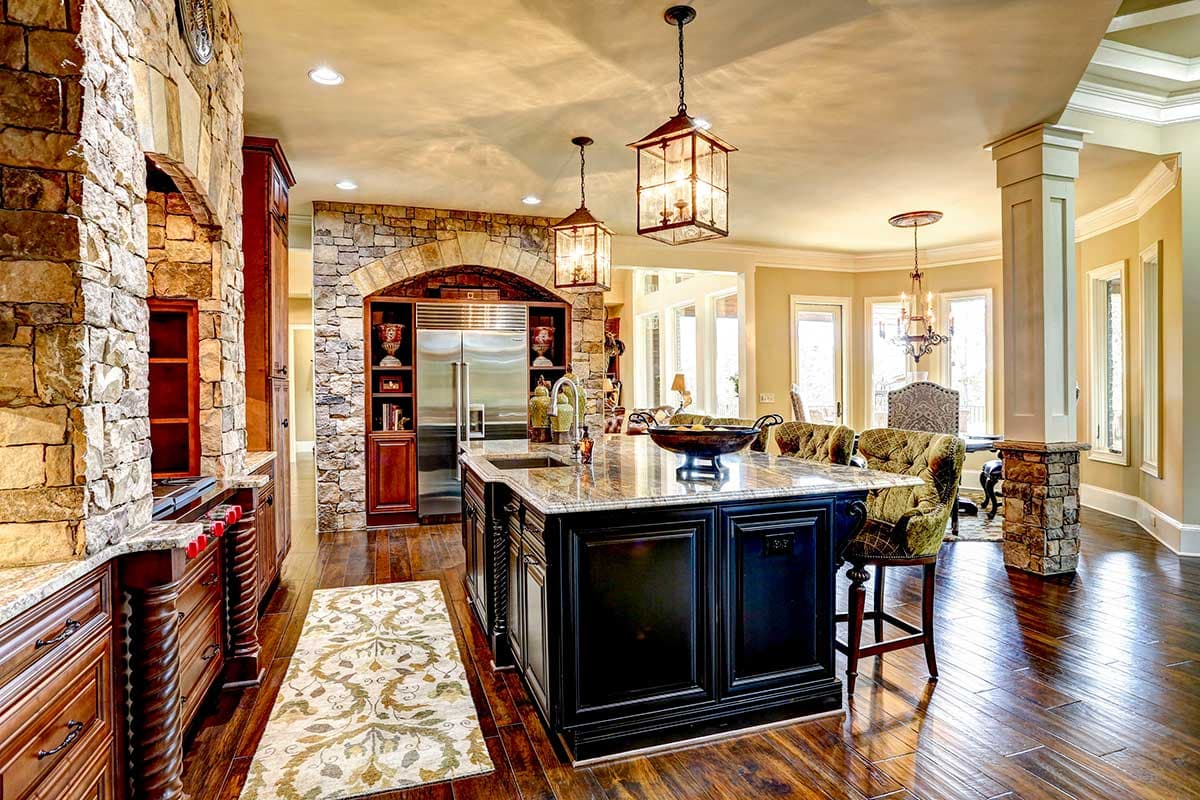

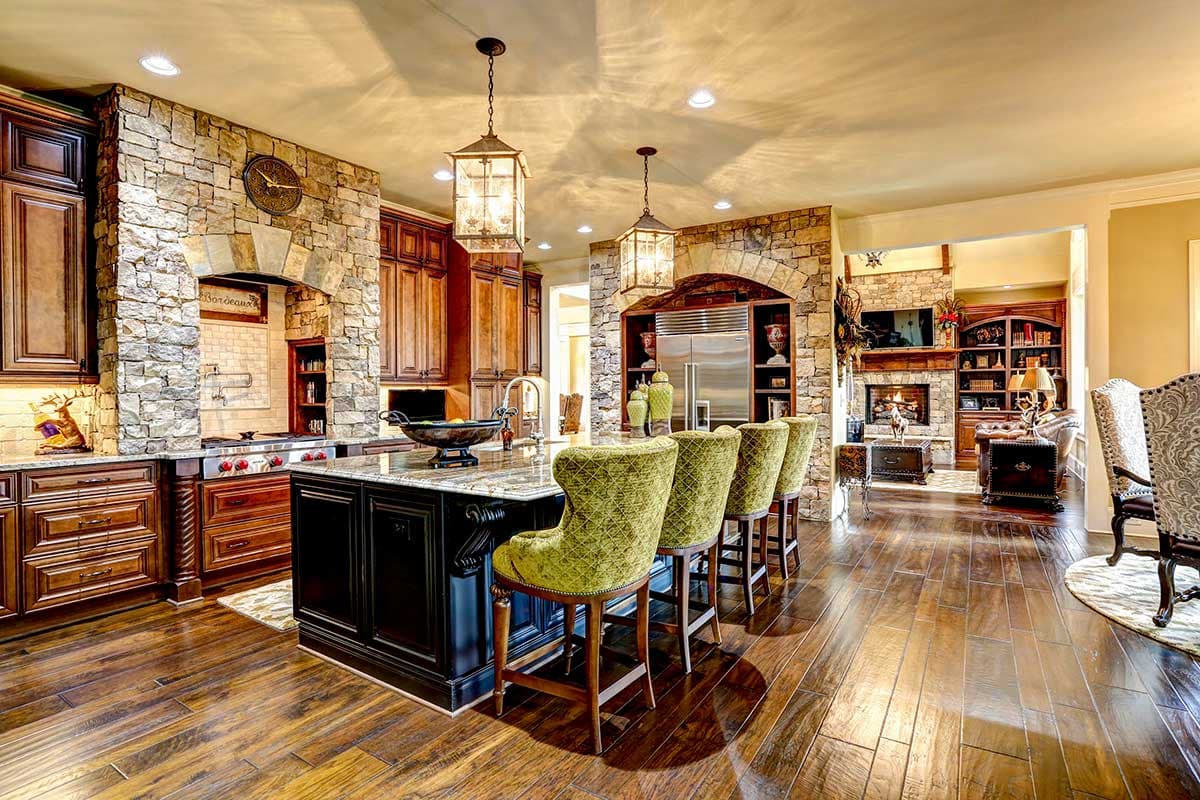

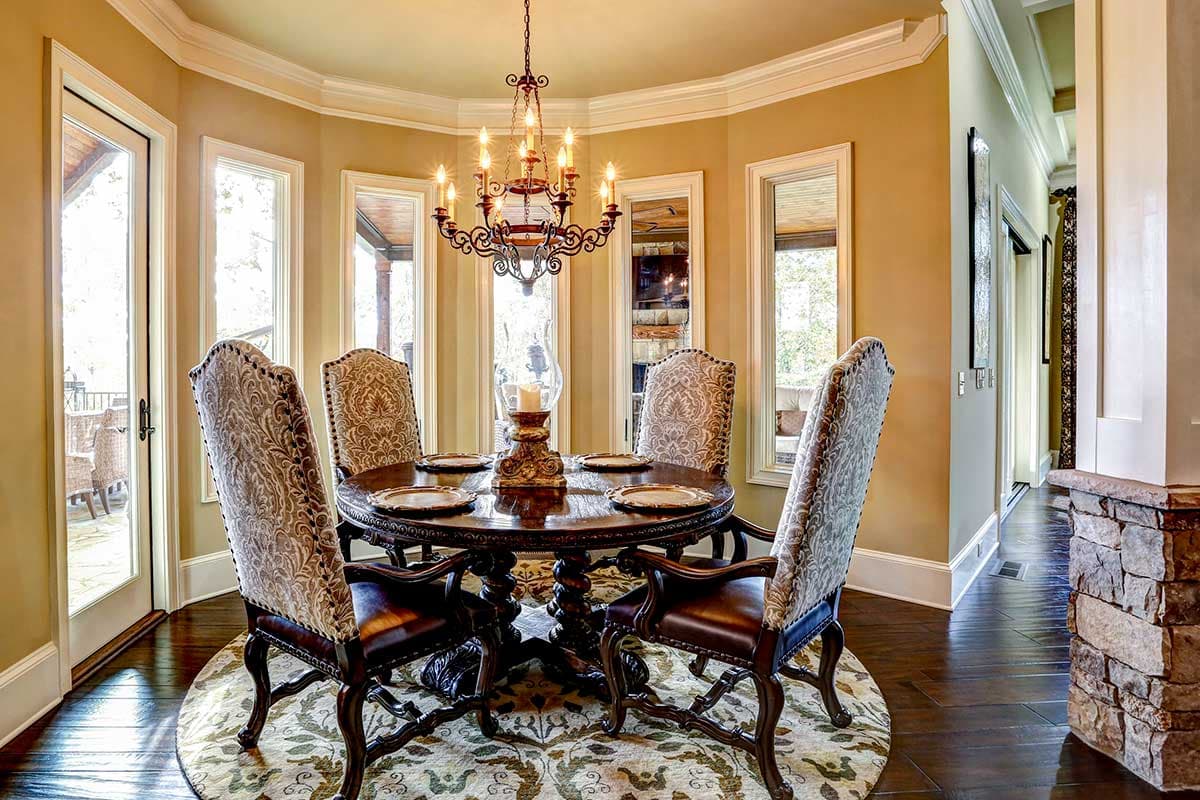

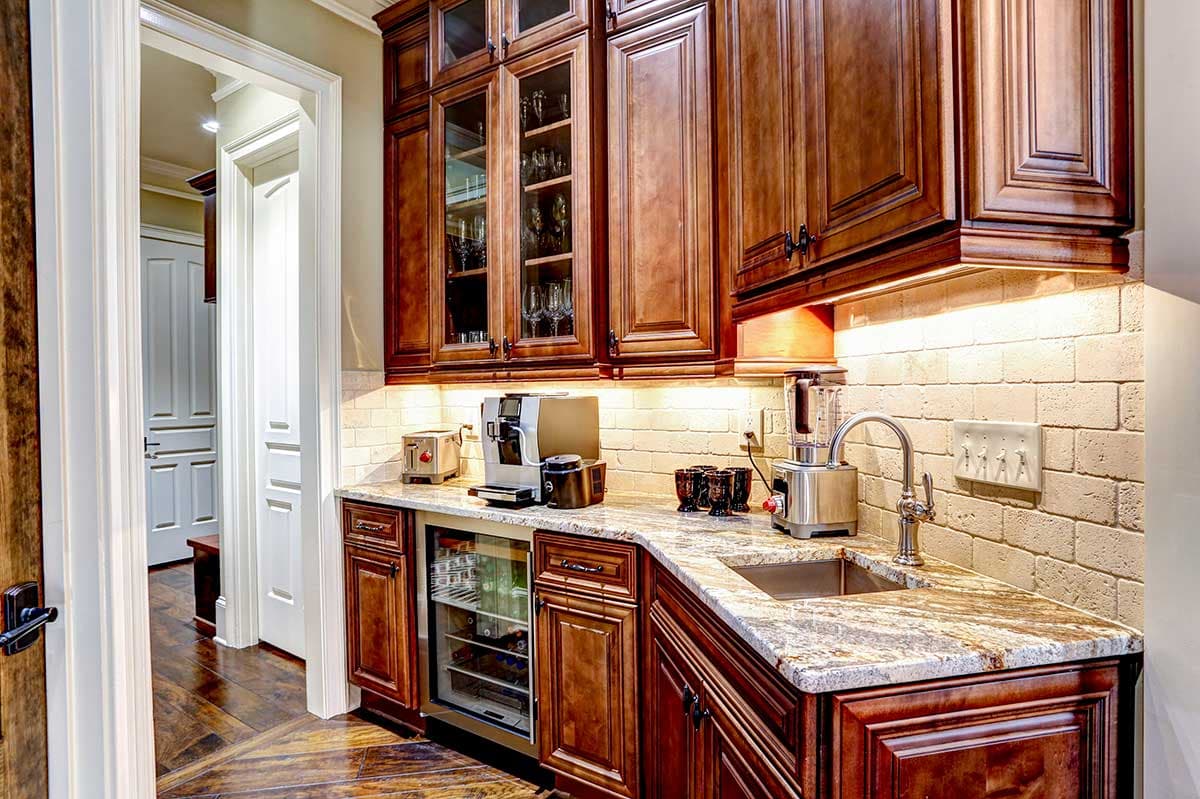

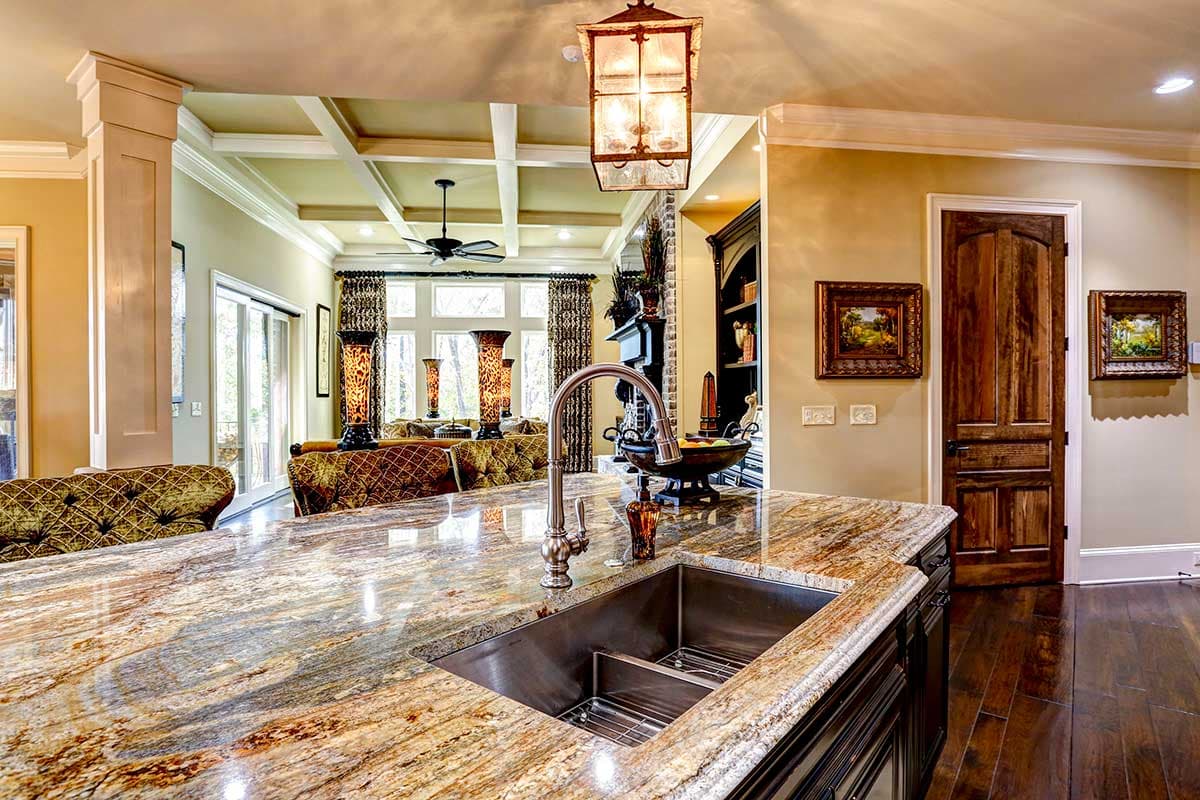

The wood and stone treatments in the kitchen create a warm inviting space. Saddle up to the generous island for a quick meal or take in the view sitting in the breakfast nook.

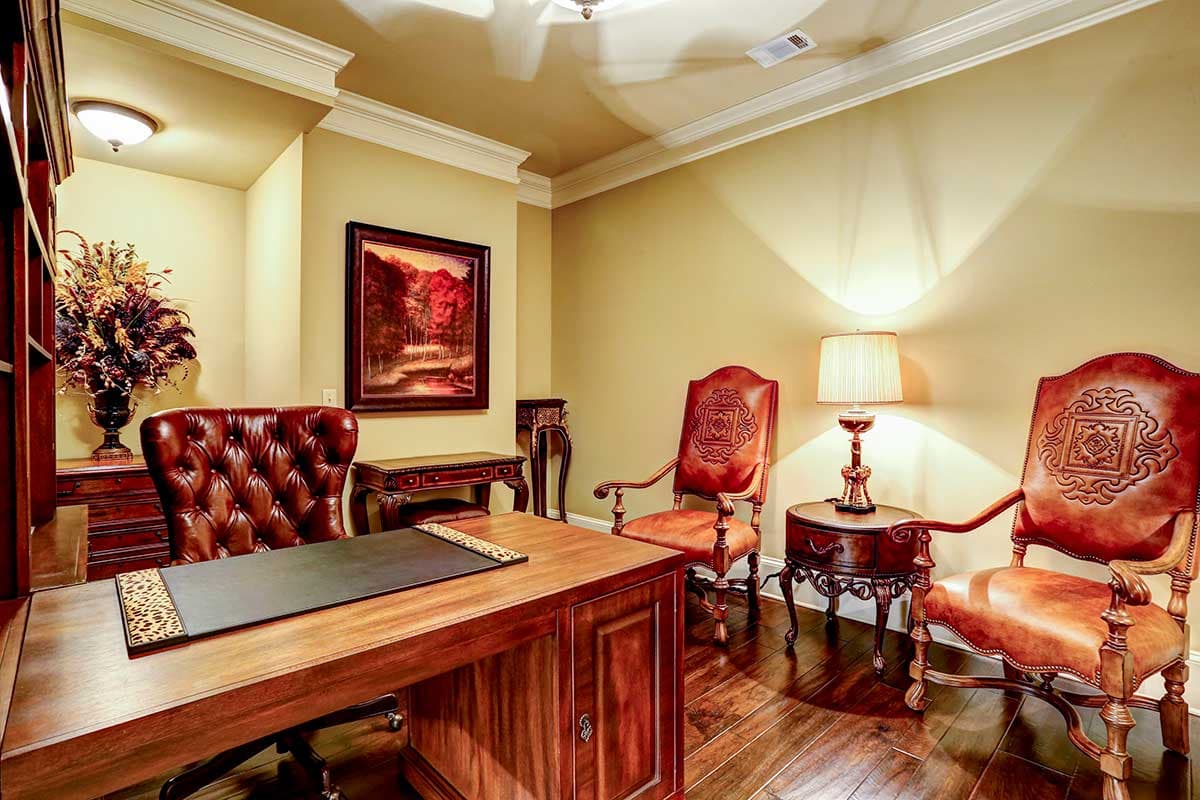

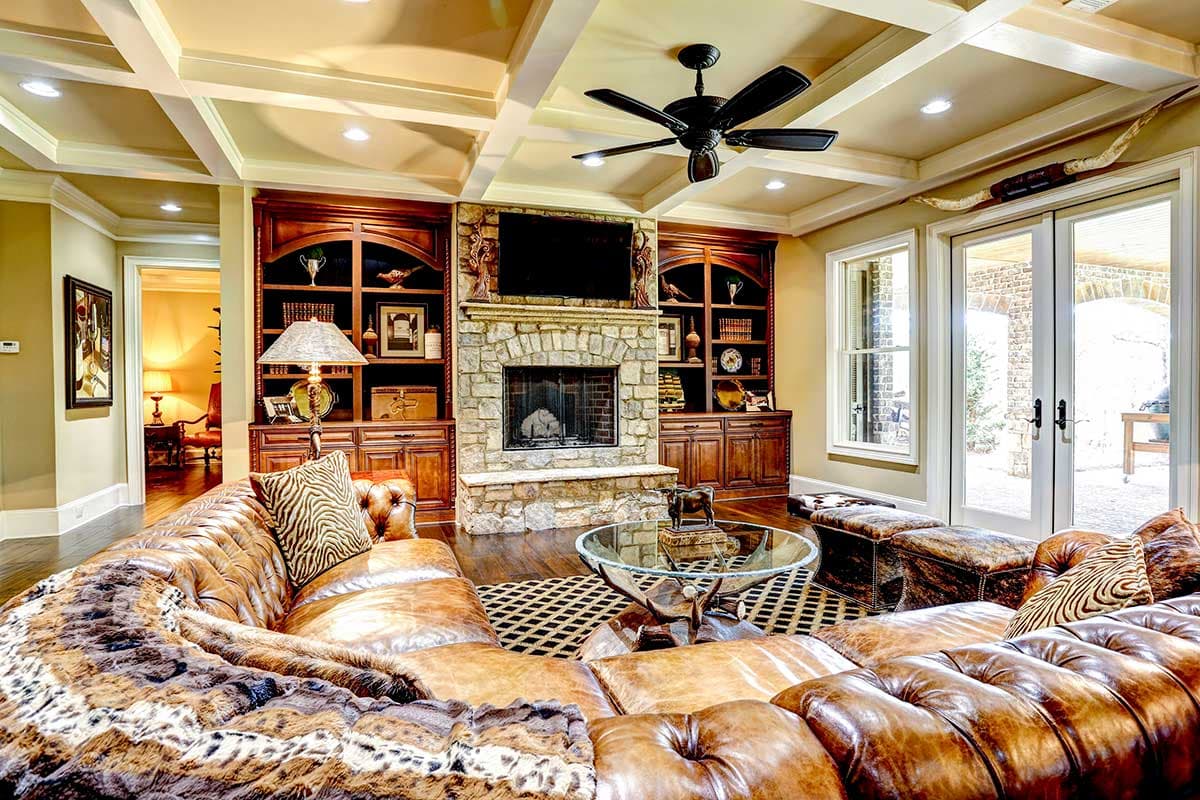

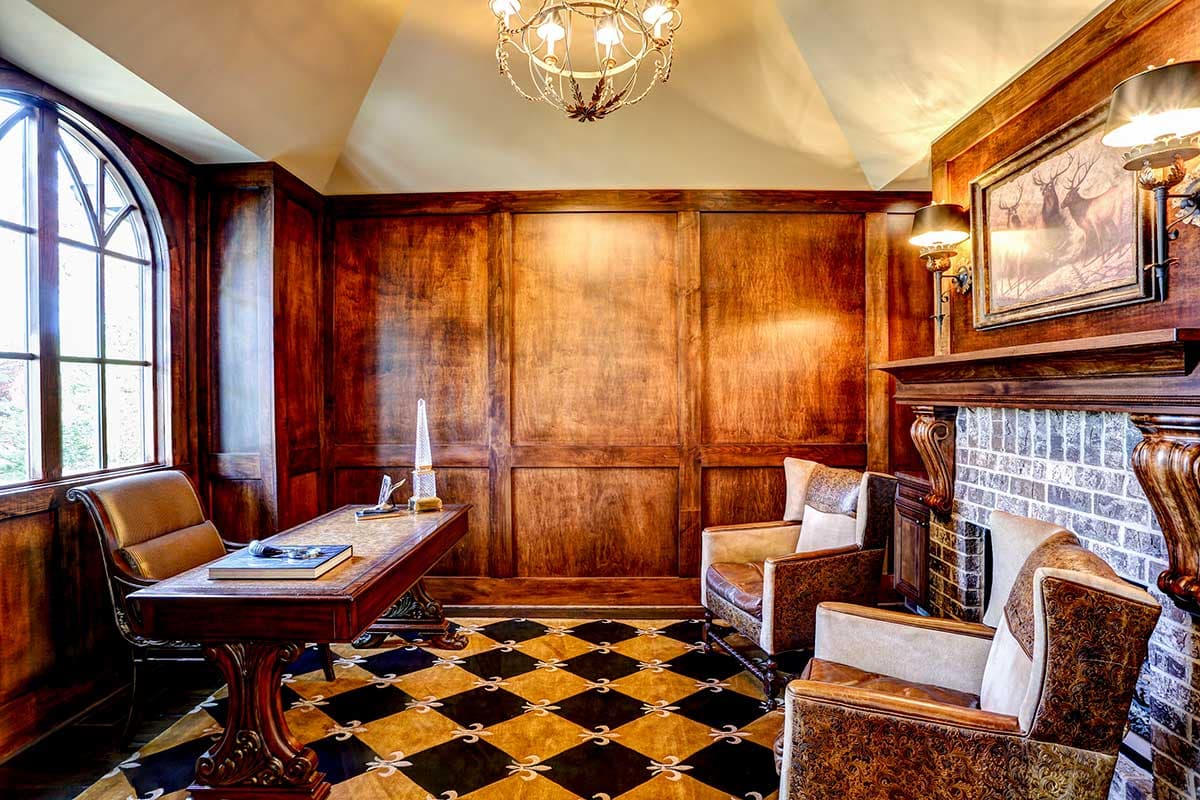

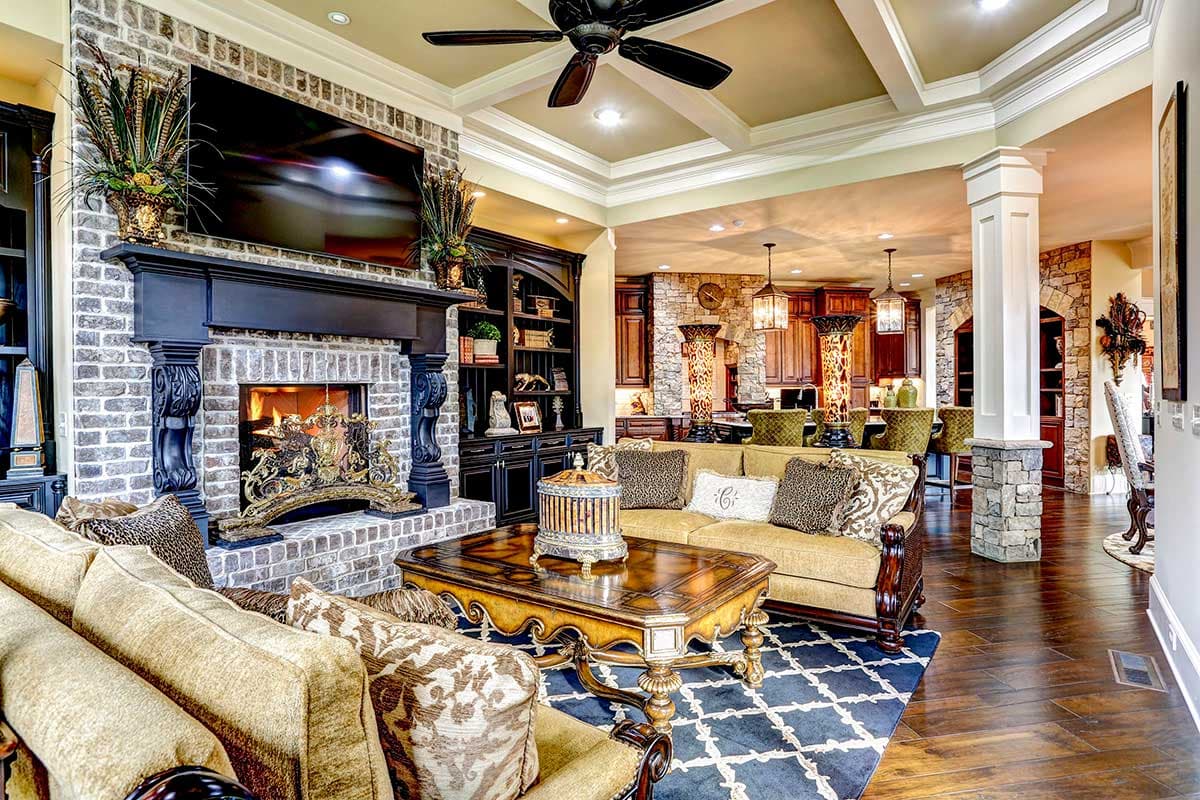

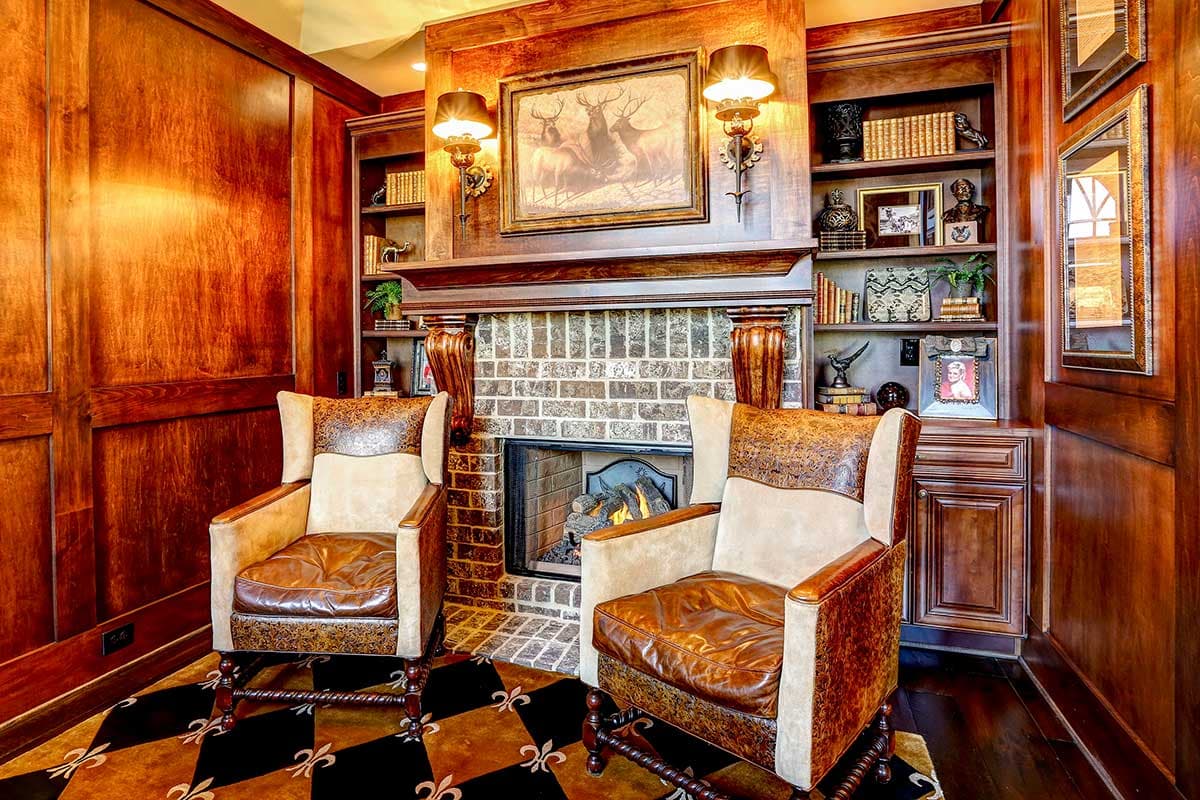

If you are looking for a cozy place to read, the keeping room with fireplace or study with fireplace are two ideal options.

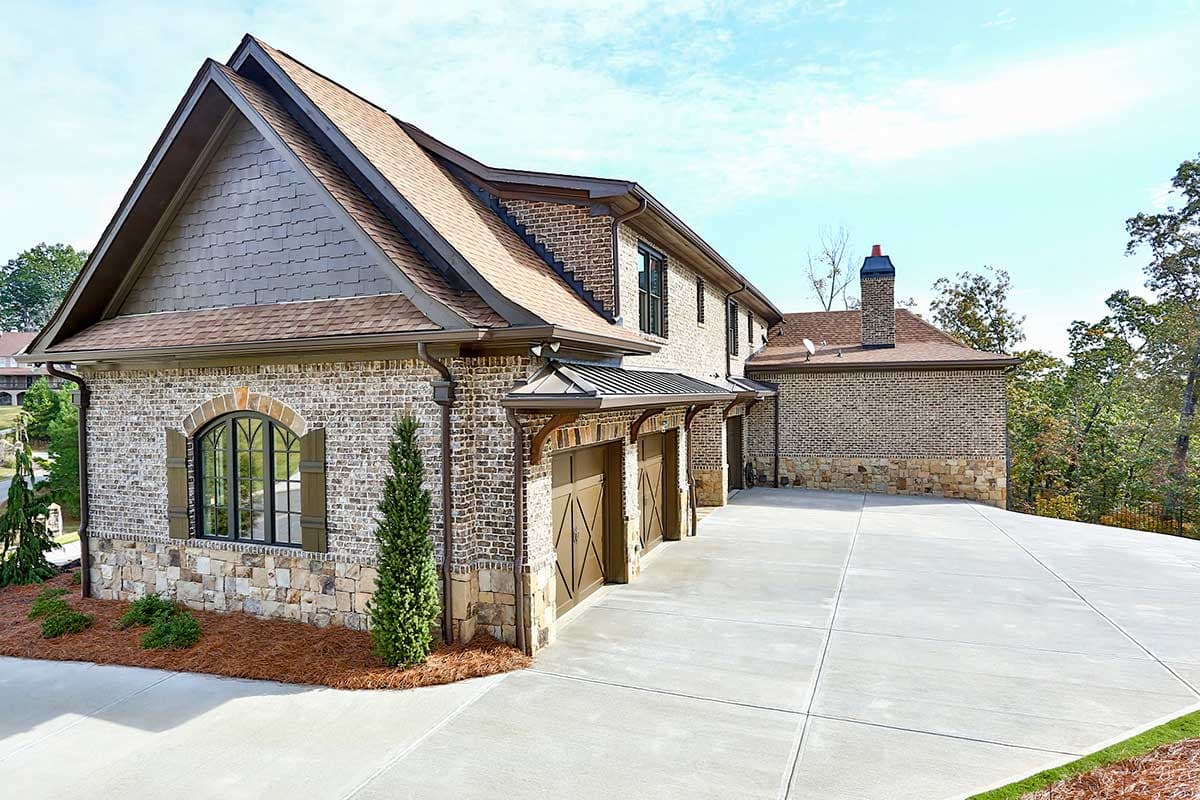

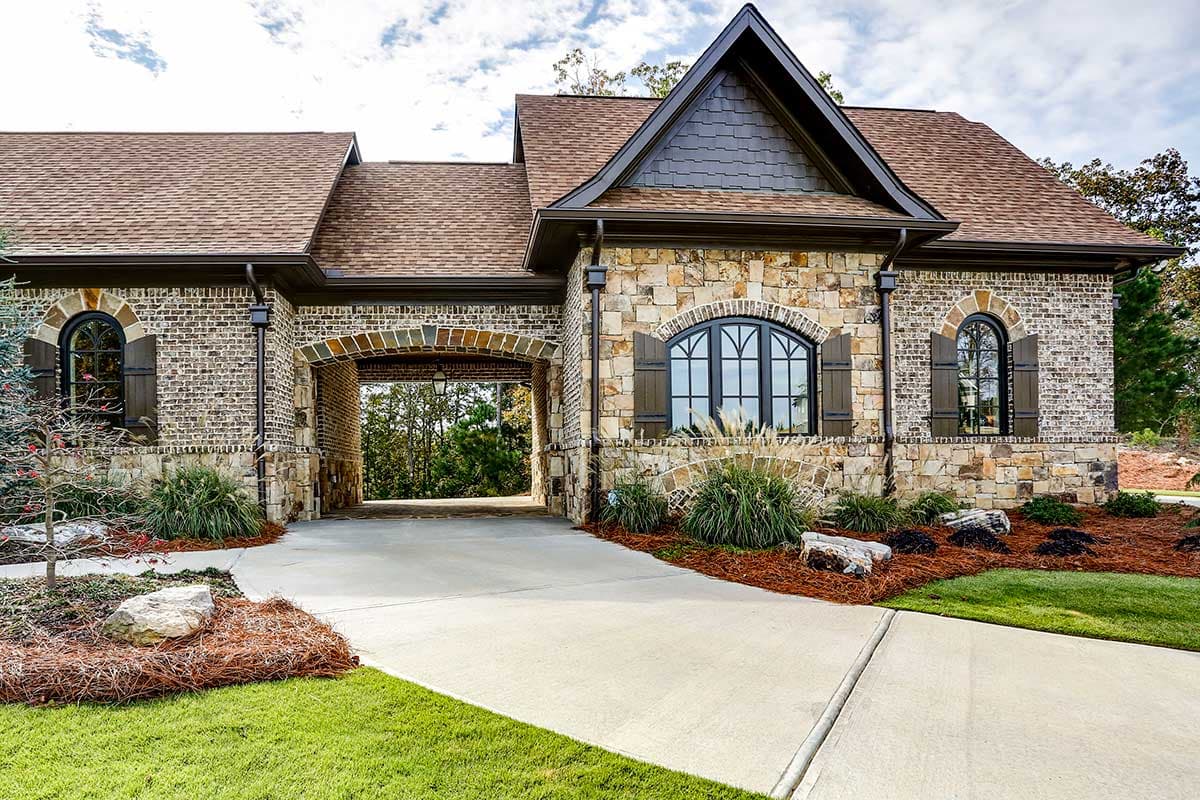

The convenient porte-cochere connects the 2-car garage to the single bay garage creating a convenient walkway in inclement weather.

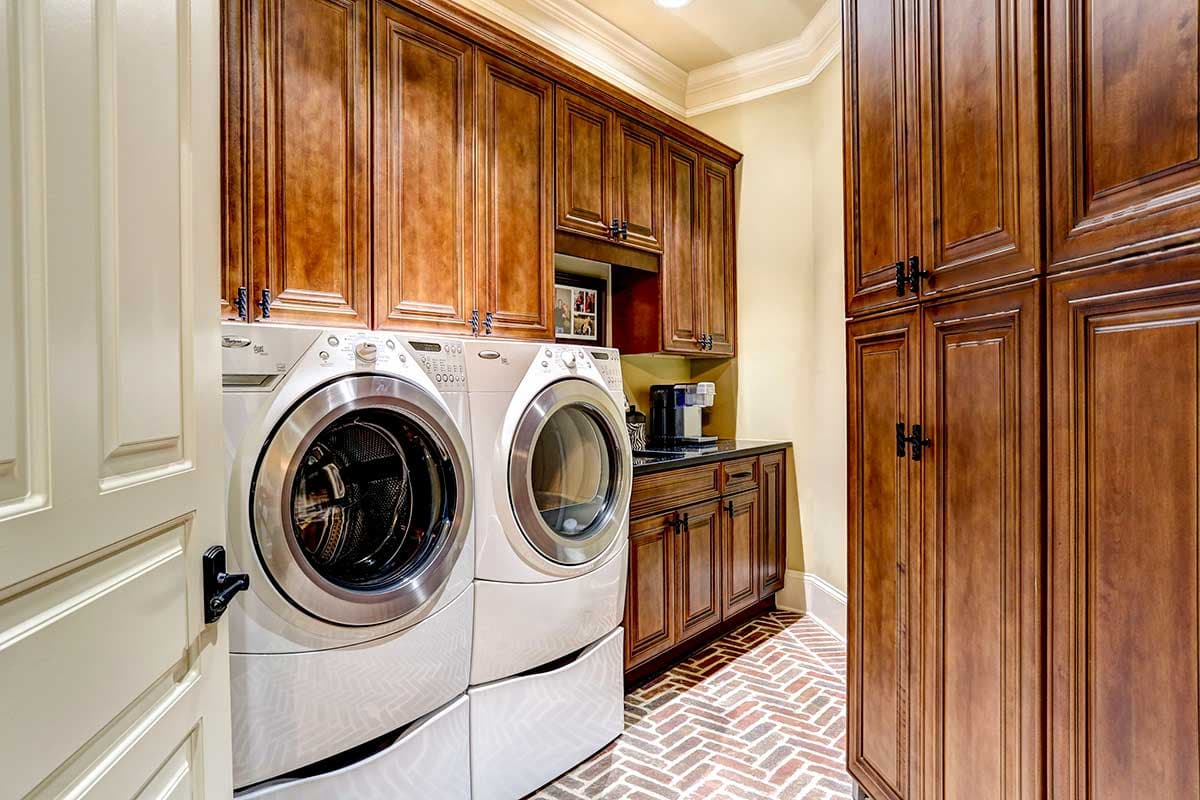

An optional second floor suite provides guests or family with privacy and includes a full kitchen and washer/dryer.

The plan set includes the following:

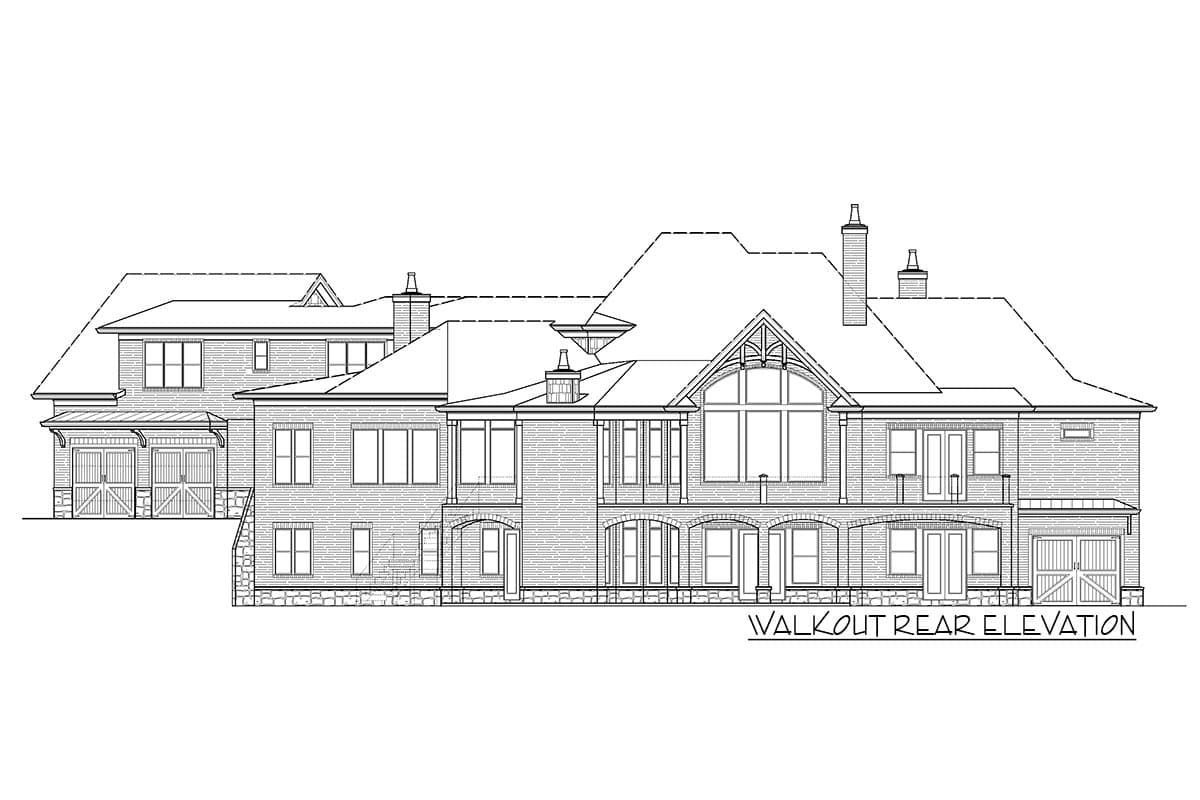

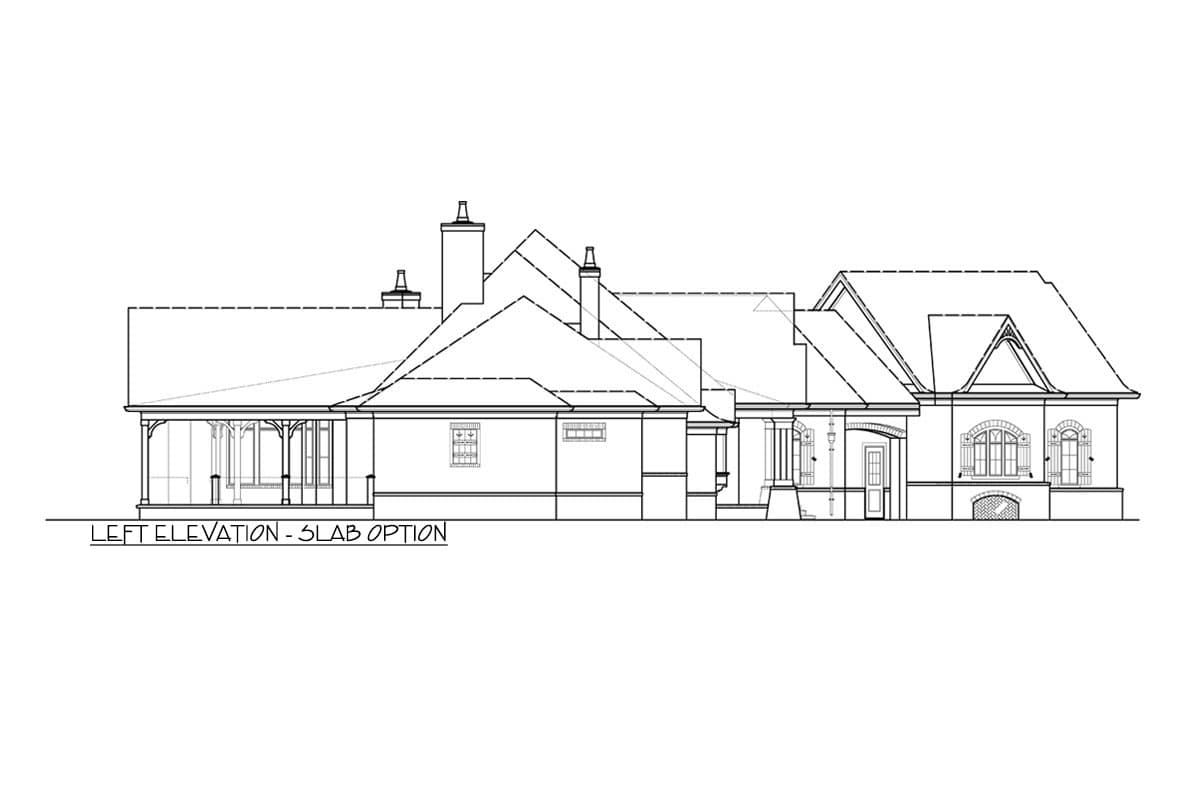

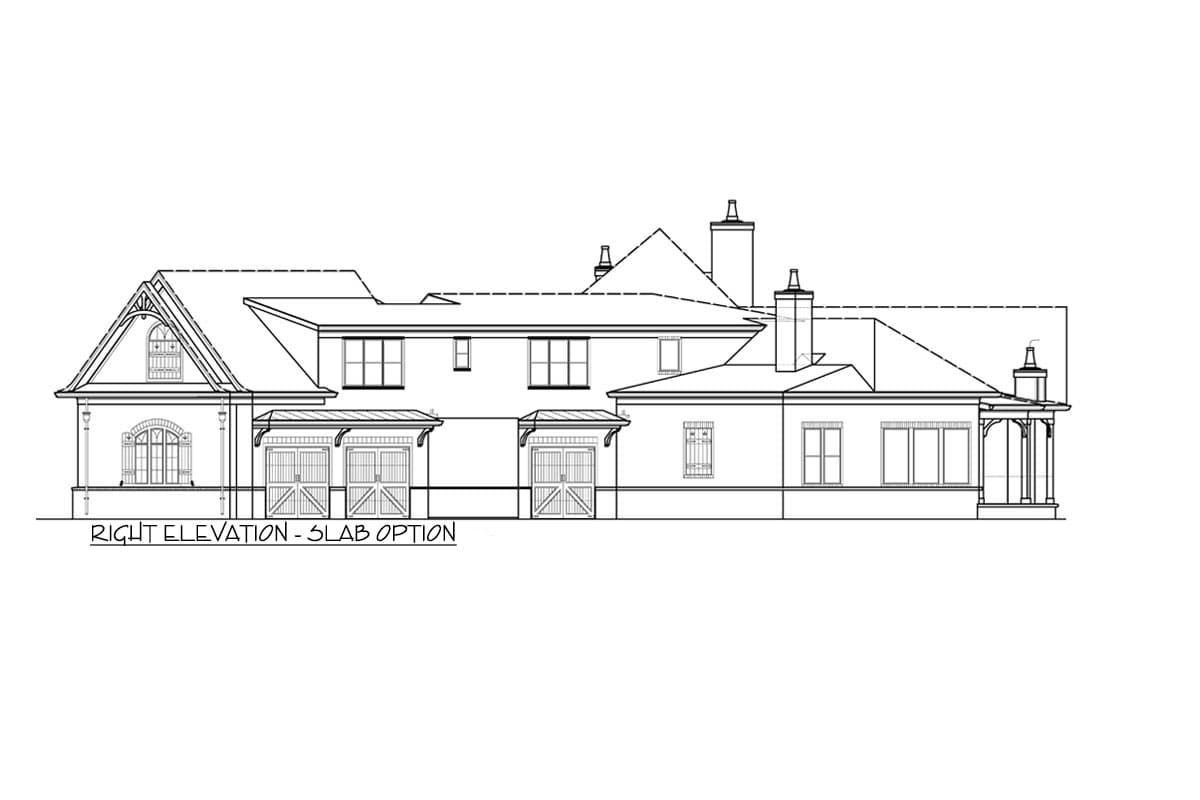

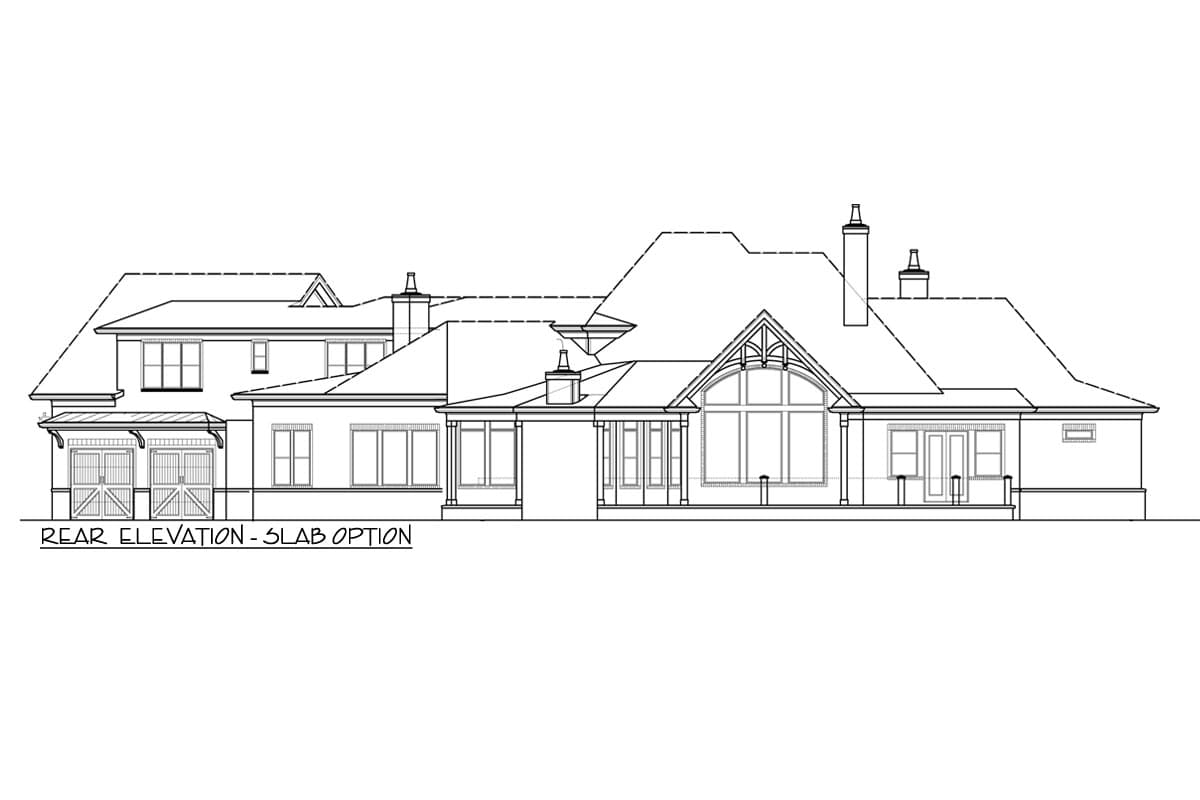

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
Interior Details: These drawings show the specific details and design of special interior features.
Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
Electrical: Electrical floor plan schematics for 1st and 2nd floors.
Plans include wall and cornice sections, general foundation sections and details.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Framing plans
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

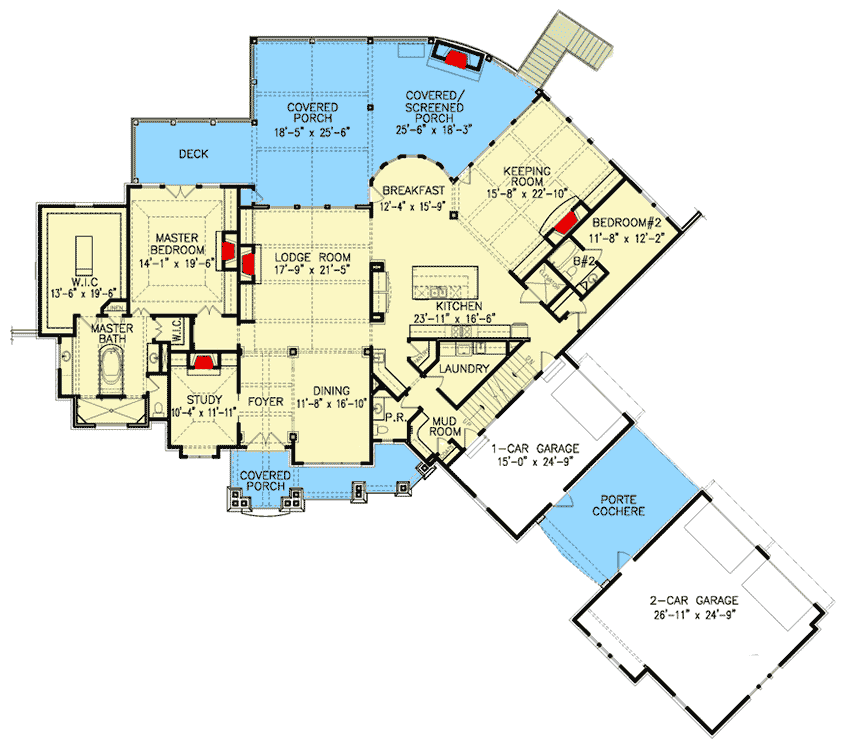

Luxury Craftsman with 2nd floor Guest Suite - 25644GE floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

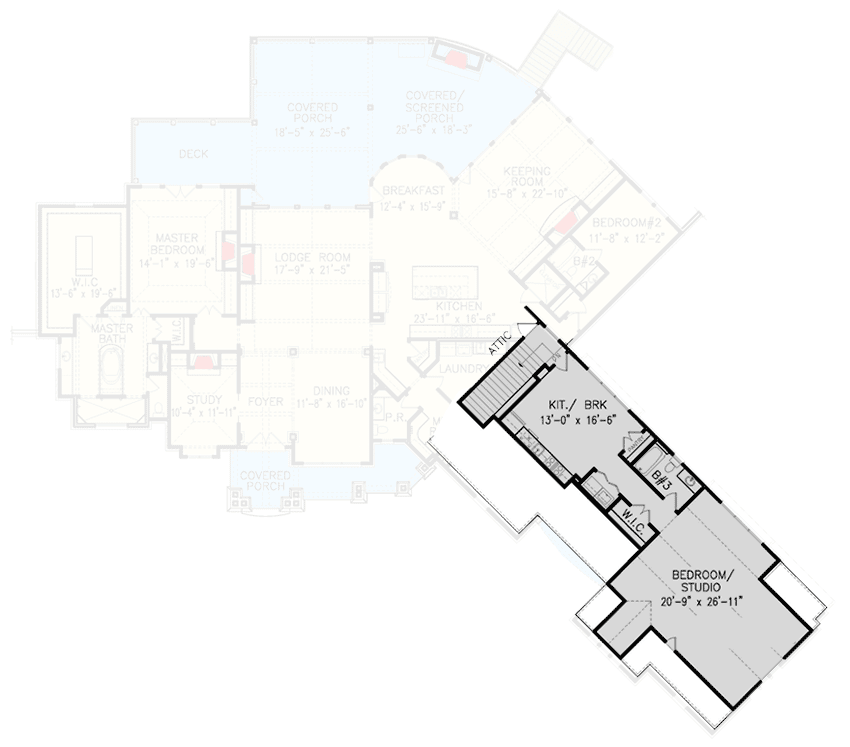

Luxury Craftsman with 2nd floor Guest Suite - 25644GE floor plan - 2nd Floor

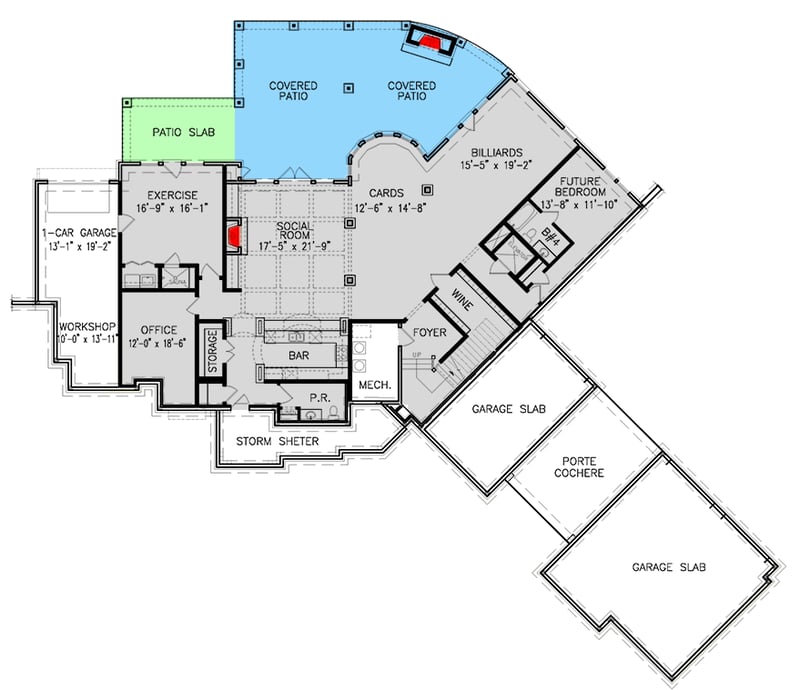

Optional Finished Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

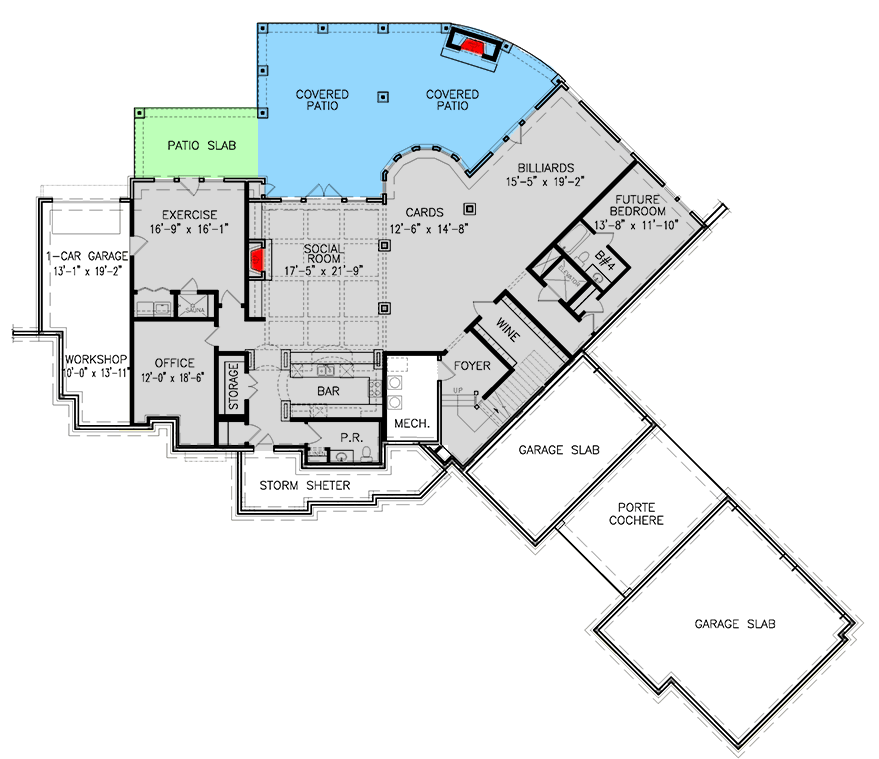

Luxury Craftsman with 2nd floor Guest Suite - 25644GE floor plan - Optional Finished Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 3,480 sq. ft.
1st Floor: 3,480 sq. ft.

Bonus: 1,031 sq. ft.
Optional Lower Level: 2,794 sq. ft.

Beds/Baths

Bedrooms: 2 or 3

Full bathrooms: 2 or 3
Half bathrooms: 1

Foundation Type

Standard Foundations: Basement, Walkout

Optional Foundations: Slab, Crawl

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 121' 5"
Depth: 107' 9"
Max ridge height: 29' 10"

Garage

Type: Attached
Area: 1118 sq. ft.
Count: 3 Cars
Entry Location: Rear

Ceiling Heights

Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

Framing Type: Truss

Architectural Style
