Luxury European House Plan with Exercise and Game Rooms
Heated S.F.
6,091
Beds
5
Baths
5.5
Stories
1
Cars
4
What's Included
Plan Details
  • Beauty defines this luxury, European house plan, which features sizable service areas, an exercise room, quiet study, and game room.
  • The grand covered entry leads into a circular foyer framed by a private study and formal dining room. Straight ahead, the generously-sized family room includes a corner fireplace, and three doors that lead to a back patio.
  • The prep island, walk-in pantry, large range, and loads of workspace create a chef's ideal kitchen.
  • The master suite occupies the right side of the home, and neighbors a large exercise room. The spa-like ensuite boasts a corner whirlpool tub, two vanities, toilet room, and massive wardrobe.
  • Four additional bedroom suites are sprinkled throughout the design; two border the large game room located behind the 4-car garage.
What's Included
  • Cover sheet
  • Foundation Plan

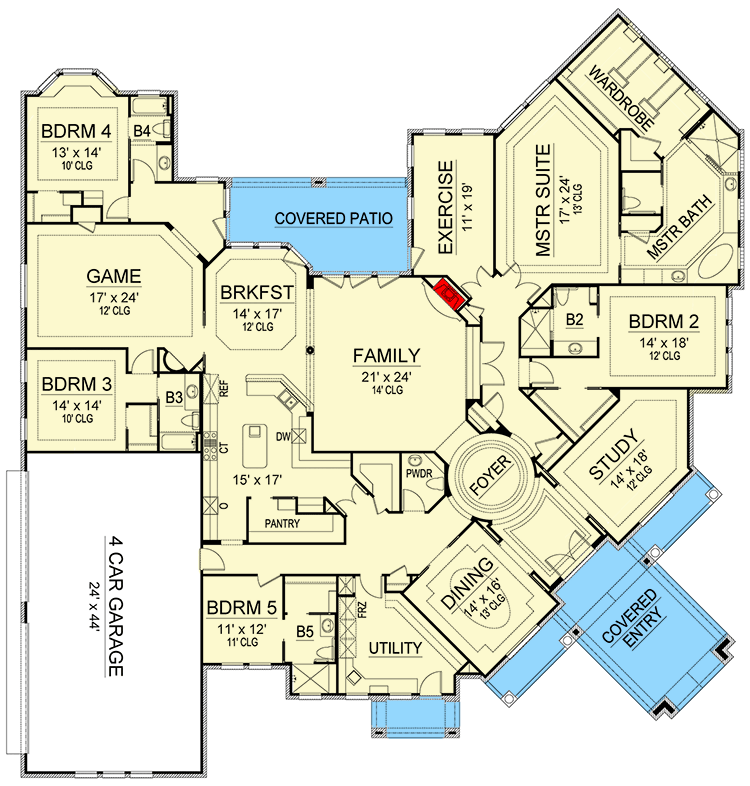

  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

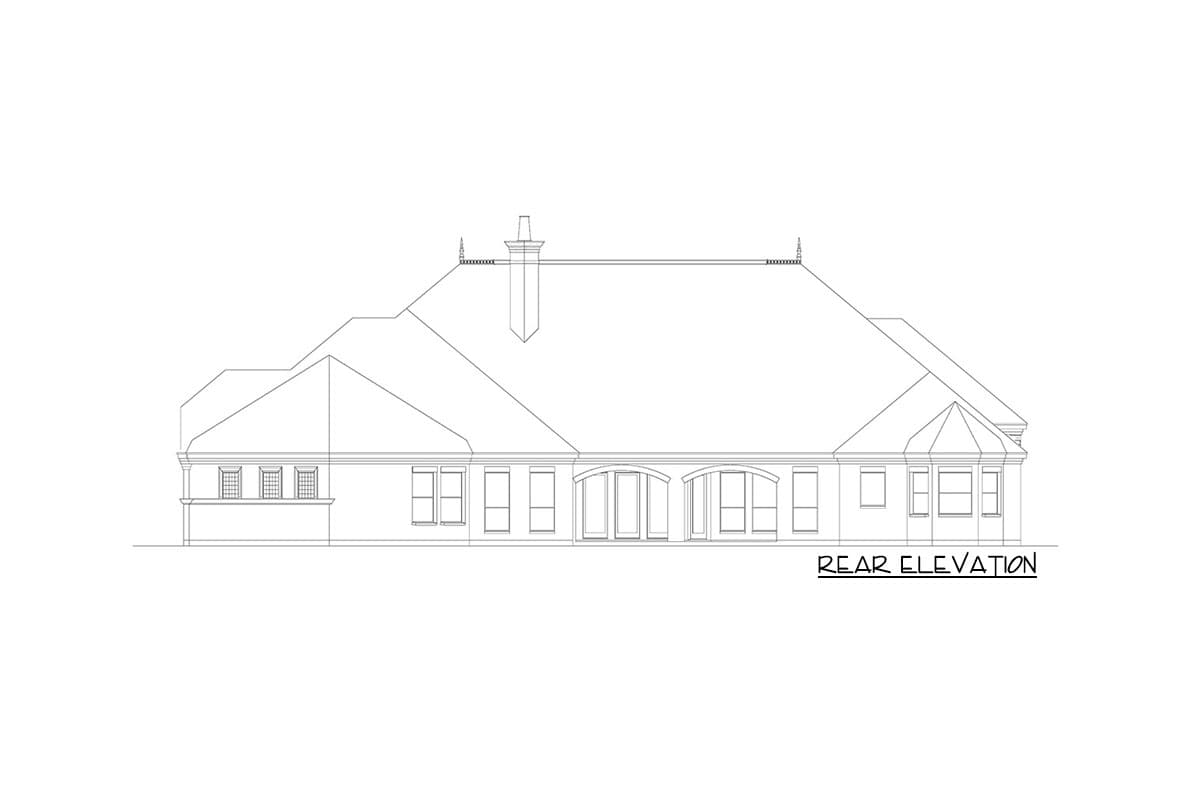

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

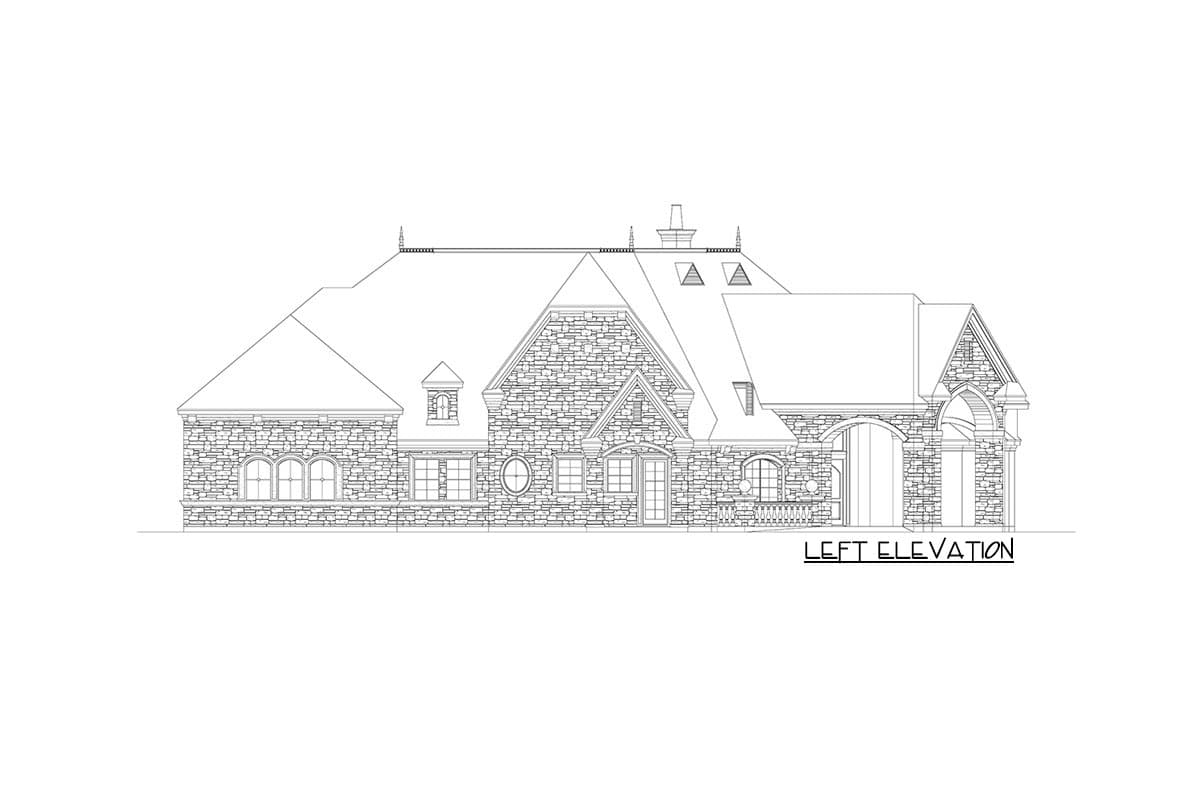

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
