Luxury European-Style House Plan with Upstairs Game Room
Heated S.F.
4,940
Beds
4
Baths
4
Stories
2
Cars
3
What's Included
Plan Details
  • This two-story European-style house plan offers glass pane windows, arched windows and a two-story covered entryway with large transom. Enter through the double front doors into the foyer flanked by the dining room and the formal two-story living room complete with fireplace and built-ins.
  • The hall leads to a bathroom and quiet study with large walk-in closet. Adjacent off the hall is the covered patio that can also access re-entry to the home plan’s kitchen, complete with free-standing center island and breakfast bar, built-ins, modern appliances, granite countertops, a pantry and butlery that leads into the dining room.
  • A quiet breakfast room off the kitchen leads to the open two-story family room with dramatic fireplace and built-ins. A utility room off the family room leads to a two-car, rear-entry garage and one-car, side-entry garage with work area.
  • Behind the family room is the master suite with 17’ octagonal trey ceiling and master bath with his and hers vanities, separate glass shower and Jett tub, and large wardrobe with built-ins.
  • Upstairs are two family bedrooms, each with walk-in closets, that share a Jack-n-Jill bathroom. A third family bedroom upstairs has a walk-in closet, full bathroom access and a game room that walks out onto a balcony
What's Included
  • Cover sheet
  • Foundation Plan
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

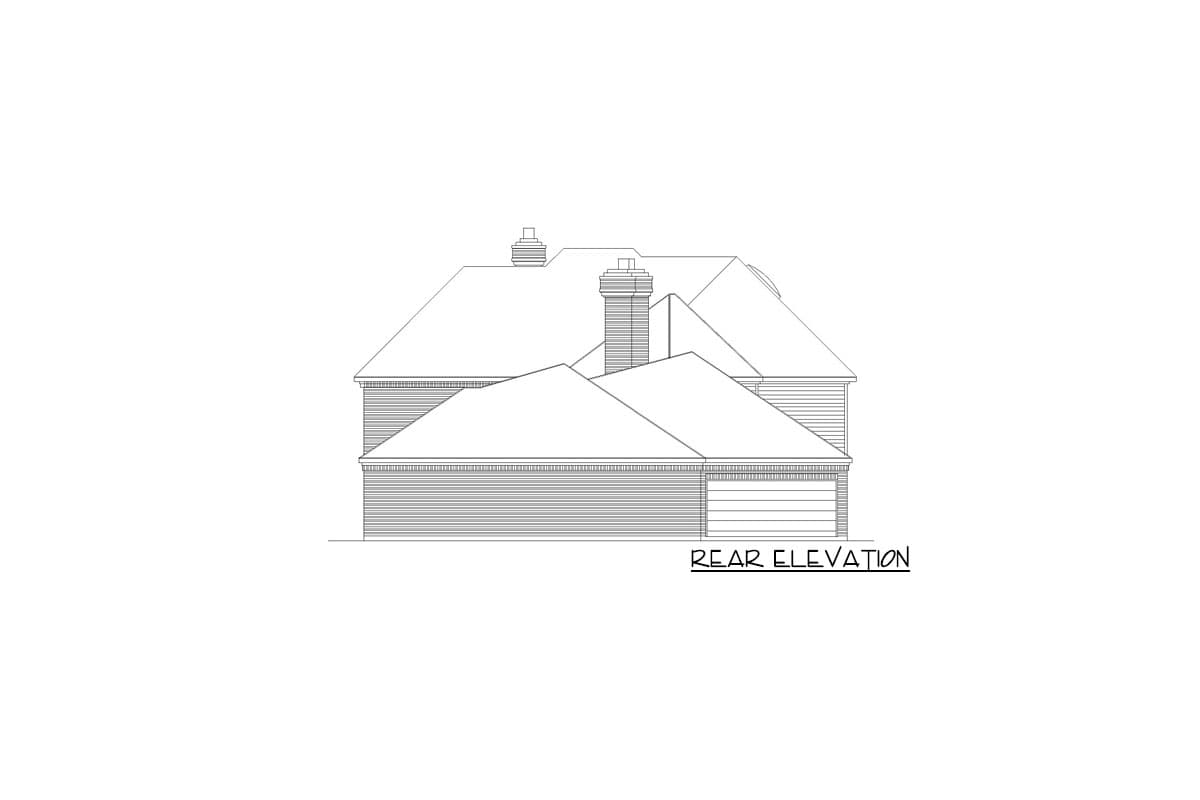

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

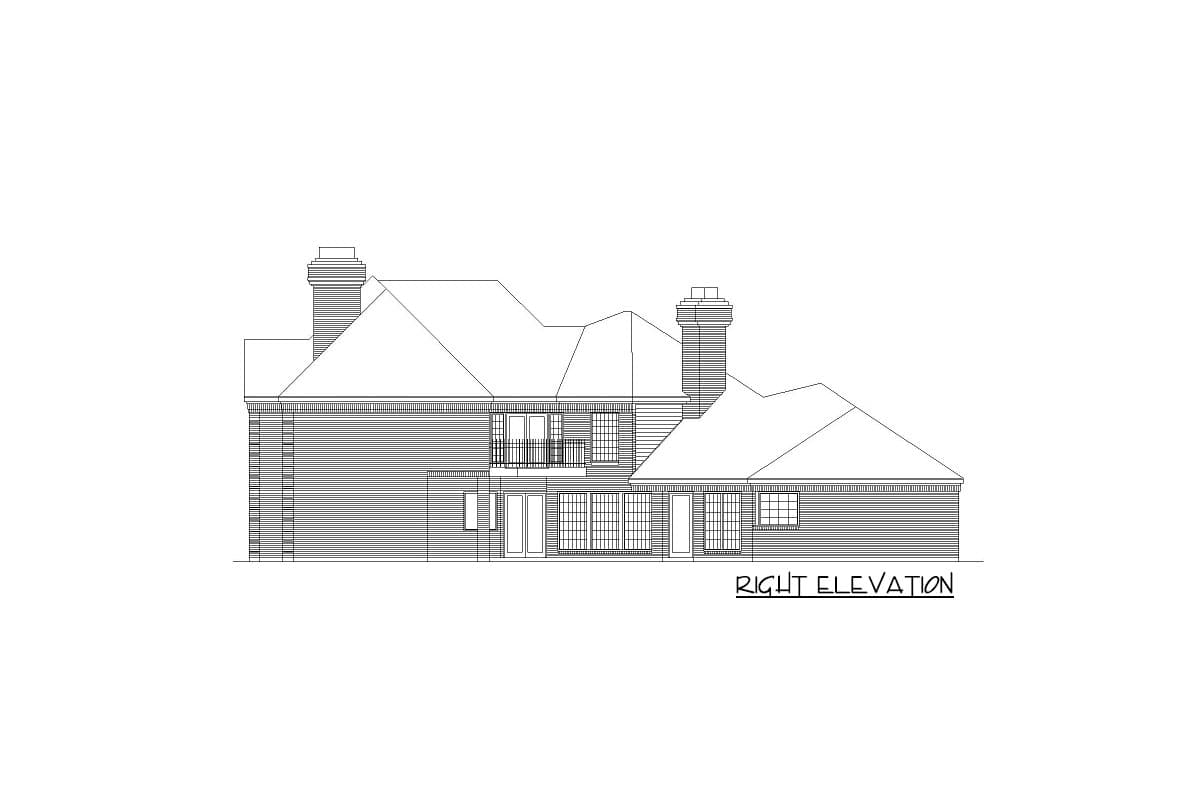

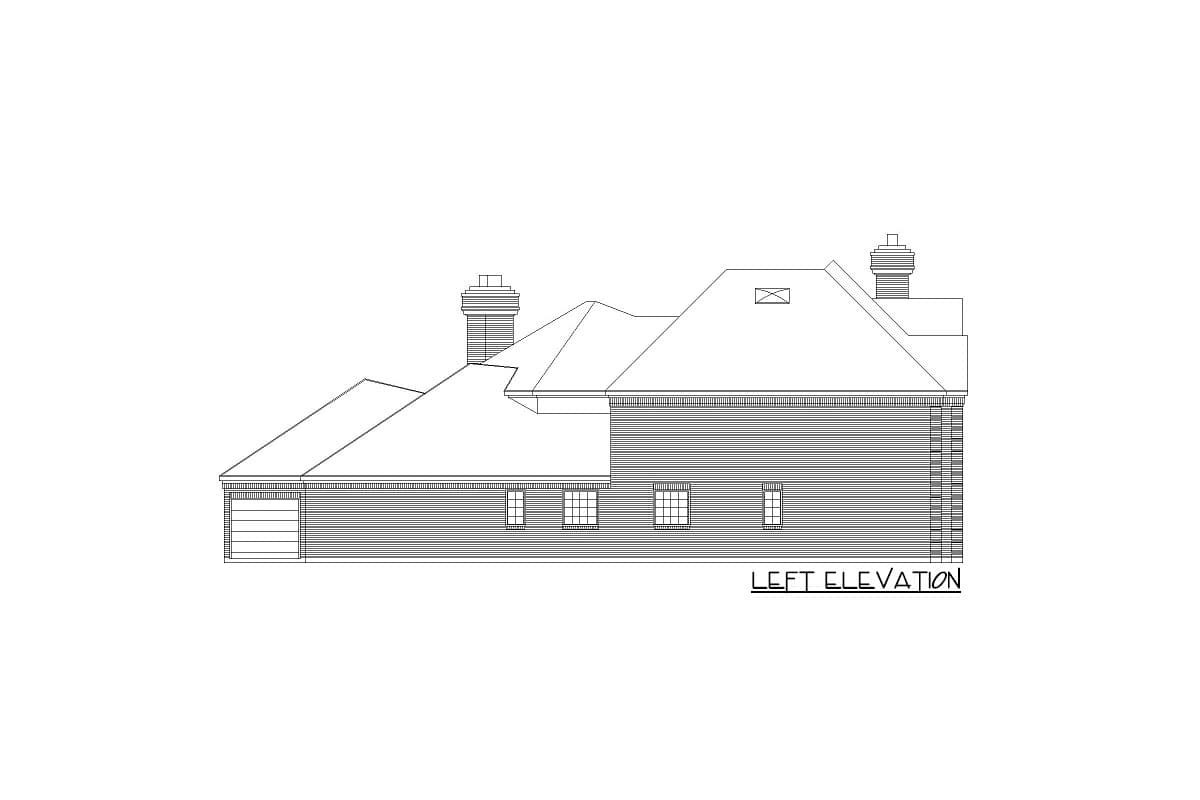

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Luxury European-Style House Plan with Upstairs Game Room

  • 4,940

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

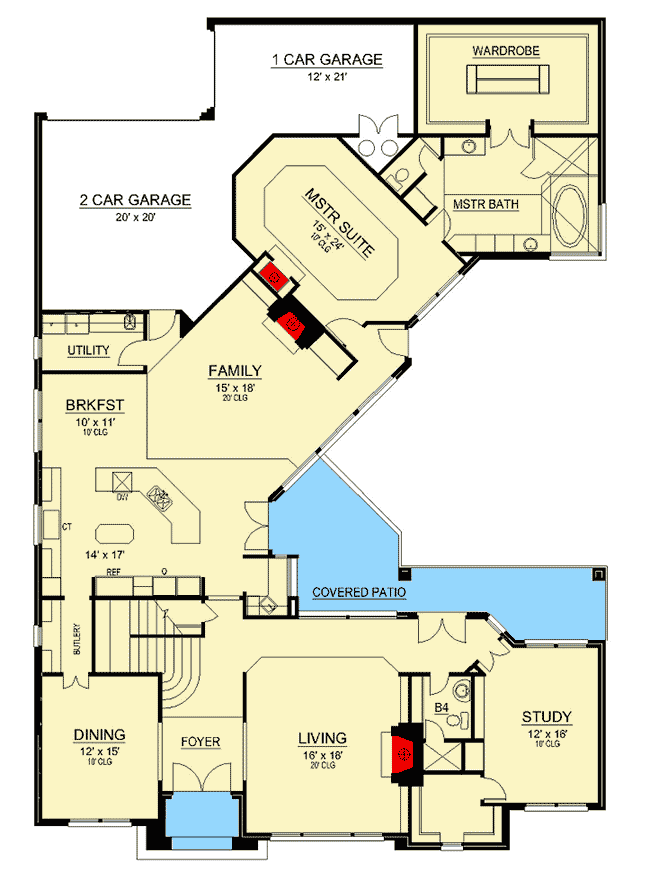

  • Main Level

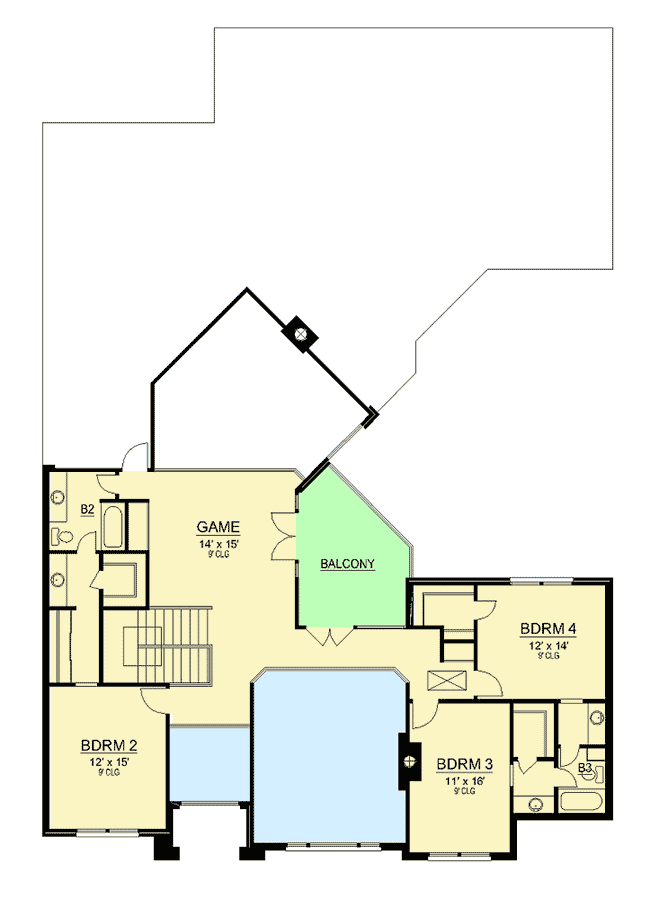

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,940 sq. ft.
  • 1st Floor: 3,099 sq. ft.
  • 2nd Floor: 1,841 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 88' 0"
  • Max ridge height: 37' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 690 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear, Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
