Luxury on One Level

Plan 62566DJ

  • 4,853

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

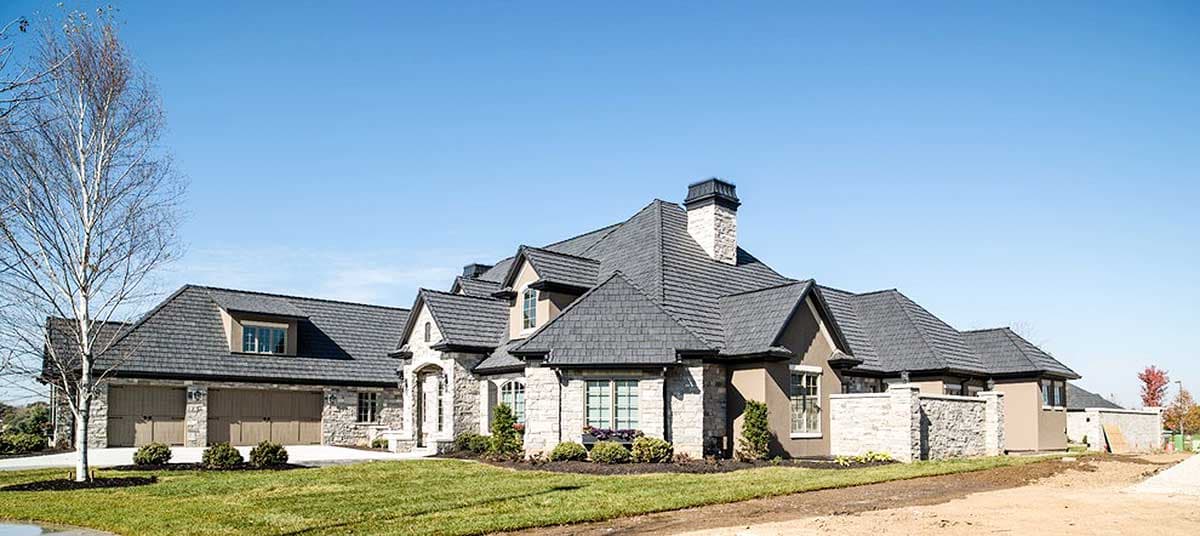

  • A courtyard style garage gives you a grand entry to this one level European luxury house plan.
  • Custom features include arches plus beamed, vaulted and tray ceilings that make an impressive statement about this home.

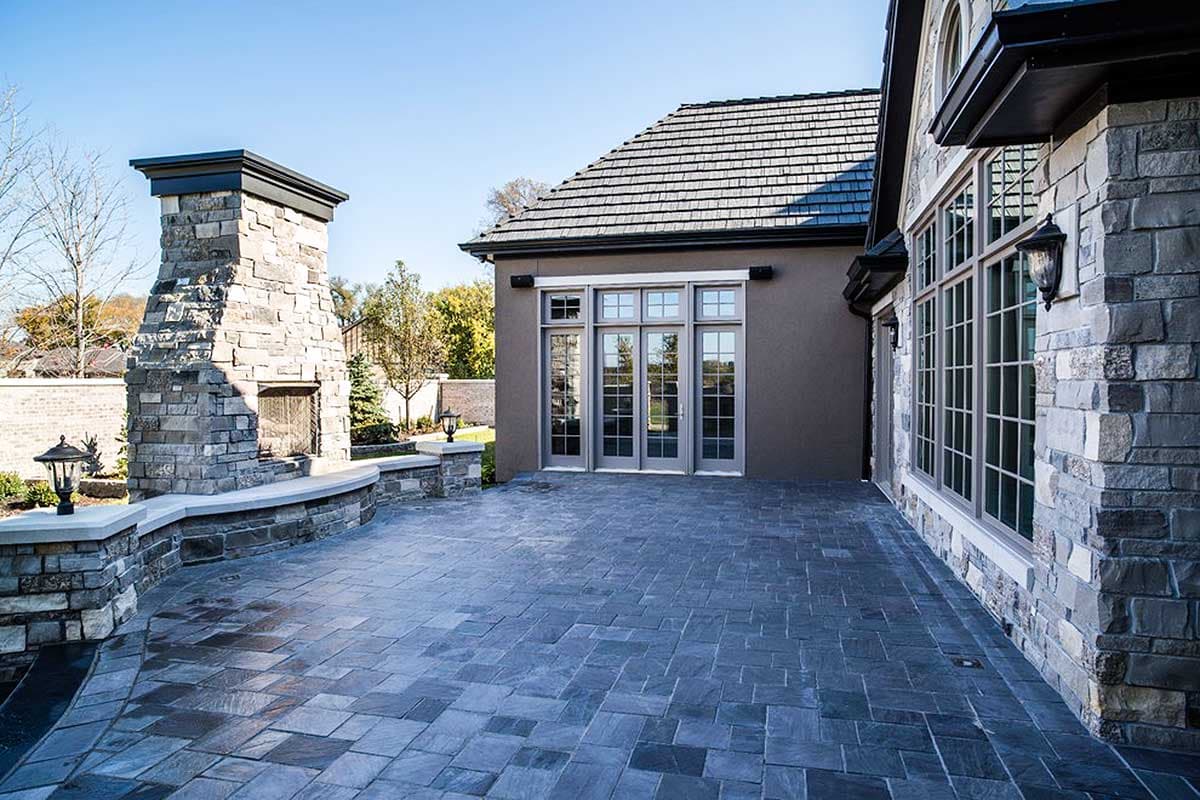

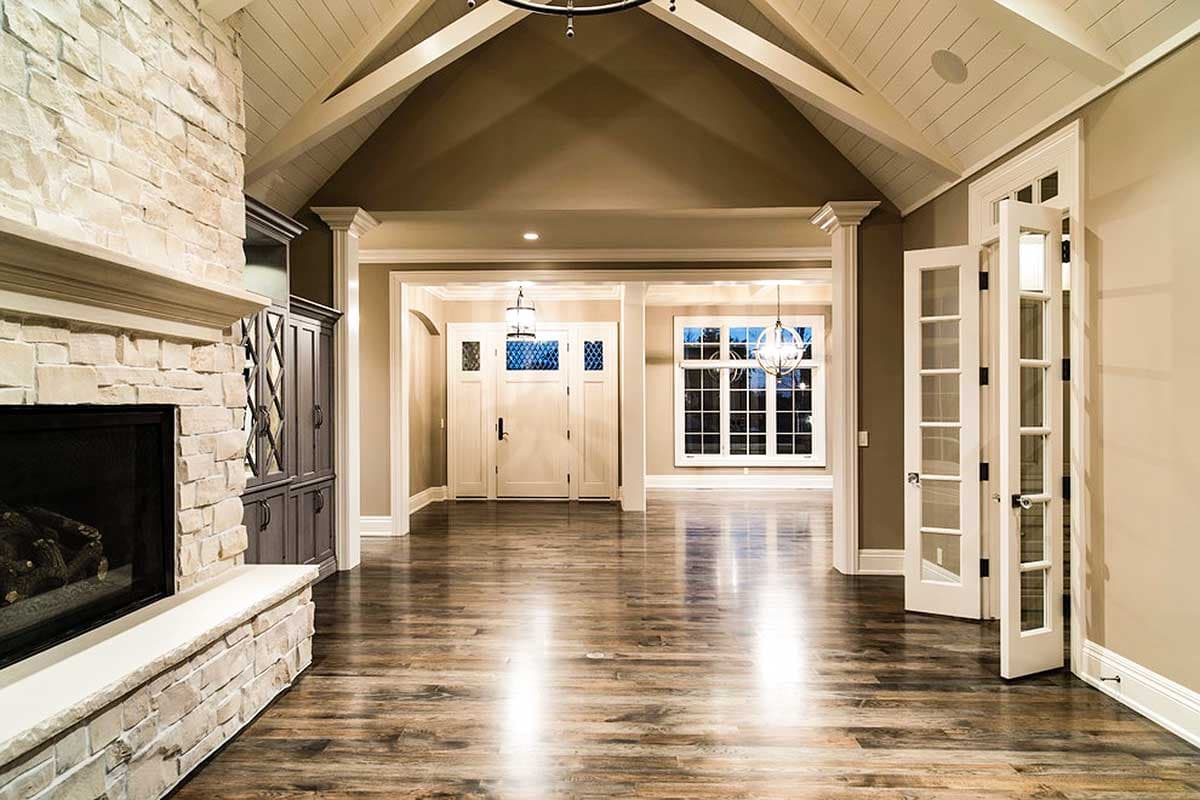

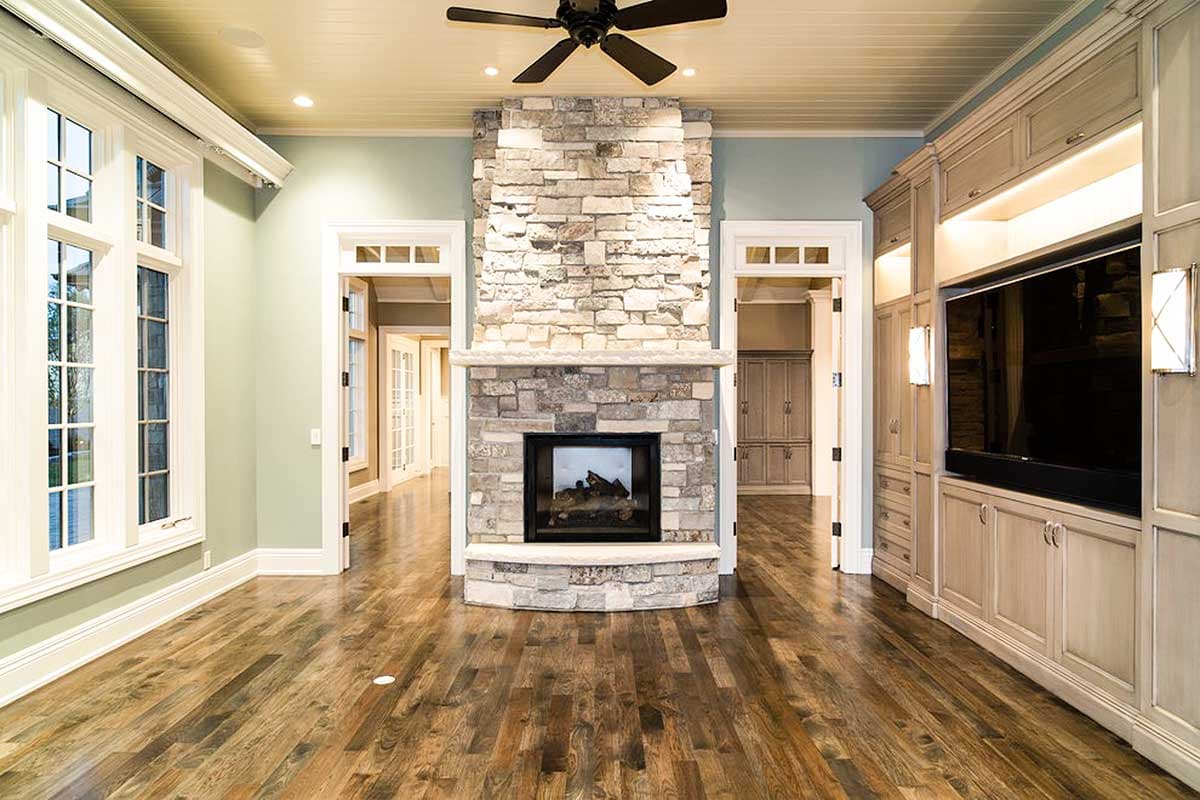

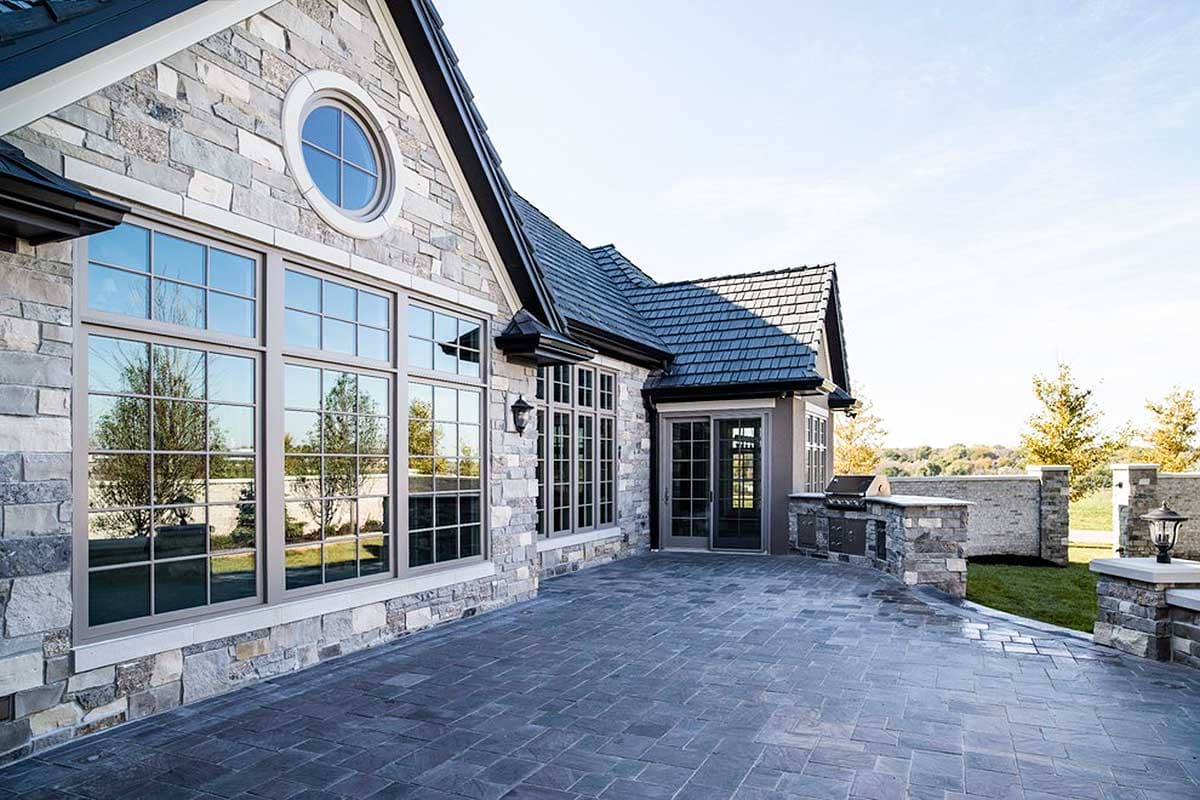

  • Entertain in the massive vaulted great room that has a wall of windows across the back overlooking the enormous patio behind.
  • The L-shape of the informal area on the left side of the home has an open layout with wonderful views from room to room.
  • Why go to the gym when you have a dedicated exercise room at home?
  • If you would rather have an extra bedroom instead, there is already a closet waiting.
  • Bedroom 2 has a huge private bathroom that angles out in an interesting shape plus two walk-in closets.

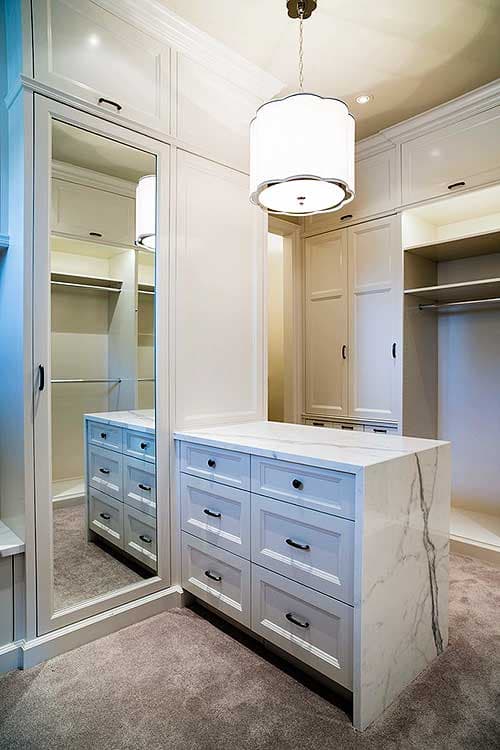

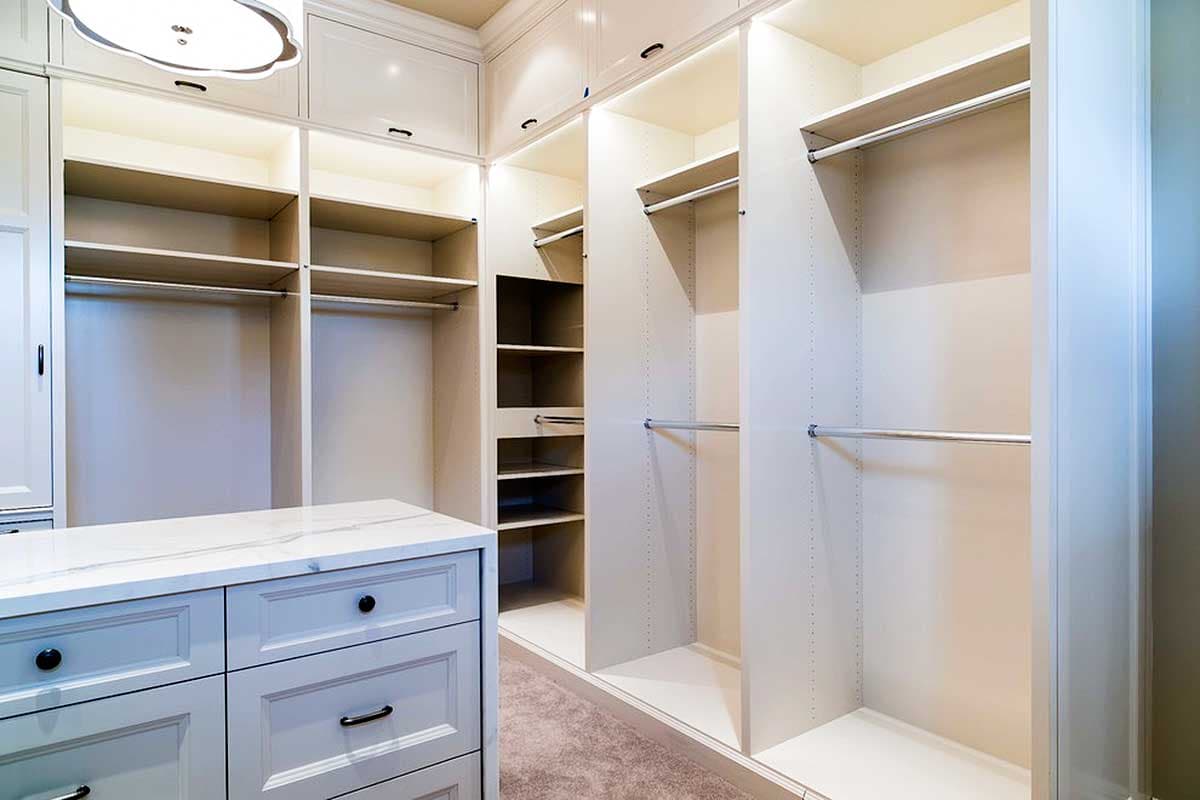

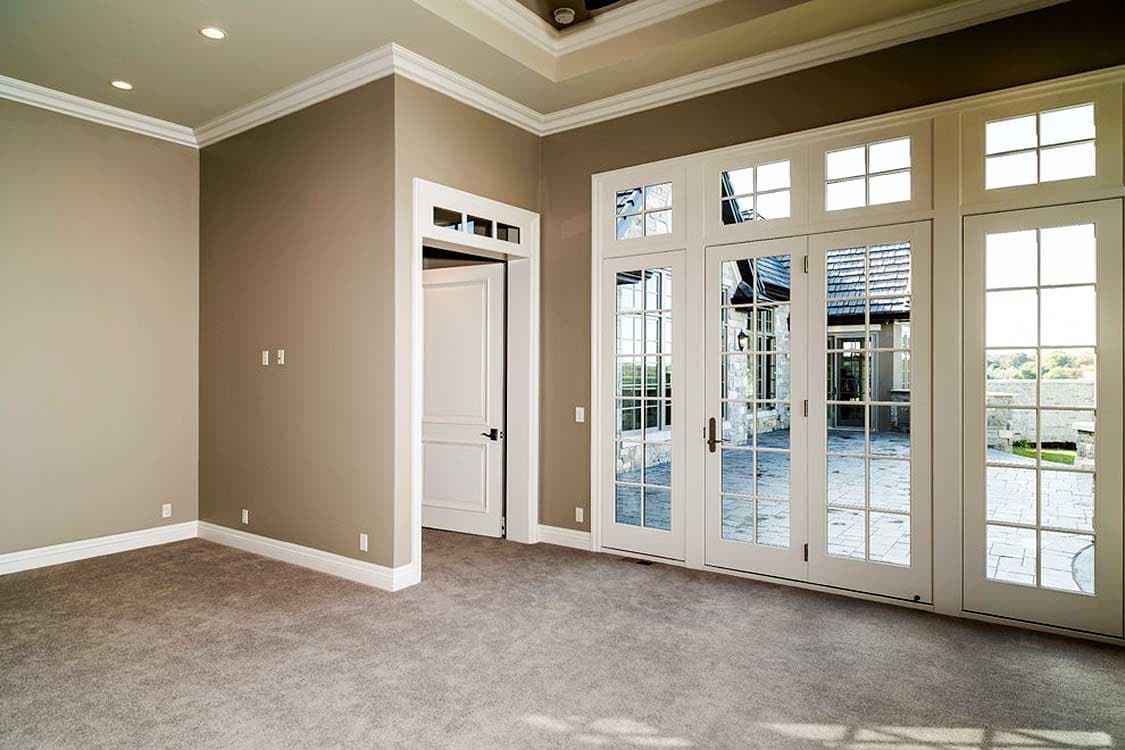

  • The master suite truly shines with its sitting area, double doors to the patio and a stunning walk-in closet complete with a built-in ironing board, an island and shelving.
  • A side patio is shared by the master suite and bedroom 3.

Each plan set includes:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on most but not all plans. If cabinets are a must please call to confirm they will be included in your set.

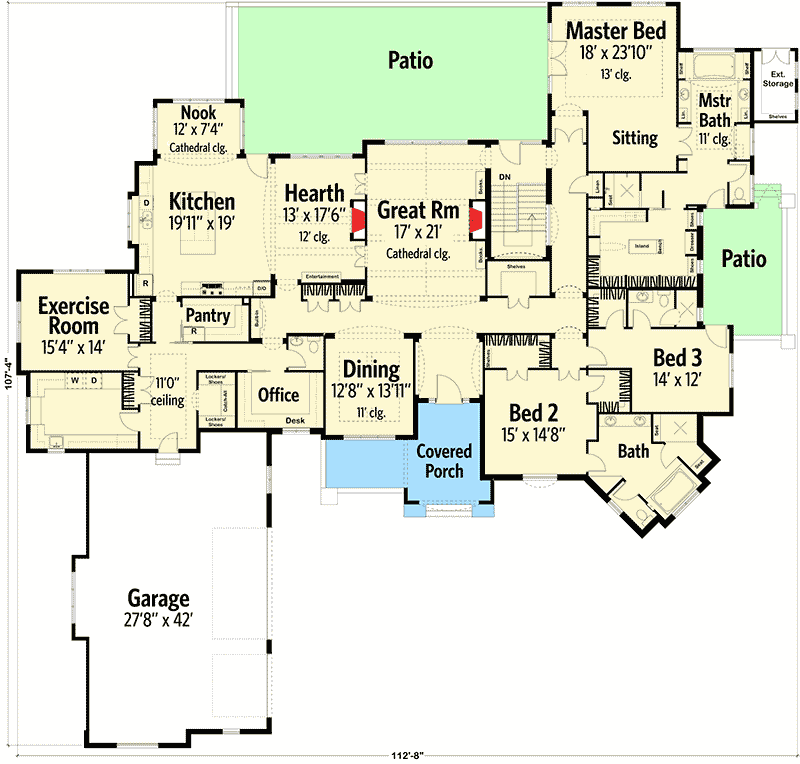

Floor Plan

Plan details



Luxury on One Level

  • 4,853

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $1,400
  • PDF - single-use $1,400
  • 5 Sets $1,600
  • 8 Sets $1,690
  • PDF - multi-use $1,900
  • CAD $1,900
  • CAD - multi-use $2,400
  • View all purchase option online

About This Plan

  • A courtyard style garage gives you a grand entry to this one level European luxury house plan.
  • Custom features include arches plus beamed, vaulted and tray ceilings that make an impressive statement about this home.
  • Entertain in the massive vaulted great room that has a wall of windows across the back overlooking the enormous patio behind.
  • The L-shape of the informal area on the left side of the home has an open layout with wonderful views from room to room.
  • Why go to the gym when you have a dedicated exercise room at home?
  • If you would rather have an extra bedroom instead, there is already a closet waiting.
  • Bedroom 2 has a huge private bathroom that angles out in an interesting shape plus two walk-in closets.
  • The master suite truly shines with its sitting area, double doors to the patio and a stunning walk-in closet complete with a built-in ironing board, an island and shelving.
  • A side patio is shared by the master suite and bedroom 3.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,853 sq. ft.
  • 1st Floor: 4,853 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 113' 0"
  • Depth: 108' 0"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 1145 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
