Plan 36156TX
Luxury on the Right Scale
Heated S.F.
6,178
Beds
5
Baths
5.5+
Stories
2
Cars
4
What's Included
Plan Details

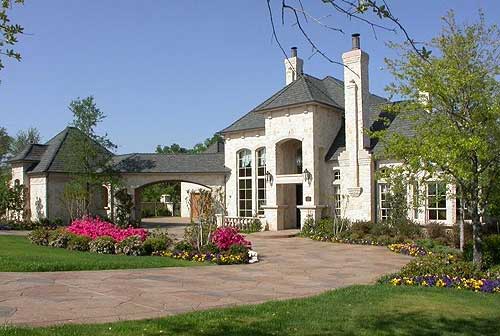

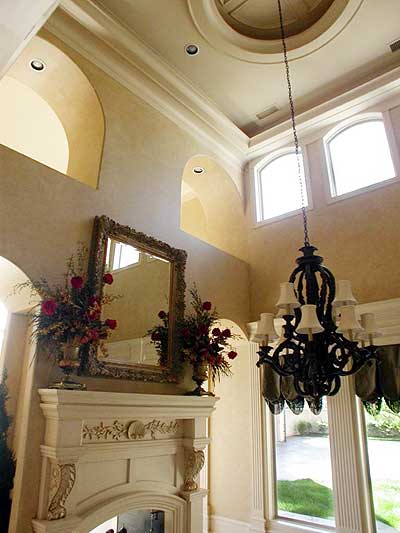

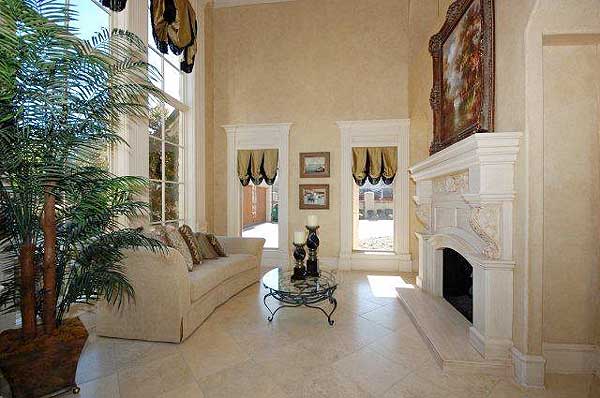

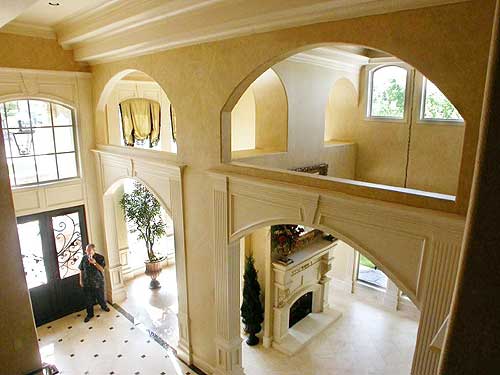

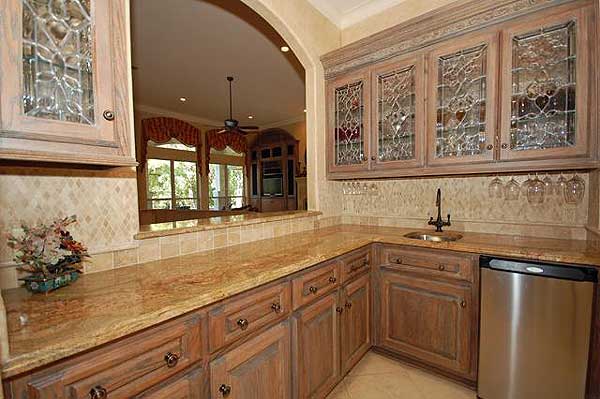

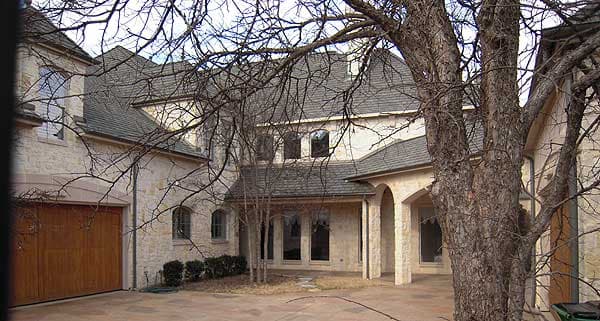

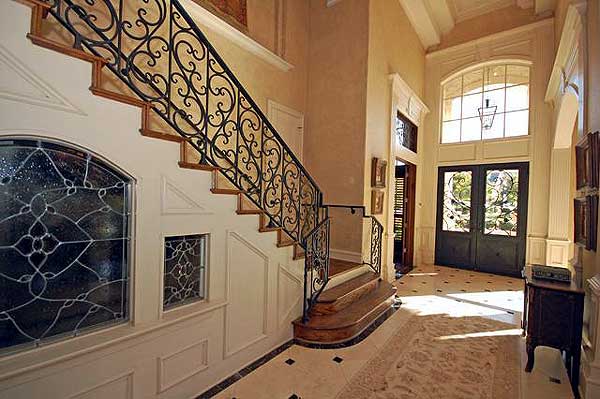

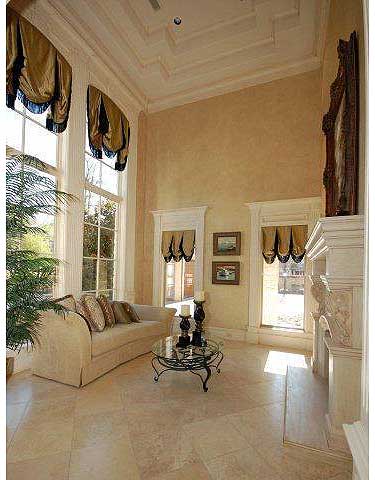

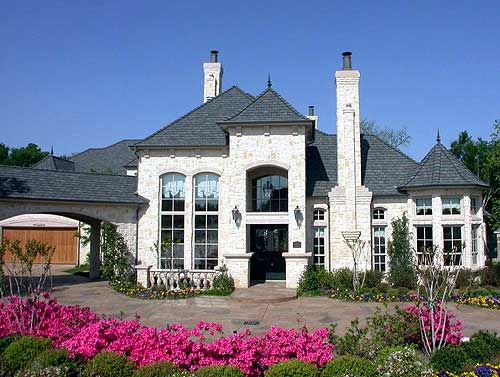

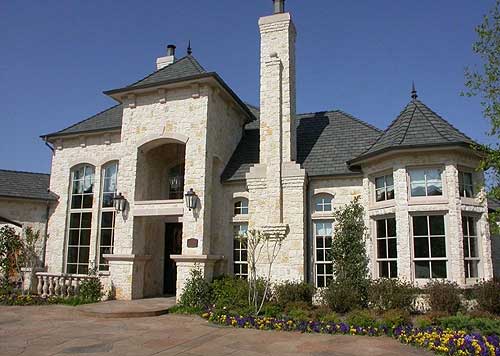

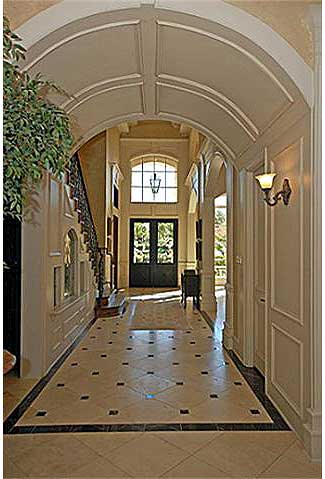

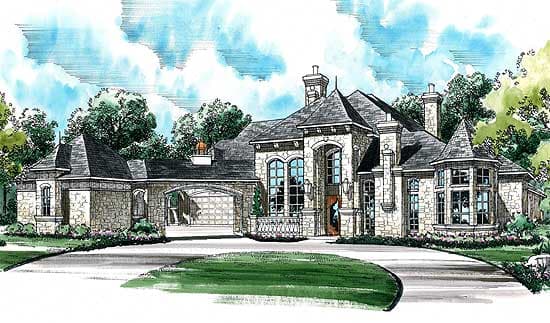

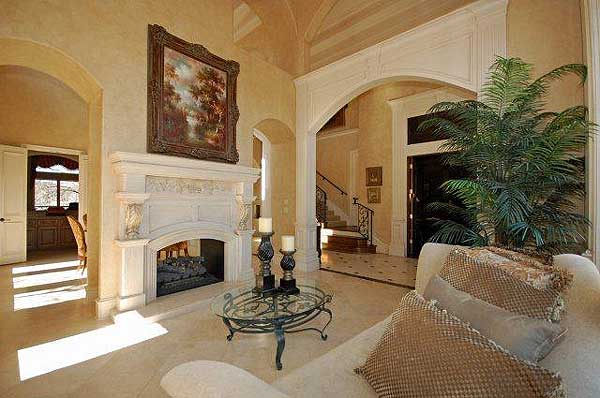

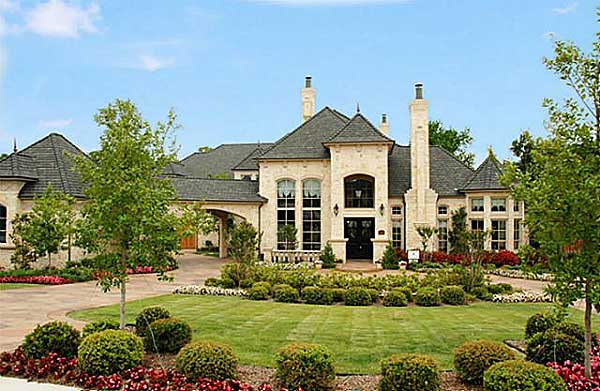

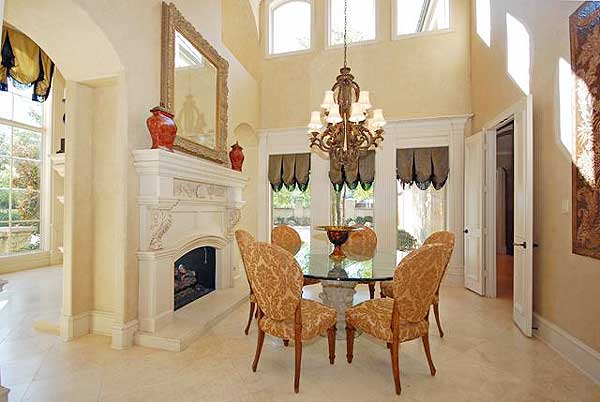

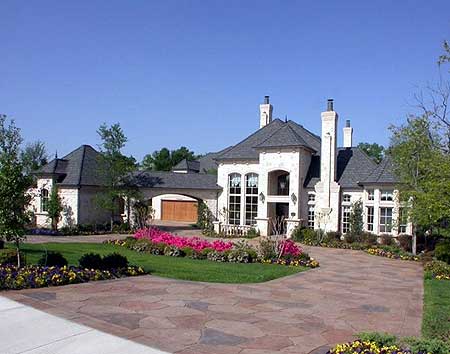

  • A stately facade punctuated by six fireplaces and a motor court make a great impression on this luxury house plan. A grand foyer with 21' ceilings greets you as you enter from the grand 2-Story covered entry. Note the 2-sided fireplace separating the living and dining rooms both with intricate 21' ceilings. A bar and butler's pantry takes you to the chef's Kitchen.

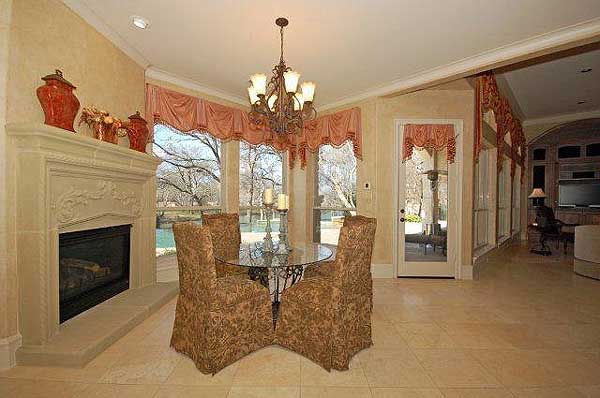

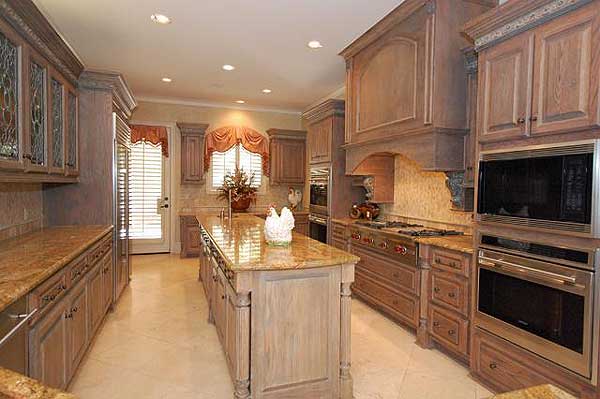

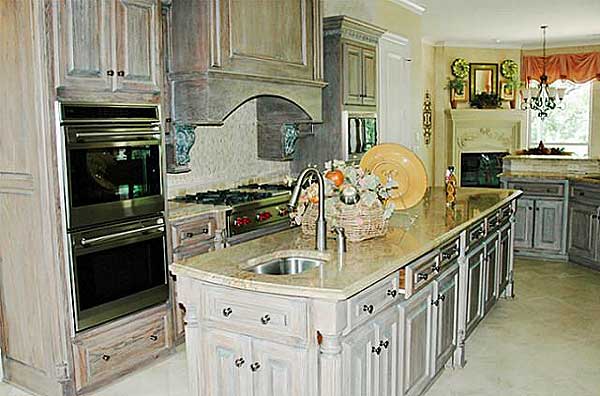

  • The Kitchen is fully-loaded. A long island with sink, a walk-in pantry and a snack-bar counter are a few of the features you'll find. Organize the bills at the built-in desk. The Kitchen opens to the breakfast room with an angled fireplace adding a touch of class.

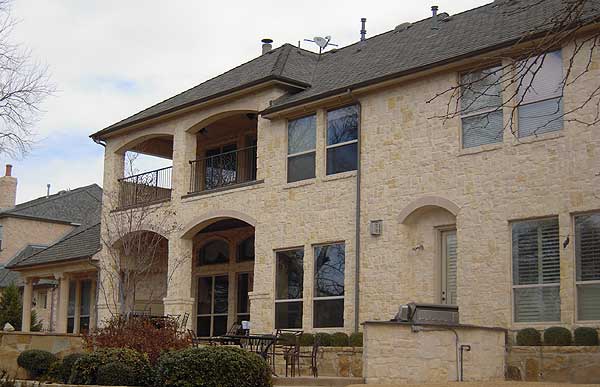

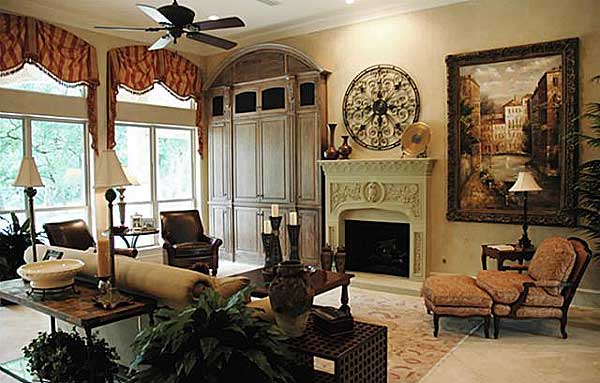

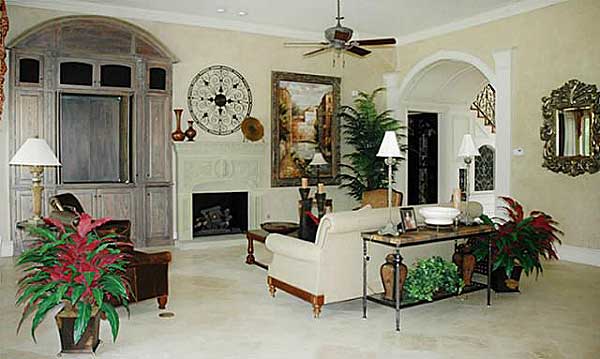

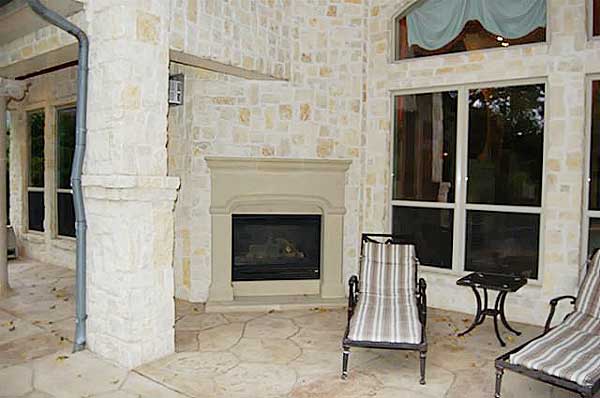

  • The family room has 13' ceilings and a fireplace with built-ins to the side. Windows let in light across the veranda and an angled door gives you access. You'll find a fireplace on the veranda, a great spot for an outdoor living room.

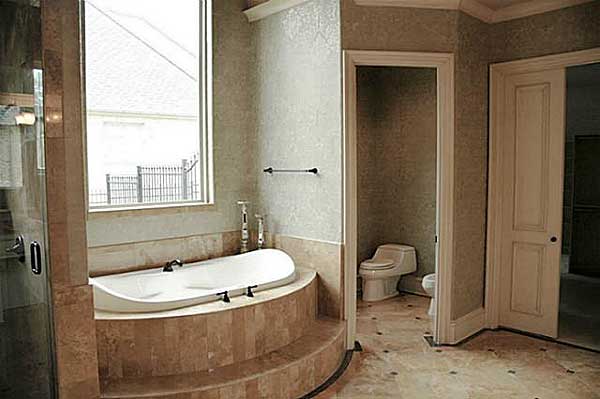

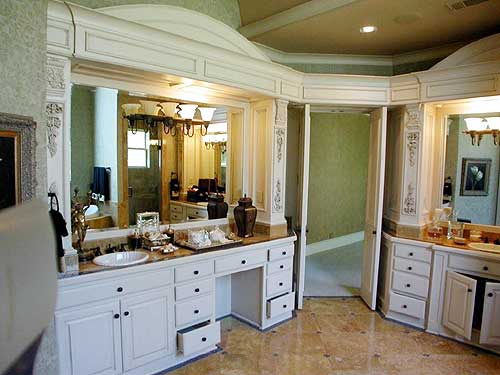

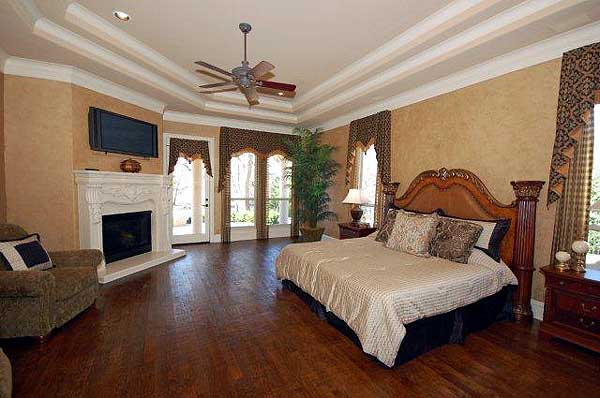

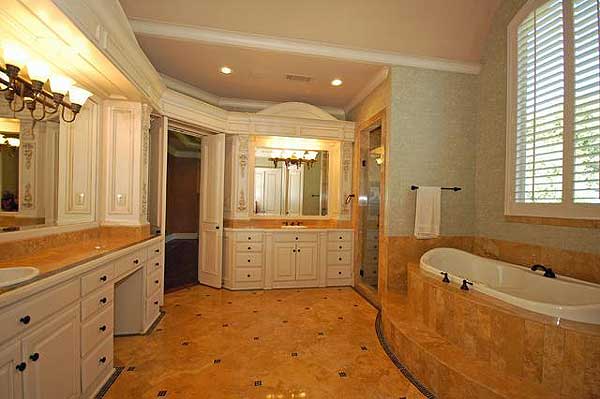

  • The master suite shares the chimney with the veranda fireplace. You'll get lost in the huge walk-in wardrobe. A barrel vaulted bath is spa-like and a cedar closet is a nice touch. Note the door leading to the back porch.

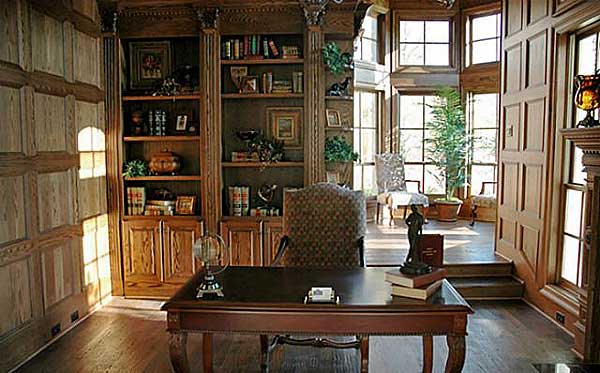

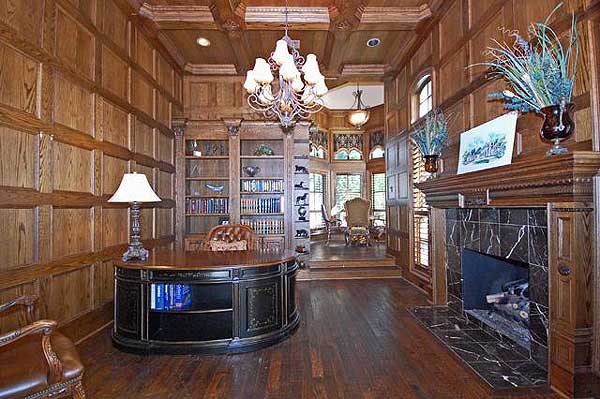

  • The study has a coffered ceiling and a fireplace of its owbn. An octagonal reading room makes a great retreat. Across the home, a guest suite has its own entrance off the garage.

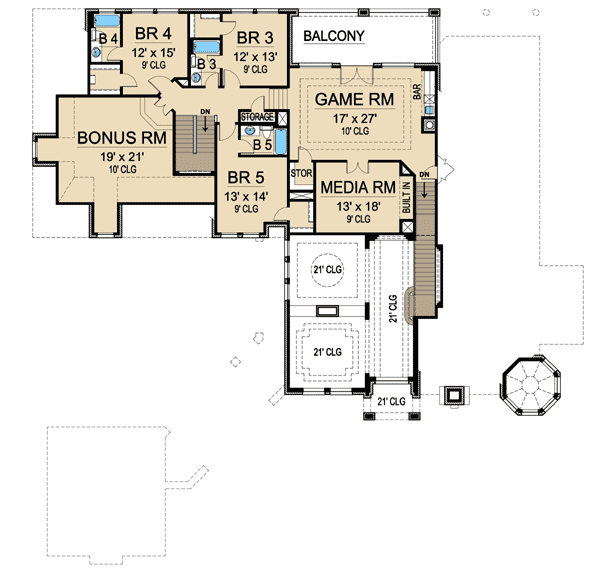

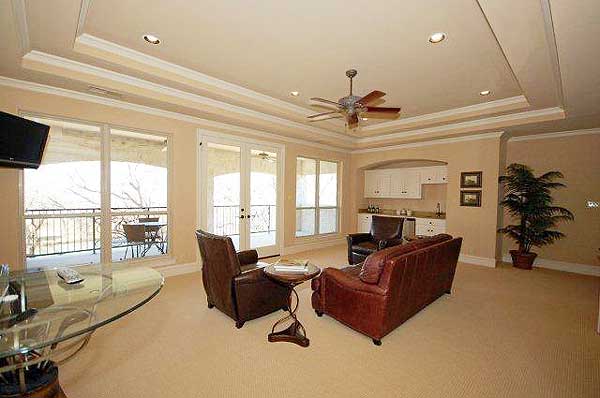

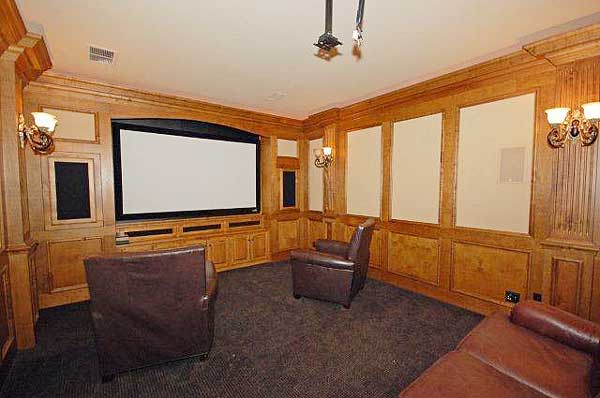

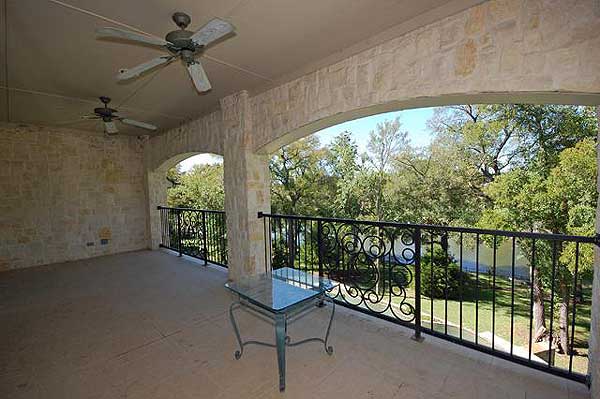

  • Upstairs features three full bedroom suites in addition to a media room, large game room with bar and balcony access plus a bonus room giving you an additional 400 sq. ft. to play with if you so desire.
What's Included
Plan set includes the following:

1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Luxury on the Right Scale

  • 6,178

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

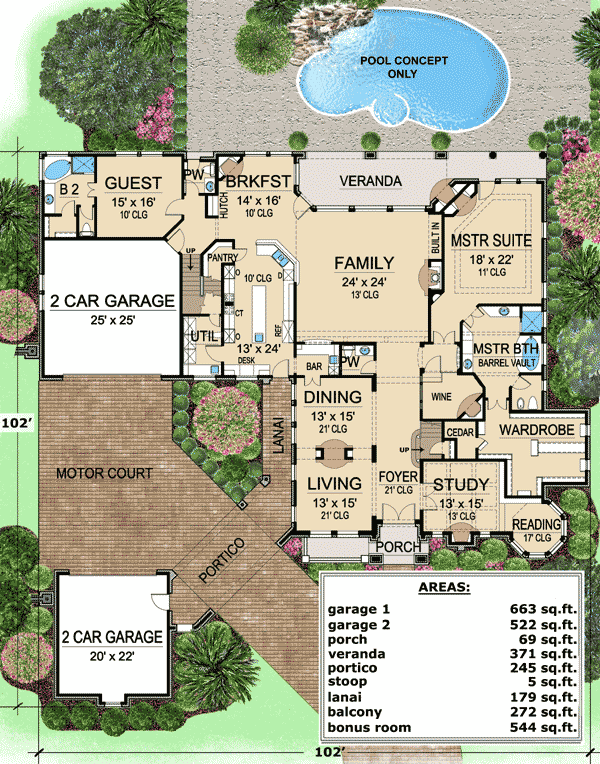

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 6,178 sq. ft.
  • 1st Floor: 4,384 sq. ft.
  • 2nd Floor: 1,794 sq. ft.

Dimensions

  • Width: 102' 0"
  • Depth: 102' 0"
  • Max ridge height: 35' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1185 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Rear

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
All house plans are copyright ©2024 by the architects and designers represented on our web site

Luxury on the Right Scale

  • 6,178

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Luxury on the Right Scale

  • 6,178

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 6,178 sq. ft.
  • 1st Floor: 4,384 sq. ft.
  • 2nd Floor: 1,794 sq. ft.

Dimensions

  • Width: 102' 0"
  • Depth: 102' 0"
  • Max ridge height: 35' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1185 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Rear

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

    Main Level

    2nd Floor
