Plan 60568ND

Luxury Plan with Garage Apartment

7,784 5 7 2 4
Pageloader

Luxury Plan with Garage Apartment

Plan 60568ND

  • 7,784

    Heated s.f.

  • 5

    Beds

  • 7

    Baths

  • 2

    Stories

  • 4

    Cars

  • This sprawling European luxury house plan offers an abundance of space and includes an apartment over the garage.
  • Plenty of natural light fills the great room featuring a fireplace and a timber beam ceiling.
  • The great room opens to the massive kitchen featuring a large island bar, a 6-burner cook top, and a large walk-in pantry.
  • Spoil yourself in the spacious master suite with a windowed corner sitting area, a large, corner whirlpool and glass shower, and his and her walk-in closets.
  • This gorgeous plan also features a library off of a study, a convenient butler's pantry, storage room and office.
  • 4 other bedrooms have their own full bathrooms and walk-in closets, one closet even doubles as a safe room.
  • Entertain outdoors with a large wrap around covered grilling porch, complete with a fireplace and outdoor kitchen.
  • You'll be the envy of all your friends by bringing the entertainment upstairs to the massive home theater room.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

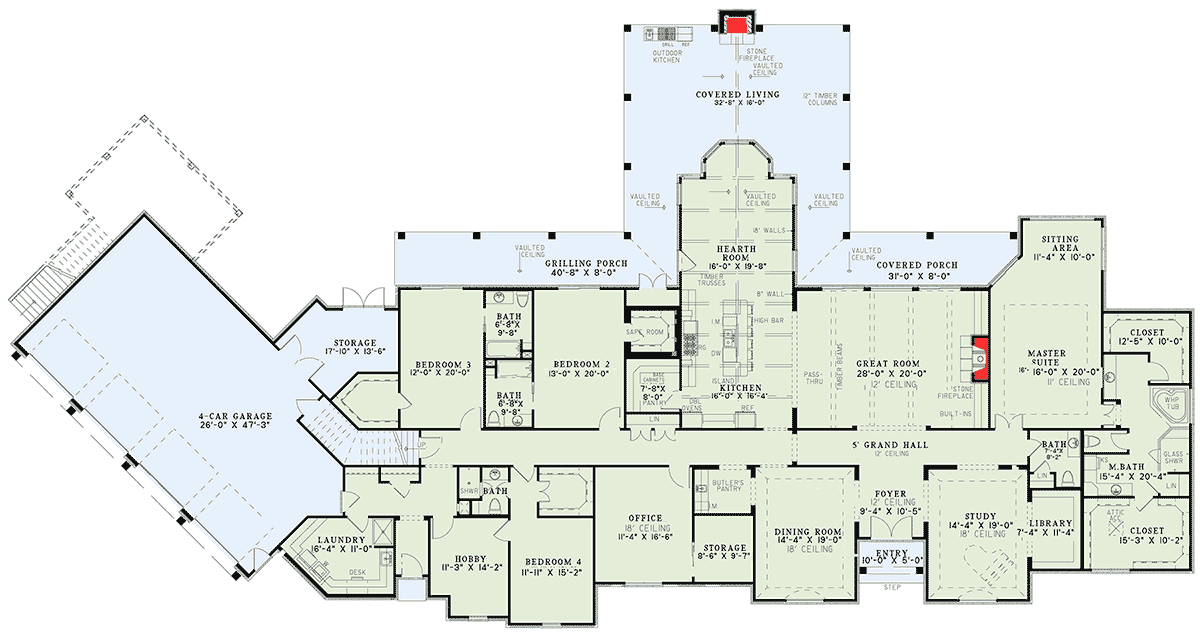

Floor Plan

Plan details



Luxury Plan with Garage Apartment

  • 7,784

    Heated s.f.

  • 5

    Beds

  • 7

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • 1 Set $1,350
  • 5 Sets $1,550
  • 8 Sets $1,800
  • Reproducible Set $2,765
  • PDF - single-use $2,765
  • CAD $4,255
  • View all purchase option online

About This Plan

  • This sprawling European luxury house plan offers an abundance of space and includes an apartment over the garage.
  • Plenty of natural light fills the great room featuring a fireplace and a timber beam ceiling.
  • The great room opens to the massive kitchen featuring a large island bar, a 6-burner cook top, and a large walk-in pantry.
  • Spoil yourself in the spacious master suite with a windowed corner sitting area, a large, corner whirlpool and glass shower, and his and her walk-in closets.
  • This gorgeous plan also features a library off of a study, a convenient butler's pantry, storage room and office.
  • 4 other bedrooms have their own full bathrooms and walk-in closets, one closet even doubles as a safe room.
  • Entertain outdoors with a large wrap around covered grilling porch, complete with a fireplace and outdoor kitchen.
  • You'll be the envy of all your friends by bringing the entertainment upstairs to the massive home theater room.

Floor Plans

  • Main Level

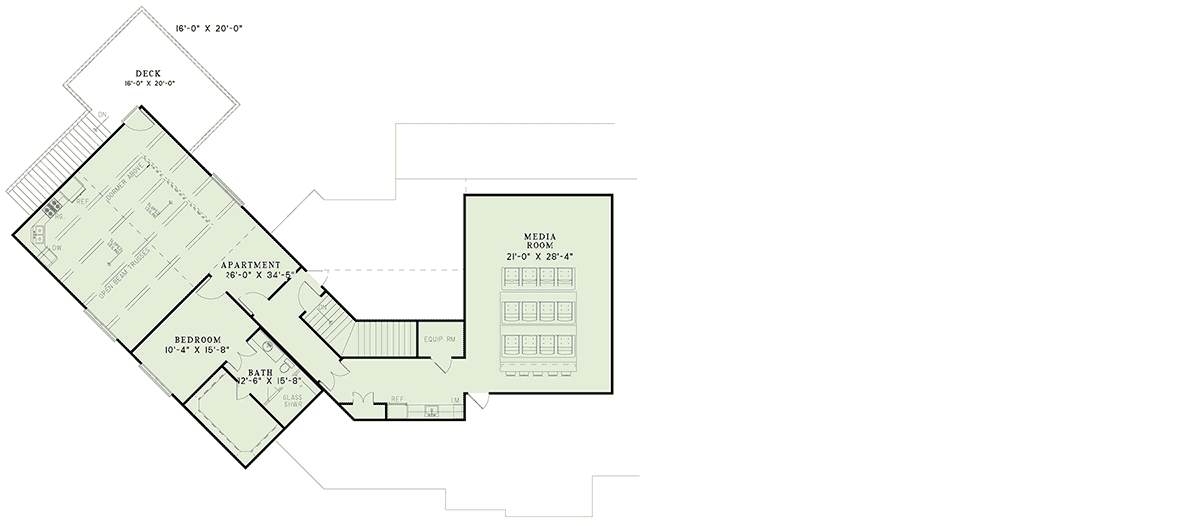

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,784 sq. ft.
  • 1st Floor: 5,714 sq. ft.
  • 2nd Floor: 2,070 sq. ft.
  • Porch, Rear: 1,450 sq. ft.
  • Porch, Combined: 1,450 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 170' 4"
  • Depth: 86' 10"
  • Max ridge height: 36' 8"

Garage

  • Type: Attached
  • Area: 1429 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
