Plan 36632TX Luxury Traditional-style House Plan with Media and Game Rooms

Luxury Traditional-style House Plan with Media and Game Rooms

Plan 36632TX

  • 5,104

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Two steeply pitched gables share the front elevation of this spacious traditional-style house plan, drenched in luxury at every turn.
  • The formal entry and family foyer merge near the laundry room where a coat closet is tucked beneath the stairs. A quiet study can be found off the foyer, next to a bedroom with access to a full bath.
  • The heart of the home is rear facing, and includes a family room with walls made of windows and a corner fireplace. The open kitchen features a prep island and a cozy patio is ideal for a grill.
  • Retreat to the master suite for peace and quiet and find three windows lining the rear wall. The master bath resembles a spa with 5-fixtures, a toilet room, and a large wardrobe.
  • Ascend the stairs and discover three bedrooms; two share a Jack-and-Jill bath, and two share a Juliet-style balcony. Also upstairs, you will find a media room and a game room that overlooks the lower foyer and family room.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

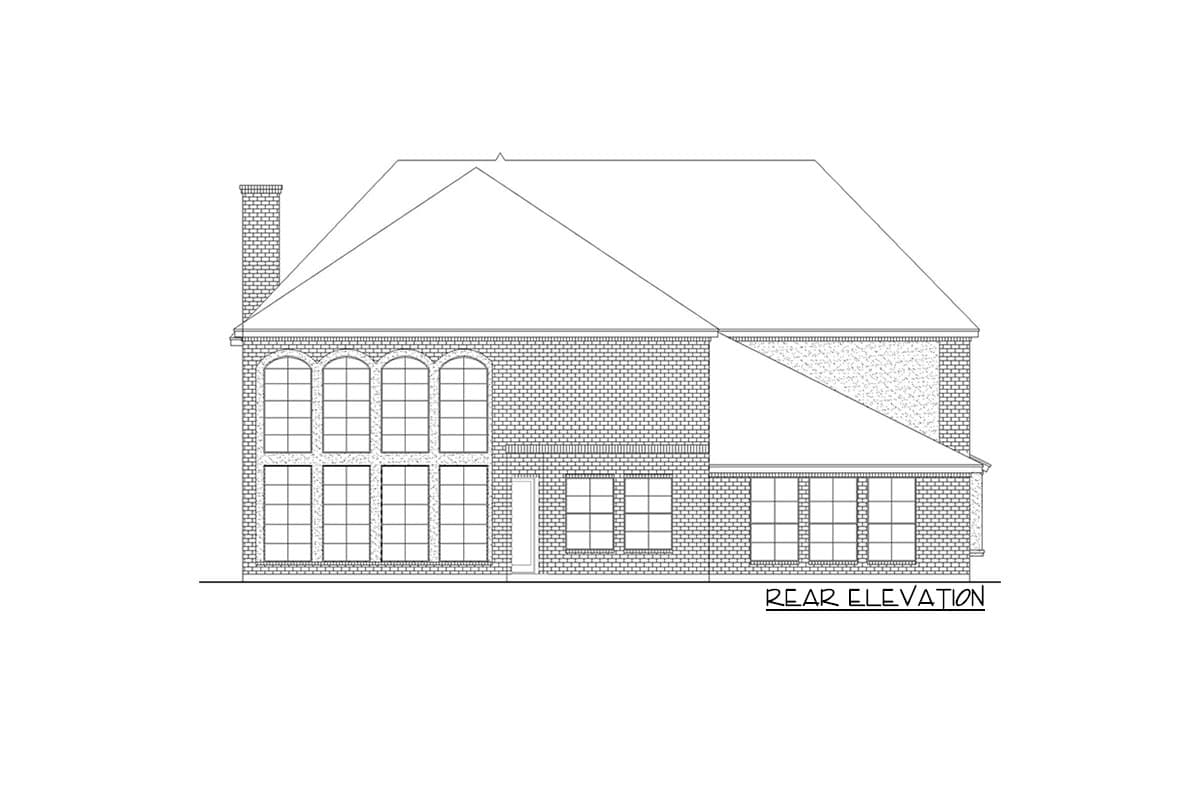

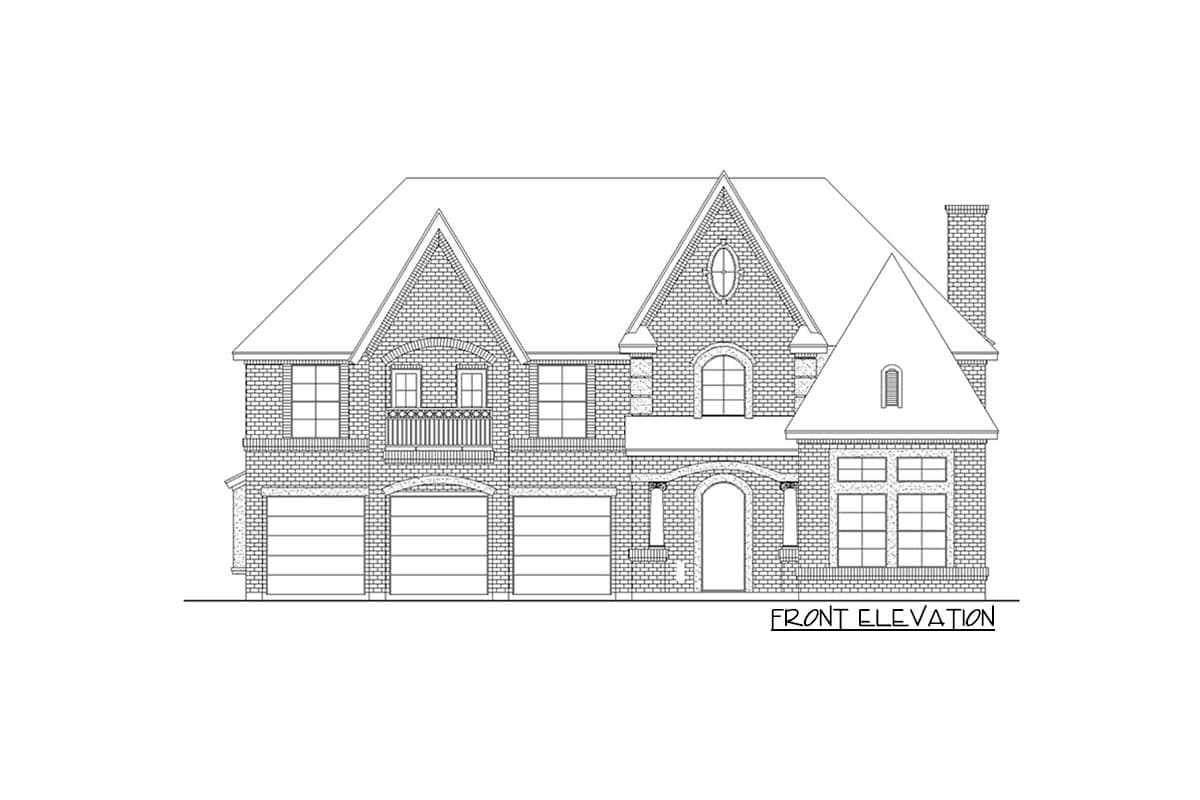

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

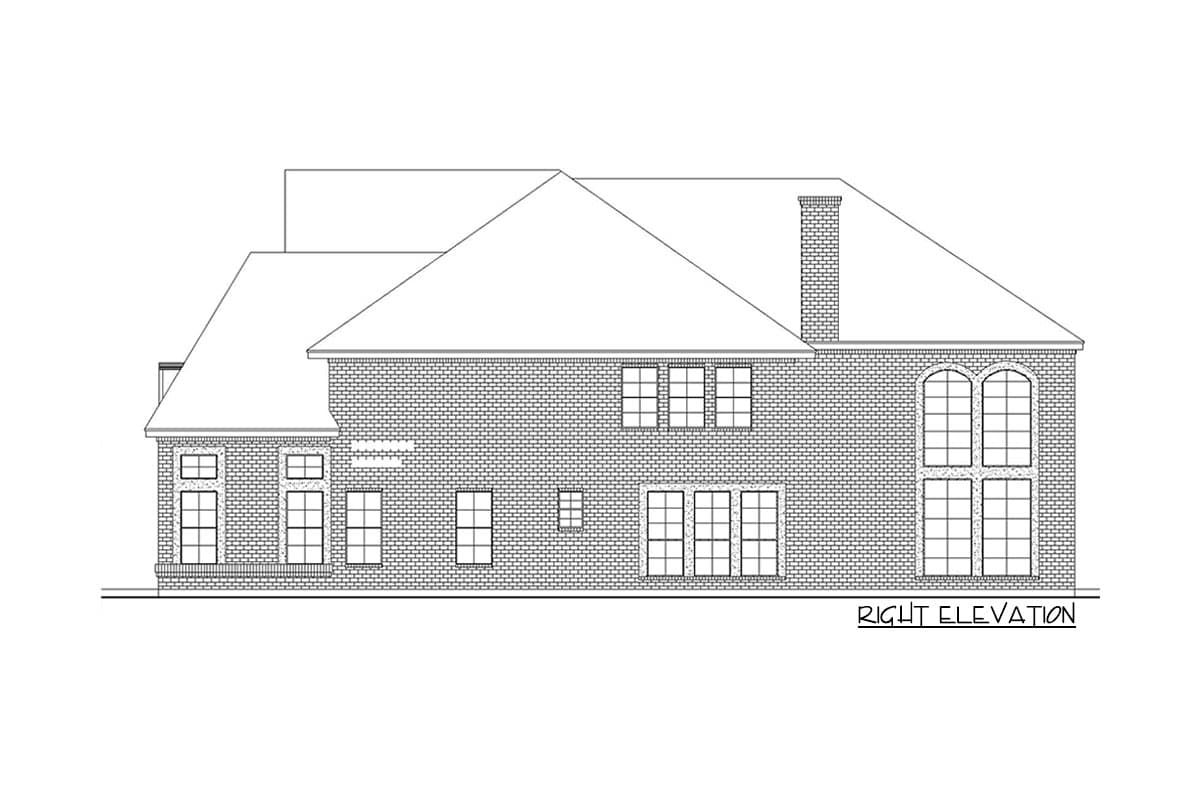

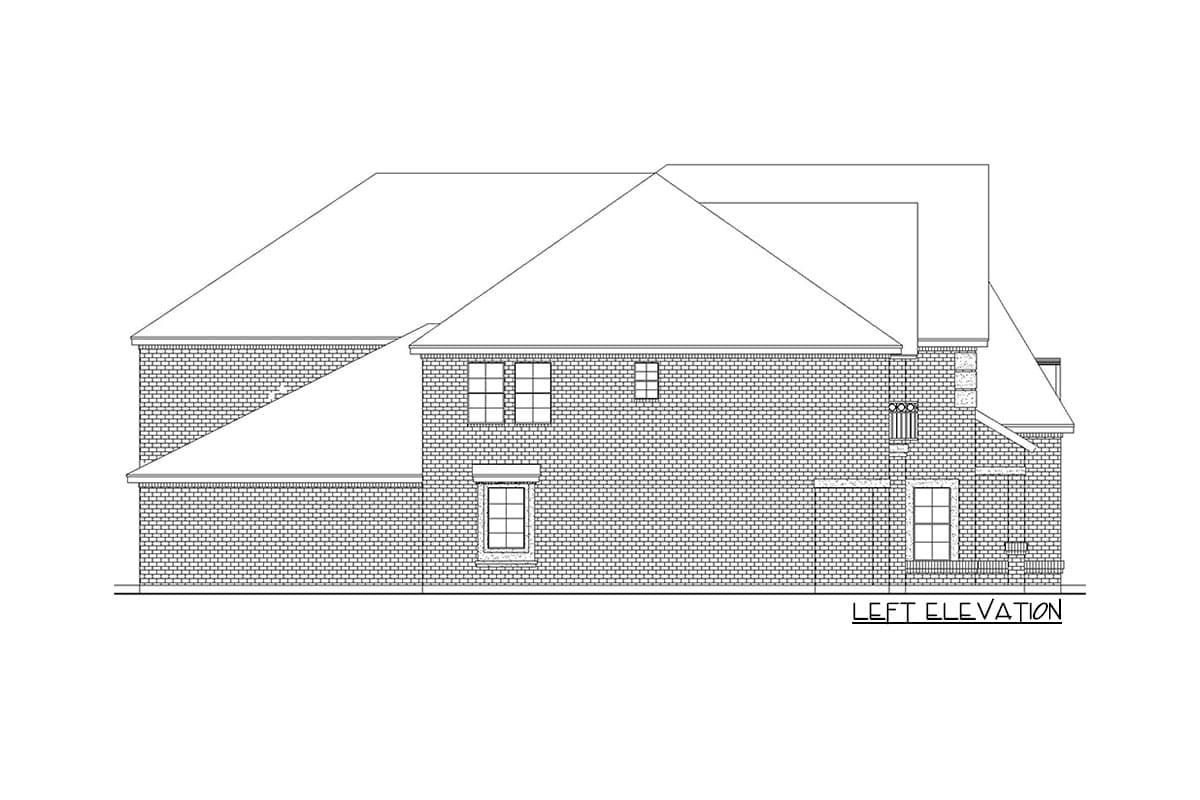

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Luxury Traditional-style House Plan with Media and Game Rooms

  • 5,104

    Heated s.f.

  • 5

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,420
  • 5 Sets $2,620
  • CAD - Single-Build $3,630
  • View all purchase option online

About This Plan

  • Two steeply pitched gables share the front elevation of this spacious traditional-style house plan, drenched in luxury at every turn.
  • The formal entry and family foyer merge near the laundry room where a coat closet is tucked beneath the stairs. A quiet study can be found off the foyer, next to a bedroom with access to a full bath.
  • The heart of the home is rear facing, and includes a family room with walls made of windows and a corner fireplace. The open kitchen features a prep island and a cozy patio is ideal for a grill.
  • Retreat to the master suite for peace and quiet and find three windows lining the rear wall. The master bath resembles a spa with 5-fixtures, a toilet room, and a large wardrobe.
  • Ascend the stairs and discover three bedrooms; two share a Jack-and-Jill bath, and two share a Juliet-style balcony. Also upstairs, you will find a media room and a game room that overlooks the lower foyer and family room.

Floor Plans

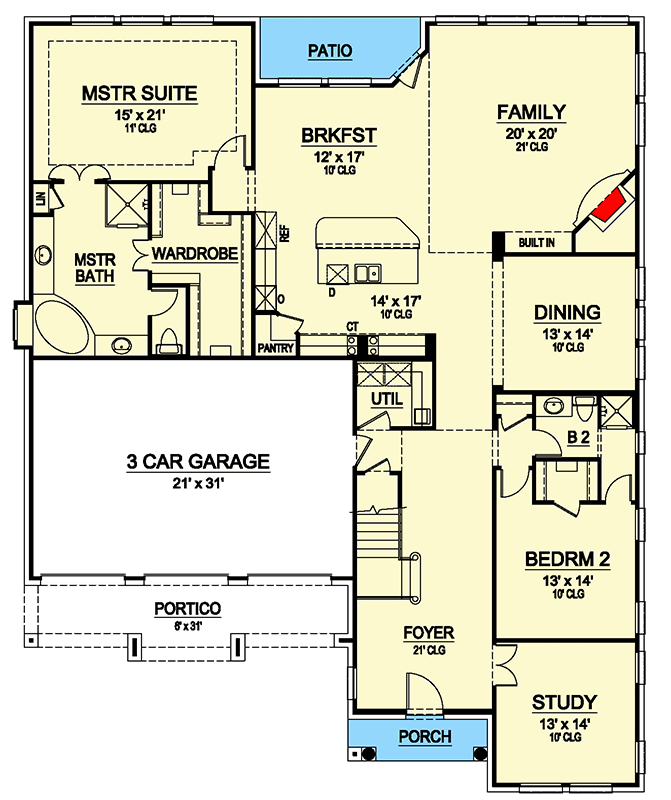

  • Main Level

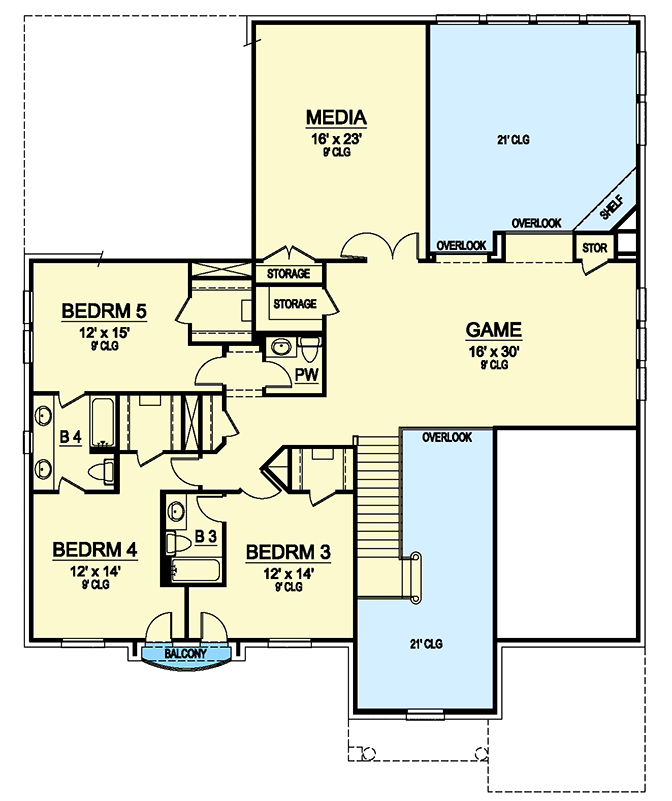

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,104 sq. ft.
  • 1st Floor: 2,996 sq. ft.
  • 2nd Floor: 2,108 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 61' 0"
  • Depth: 75' 0"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 695 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
