Magnificent European Home

Plan 17670LV

This plan plants 3 trees

6,820
Heated s.f.
5
Beds
4.5+
Baths
2
Stories
3
Cars

Stately and gracious, this magnificent European home plan is designed to impress.
Double doors open to a large gallery foyer with views straight back to the 40' wide gathering room.
The first floor master suite boasts a gorgeous spa bathroom with a luxurious soaking tub that backs up to the huge walk-in shower.
On the opposite side of the home, you will find a hobby room and home office, right off the enormous kitchen.
Four over-sized bedrooms occupt the second floor along with a spacious playroom and a second floor veranda.

Each plan set includes the following:

Dimensioned and detailed Foundation plan (type as listed on home plan description)
Dimensioned and detailed floor plans
Framing plans
Complete front, side and rear elevations
Roof plan
Typical building sections (as deemed necessary for construction)
Typical foundation details, wall sections, and cornice details necessary for construction
Separate electrical plan (may be shown on floor plans in some cases)

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Magnificent European Home - 17670LV floor plan - Basement

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

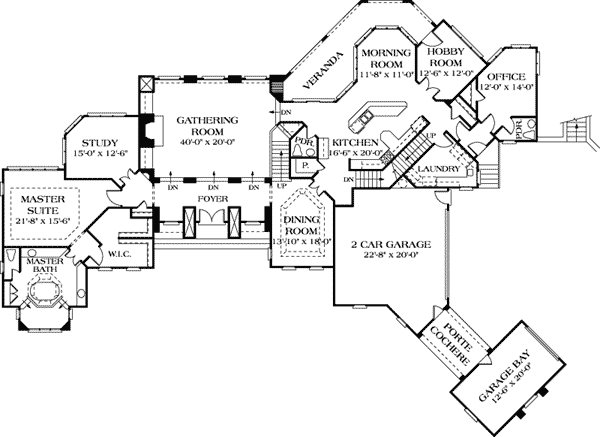

Magnificent European Home - 17670LV floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

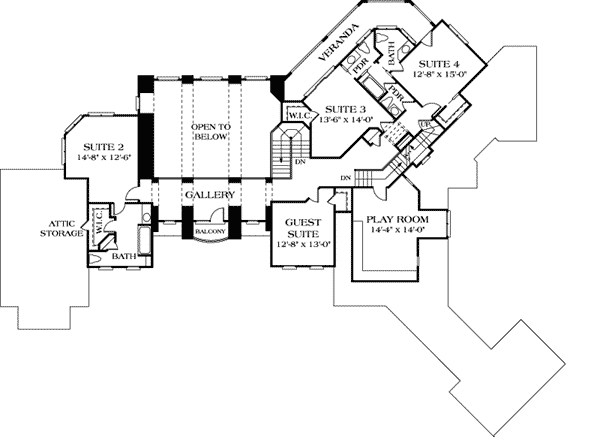

Magnificent European Home - 17670LV floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 6,820 sq. ft.
Lower Level: 1,130 sq. ft.
1st Floor: 3,388 sq. ft.
2nd Floor: 2,302 sq. ft.

Beds/Baths

Bedrooms: 5

Full bathrooms: 4
Half bathrooms: 4

Foundation Type

Standard Foundations: Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 117' 1"
Depth: 90' 11"

Garage

Type: Attached
Area: 880 sq. ft.
Count: 3 Cars
Entry Location: Side, Rear

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Scroll
