Plan 62595DJ

Magnificent Home Plan For a Sloping Lot

2,490 2-4 3 + 1 3
Pageloader

Magnificent Home Plan For a Sloping Lot

Plan 62595DJ

  • 2,490

    Heated s.f.

  • 2-4

    Beds

  • 3 +

    Baths

  • 1

    Stories

  • 3

    Cars

  • The amazing open floor plan of this European house plan grabs your attention as soon as you step through the front door.
  • Interior columns are cleverly designed to define rooms without blocking views.
  • The huge kitchen is loaded with counter space and has a large walk-in pantry. The island has room for seating stools on two sides.
  • The breakfast room has access to the large covered porch in back, a great spot for outdoor eating.
  • An open rail in the great room overlooks the atrium lower level.
  • Finish off this space to add 1,675 square feet and gain both a family room and an enormous rec room with a giant U-shaped wet bar.
  • There's even room for two extra bedrooms that share a jack and jill bathroom.

Each plan set includes:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.

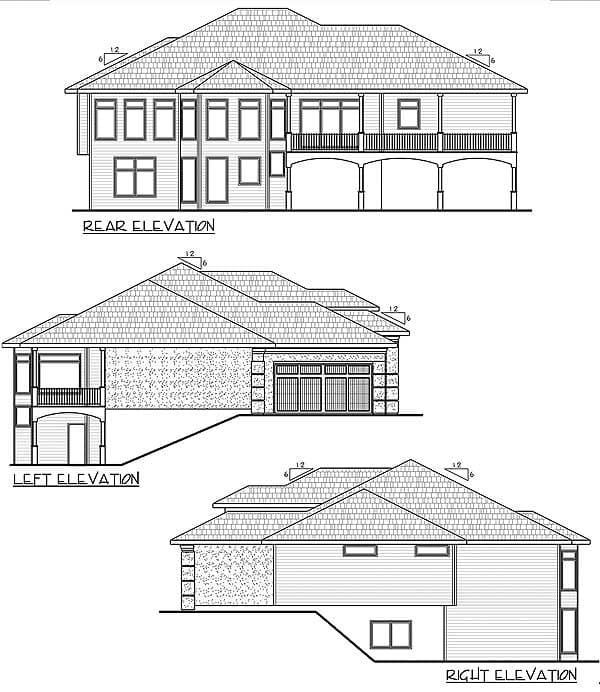

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on most but not all plans. If cabinets are a must please call to confirm they will be included in your set.

Floor Plan

Plan details



Magnificent Home Plan For a Sloping Lot

  • 2,490

    Heated s.f.

  • 2 - 4

    Beds

  • 3 +

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,000
  • Reproducible Set $1,000
  • 5 Sets $1,200
  • 8 Sets $1,290
  • PDF - multi-use $1,500
  • CAD $1,500
  • CAD - multi-use $2,000
  • View all purchase option online

About This Plan

  • The amazing open floor plan of this European house plan grabs your attention as soon as you step through the front door.
  • Interior columns are cleverly designed to define rooms without blocking views.
  • The huge kitchen is loaded with counter space and has a large walk-in pantry. The island has room for seating stools on two sides.
  • The breakfast room has access to the large covered porch in back, a great spot for outdoor eating.
  • An open rail in the great room overlooks the atrium lower level.
  • Finish off this space to add 1,675 square feet and gain both a family room and an enormous rec room with a giant U-shaped wet bar.
  • There's even room for two extra bedrooms that share a jack and jill bathroom.

Floor Plans

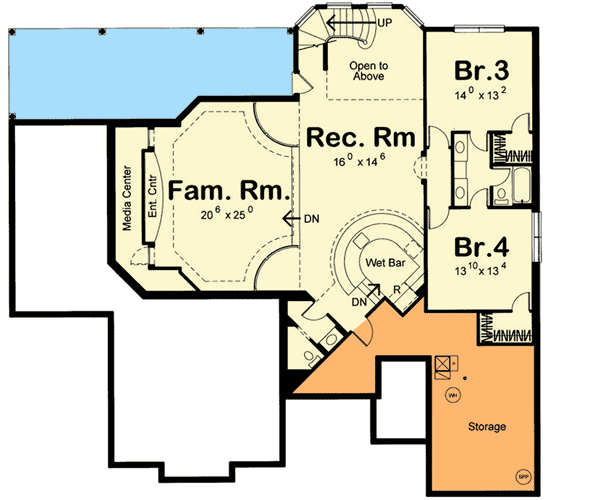

  • Basement

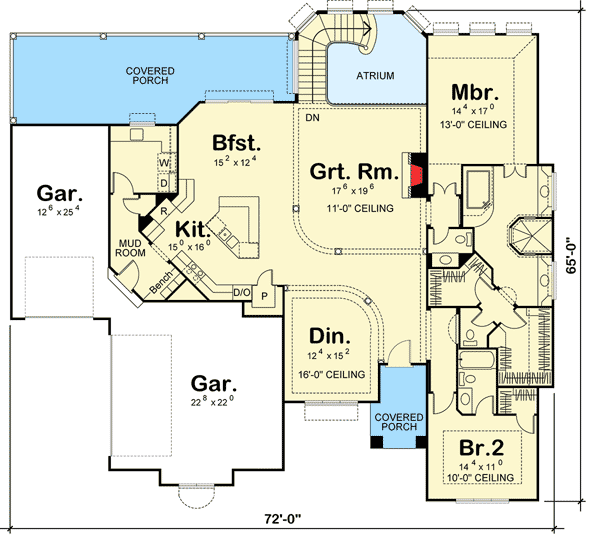

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,490 sq. ft.
  • 1st Floor: 2,490 sq. ft.
  • Optional Lower Level: 1,675 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, & 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 72' 0"
  • Depth: 65' 0"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached
  • Area: 930 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
