Plan 4258MJ
Magnificent Mediterranean
Heated S.F.
3,680
Beds
4
Baths
4
Stories
2
Cars
3
What's Included
Plan Details
  • This is a truly family-friendly Mediterranean house plan with formal and informal living areas.
  • The master suite is generous, and the bath is a study in symmetry, with his and hers vanities flanking the soaking tub with columns.
  • A good design with no hallways gives all living areas more openness.
  • Second floor is complete with three suites and a game room for the kids
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.
What's Included
  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Magnificent Mediterranean

  • 3,680

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

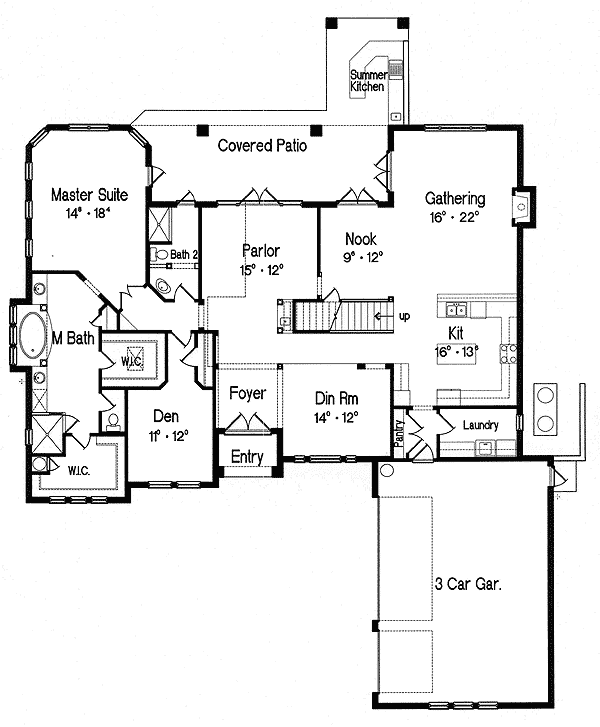

  • Main Level

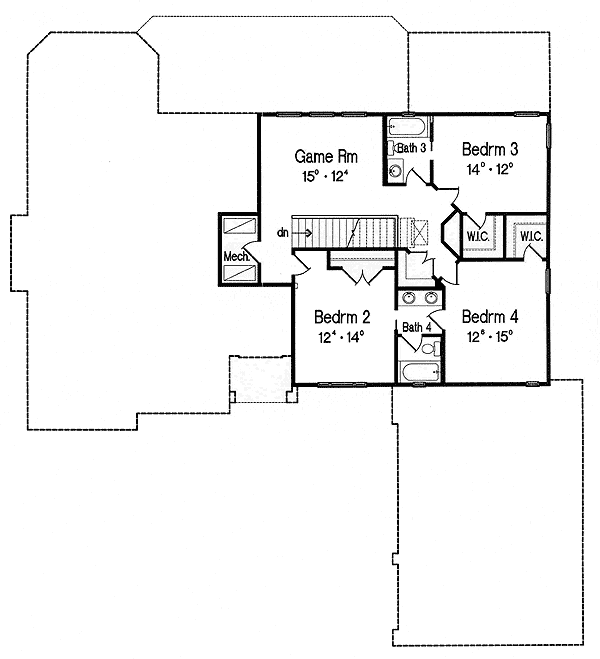

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,680 sq. ft.
  • 1st Floor: 2,580 sq. ft.
  • 2nd Floor: 1,100 sq. ft.

Dimensions

  • Width: 70' 0"
  • Depth: 89' 8"
  • Max ridge height: 27' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 750 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 4 on 12
