Plan 46222LA
Main Floor Master Suite
Heated S.F.
3,263
Beds
5
Baths
3.5
Stories
2
Cars
2
What's Included
Plan Details
  • This outstanding Traditional home plan has a main floor master suite as well as a main floor guest suite.
  • The formal dining room can be closed off from the foyer with double doors.
  • Nearby, the efficient kitchen has a walk-in pantry, a peninsula eating bar and a cheerful breakfast nook set in a bay.
  • The family room has a dramatic two-story ceiling that soars up, plus a big fireplace.
  • Stretching across the back of the home is a large covered porch that opens to the master suite.
  • An open rail on the second floor hall lets you look down into the foyer and the family room.
  • Three big bedrooms have easy access to the optional bonus room over the garage.
  • DELIVERY NOTE: Please allow 15 to 20 business days for delivery.
What's Included
This plan set has the following details:

  • Floor plans with window and door schedules
  • Roof plan
  • Elevations
  • Front and rear perspectives on some (but not all) plans
  • Building section, eave detail and typical stair detail
  • Interior perspectives and elevations
  • Electrical plans
  • Foundation plan
  • Floor framing plans
  • Ceiling framing plans
  • Roof framing plan
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Main Floor Master Suite

  • 3,263

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

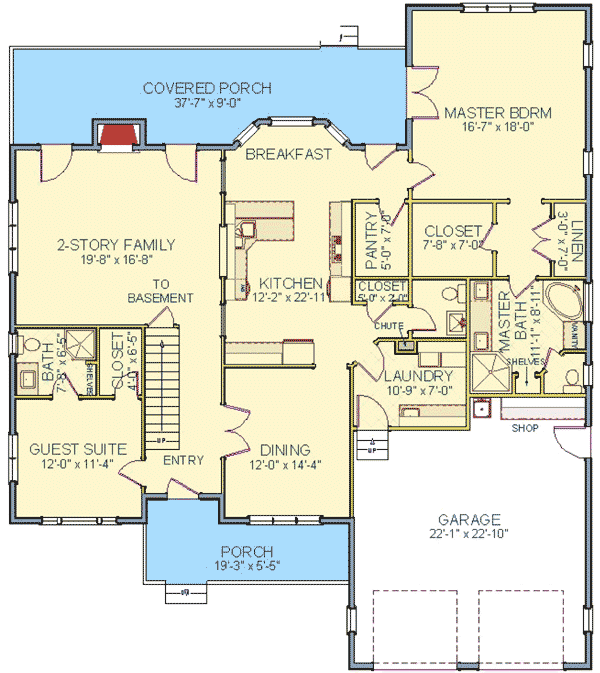

  • Main Level

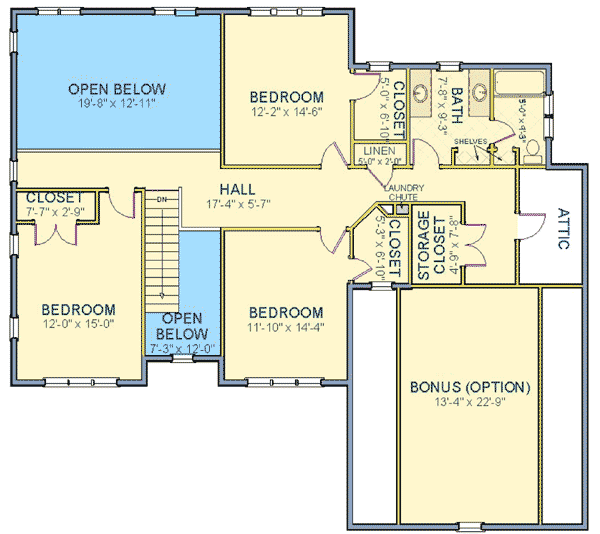

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,263 sq. ft.
  • 1st Floor: 2,080 sq. ft.
  • 2nd Floor: 1,183 sq. ft.

Dimensions

  • Width: 55' 6"
  • Depth: 62' 9"
  • Max ridge height: 33' 9"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 530 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Daylight, Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
