Plan 1799DW

Main Master Vacation Home with Deck Views

Main Master Vacation Home with Deck Views

Plan 1799DW

  • 877

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

This house plan has 8 pages as follows:

  1. Cover page
  2. Piling plan (schematic)
  3. Noted floor plan
  4. Dimensioned floor plan
  5. Electrical layout plan
  6. Roof plan (schematic)

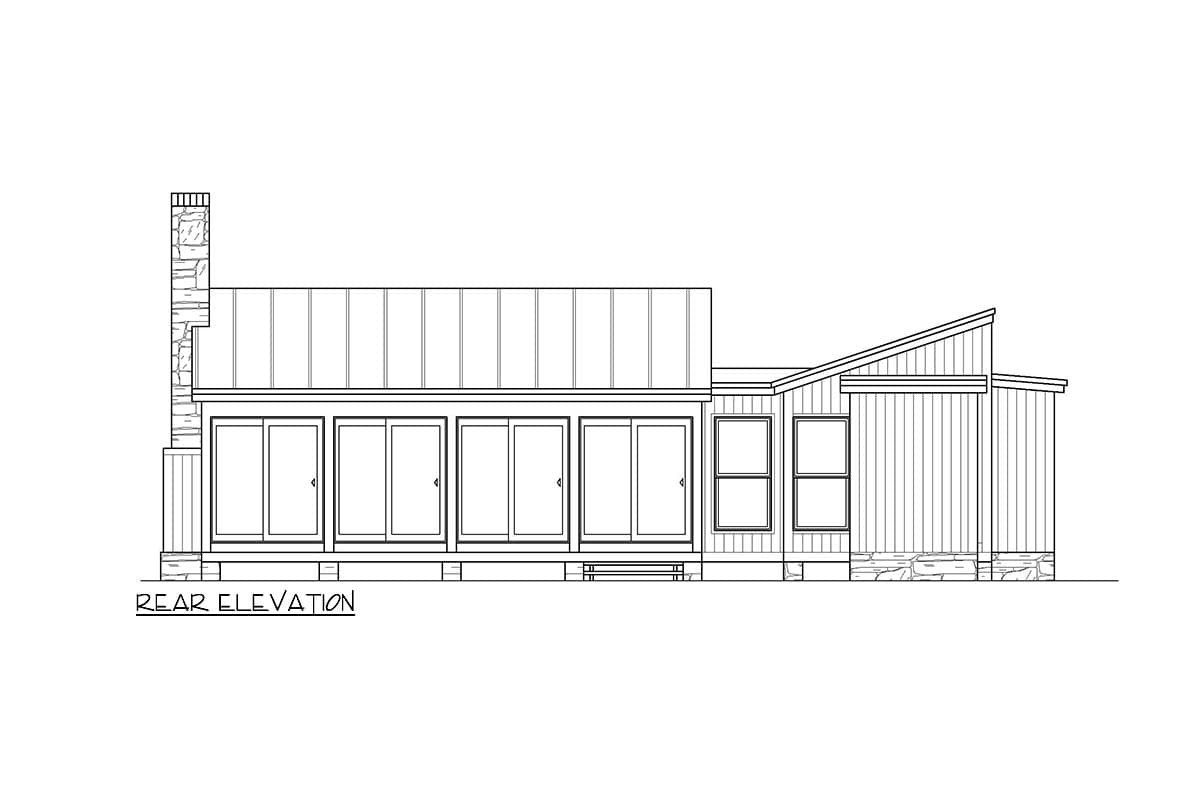

  7. Elevations
  8. Sections

NOTE: The designer of this plan does not supply foundation plans. A local structural engineer will be required to adjust them to suit the conditions of where you are building.

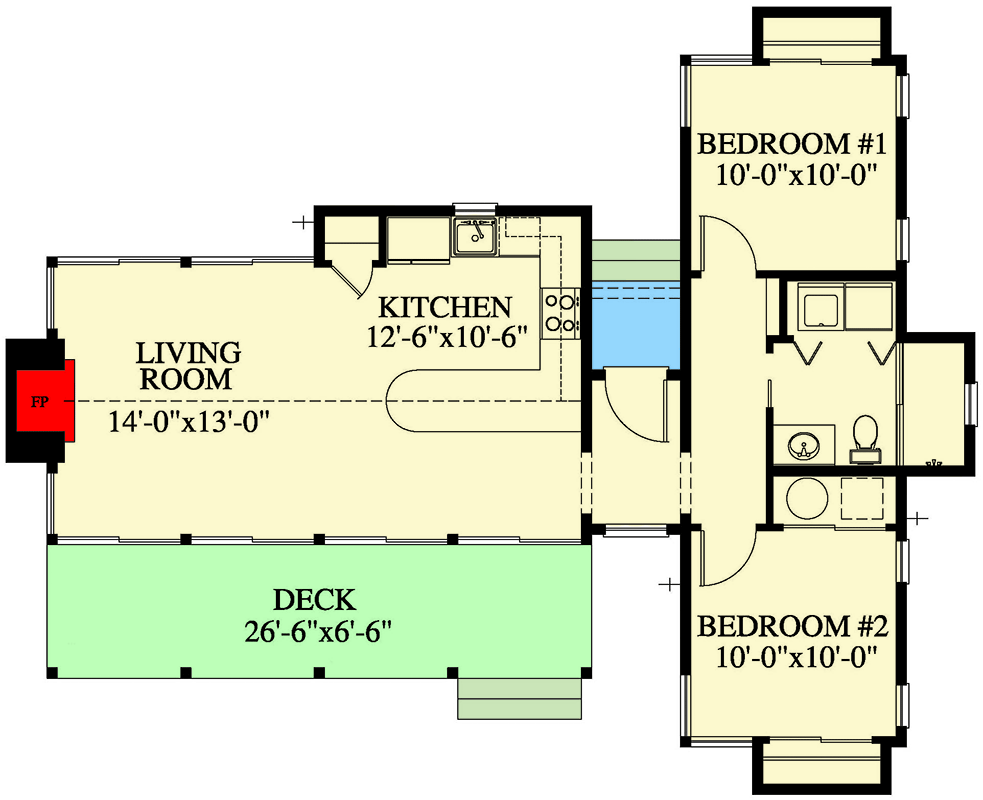

Floor Plan

Plan details

Architectural Style



Main Master Vacation Home with Deck Views

  • 877

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • 5 Sets $995
  • Reproducible Set $1,250
  • PDF - single-use $1,250
  • CAD $1,495
  • View all purchase option online

About This Plan

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 877 sq. ft.
  • 1st Floor: 877 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Piling

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 47' 2"
  • Depth: 38' 4"
  • Max ridge height: 15' 6"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"
