Plan 67128GL
EXCLUSIVE
Marvelous Detailing
Heated S.F.
5,117
Beds
5
Baths
4.5
Stories
2
Cars
3
What's Included
Plan Details
  • Marvelous detailing both inside and out makes this Traditional home plan exceptional.
  • A gorgeous curved staircase, hidden storage and a wine cellar in the dining room are but a few examples.
  • Sightlines from the foyer go straight back through the huge family room to the rear covered lanai.
  • The kitchen, cafe and family room share the same space so you always feel a part of the family activity.
  • Bedroom 2 is set off by itself and makes a terrific in-law suite with privacy.
  • The opulent master suite boasts a romantic fireplace, separate sitting room, tray ceiling and a fabulous bathroom plus two huge walk-in closets.
  • The second floor is no less luxurious and has a spacious games room with an open rail so you can see the family room below.
  • Unfinished bonus space is there if you want to expand.
What's Included
  • Cover sheet
  • Table of Contents

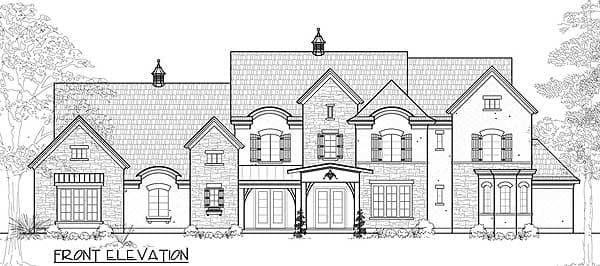

  • Exterior Elevations (noted and dimensioned)
  • Floor Plan(s) (noted and dimensioned)
  • Electrical Plan(s)
  • Framing Plan(s)
  • Joist Layout Plan(s),
  • Foundation Footprint
  • At least one cross-section, and any other relevant details, including, but not limited to, a typical detail sheet showing common construction methods.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Marvelous Detailing

  • 5,117

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

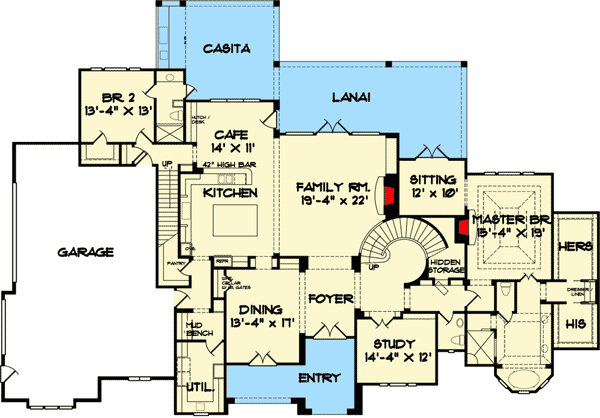

  • Main Level

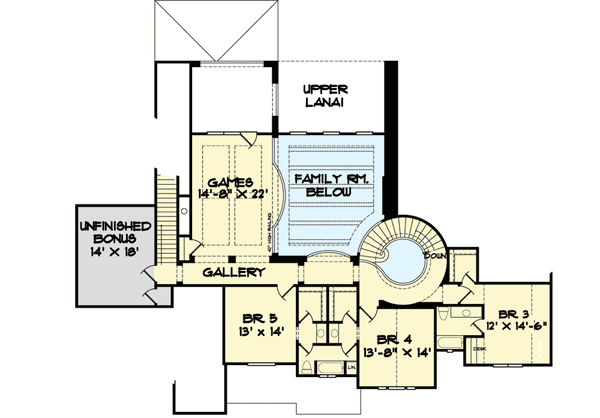

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 5,117 sq. ft.
  • 1st Floor: 3,551 sq. ft.
  • 2nd Floor: 1,566 sq. ft.

Dimensions

  • Width: 108' 0"
  • Depth: 75' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1050 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"
