Marvelous, Huge Shingle-Style House Plan

Plan 290014IY

  • 6,644

    Heated s.f.

  • 3-7

    Beds

  • 3.5 - 6.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • Distinctive good looks and lots of amenities set this shingle style house plan apart from all others.
  • An abundance of covered porches and decks beckon you outdoors.
  • There's no formal dining room in this home, just a large vaulted and beamed dining area with glass on three sides for wonderful views while you eat.
  • Homeowners get two big islands under a tray ceiling, a walk-in pantry and a separate prep area.
  • Back to back fireplaces warm the huge family room and the pergola deck behind it.
  • The master suite also has a fireplace and vaulted ceiling. Her closet opens right into the laundry room.
  • For added convenience, there is an elevator just off the garage that services the main level and lower level of the home.
  • The second floor comes with a massive bonus room complete with a snack bar and a stage at one end for your little budding actors.

This plan set includes the following:
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

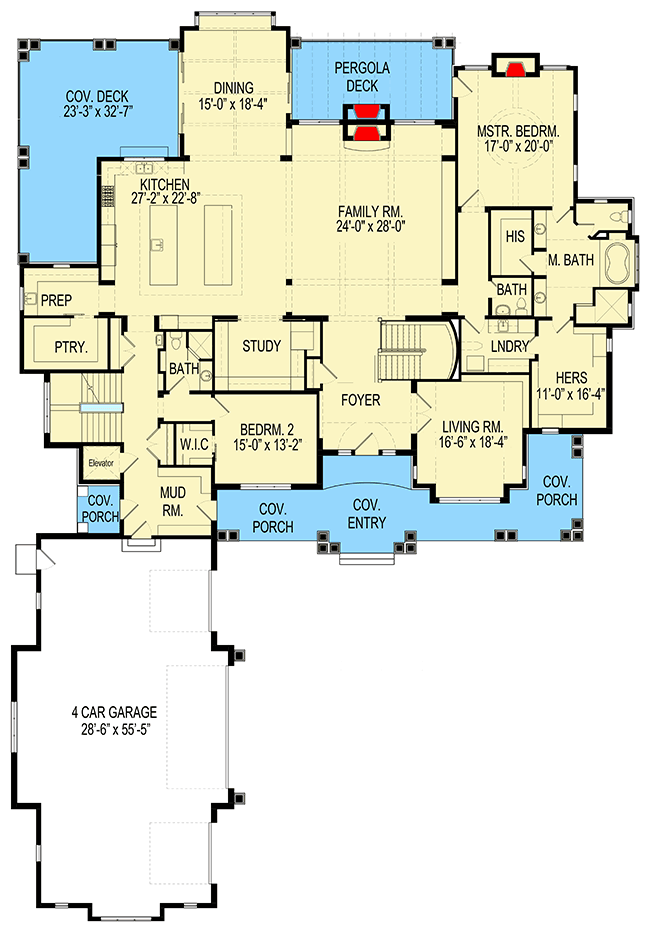

Marvelous, Huge Shingle-Style House Plan - 290014IY floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

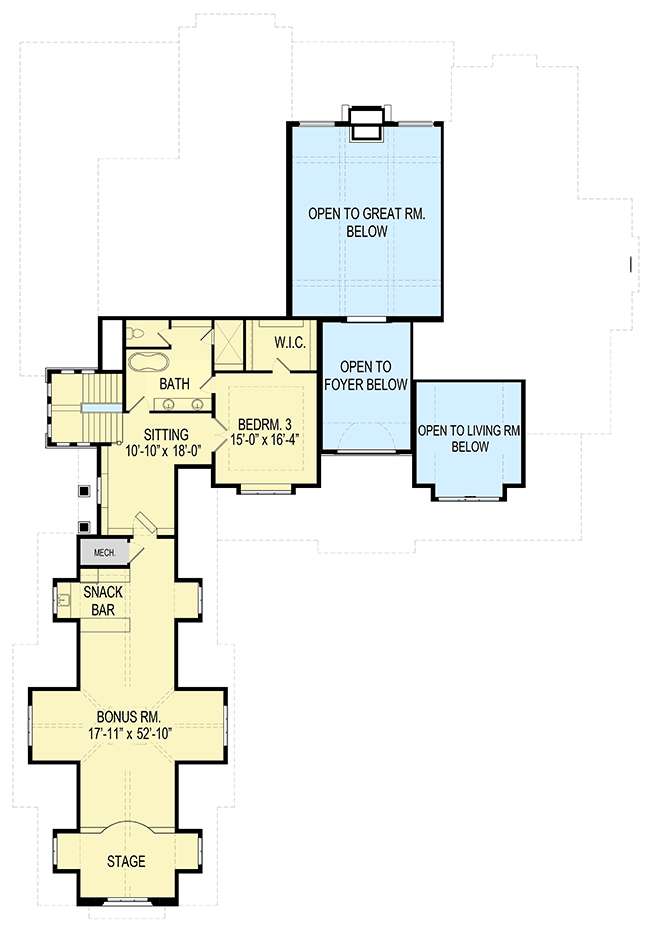

Marvelous, Huge Shingle-Style House Plan - 290014IY floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

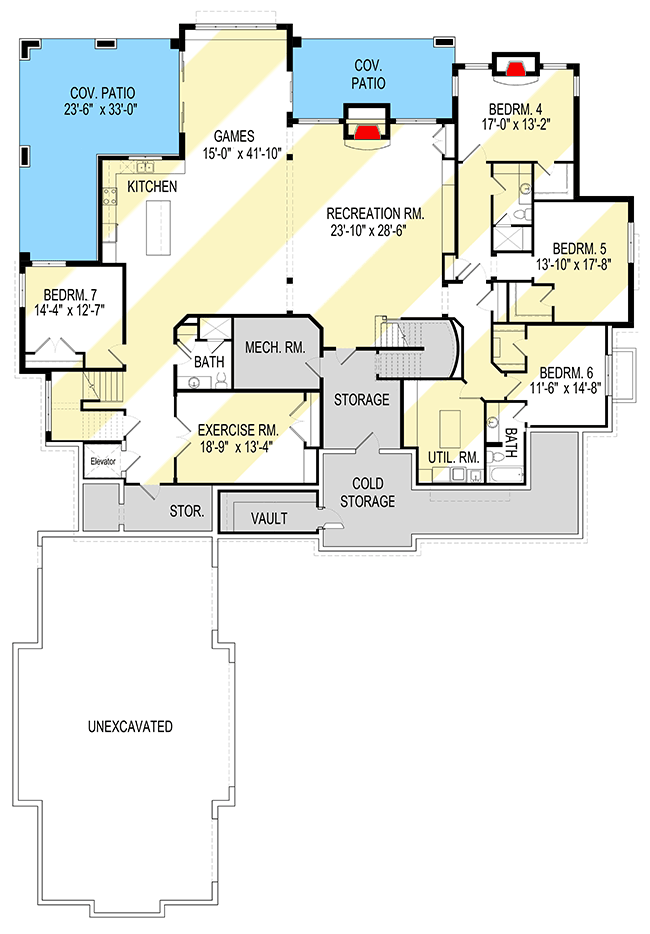

Marvelous, Huge Shingle-Style House Plan - 290014IY floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 6,644 sq. ft.
  • 1st Floor: 4,608 sq. ft.
  • 2nd Floor: 2,036 sq. ft.
  • Storage: 988 sq. ft.
  • Deck: 841 sq. ft.
  • Porch, Front: 543 sq. ft.
  • Optional Lower Level: 4,017 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, 6, or 7
  • Full bathrooms: 3, 4, 5, or 6
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Basement, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 133' 2"
  • Depth: 92' 0"
  • Max ridge height: 34' 4"

Garage

  • Type: Attached
  • Area: 1562 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 16 on 12

Architectural Style

Special features

Plan Collections

Marvelous, Huge Shingle-Style House Plan

  • 6,644

    Heated s.f.

  • 3-7

    Beds

  • 3.5 - 6.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $6,644
  • CAD - Single-Build $9,966
  • View all purchase option online

About This Plan

  • Distinctive good looks and lots of amenities set this shingle style house plan apart from all others.
  • An abundance of covered porches and decks beckon you outdoors.
  • There's no formal dining room in this home, just a large vaulted and beamed dining area with glass on three sides for wonderful views while you eat.
  • Homeowners get two big islands under a tray ceiling, a walk-in pantry and a separate prep area.
  • Back to back fireplaces warm the huge family room and the pergola deck behind it.
  • The master suite also has a fireplace and vaulted ceiling. Her closet opens right into the laundry room.
  • For added convenience, there is an elevator just off the garage that services the main level and lower level of the home.
  • The second floor comes with a massive bonus room complete with a snack bar and a stage at one end for your little budding actors.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,644 sq. ft.
  • 1st Floor: 4,608 sq. ft.
  • 2nd Floor: 2,036 sq. ft.
  • Storage: 988 sq. ft.
  • Deck: 841 sq. ft.
  • Porch, Front: 543 sq. ft.
  • Optional Lower Level: 4,017 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, 6, or 7
  • Full bathrooms: 3, 4, 5, or 6
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Basement, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 133' 2"
  • Depth: 92' 0"
  • Max ridge height: 34' 4"

Garage

  • Type: Attached
  • Area: 1562 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 16 on 12
