Plan 17788LV Marvelous Tudor House Plan

4,219 4 4.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Marvelous Tudor House Plan

Plan 17788LV

  • 4,219

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

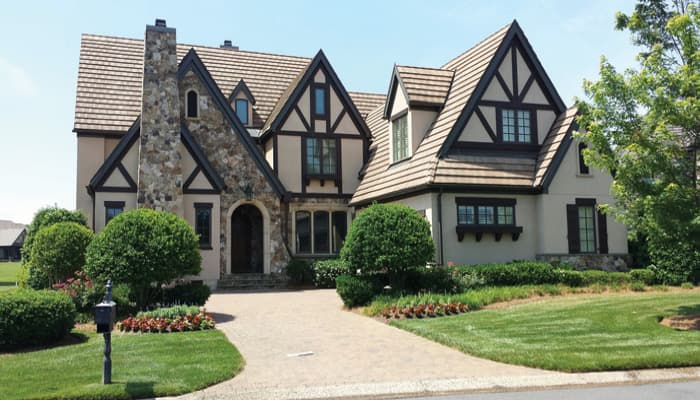

  • The Tudor detailing on the exterior of this spacious house plan is a sight to behold.
  • Inside, a modern open floor plan gives today's families what they want.
  • Built-ins and a coffered ceiling distinguish the huge great room that can be seen all the way from the dining room and kitchen.
  • The cozy vaulted study is warmed by a fireplace and there's also one on the outdoor covered veranda.

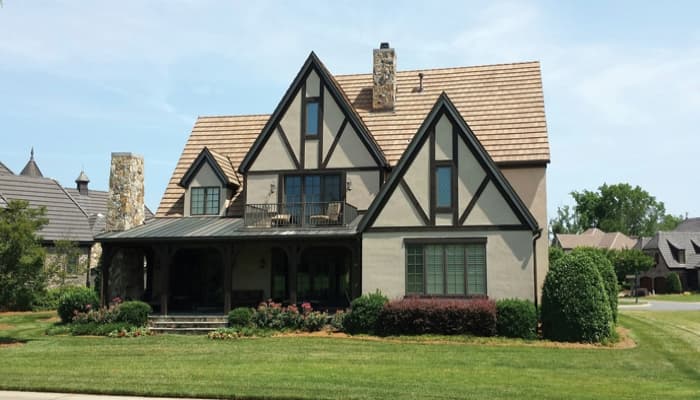

  • Step outside onto the covered veranda right from the large vaulted master suite.
  • On the second floor, three large bedroom suites have easy access to the enormous linkside retreat with its wet bar and outdoor terrace.
  • Bonus space adds an additional 462 square feet to the total living area.

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

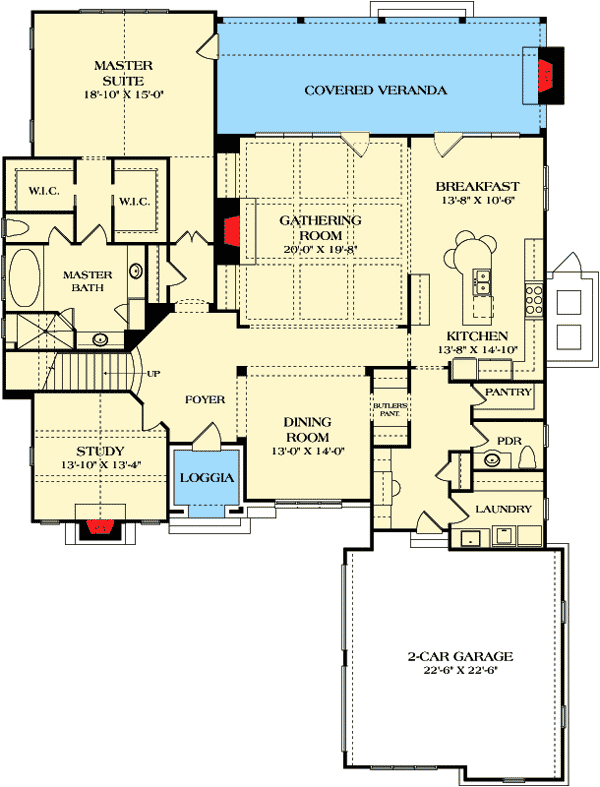

Marvelous Tudor House Plan - 17788LV floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

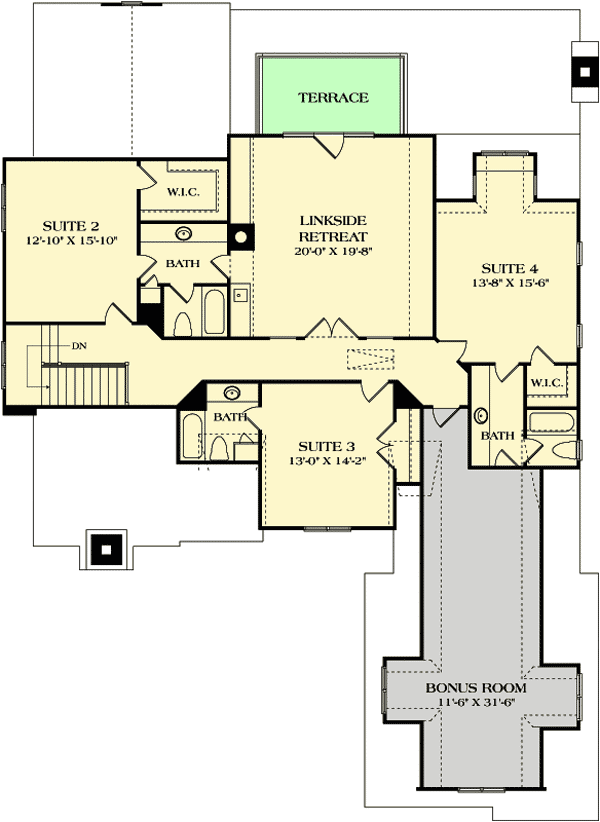

Marvelous Tudor House Plan - 17788LV floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,219 sq. ft.
  • 1st Floor: 2,485 sq. ft.
  • 2nd Floor: 1,734 sq. ft.
  • Bonus: 462 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 59' 0"
  • Depth: 81' 0"

Garage

  • Type: Attached
  • Area: 562 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Marvelous Tudor House Plan

  • 4,219

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,800
  • CAD - Single-Build $3,600
  • View all purchase option online

About This Plan

  • The Tudor detailing on the exterior of this spacious house plan is a sight to behold.
  • Inside, a modern open floor plan gives today's families what they want.
  • Built-ins and a coffered ceiling distinguish the huge great room that can be seen all the way from the dining room and kitchen.
  • The cozy vaulted study is warmed by a fireplace and there's also one on the outdoor covered veranda.
  • Step outside onto the covered veranda right from the large vaulted master suite.
  • On the second floor, three large bedroom suites have easy access to the enormous linkside retreat with its wet bar and outdoor terrace.
  • Bonus space adds an additional 462 square feet to the total living area.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,219 sq. ft.
  • 1st Floor: 2,485 sq. ft.
  • 2nd Floor: 1,734 sq. ft.
  • Bonus: 462 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 59' 0"
  • Depth: 81' 0"

Garage

  • Type: Attached
  • Area: 562 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
