  • A classic brick, stone and shingle exterior create a one-of-a-kind look to this beautiful master-down house plan.
  • A dramatic 2-story foyer greets you as you step in off the covered porch entry. A private vaulted study and a raised ceiling dining room flank the entry.
  • Across the 2-story gallery you'll find the 2-story grand room. Windows look out across the back yard which is accessible from the morning room and master suite. A fireplace is flanked by arched entryways.
  • The family room features a coffered ceiling, fireplace and built-ins. It is open to the breakfast room and to the kitchen with large eat-at island and corner pantry.
  • A home office can double as a bedroom with a walk-in closet and bath. A laundry room is located off the garage.
  • The master suite is luxurious and occupies the left side of the home. The five-fixture master bath also features a large walk-in closet.
  • The upstairs offers two bedrooms (one with a walk-in closet), two baths and a TV/homework room. Enclose the upper great room and gain a bonus room and expand over the garage if you need more space.

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • The plans are designed to meet the International Residential Code but are not designed for a specific area.  These plans do not come engineered or with structural drawings. They do not include framing plans.
  • Plans do include wall and cornice sections, general foundation sections and details.



Floor Plan

Plan details



Master Down Beauty

  • 3,388

    Heated s.f.

  • 4 - 5

    Beds

  • 3 +

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,695
  • CAD $2,645
  • View all purchase option online

About This Plan

  • A classic brick, stone and shingle exterior create a one-of-a-kind look to this beautiful master-down house plan.
  • A dramatic 2-story foyer greets you as you step in off the covered porch entry. A private vaulted study and a raised ceiling dining room flank the entry.
  • Across the 2-story gallery you'll find the 2-story grand room. Windows look out across the back yard which is accessible from the morning room and master suite. A fireplace is flanked by arched entryways.
  • The family room features a coffered ceiling, fireplace and built-ins. It is open to the breakfast room and to the kitchen with large eat-at island and corner pantry.
  • A home office can double as a bedroom with a walk-in closet and bath. A laundry room is located off the garage.
  • The master suite is luxurious and occupies the left side of the home. The five-fixture master bath also features a large walk-in closet.
  • The upstairs offers two bedrooms (one with a walk-in closet), two baths and a TV/homework room. Enclose the upper great room and gain a bonus room and expand over the garage if you need more space.

Floor Plans

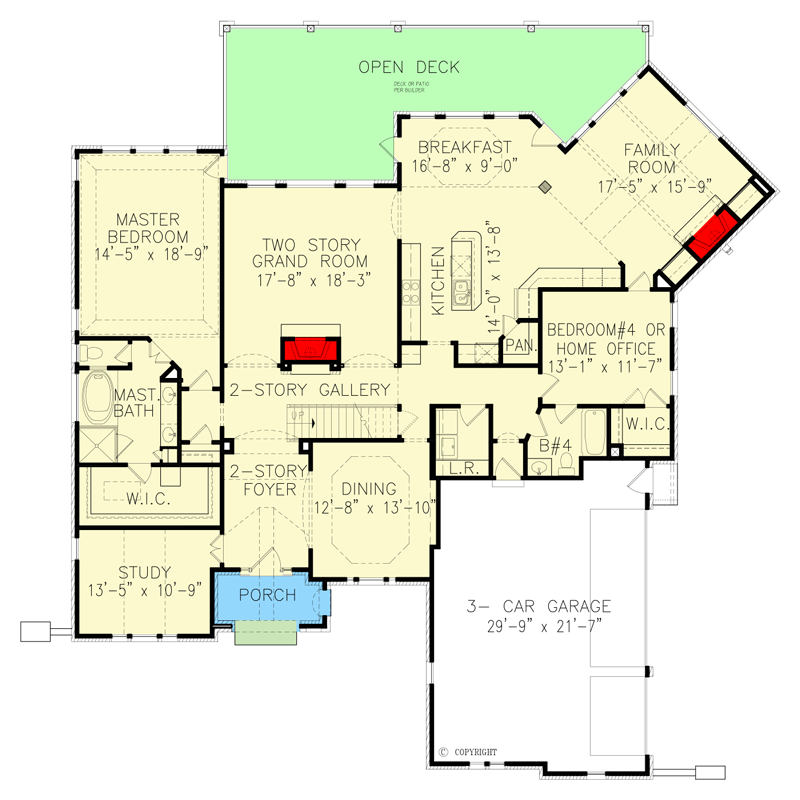

  • Main Level

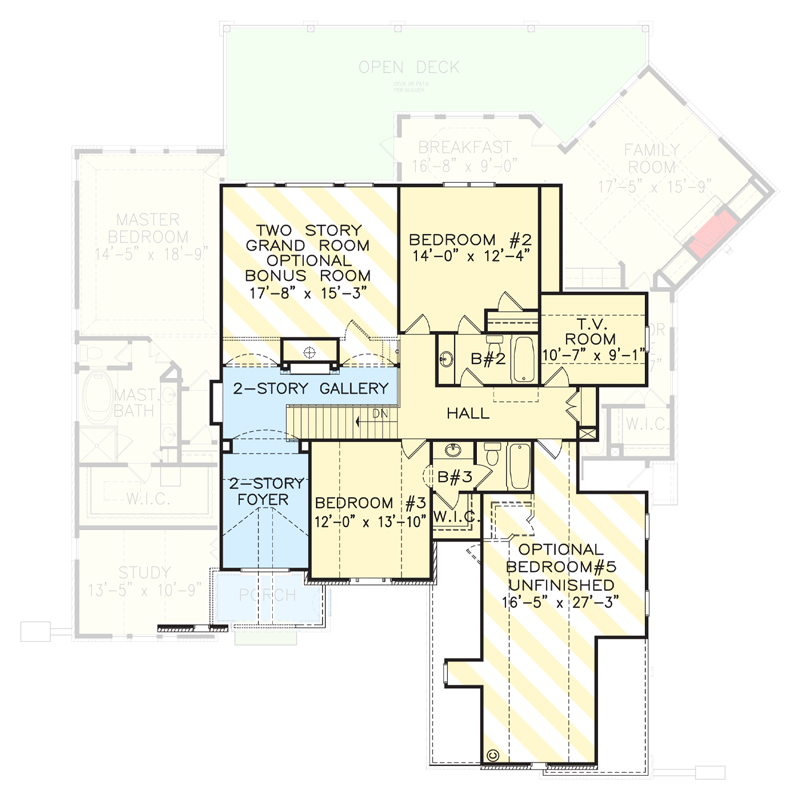

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,388 sq. ft.
  • 1st Floor: 2,611 sq. ft.
  • 2nd Floor: 777 sq. ft.
  • Bonus: 690 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 2, 3, & 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 70' 2"
  • Depth: 72' 0"

Garage

  • Type: Attached
  • Area: 642 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Architectural Style

  • European

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • PDF
