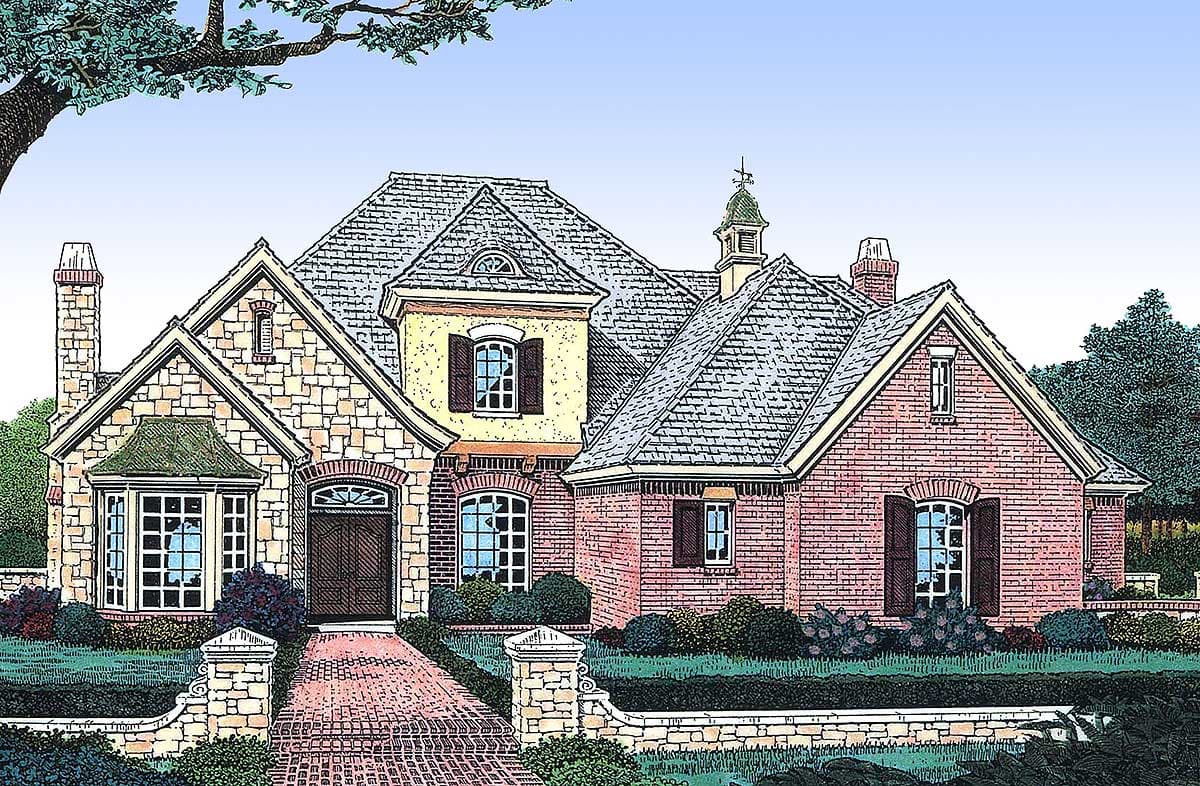

Plan 48117FM

Master Down with Angled Stair

Heated S.F.
3,064
Beds
4
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 48117FM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 48117FM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

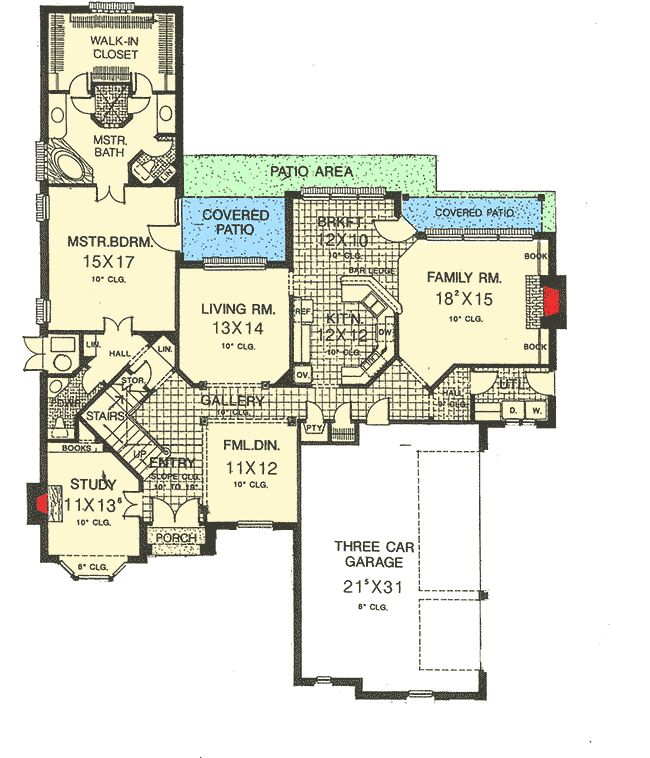

Plan 48117FM: Master Down with Angled Stair - Floor Plan - Main Level - European, Traditional

2nd Floor

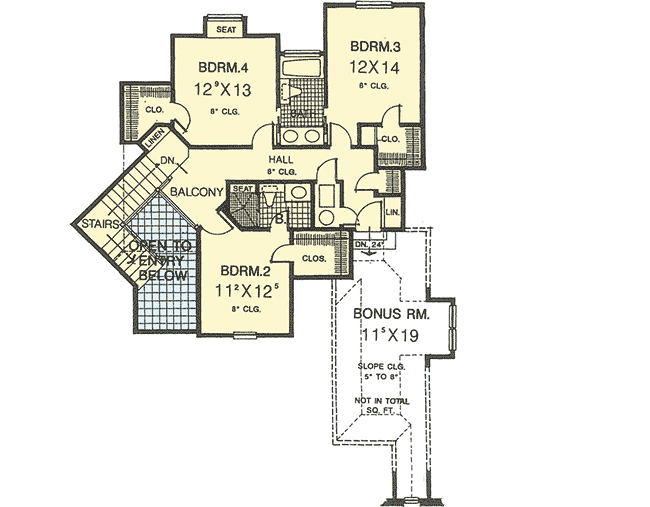

Plan 48117FM: Master Down with Angled Stair - Floor Plan - 2nd Floor - European, Traditional

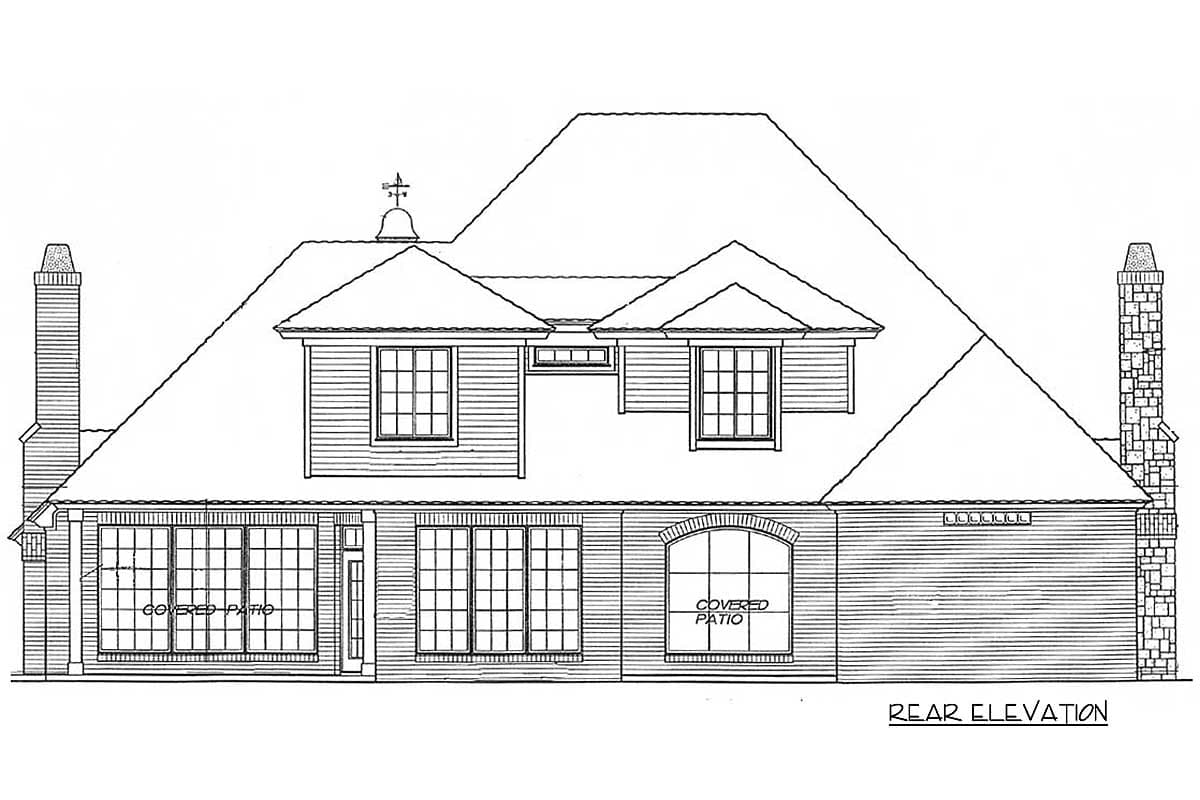

Plan Details

  • This attractive house plan featuring a master-down design has an attractive angled stair off the entry.
  • The living room and dining room are open to each other across the gallery and are great spaces for entertaining guests.
  • More informal gatherings can be had in the trio of spaces - the kitchen, breakfast room and family room. The family room has a fireplace flanked by built-ins and windows overlooking the back covered patio.
  • The master bedroom 10' ceilings and has patio access. A walk-in shower in the master bath has two doors and the walk-in closet is big enough for two to use at once.
  • A study off the foyer has a fireplace and built-ins. Laundry is accessible by the side entry and a powder room is secluded.
  • Upstairs, three bedrooms share two baths. You can expand over the garage if more space is needed.

What's Included

  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan
  • Front and Left Elevation
  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,064 sq. ft.

1st Floor

2,162 sq. ft.

2nd Floor

902 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

59' 0"

Depth

79' 3"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

636 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

Traditional

Special Features

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

3,064 sq. ft.

1st Floor

2,162 sq. ft.

2nd Floor

902 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

59' 0"

Depth

79' 3"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

636 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

Traditional

Special Features

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Optionally Finished Bonus Room
