Master Down with Optional Home Theater

Plan 24328TW

  • 2,562

    Heated s.f.

  • 4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Every room in this stunning house plan is spacious and welcoming, allowing you to live and entertain in style.
  • An elegant foyer with two-story tray ceiling greets your guests upon entering the home.

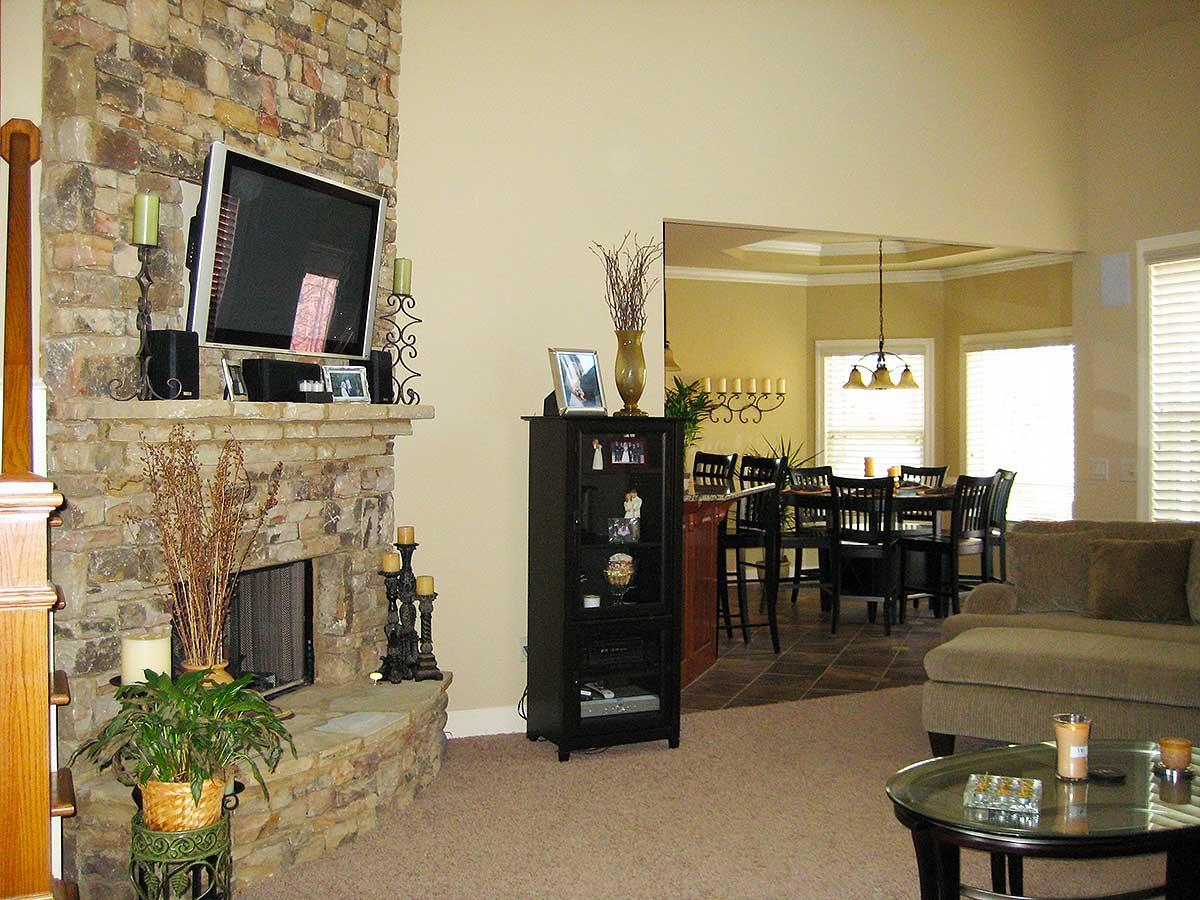

  • Guests are lead effortlessly to the large great room with 2-story ceiling, great views to the back and an angled fireplace.

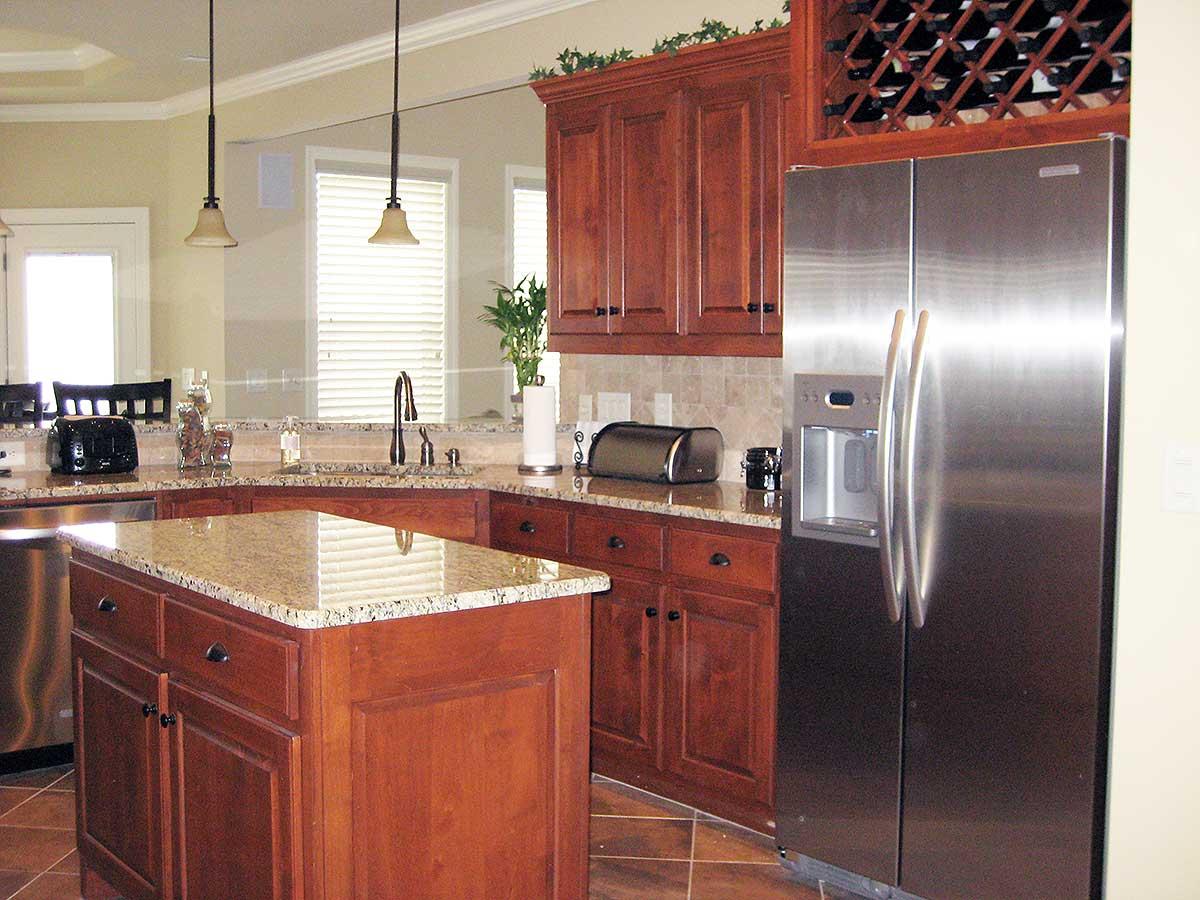

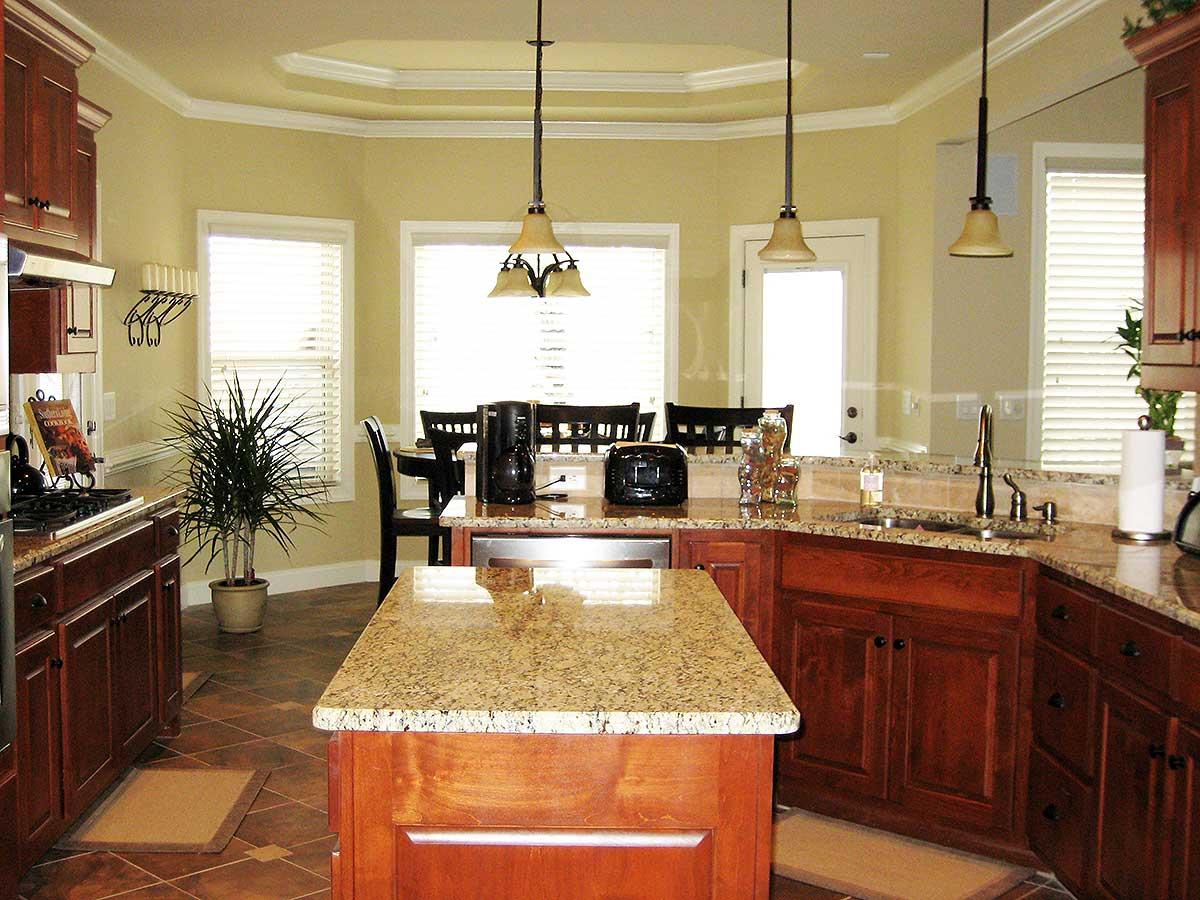

  • The kitchen is made for entertaining. It has views to the great room and the bayed breakfast room (with rear deck access) as well as easy access to the dining room with tray ceiling. Also note the walk-in pantry.

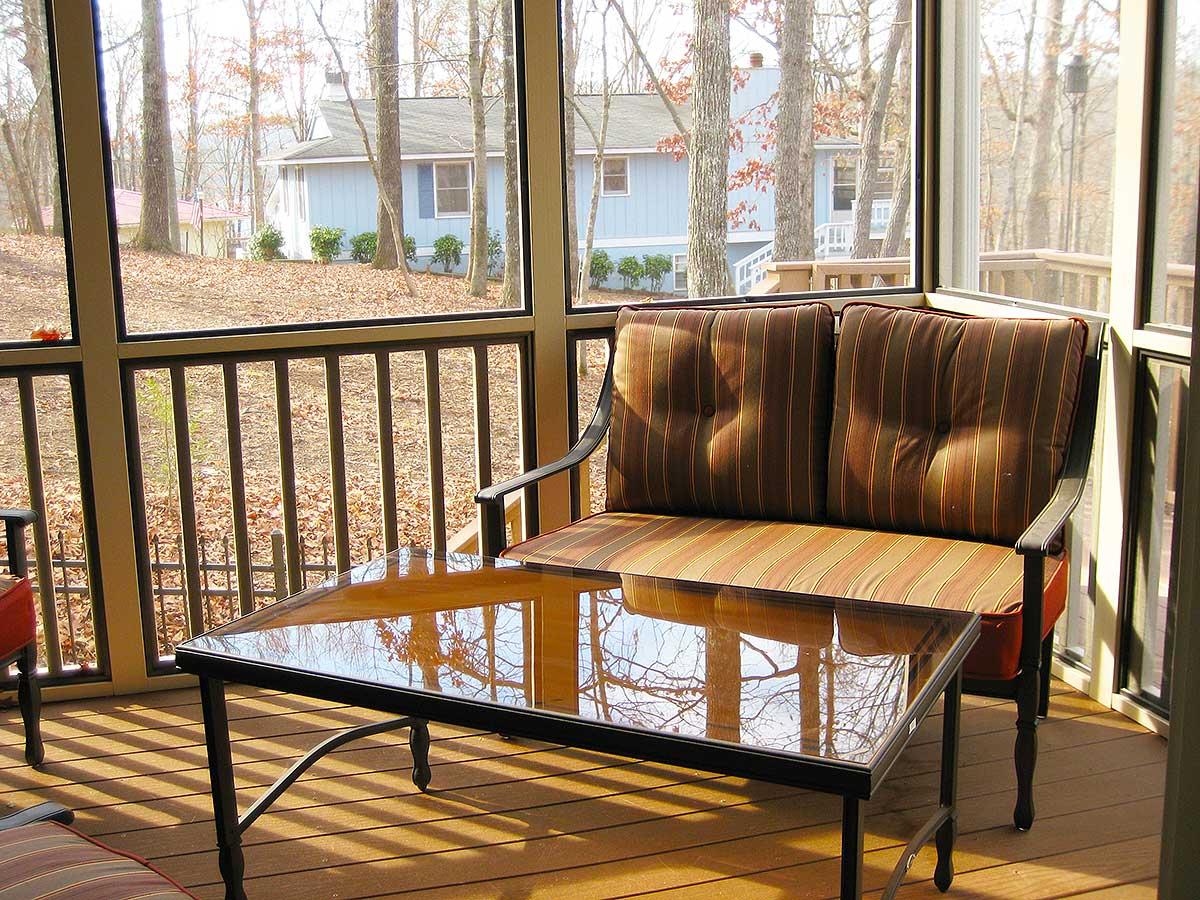

  • A screened porch offers a great place to relax in when the weather is right.
  • Your main floor master suite has an attractive double tray ceiling and a spa-like bath. The walk-in closet is oversized.
  • Upstairs, three bedrooms have walk-in closets.

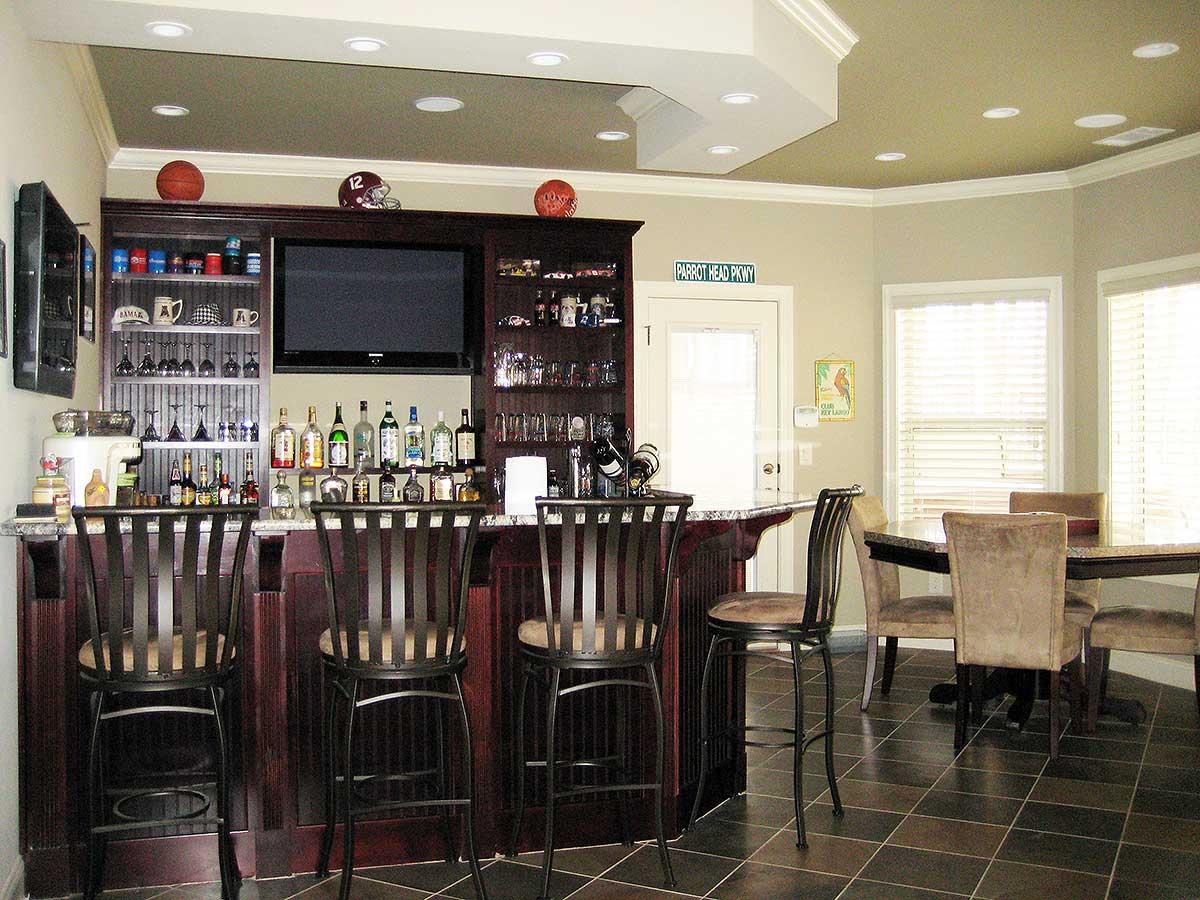

  • And don't forget the optional lower level. There you'll find a large game room with a bar, sitting area and patio. And the home theater with 10' tray ceiling is a great place for fun with family and friends.
  • NOTE: The crawlspace version comes with the same elevations as the basement version.

The plans include the following:

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

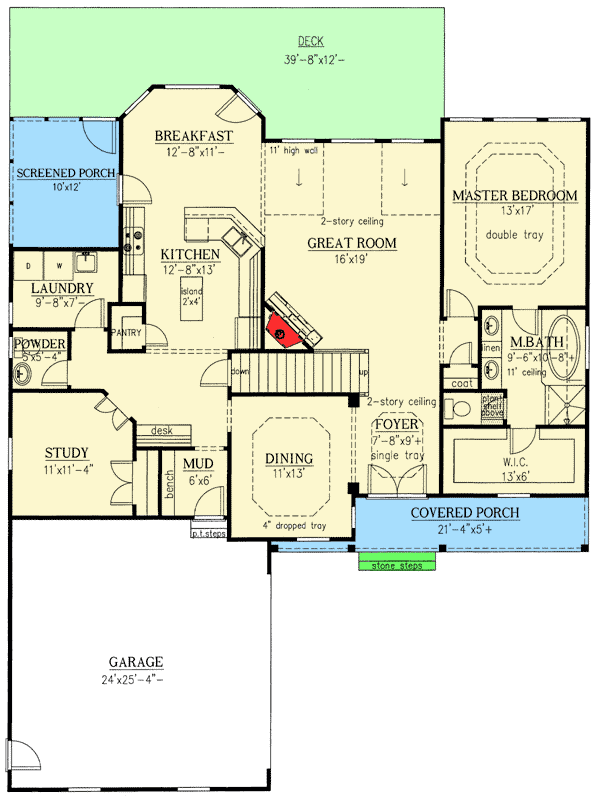

Master Down with Optional Home Theater - 24328TW floor plan - Main Level

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

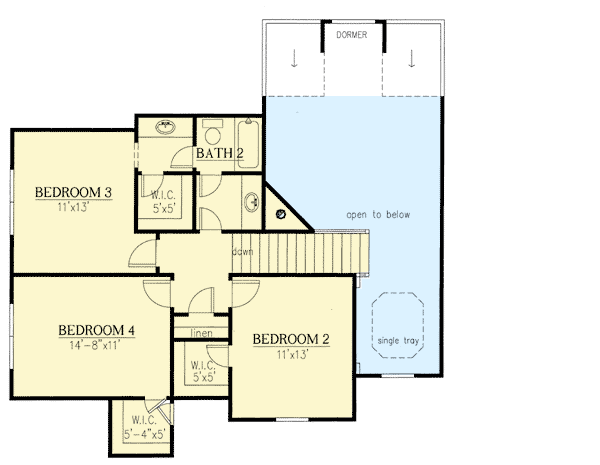

Master Down with Optional Home Theater - 24328TW floor plan - Second Level

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

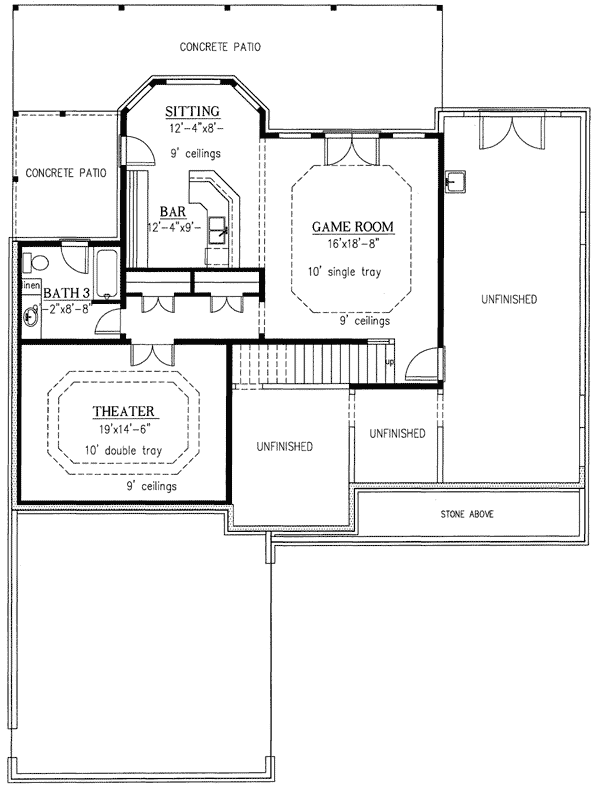

Master Down with Optional Home Theater - 24328TW floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,562 sq. ft.
  • 1st Floor: 1,821 sq. ft.
  • 2nd Floor: 741 sq. ft.
  • Optional Lower Level: 1,060 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 53' 0"
  • Depth: 65' 0"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 608 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Master Down with Optional Home Theater

  • 2,562

    Heated s.f.

  • 4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Second Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,562 sq. ft.
  • 1st Floor: 1,821 sq. ft.
  • 2nd Floor: 741 sq. ft.

Dimensions

  • Width: 53' 0"
  • Depth: 65' 0"
  • Max ridge height: 33' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 608 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
