Plan 40399DB

Master Down with Vaulted Great Room

Heated S.F.
2,690
Beds
4
Baths
2.5
Stories
2
Cars
3

Floor Plan

Plan 40399DB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 40399DB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

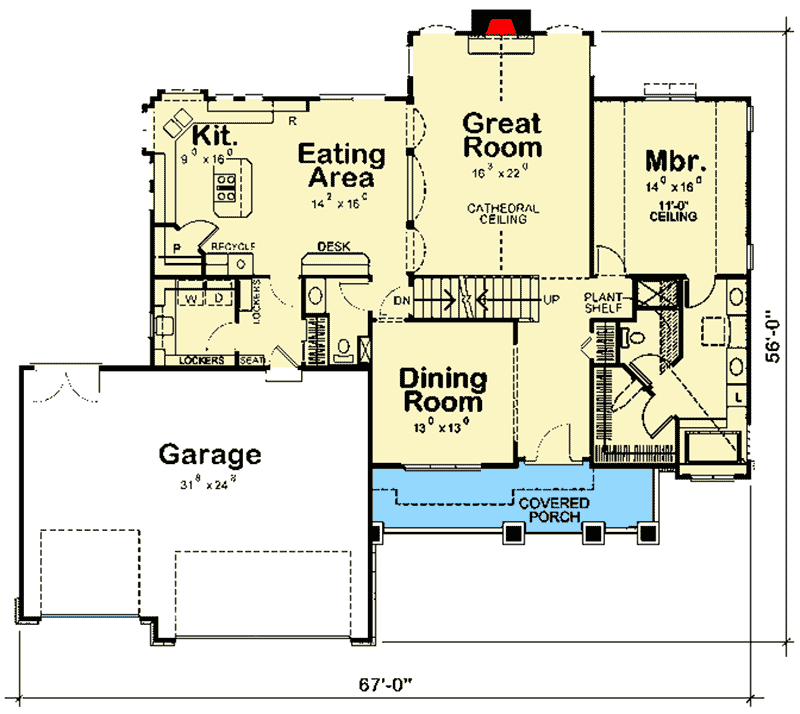

Plan 40399DB: Master Down with Vaulted Great Room - Floor Plan - Main Level - Craftsman, Northwest

2nd Floor

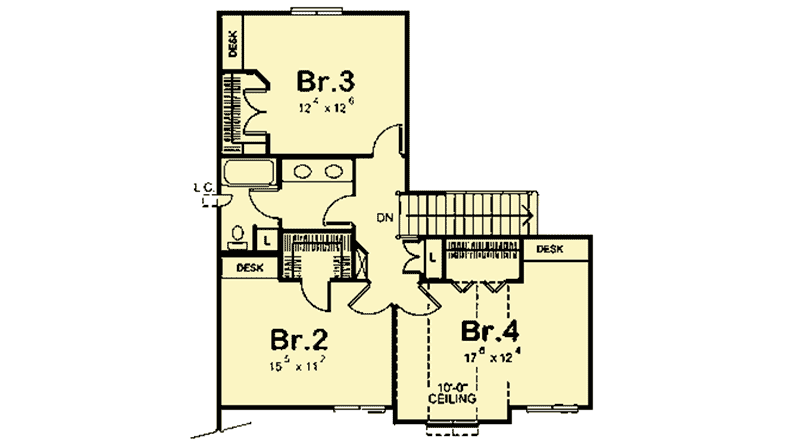

Plan 40399DB: Master Down with Vaulted Great Room - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

  • Need your own space? With the kids upstairs and you downstairs, there is plenty of room for everyone. The kids will love having their own built-in desks, and no need to try to fit in another piece of furniture. The large closets, two separate sinks, and separate bath are all great design features.
  • The eating area is open to the great room, with the adjacent dining room. This open floor plan provides plenty of opportunities for guests to mingle, eat, chat and enjoy themselves.

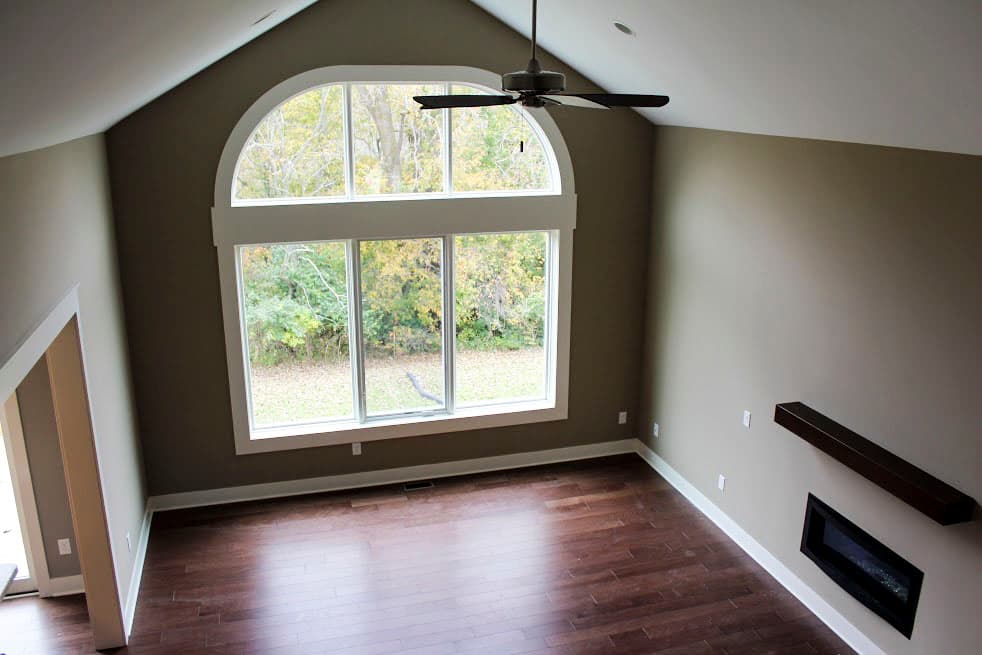

  • The vaulted great room has a fireplace and is steps away and within viewing range of the kitchen.

What's Included

  • General Notes

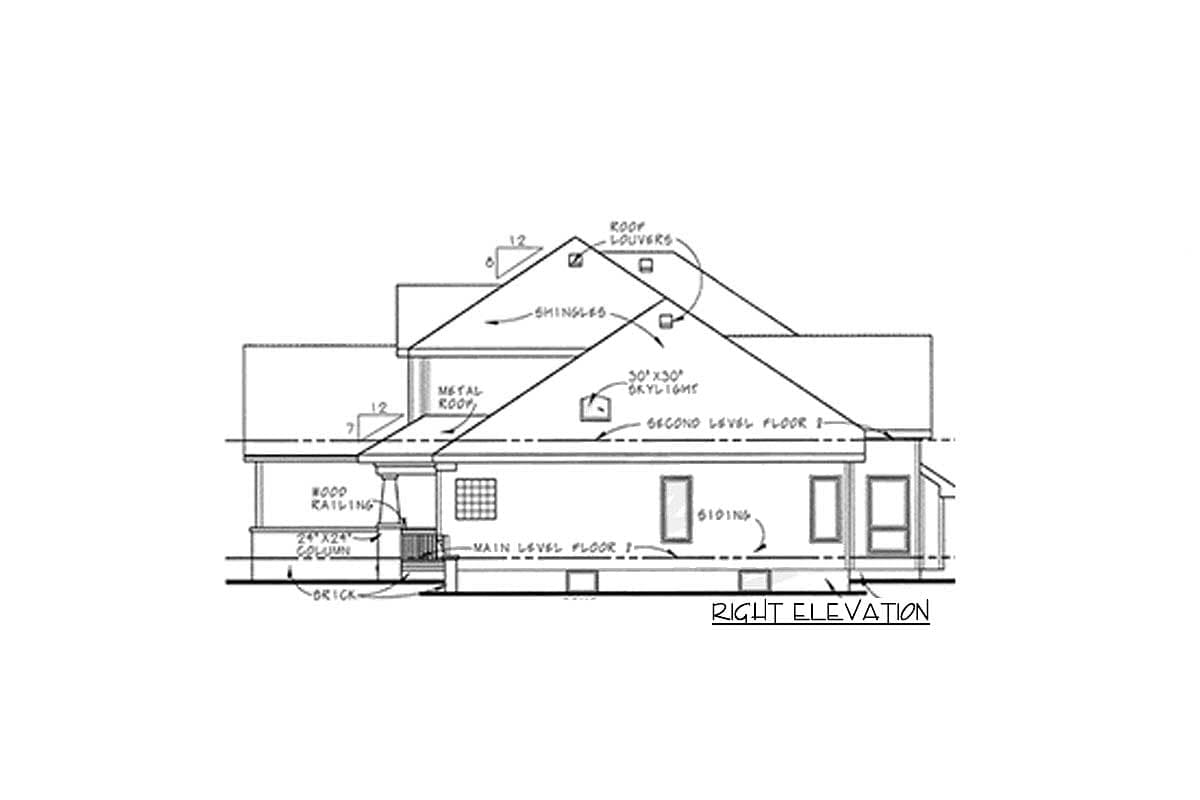

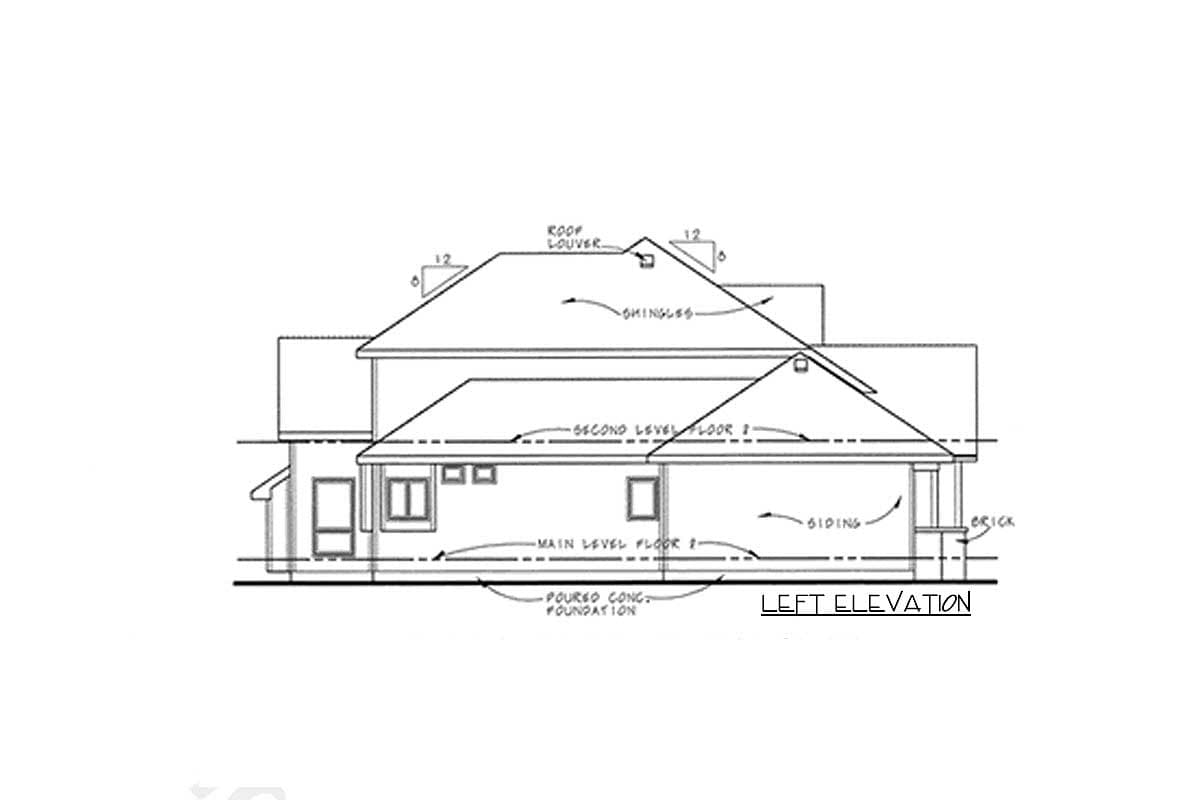

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,690 sq. ft.

1st Floor

1,792 sq. ft.

2nd Floor

898 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 0"

Depth

56' 0"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

785 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,690 sq. ft.

1st Floor

1,792 sq. ft.

2nd Floor

898 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 0"

Depth

56' 0"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

785 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Master Suite - 1st Floor

Plan Collections

Photo Gallery
