Plan 62564DJ

Matching 3 Bed Duplex House Plan

Heated S.F.
3,798
Units
2
Width
Depth

Floor Plan

Plan 62564DJ

Main Level
Main Level

Plan 62564DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

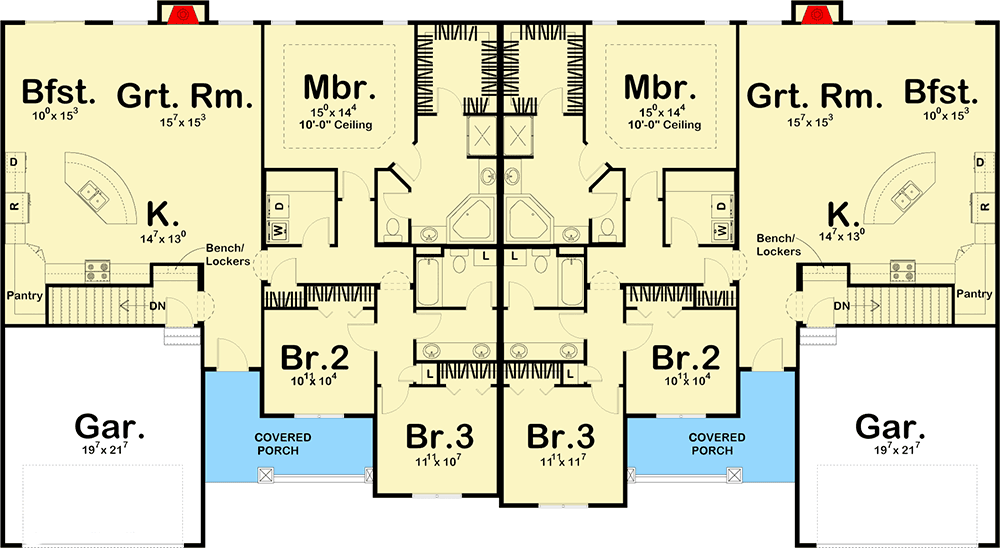

Plan 62564DJ: Matching 3 Bed Duplex House Plan - Floor Plan - Main Level

Plan Details

  • This duplex house plan gives you matching 3 bed units each giving their owners 1,899 square feet of living space.
  • is a traditional-style ranch duplex house plan based on the The living spaces are wide open, with a curved bar that ties the space together.
  • The master bedroom has his and her vanities, corner tub, shower, and hidden stool.
  • The bathroom between the 2 secondary bedrooms has a separated bath area.
  • The main roof pitch is 8:12 and the secondary is 4:12.
Unit A
Heated Area
1,899Sq. Ft.
1889 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
446 Sq. Ft.
Dimensions
50'width
53'depth
25'height
Unfinished Areas
446 Sq. Ft. Garage
Unit B
Heated Area
1,899Sq. Ft.
1889 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
446 Sq. Ft.
Dimensions
50'width
53'depth
25'height
Unfinished Areas
446 Sq. Ft. Garage

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,798 sq. ft.

1st Floor

3,798 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

100' 0"

Depth

53' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

892 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,798 sq. ft.

1st Floor

3,798 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

100' 0"

Depth

53' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

892 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
