Matching Gables

Plan 48323FM

  • 2,214

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • A pair of gables, one with an attractive bumpout, grace the exterior of this tasteful french country house plan.
  • The great room is the center of attention. It features a fireplace flanked by built-in bookcases. It gets light from the covered patio and is open to the kitchen and breakfast room.
  • Across the gallery, a private study gets light from a trio of windows. The formal dining room is convenient to the kitchen.
  • The master bedroom has access to the patio and features a large walk-in closet. Two more bedrooms across the home share a bath.
  • A three-car garage rounds out this design.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

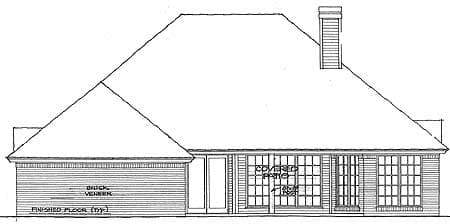

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

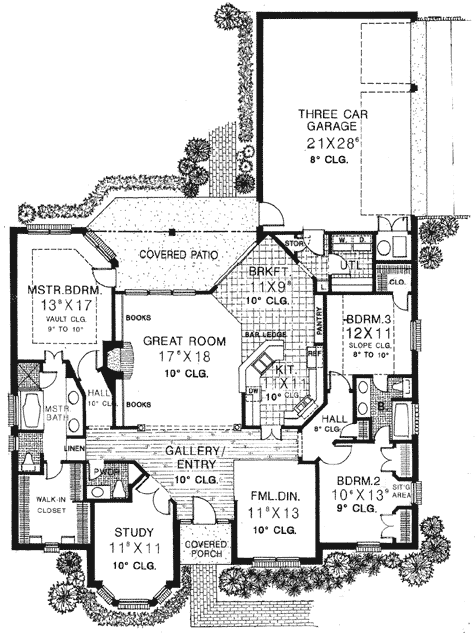

Matching Gables - 48323FM floor plan - Main Level

Matching Gables

  • 2,214

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,214 sq. ft.
  • 1st Floor: 2,214 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 77' 11"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 663 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
