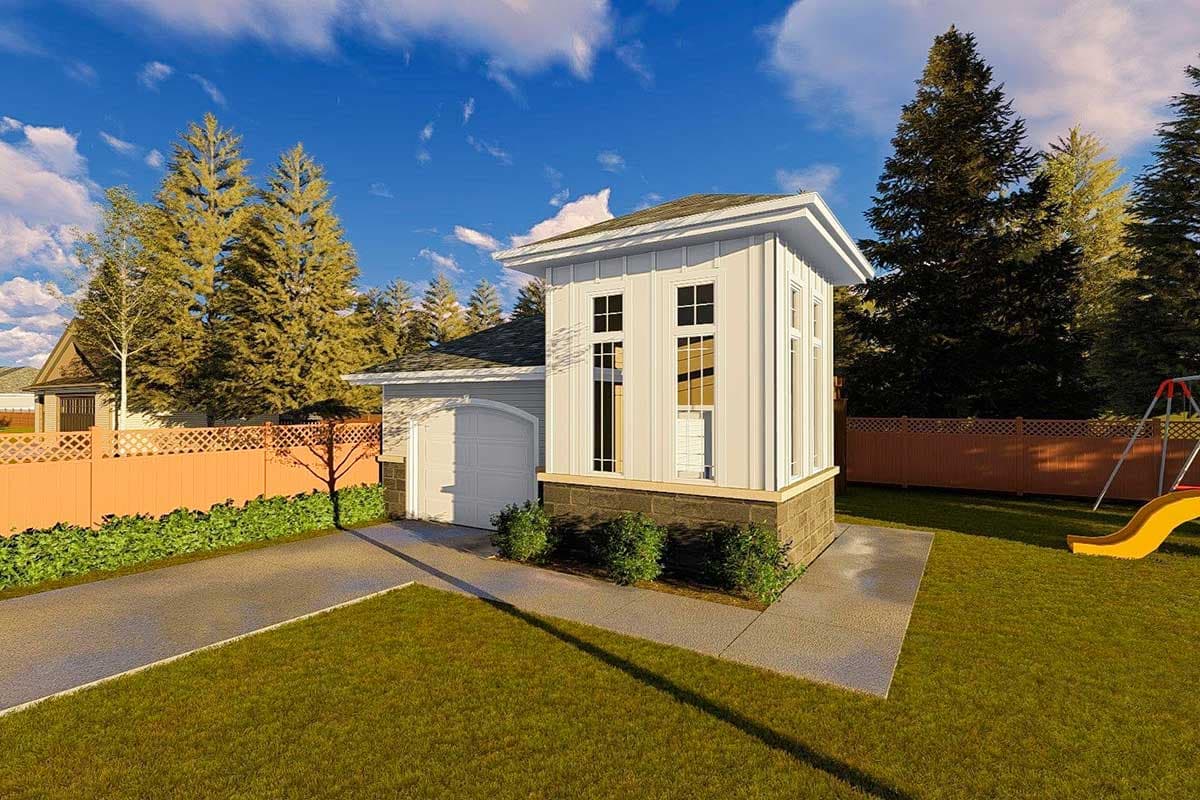

Mediterranean Style Garage with Workshop

Plan 62602DJ

  • 0

    HEATED S.F.

  • BEDS

  • 0

    BATHS

  • 1

    FLOORS

  • 1

    CAR GARAGE

About this Plan

  • This is a mediterranean garage with large windows that is built on slab foundation.
  • There is an L-shaped built in workbench on the left with a door leading to a veranda in back.
  • The roof has a 6:12 pitch.

See What's Included in this Plan...

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Dimensions

  • Width: 24' 0"
  • Depth: 28' 0"
  • Max ridge height: 14' 0"

Garage

  • Area: 408 sq. ft.
  • Details: 1 Cars
  • Location: Front

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12

Special features
