Plan 280149JWD Mid-Century Modern Home Plan for Rear-Sloping Lot

Mid-Century Modern Home Plan for Rear-Sloping Lot

Plan 280149JWD

  • 3,136

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • A ribbed metal roof tops this Mid-Century Modern home plan that features 4 bedrooms, a large covered porch, and  walk-out basement.
  • Inside, the vaulted ceiling is carried through the great room and onto the covered porch, while minimal walls allow you to move easily between the kitchen, dining, and living areas.
  • The double garage opens into a mudroom with a built-in bench, coat closet, and neighboring laundry room.
  • A quiet den shares the right side of the main level with the master bedroom, which includes a 5-fixture ensuite and natural lighting in the walk-in closet.
  • Downstairs, the sizable family room connects with a walk-out patio and is surrounded by three bedrooms. Unfinished storage space includes an overhead door making it perfect for lawn equipment and supplies.

This house plan includes the following details:
  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mid-Century Modern Home Plan for Rear-Sloping Lot - 280149JWD floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

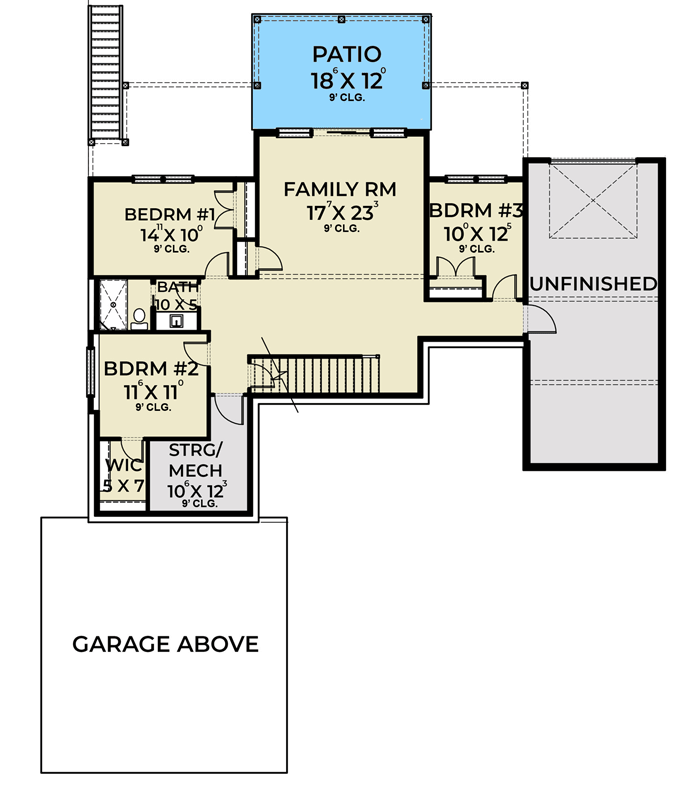

Mid-Century Modern Home Plan for Rear-Sloping Lot - 280149JWD floor plan - Basement

Plan details

Architectural Style

Plan Collections

Mid-Century Modern Home Plan for Rear-Sloping Lot

  • 3,136

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $875
  • PDF - Single-Build $1,750
  • 5 Sets + PDF $1,900
  • CAD - Single-Build $2,250
  • View all purchase option online

About This Plan

  • A ribbed metal roof tops this Mid-Century Modern home plan that features 4 bedrooms, a large covered porch, and  walk-out basement.
  • Inside, the vaulted ceiling is carried through the great room and onto the covered porch, while minimal walls allow you to move easily between the kitchen, dining, and living areas.
  • The double garage opens into a mudroom with a built-in bench, coat closet, and neighboring laundry room.
  • A quiet den shares the right side of the main level with the master bedroom, which includes a 5-fixture ensuite and natural lighting in the walk-in closet.
  • Downstairs, the sizable family room connects with a walk-out patio and is surrounded by three bedrooms. Unfinished storage space includes an overhead door making it perfect for lawn equipment and supplies.

Floor Plans

  • Main Level

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,136 sq. ft.
  • Lower Level: 1,289 sq. ft.
  • 1st Floor: 1,847 sq. ft.
  • Deck: 223 sq. ft.
  • Basement Unfinished: 495 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 80' 0"
  • Depth: 66' 0"
  • Max ridge height: 17' 1"

Garage

  • Type: Attached
  • Area: 702 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
