Modern 1-Car Detached Garage Plan with Vaulted Ceilings

Name: Plan 720164DA: Modern 1-Car Detached Garage Plan with Vaulted Ceilings
Brand: Architectural Designs
SKU: 720164DA
Price: 1395.0 USD
Availability: InStock

Heated S.F.

Beds

Baths

Stories

Cars

Floor Plan

Main Level

Plan Details

This compact 240 sq ft detached garage plan provides a single-car bay and showcases a clean, contemporary aesthetic with light-colored horizontal siding and a striking full-light wood-look garage door.
Accessed through a modern full-light side entry door or the front-facing overhead door, the interior reveals a single, expansive vaulted space, thoughtfully designed for versatile storage.

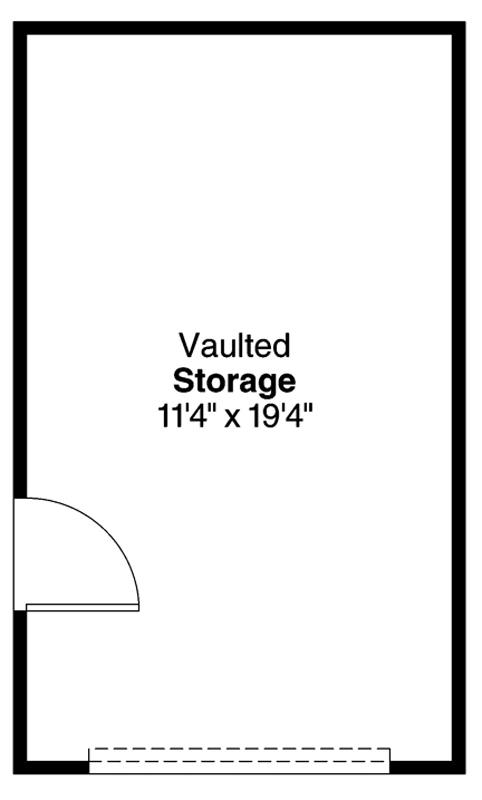

The generous 11'4" x 19'4" interior dimensions provide an adaptable space, perfect for sheltering a vehicle, establishing a dedicated workshop, or organizing outdoor gear and seasonal items.
The vaulted ceiling enhances the sense of space, providing extra vertical clearance ideal for shelving, hoist systems, or creating a well-lit and airy workshop environment.
The crisp exterior design, featuring a classic gable roof with practical eaves, integrates seamlessly into any backyard setting, offering a dedicated space for vehicle protection or secure storage.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

Foundation Type

Standard Foundations

Slab

Exterior Walls

2x4

Dimensions

Width

12' 0"

Depth

20' 0"

Max Ridge Height

12' 6"

Garage

Type

Detached

Area

240 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Traditional
