Plan 52528WM

Modern 3 Bedroom House Plan with Split Bedrooms and Inviting Porches

Heated S.F.
1,695
Beds
3
Baths
2
Stories
1
Tour

Floor Plan

Plan 52528WM

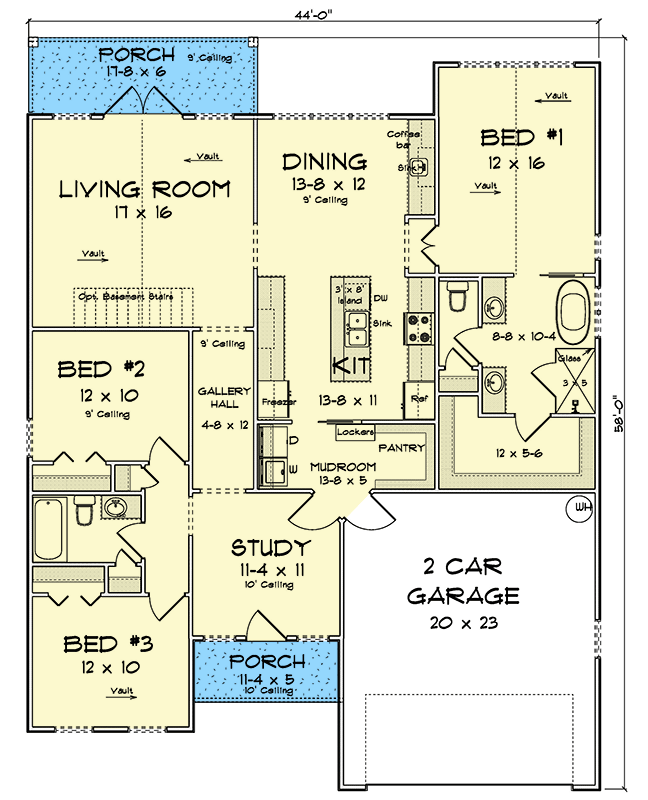

Main Level
Main Level

Plan 52528WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 52528WM: Modern 3 Bedroom House Plan with Split Bedrooms and Inviting Porches - Floor Plan - Main Level - Modern

Plan Details

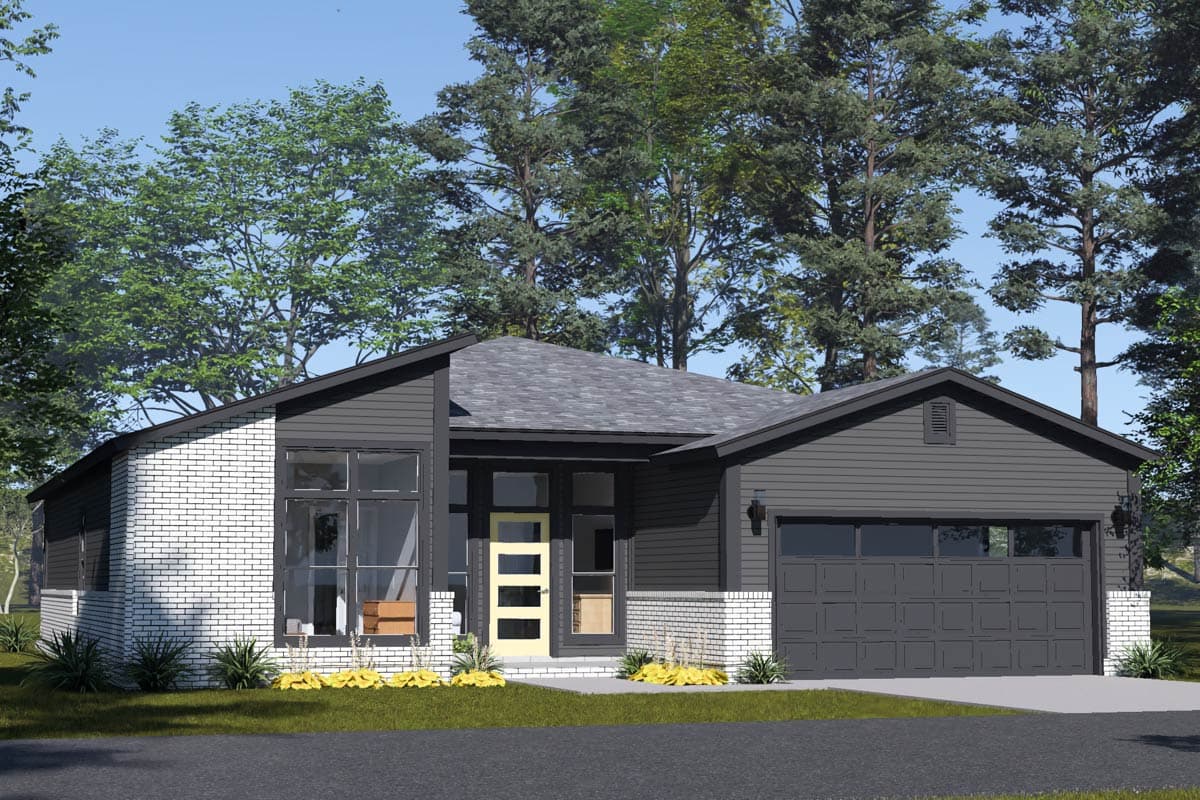

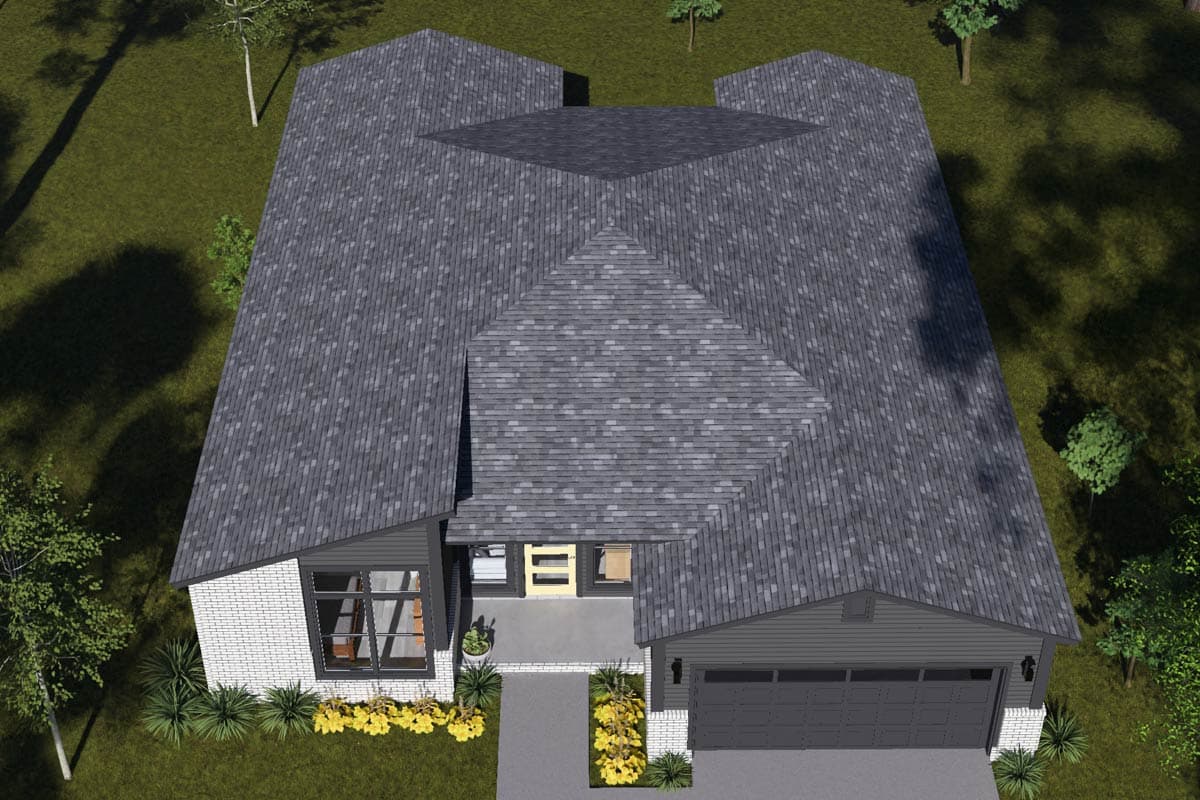

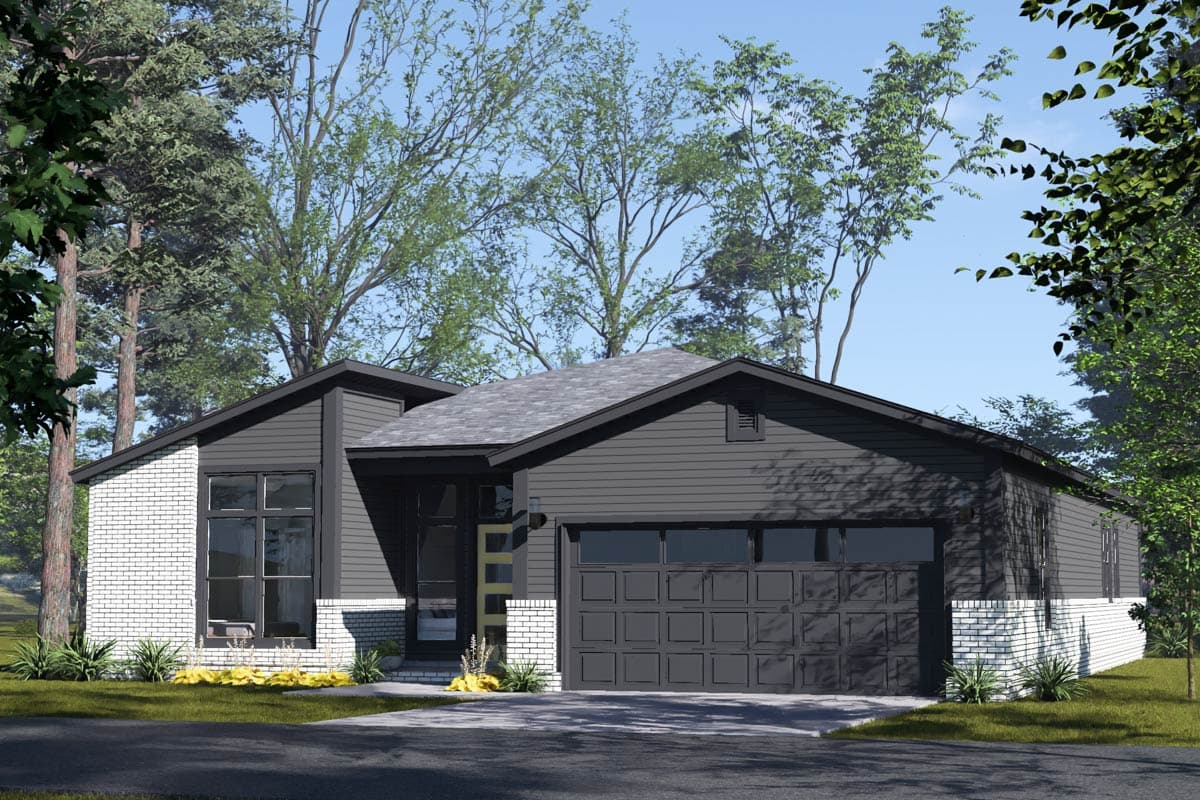

  • This modern house plan offers 1,695 finished sq ft, 3 bedrooms, 2 full baths, and a two-car garage, showcasing a sleek, contemporary exterior.
  • Enter through a bright foyer into a thoughtful layout featuring a main-level laundry room and a convenient mudroom, ideal for daily organization.

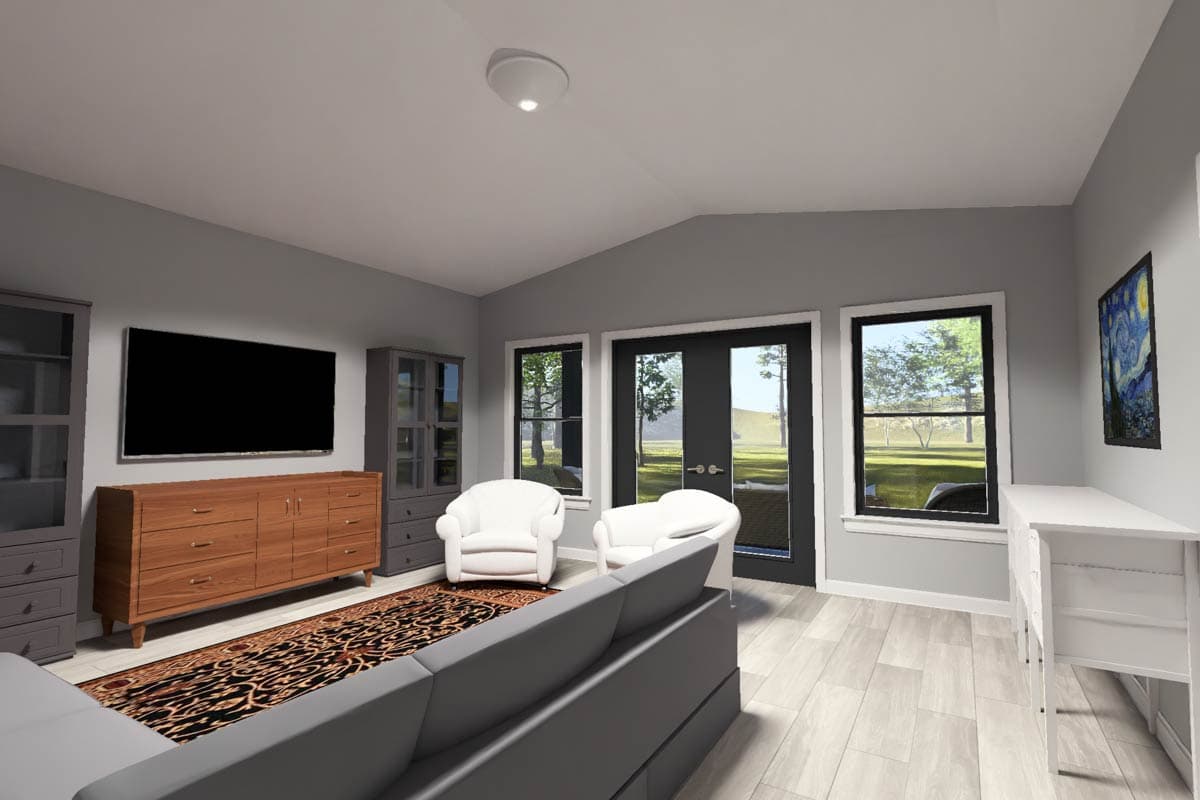

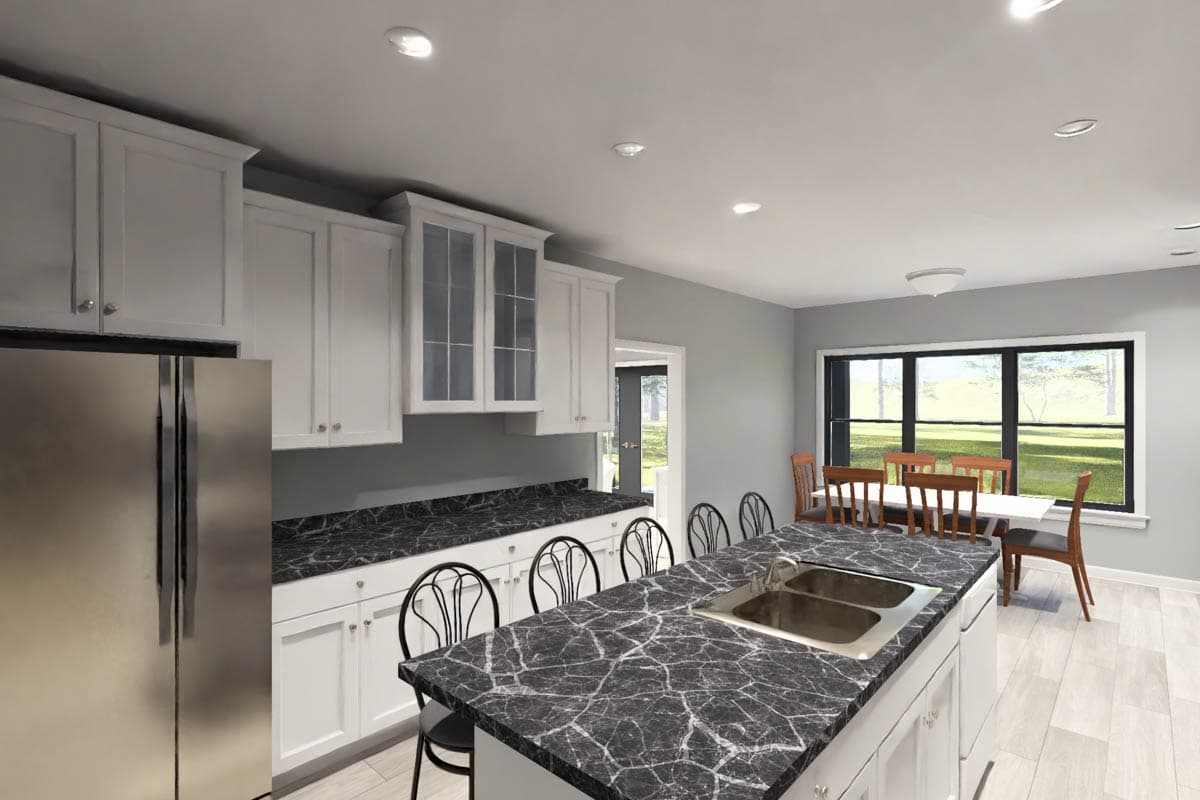

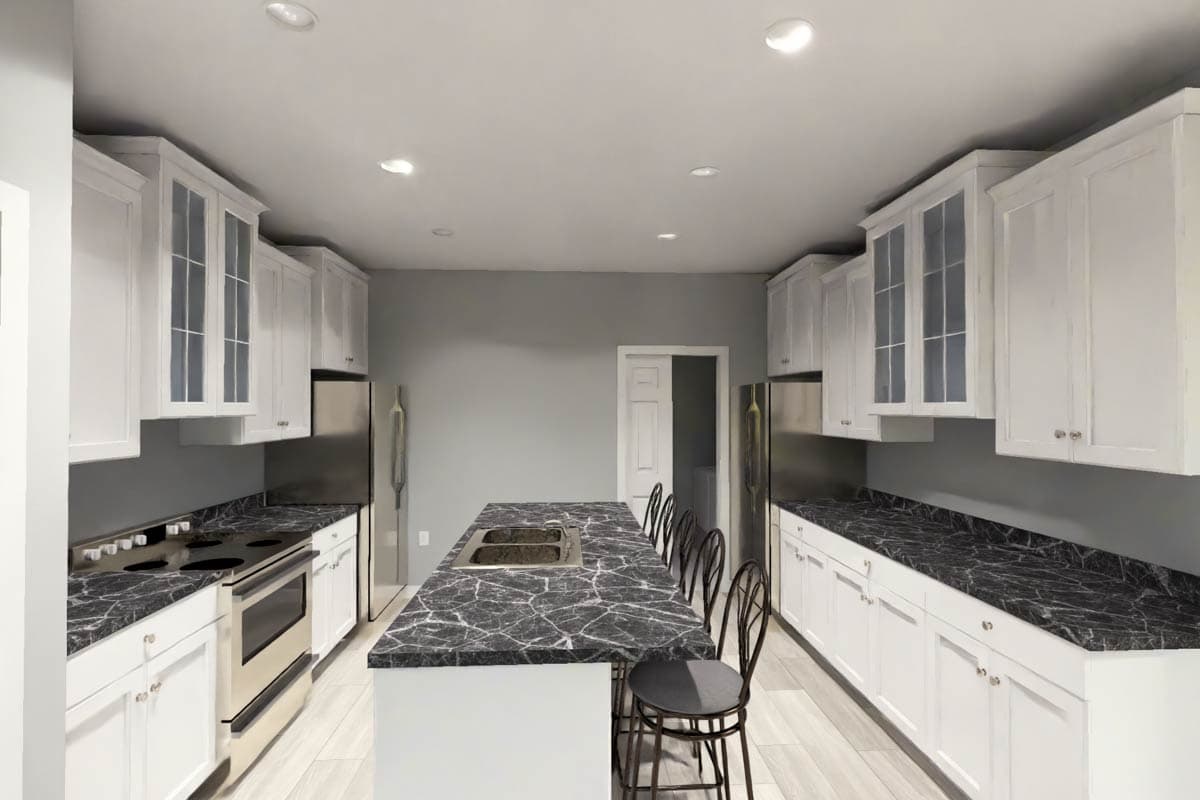

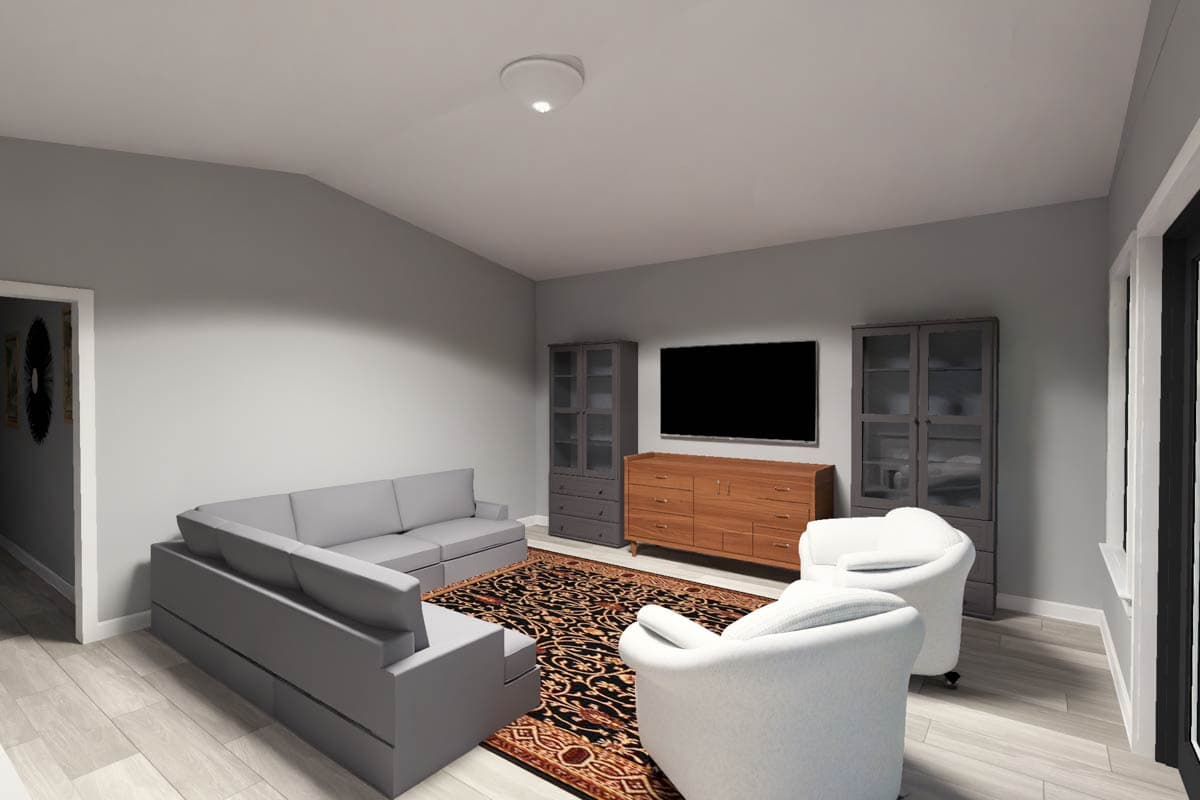

  • The main living area flows seamlessly, anchored by a well-appointed kitchen designed for everyday living, complemented by a butler walk-in pantry for ample storage and preparation.

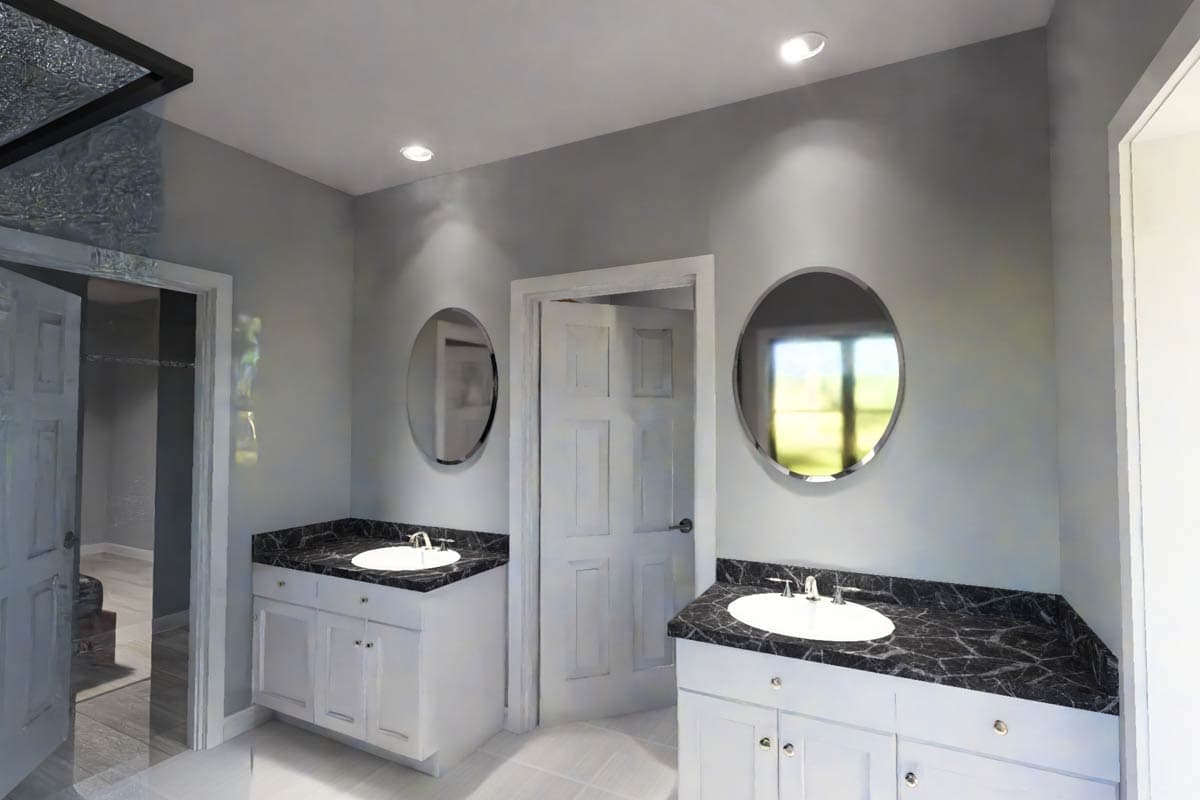

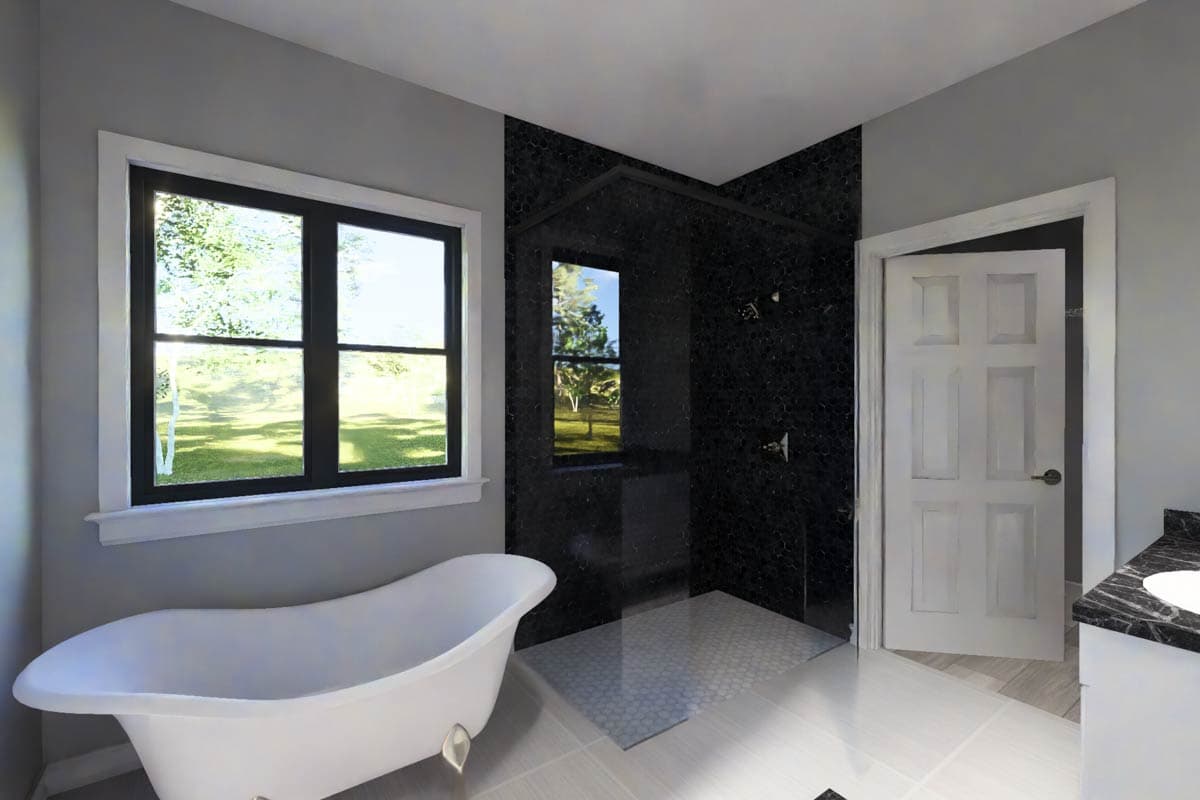

  • The private primary suite, located on the first floor, enjoys a split bedroom arrangement, offering tranquility apart from the two secondary bedrooms.

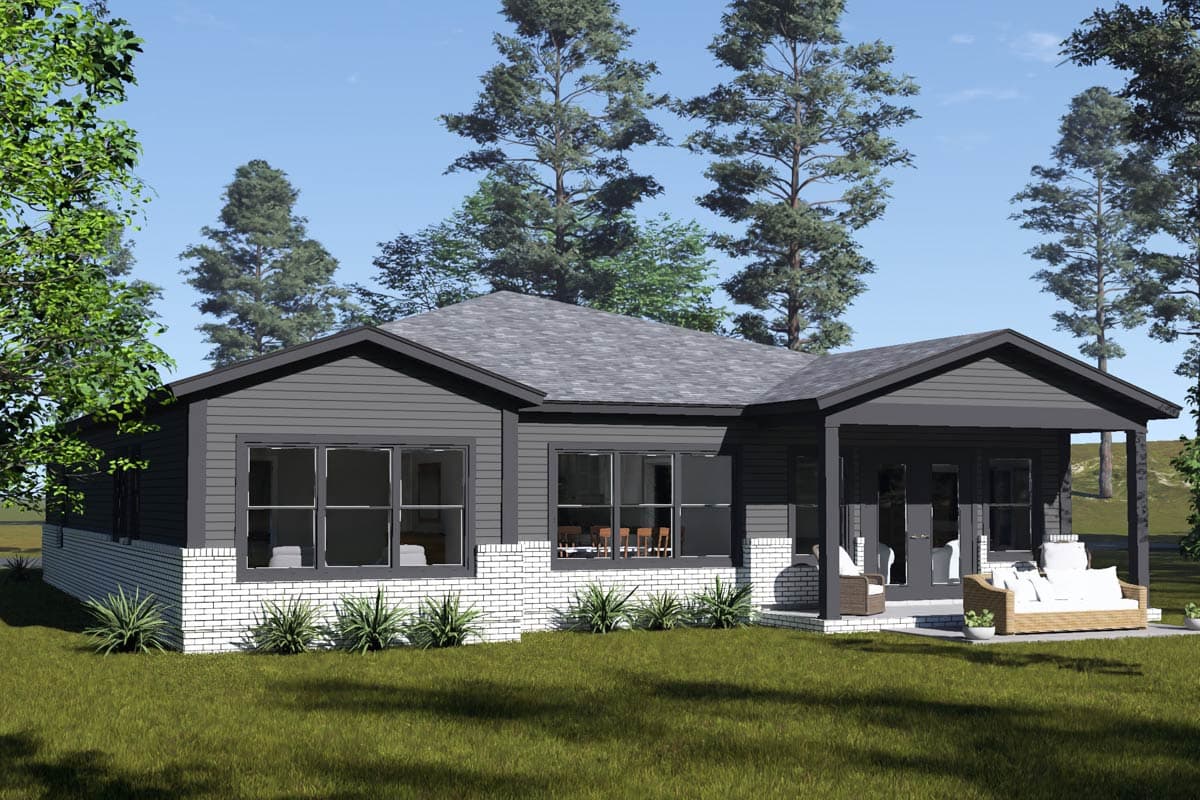

  • Enjoy outdoor living on both the welcoming front porch and the spacious rear porch, perfect for relaxation or casual gatherings.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,695 sq. ft.

1st Floor

1,695 sq. ft.

Porch, Front

57 sq. ft.

Porch, Rear

106 sq. ft.

Porch, Combined

163 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 0"

Depth

58' 0"

Max Ridge Height

16' 10"

Architectural Style

Modern

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Closed Floor Plans
