Plan 421045HFC: Modern Barndominium 3-Car Garage with Covered Storage and Ample Space - Floor Plan - - Barndominium

Plan Details

  • This modern barn-style garage features a 3-car capacity, and offers 50' width and 26' depth, with an impressive 15' ceiling height on the first floor.
  • Upon entering, you're greeted by a spacious, open-concept garage designed for ample vehicle storage and workspace.
  • The exterior features optional covered storage areas on both sides, offering flexible solutions for outdoor equipment or additional sheltered parking, complementing the sleek, modern barn aesthetic.
  • DELIVERY NOTE: Please allow 3 to 5 business days for delivery.

What's Included

  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.

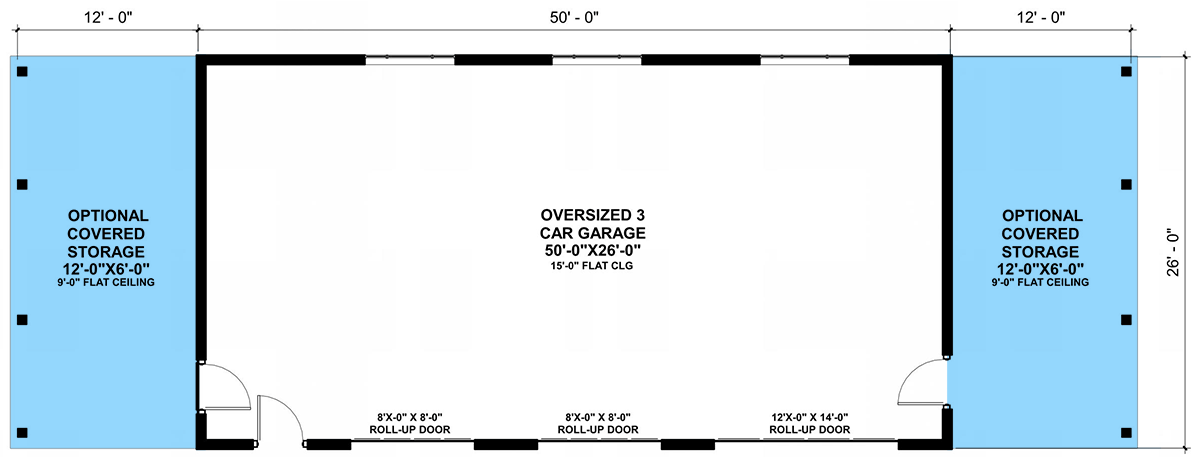

  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

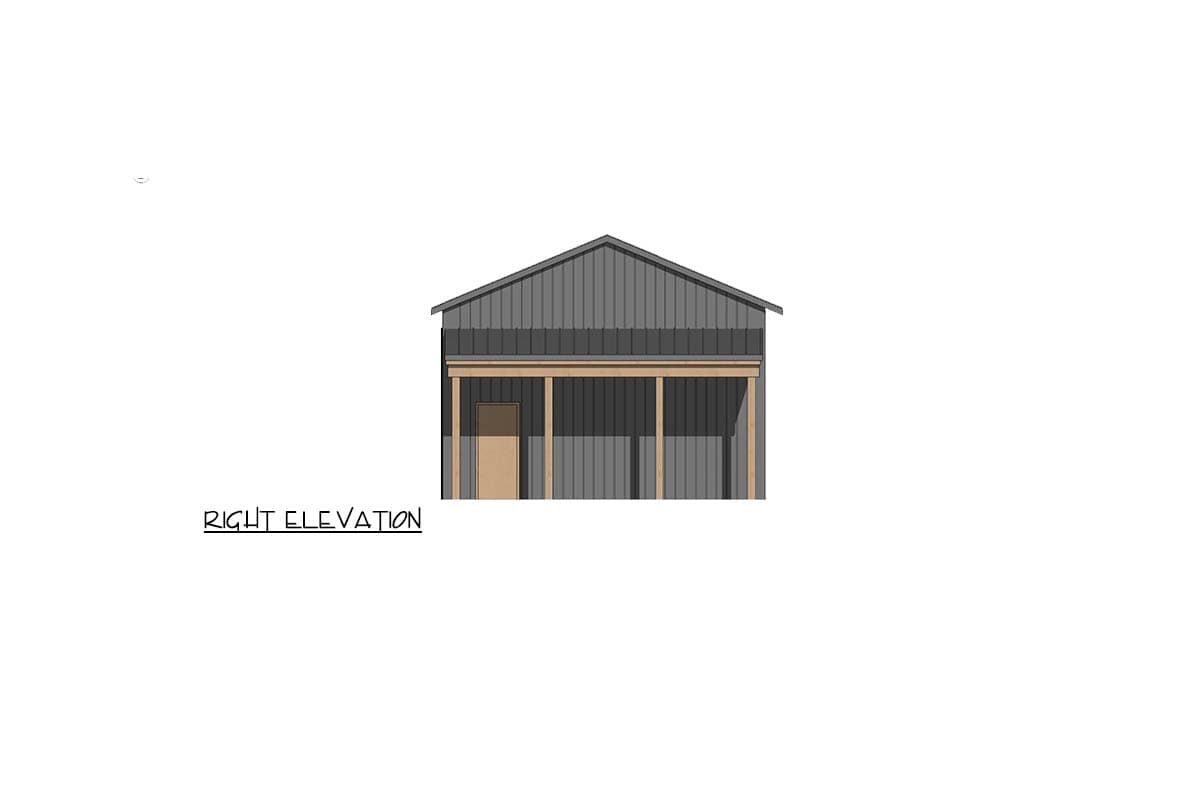

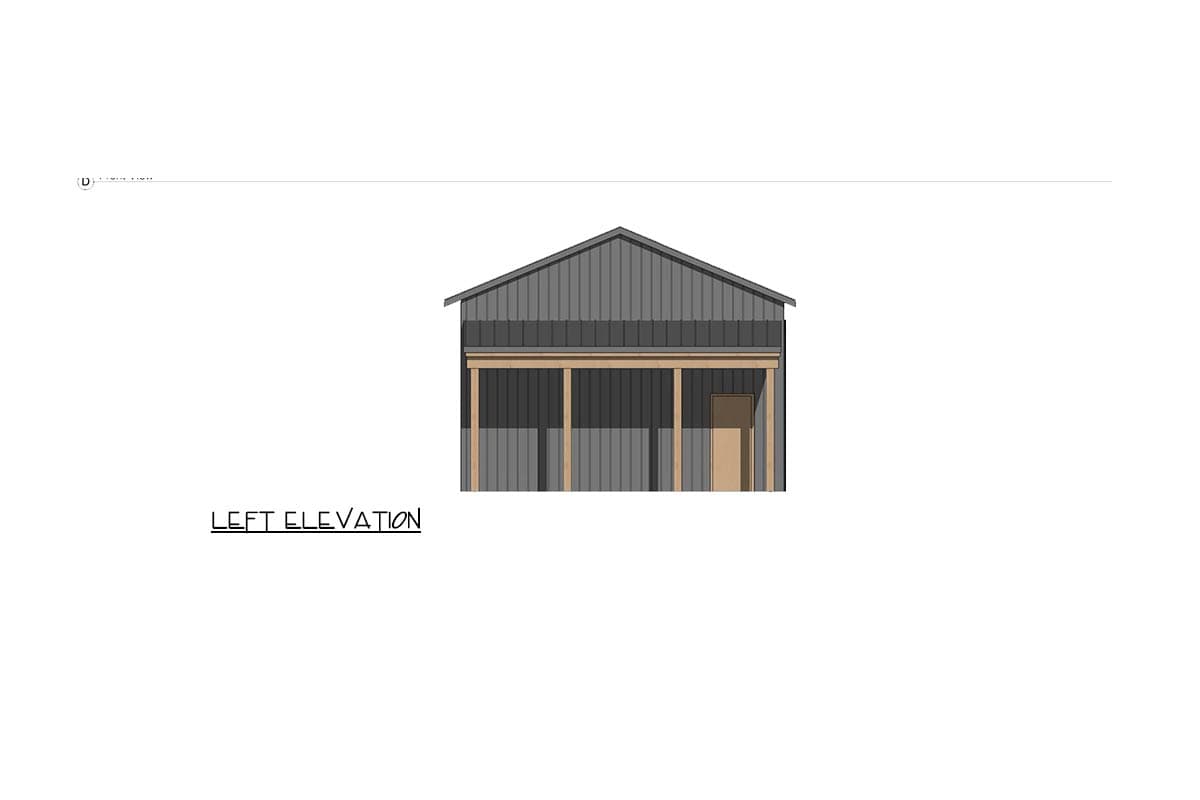

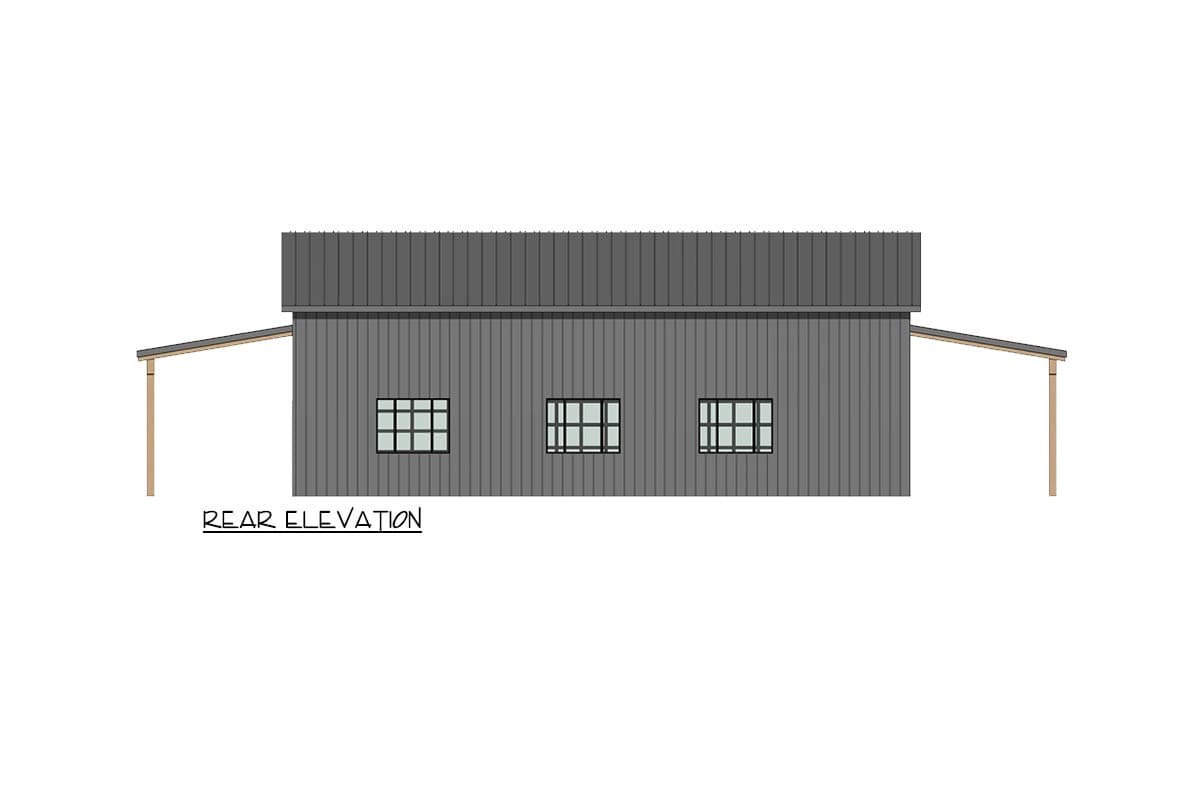

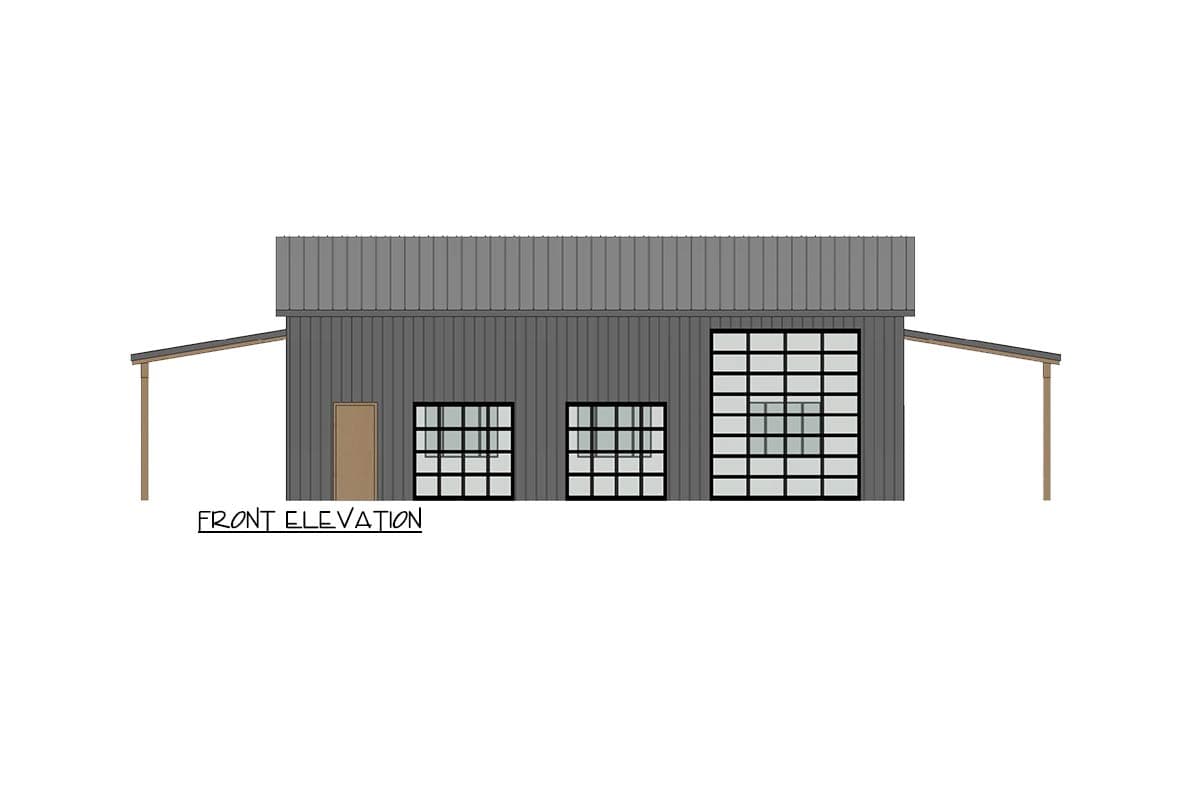

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

26' 0"

Max Ridge Height

21' 8"

Garage

Type

RV Garage

Area

1300 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

15'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

2 on 12

Framing Type

Stick And Truss

Architectural Style

Barndominium

Special Features

Workshop

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

26' 0"

Max Ridge Height

21' 8"

Garage

Type

RV Garage

Area

1300 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

15'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

2 on 12

Framing Type

Stick And Truss

Architectural Style

Barndominium

Special Features

Workshop

Plan Collections

Exclusive
