Plan 700509SND

Modern Barndominium House Plan with Five Bedrooms and Open Gathering Area

Heated S.F.
2,250
Beds
5
Baths
2
Stories
1

Floor Plan

Plan 700509SND

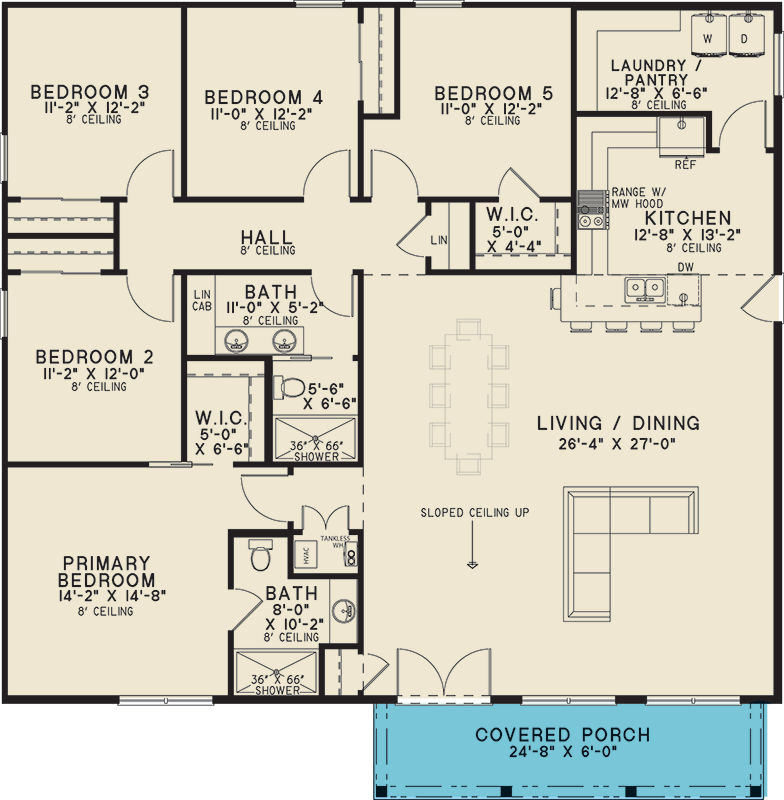

Main Level
Main Level

Plan 700509SND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 700509SND: Modern Barndominium House Plan with Five Bedrooms and Open Gathering Area - Floor Plan - Main Level - Barndominium, Modern

Plan Details

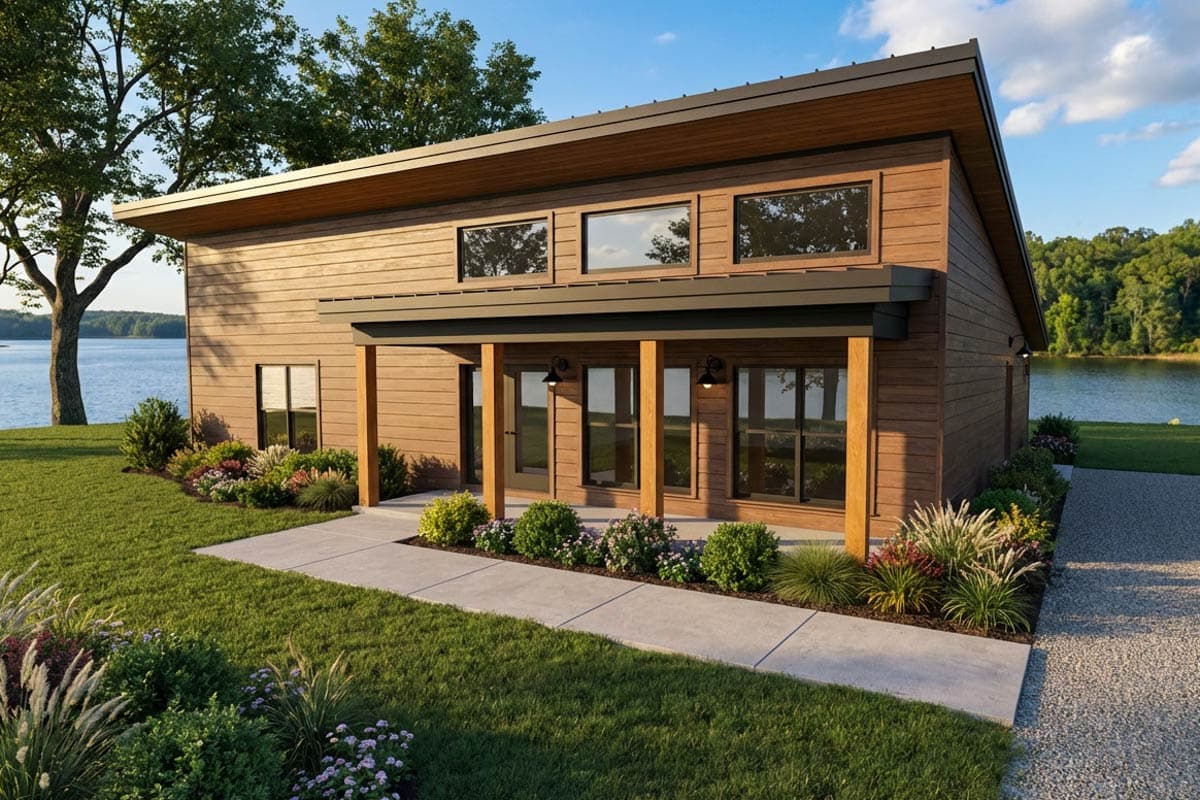

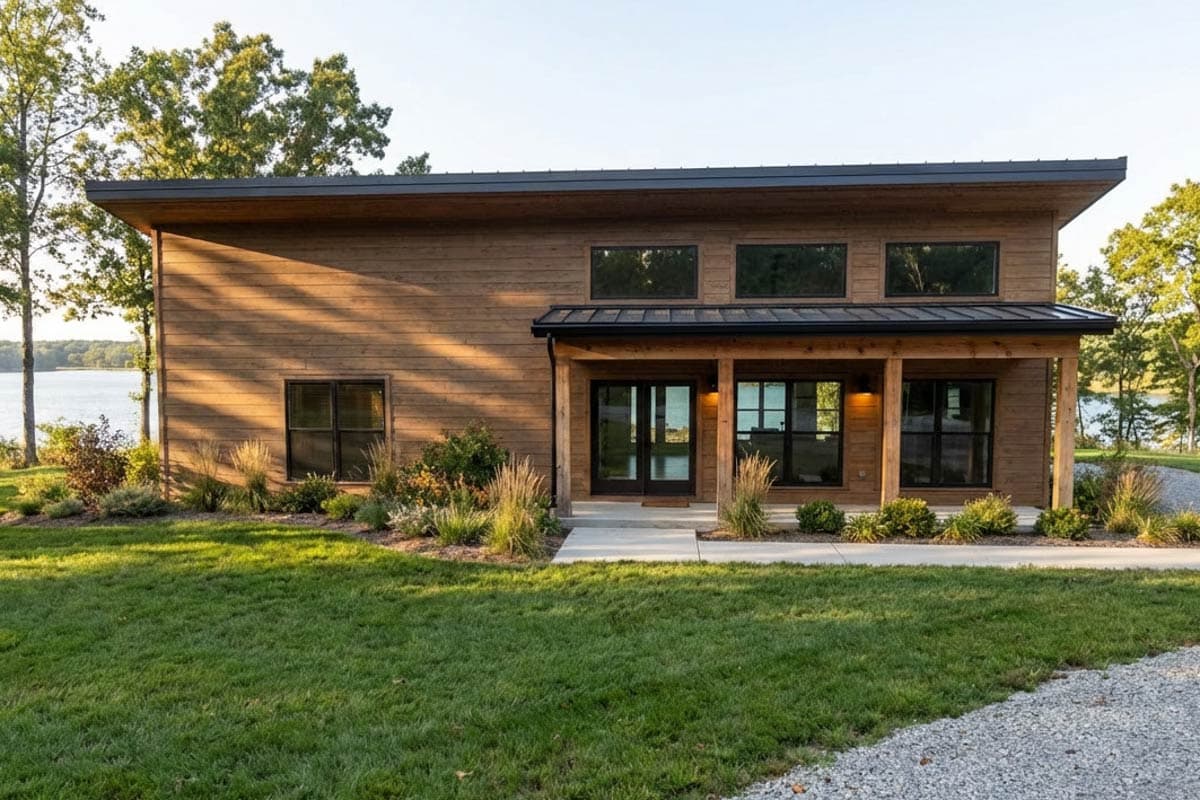

  • This 2,250 sq. ft. modern barndominium offers five bedrooms, two full baths, and flexible foundation options, all wrapped in a striking contemporary exterior.
  • A welcoming covered porch leads to double doors opening directly into a dramatic two-story living and dining space, with sloped ceilings and abundant natural light setting a bright, open tone.
  • The centrally located kitchen features a large island as the social heart of the home, with generous pantry and laundry space just steps away and sightlines to the gathering spot.
  • All bedrooms are thoughtfully clustered together, with the primary suite, complemented by a spacious walk-in closet and private bath.
  • The practical mudroom and laundry area right off the kitchen and rear entry keep the home organized and functional as a drop zone for daily essentials.
  • This plan’s seamless open flow, efficient storage, and bright spaces cater to both family life and hosting friends with ease.
  • Related Plan: Get a similar version in reverse orientation that has a 2-car garage with house plan 700508ND (2,250 sq. ft.).

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,250 sq. ft.

1st Floor

2,250 sq. ft.

Porch, Combined

148 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

51' 0"

Max Ridge Height

17' 3"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

1 on 12

Framing Type

Stick

Architectural Style

Barndominium

Modern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,250 sq. ft.

1st Floor

2,250 sq. ft.

Porch, Combined

148 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

51' 0"

Max Ridge Height

17' 3"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

1 on 12

Framing Type

Stick

Architectural Style

Barndominium

Modern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Walk-in Pantry
