Plan 280185JWD

Modern Barndominium-Style House Plan with RV Garage - 1273 Sq Ft House - 1673 Sq Ft Garage

Name: Plan 280185JWD: Modern Barndominium-Style House Plan with RV Garage - 1273 Sq Ft House - 1673 Sq Ft Garage
Brand: Architectural Designs
SKU: 280185JWD
Price: 903.13 USD
Availability: InStock

Heated S.F.

1,273

Beds

1 - 2

Baths

1.5

Stories

Cars

Floor Plan

Main Level

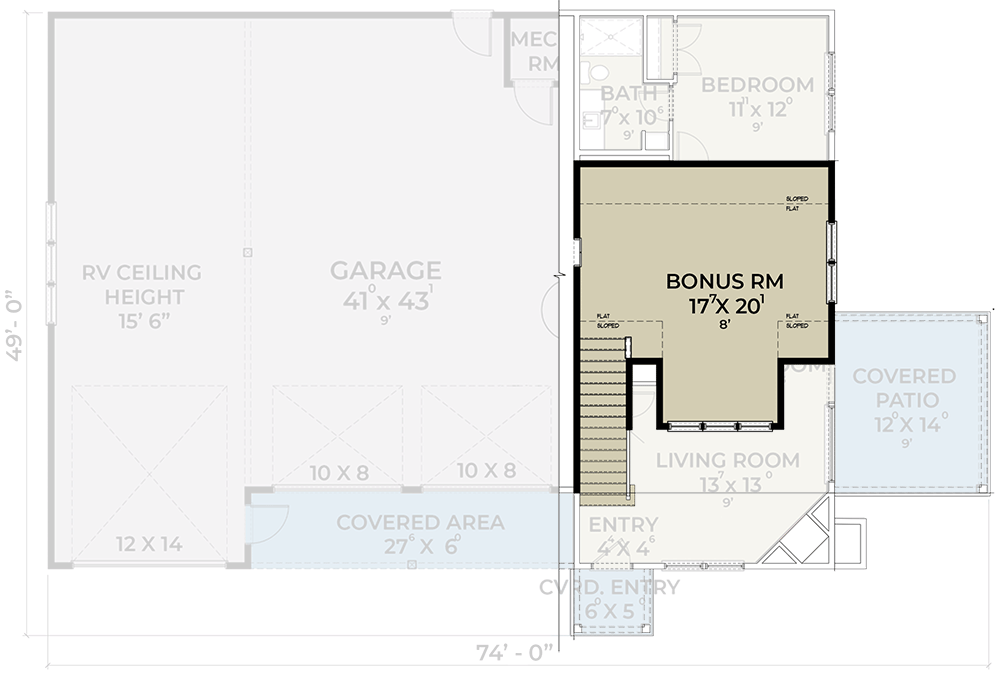

Bonus Level

Plan Details

This 1,273 square foot house plan delivers a modern take on the Barndominium concept of living with an oversized garage (1,673 sq ft) consuming the left side of the plan, complete with an RV garage bay.
To the right, you will find a living room with a corner fireplace that opens into the dining area and kitchen.
Sliding doors invite you to spend time on the covered patio and a powder bath sits next to the garage for ease of use.
The bedroom is tucked towards the rear of the main level and includes a full bathroom and walk-in closet.
Upstairs, a shed dormer allows natural light to fill a versatile bonus room.

What's Included

Exterior Elevations
Main Floor Plan
Second level floor plan - if applicable
Bonus Floor Plan - if applicable
Building Sections
Typical Wall Detail
Main Floor Framing Plan & Details
Bonus Room & Roof Framing Plan
Electrical Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,273 sq. ft.

1st Floor

902 sq. ft.

2nd Floor

371 sq. ft.

Covered Patio

168 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

Half bathrooms

Foundation Type

Standard Foundations

Slab

Exterior Walls

2x6

Dimensions

Width

74' 0"

Depth

49' 0"

Max Ridge Height

23' 5"

Garage

Type

RV Garage, Attached

Area

1673 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 1"

Second Floor

8' 1"

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room
