Modern Cottage House Plan Just Under 1200 Square Feet

Plan 51920HZ

  • 1,196

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • This modern cottage house plan offers two bedrooms with walk-in closets, two full baths, and a full size laundry room.
  • The living and kitchen are all open for easy entertaining and plenty of windows for natural light with 10' ceilings throughout.
  • The main suite boasts a dual vanity and oversized custom shower.
  • Related Plans: Get alternate modern cottages with house plans 51891HZ and 51863HZ

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan and electrical plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

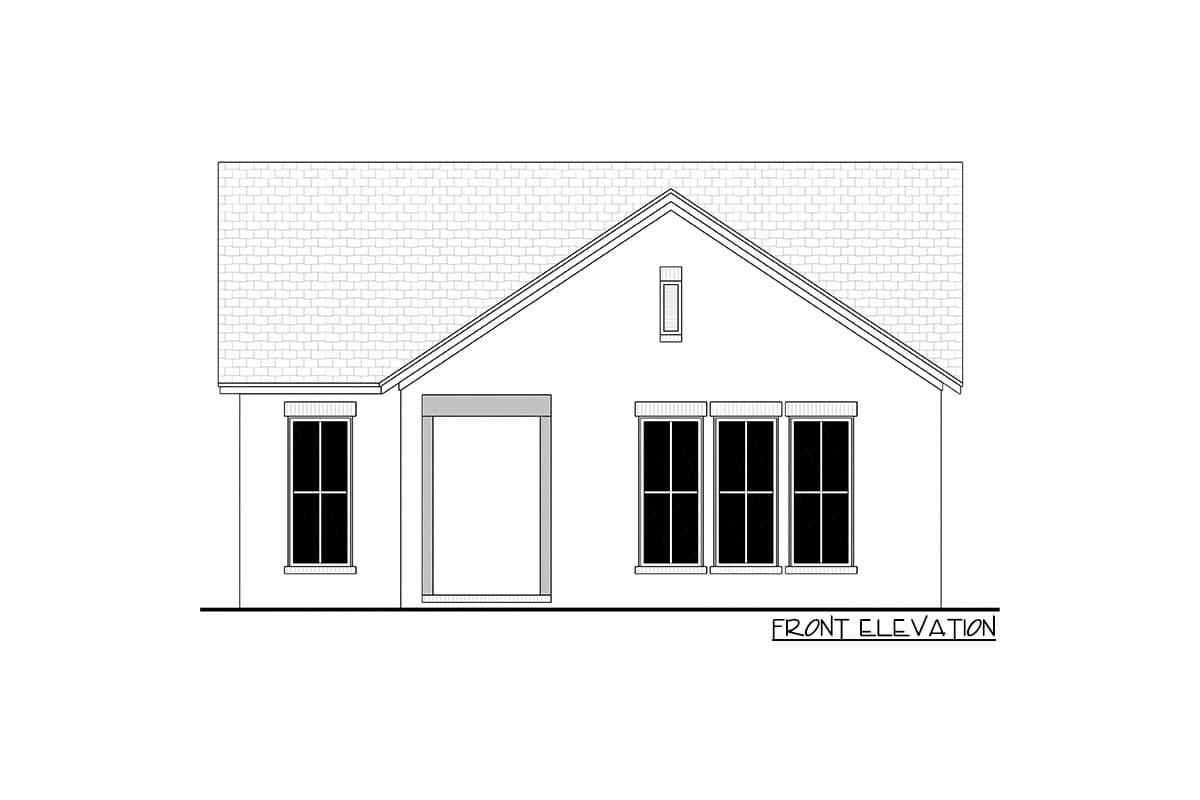

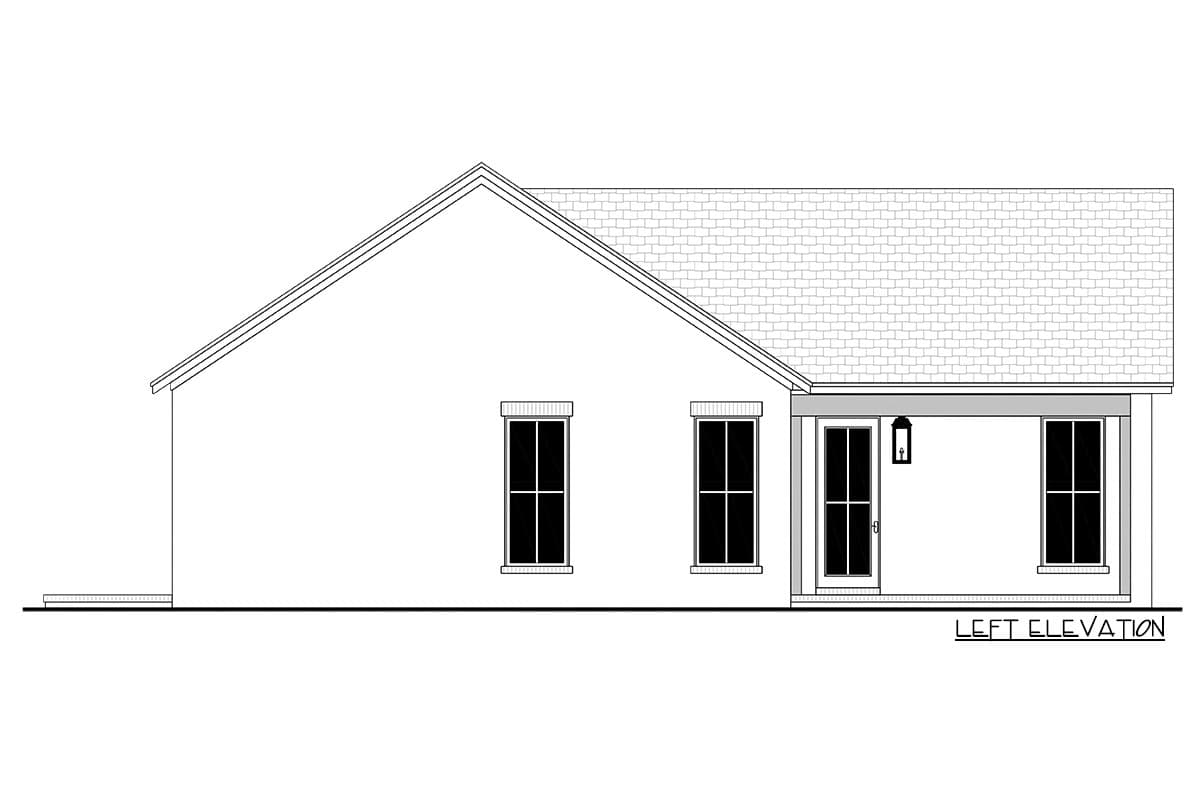

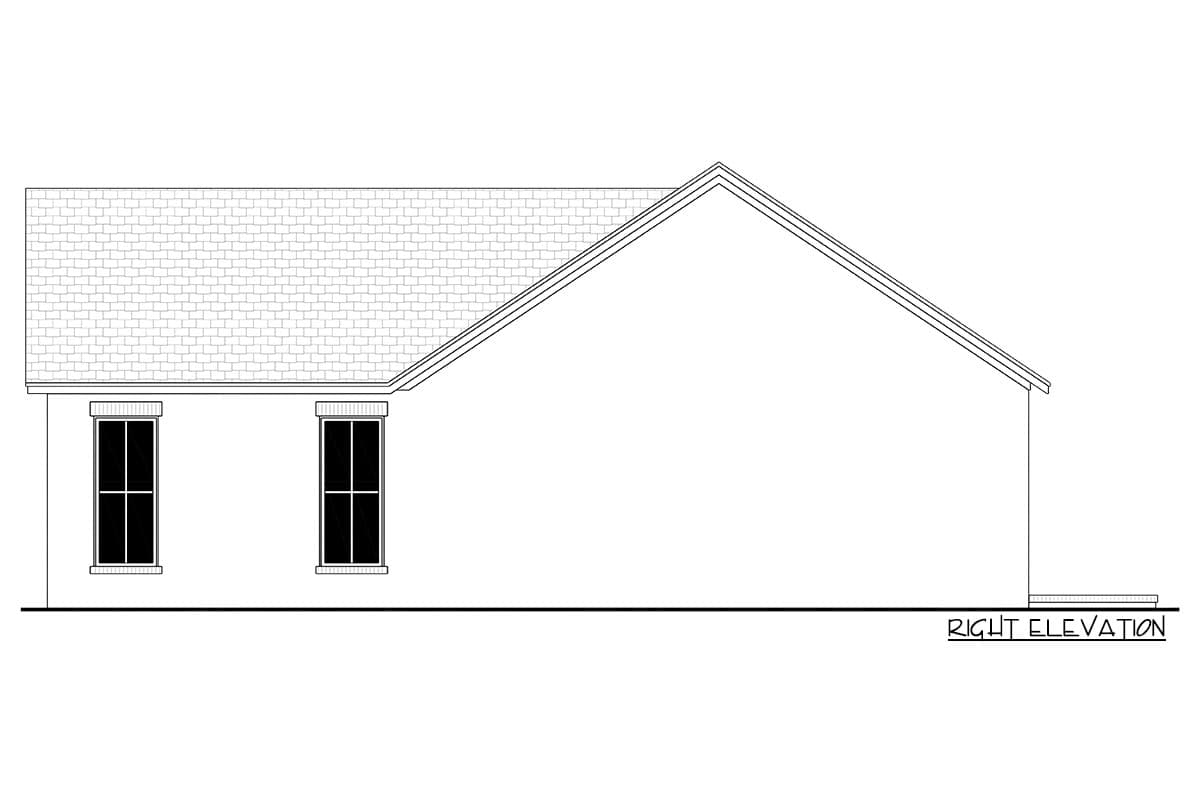

Page 4  Exterior views with additional notes and details
Page 5  Cross Sections & kitchen cabinet views
Page 6  Roof plan and span charts with additional details
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information

The following details are NOT included in the plans:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.

Sample Plan

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

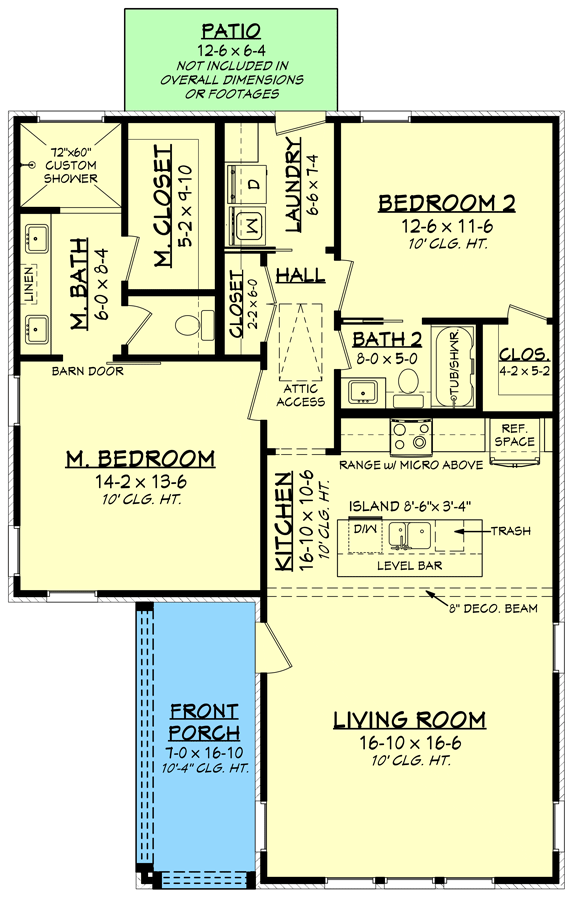

Modern Cottage House Plan Just Under 1200 Square Feet - 51920HZ floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,196 sq. ft.
  • 1st Floor: 1,196 sq. ft.
  • Porch, Front: 118 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 32' 0"
  • Depth: 45' 0"
  • Max ridge height: 20' 0"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features

Modern Cottage House Plan Just Under 1200 Square Feet

  • 1,196

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,195
  • 5 Sets +PDF Single-Build $1,445
  • PDF - Unlimited Build $1,895
  • CAD + PDF - Unlimited Build $2,195
  • View all purchase option online

About This Plan

  • This modern cottage house plan offers two bedrooms with walk-in closets, two full baths, and a full size laundry room.
  • The living and kitchen are all open for easy entertaining and plenty of windows for natural light with 10' ceilings throughout.
  • The main suite boasts a dual vanity and oversized custom shower.
  • Related Plans: Get alternate modern cottages with house plans 51891HZ and 51863HZ
