Plan 264071KMD
Modern Country Cabin with Split Bedroom Layout - 1800 Sq Ft
Heated S.F.
1,800
Beds
3
Baths
2
Stories
1
What's Included
Plan Details
  • This modern country cabin gives you 3 bedrooms in a split layout and 1800 square feet of heated living space.
  • A front porch (5'6" deep) and rear covered patio (7'6"-deep) span the full width of the home giving you a combined 700 square feet of outdoor space to enjoy.
  • The center of the home is open concept with the island kitchen in back and the great room in front. A double sink is entered on a window in the center of the home giving you views out back.
  • Laundry is in the mud room which has access to the covered patio.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Foundation Plan: Includes the complete foundation with dimensions, plumbing locations for slabs and reference details for foundation construction.  Also includes any specific construction notes or requirements to ensure proper installation. Does not include Structural Engineering stamp due to regional specification and requirements per local conditions. Typically, structural requirements can be obtained by local lumber supplier for little or no cost.

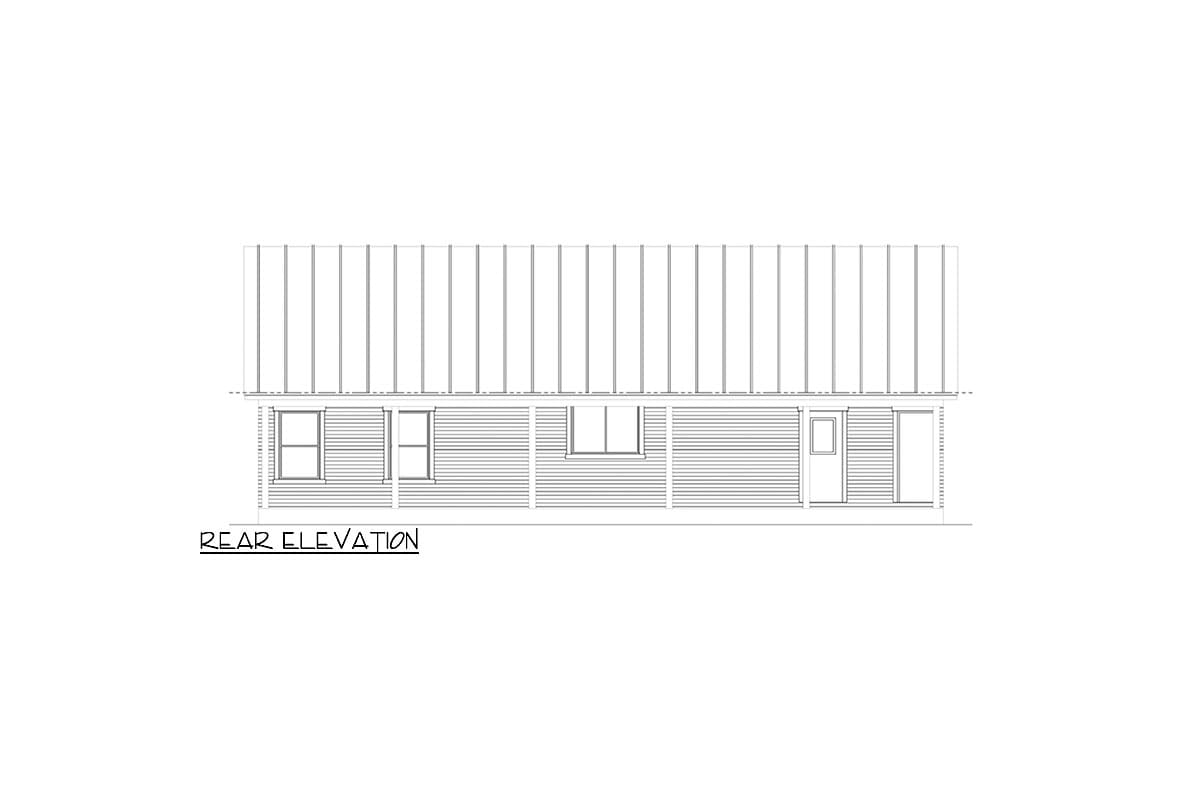

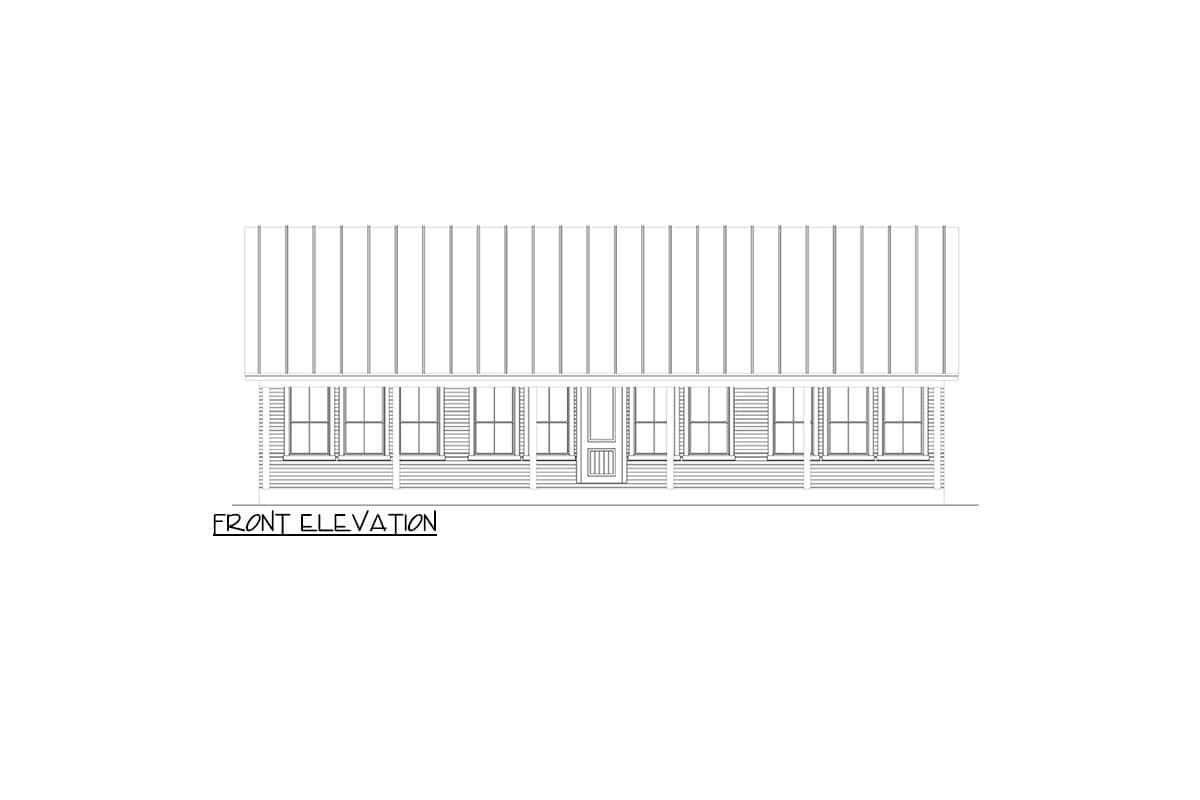

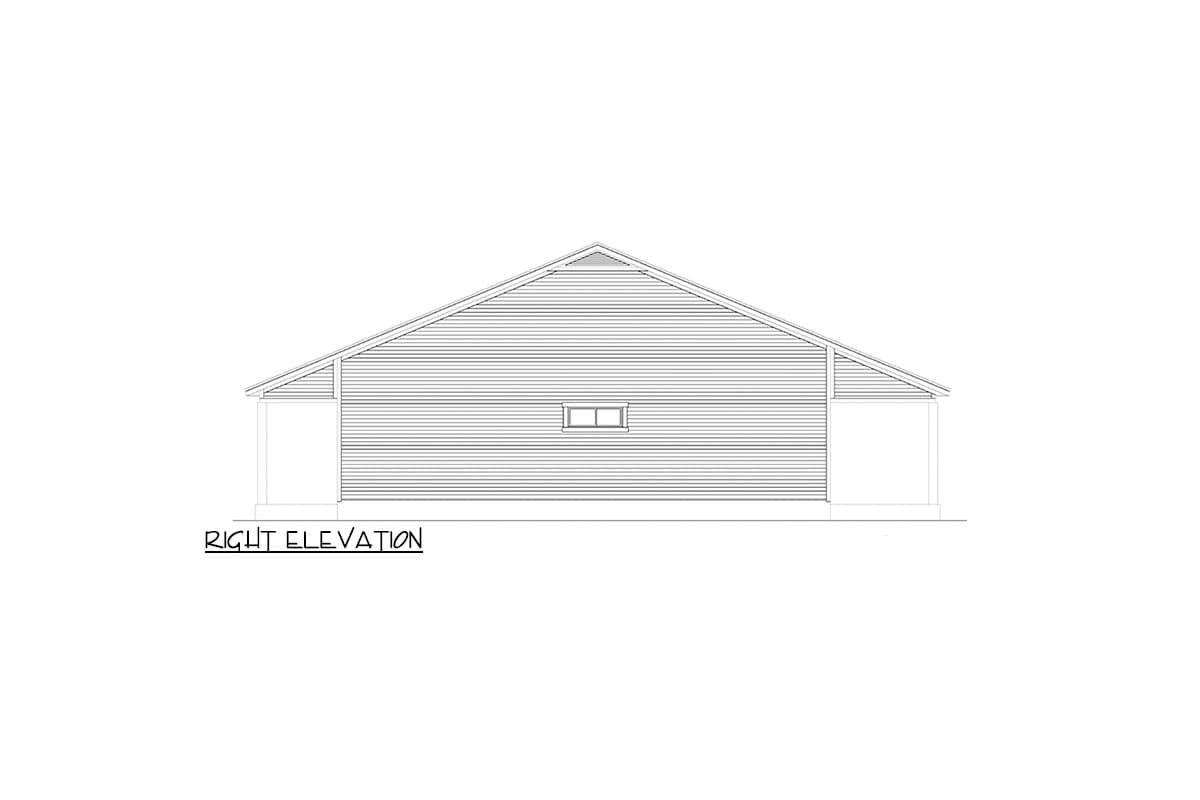

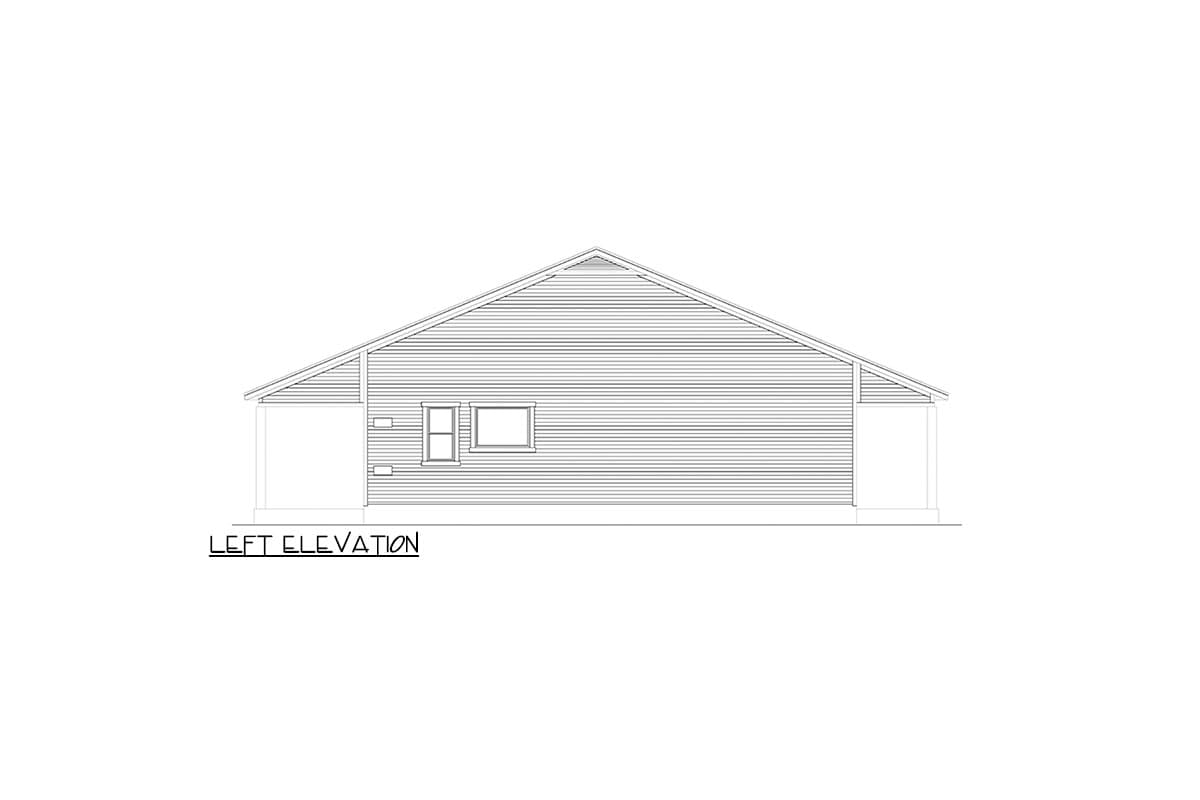

  • Elevations: Exterior views from all four directions that includes dimensions, height dimensions including finished floor to highest point of the structure.  Also includes all special construction notes, finishes and applicable elements that need extra detail to convey the design intent to construct in the field correctly.
  • Floor Plan(s): Complete with dimensions of wall locations, windows, doors, cabinetry, and special construction elements. Notes including standard and special conditions tailored for the tradesmen in mind. We strive to give your contractor more dimensions than they need.
  • Roof Plan: Complete with overhang dimensions, plate heights which remove the guesswork of how the roof is properly constructed.  Also includes roof pitches, notes for special conditions, roof square footage which is a big help estimating roof materials and reducing job site waste.
  • Details: All relevant details including Cornice (eave) which are designed directly from each plan "we do not reuse details with each plan." we also include applicable enlarged details which need even more magnification in order to properly explain the design intent.
  • Interior Elevations: Inside views of the structure, including cabinetry, electrical and any applicable special construction that needs that extra level of detail.
  • Sections: Also known as a cut through the entire structure.  This explains in further detail how the structure is built and properly braced to ensure a safe home. Our practice also includes complete dimensions, notes, and any required special attention needed.
  • Electrical Plan: Complete with layout and location of lights, switches and plugs.  When we include wall plugs, we go beyond the code standards, which gives you more walls to choose to plug up your appliance.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Country Cabin with Split Bedroom Layout - 1800 Sq Ft

  • 1,800

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Floor Plan

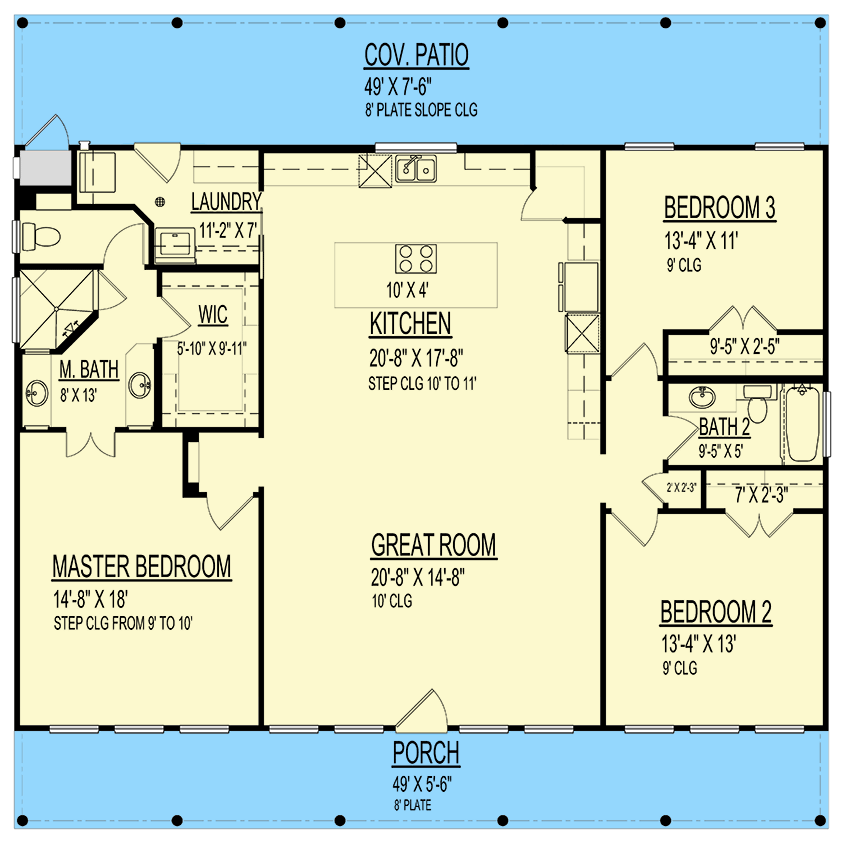

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,800 sq. ft.
  • 1st Floor: 1,800 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 50' 0"
  • Max ridge height: 18' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Modern Country Cabin with Split Bedroom Layout - 1800 Sq Ft

  • 1,800

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Modern Country Cabin with Split Bedroom Layout - 1800 Sq Ft

  • 1,800

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Plan Details

Square Footage Breakdown

  • Total: 1,800 sq. ft.
  • 1st Floor: 1,800 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 50' 0"
  • Max ridge height: 18' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Stick
