Plan 910124WHD

Exclusive

Modern Craftsman House Plan with Split Bedrooms and 3-Car Garage

Heated S.F.
2,435
Beds
3 - 5
Baths
2.5 - 3.5
Stories
1
Cars
3

Floor Plan

Plan 910124WHD

Main Level
Main Level
Unfinished Basement
Unfinished Basement

Plan 910124WHD

M-F 9am-5pm EST |

1-203-761-8500

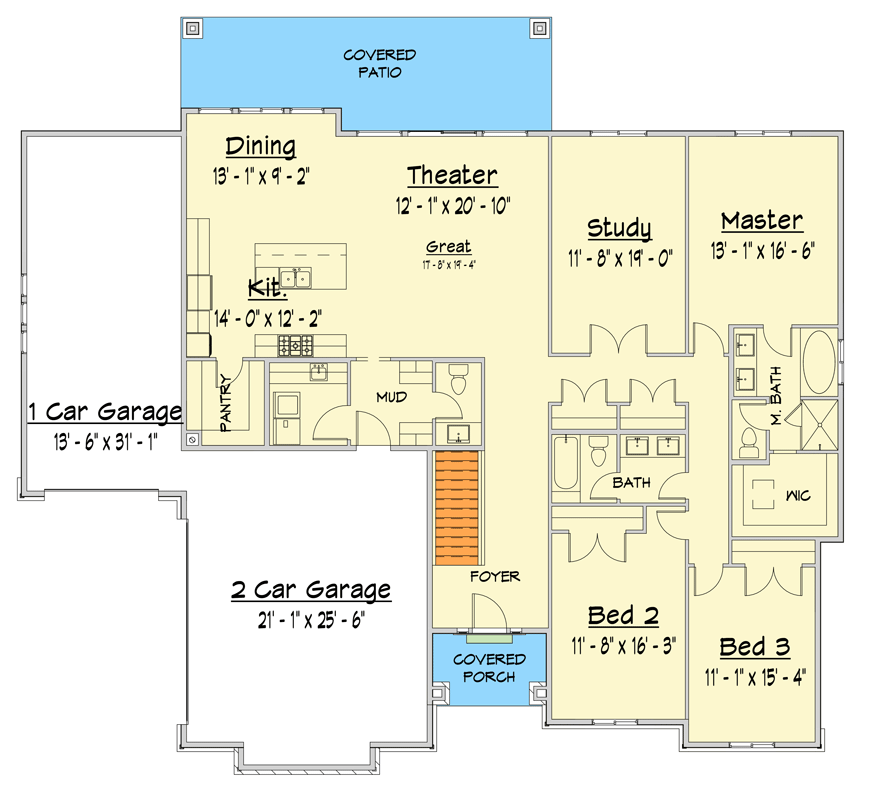

Main Level

Plan 910124WHD: Modern Craftsman House Plan with Split Bedrooms and 3-Car Garage - Floor Plan - Main Level - Craftsman

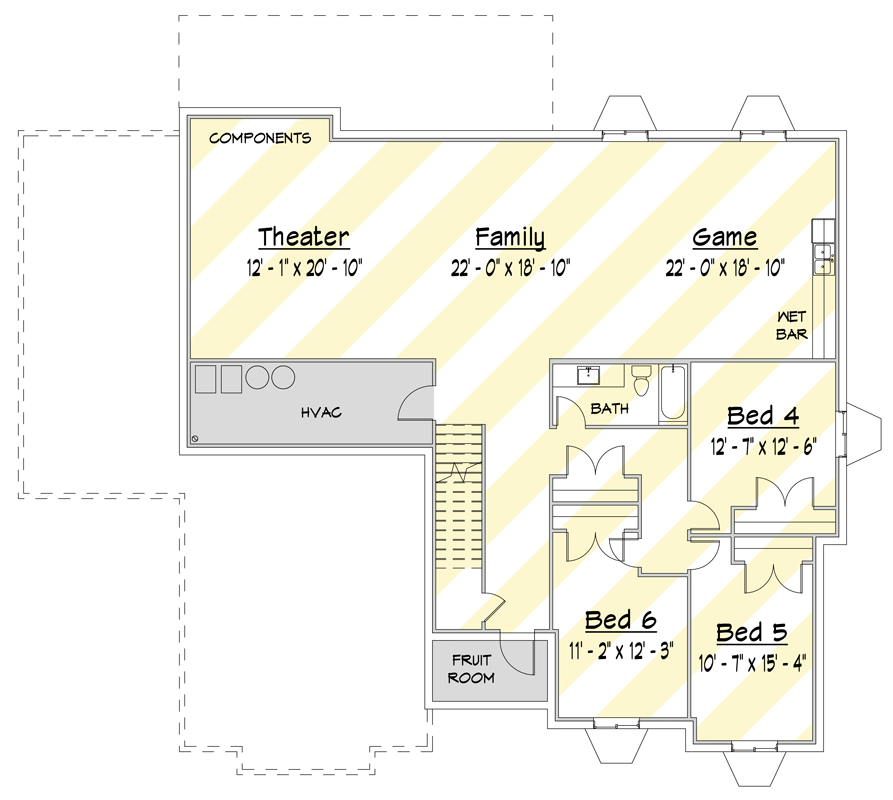

Unfinished Basement

Plan 910124WHD: Modern Craftsman House Plan with Split Bedrooms and 3-Car Garage - Floor Plan - Unfinished Basement - Craftsman

Plan Details

  • This single-story Craftsman house plan features 2,435 square feet of heated living space, offering 3 to 5 bedrooms, up to 3.5 bathrooms, and a substantial 1,037 square foot 3-car garage.

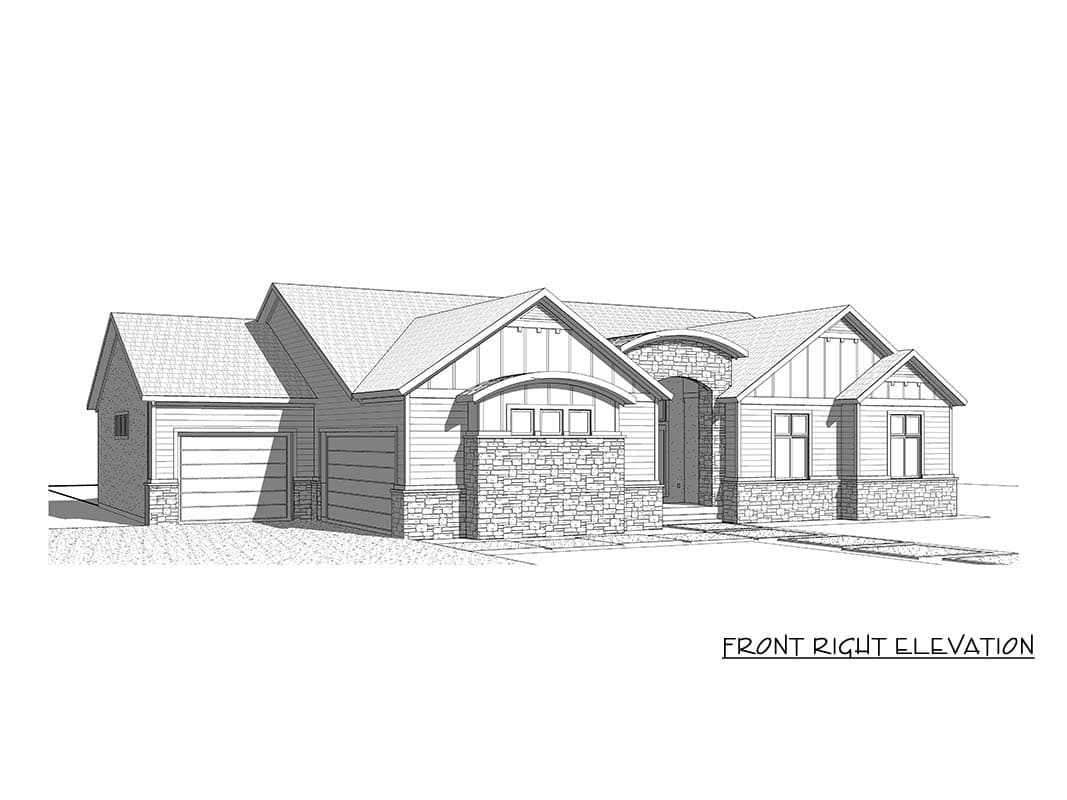

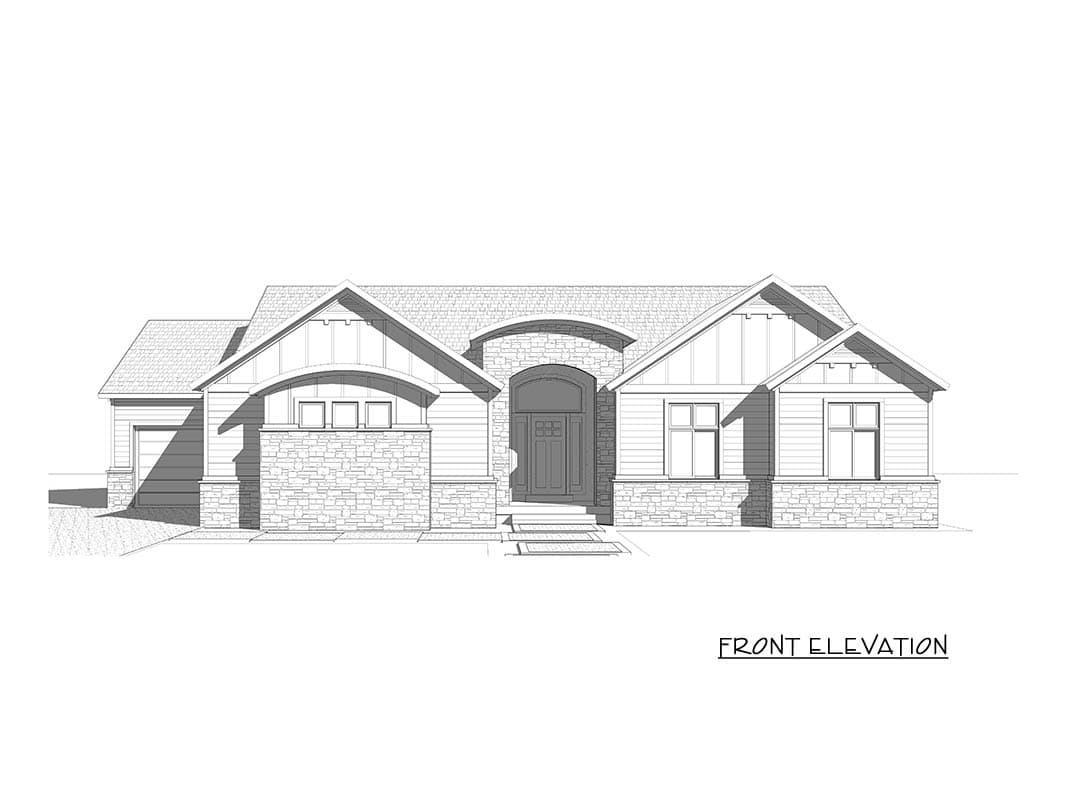

  • A striking stone-arched entry leads into a foyer that opens to a private library or study, providing a secluded space for remote work or quiet reflection. The layout immediately establishes a sense of volume and light, directing movement toward the central social core of the home.
  • The main living area is designed for fluid movement between the kitchen, dining area, and great room. The chef-ready kitchen is supported by a butler’s walk-in pantry and a bright breakfast nook, perfect for enjoying a slow morning coffee while overlooking the backyard.
  • The primary suite is a dedicated sanctuary on the main level, positioned away from the secondary bedrooms for ultimate privacy. This split-bedroom arrangement ensures that the master retreat remains a quiet haven, complete with a spa-like ensuite and ample closet space.
  • Designed for modern leisure, the plan includes specialized zones such as a dedicated home theater for immersive movie nights and a game room featuring a wet bar, creating a sophisticated environment for hosting guests or relaxing with family.

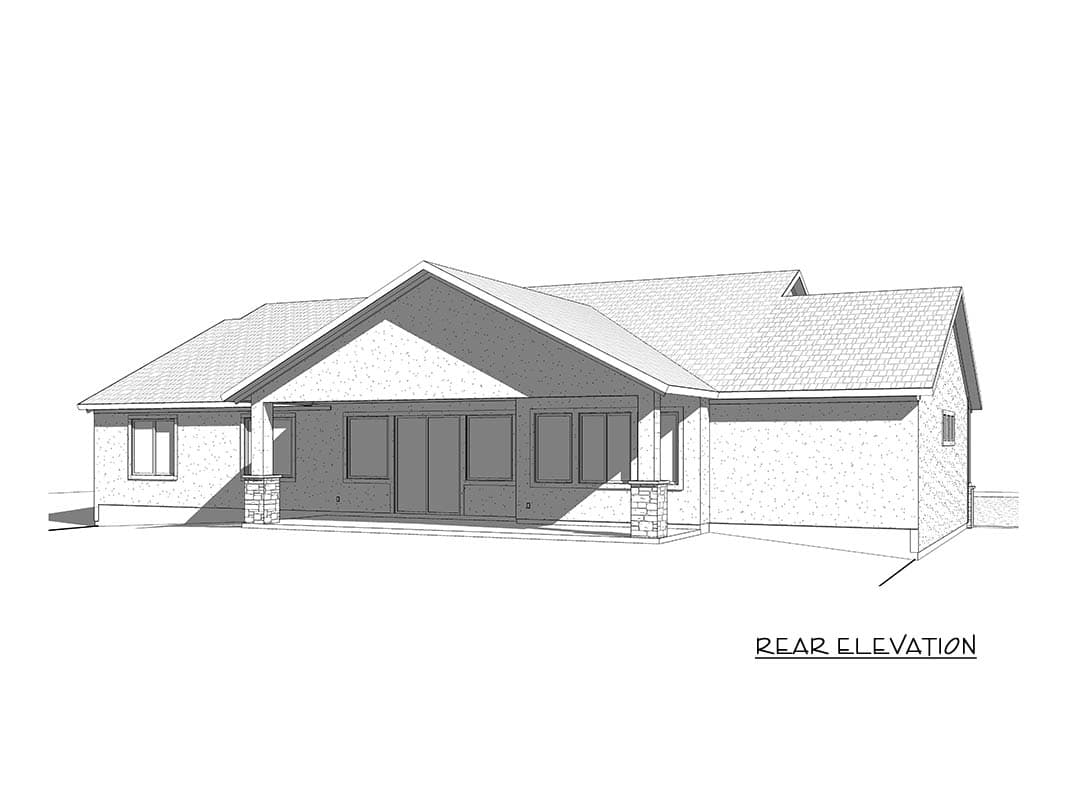

  • The exterior is defined by its deep porches and arched architectural details, providing covered outdoor spaces that invite the transition from indoor living to the fresh air of the surrounding landscape.
  • An expansive 2,435 square foot unfinished basement offers vast potential for customization, allowing homeowners to eventually finish the space with additional bedrooms, a fitness studio, or secondary living quarters as their needs evolve.

What's Included

  • General notes
  • Detailed floor plans
  • Elevations
  • Roof plan
  • Cross section
  • Electrical plan
  • Window and door schedules
  • Architectural details
  • Structural notes
  • Foundation plan
  • Floor framing
  • Roof framing

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,435 sq. ft.

1st Floor

2,435 sq. ft.

Basement Unfinished

2,435 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 0"

Depth

66' 0"

Max Ridge Height

22' 6"

Garage

Type

Standard, Attached

Area

1037 sq. ft.

Count

3 Cars

Entry Location

Side, Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Special Features

Bedrooms - Split

Breakfast Nook

Game/Rec Room

Home Theater

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar
