Modern Craftsman House Plan with Vaulted Covered Patio and Work-From-Home Space
Heated S.F.
2,327
Beds
3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • A delightful combination of materials - clapboard, board and batten and stone - blend together to give this 3-bed modern Craftsman house plan great curb appeal. Double, slender posts frame the large covered porch.
  • Inside, the foyer is roomy enough for a bench and coat hook. To the right is the den which could serve as a home office if desired. To the left, a hallway runs across the floor plan leading pass the large utility room with loads of storage plus access to the attached side entry garage.
  • Through a cased opening straight ahead from the foyer, the floor plan opens up to the great room. The richly windowed rear wall fills the space with natural light and a fireplace serves as a focal point.
  • The well-appointed kitchen features an island with eating bar and a walk-in pantry.
  • The vaulted owners suite has direct access to the back covered patio. The bathroom gives you a soaking tub, walk-in shower, and large walk-in closet. Across the home, two bedrooms share a compartmentalized bathroom.
  • Related Plan: Get an alternate version with house plan 72399DA.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

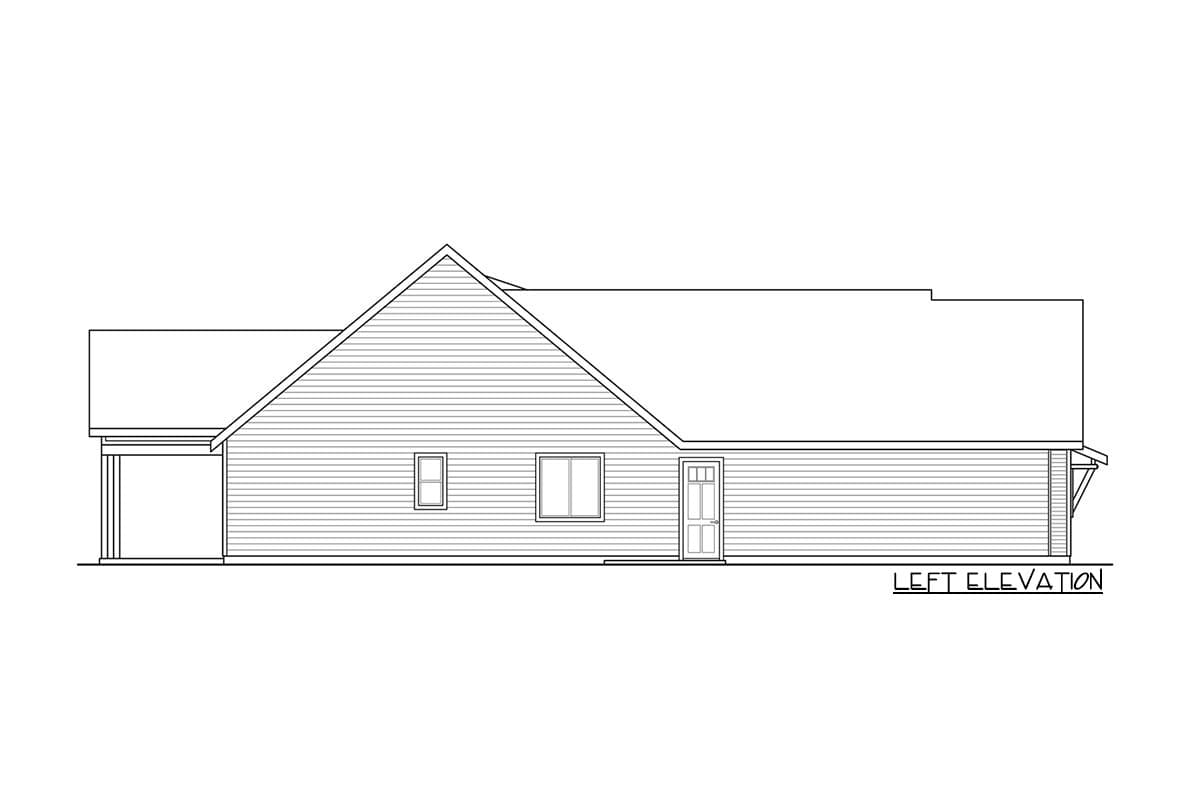

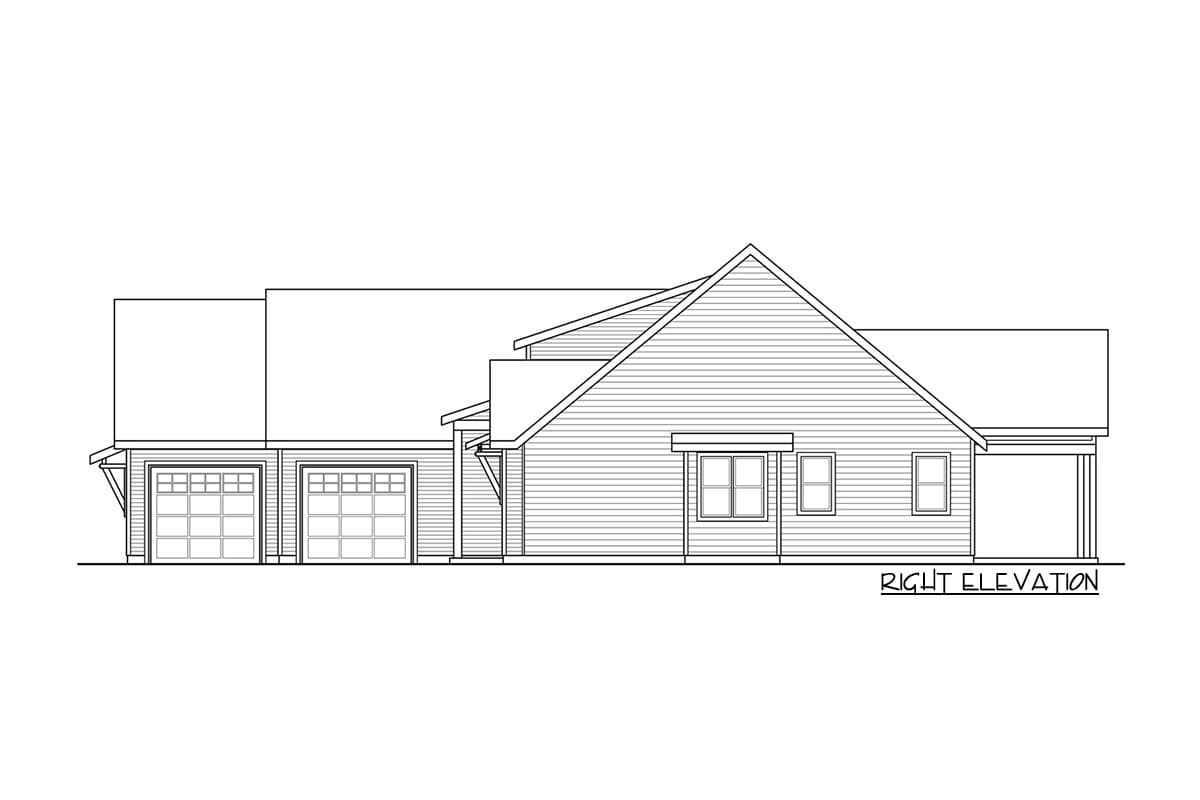

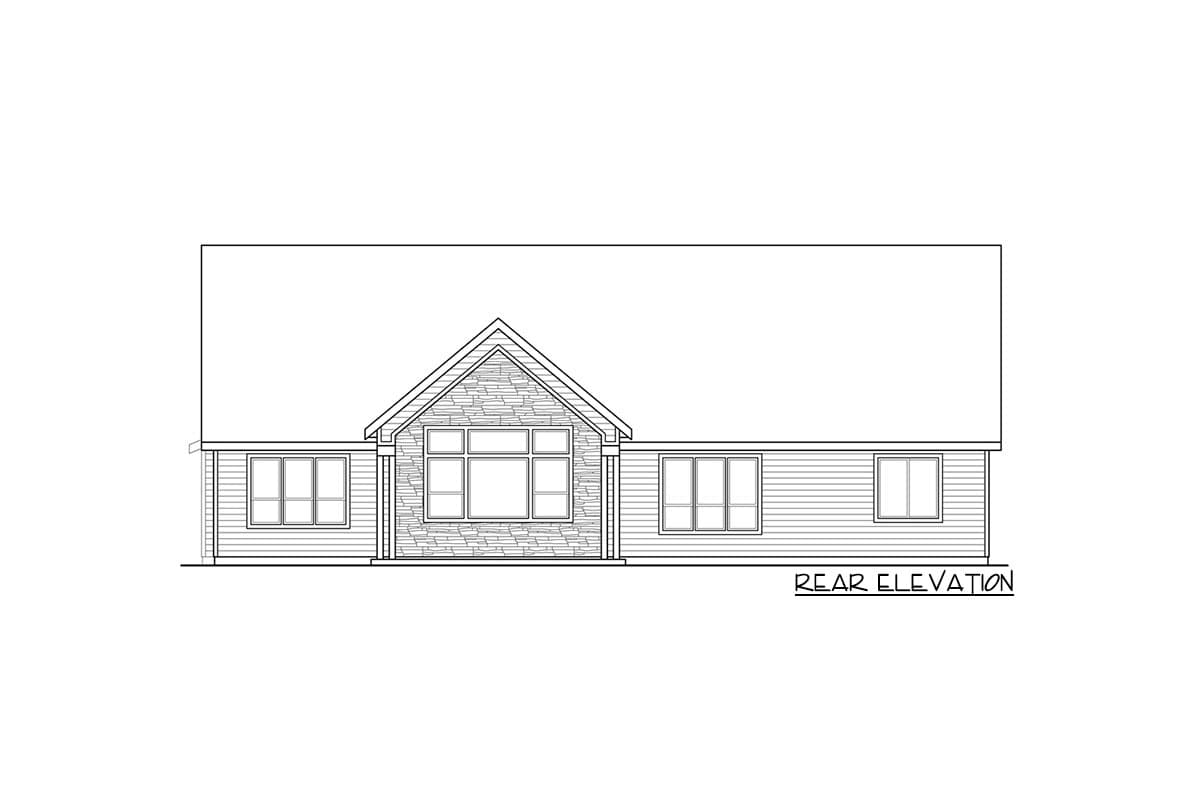

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Craftsman House Plan with Vaulted Covered Patio and Work-From-Home Space

  • 2,327

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

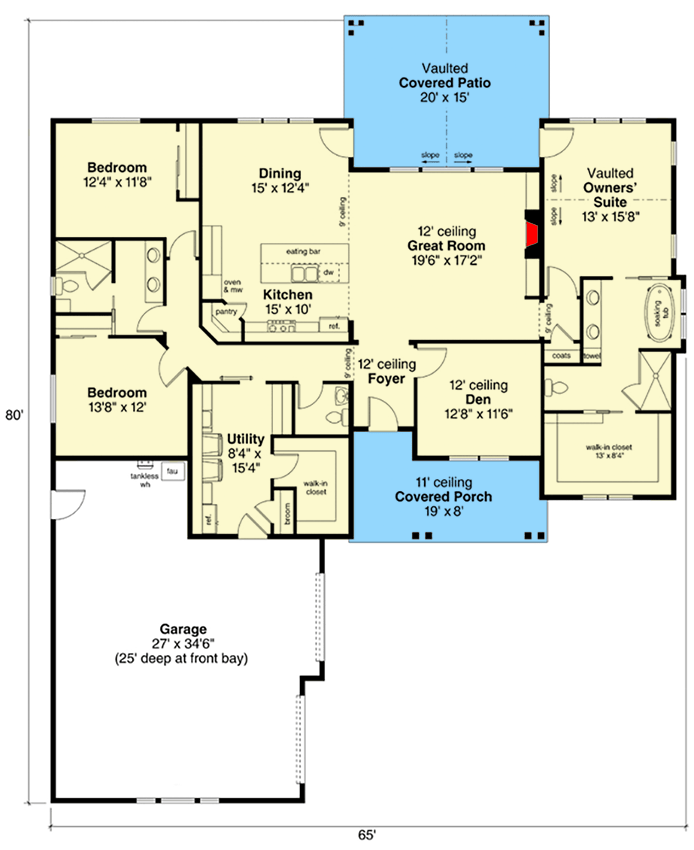

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,327 sq. ft.
  • 1st Floor: 2,327 sq. ft.

Dimensions

  • Width: 65' 0"
  • Depth: 80' 0"
  • Max ridge height: 26' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 843 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
