Plan 890093AH

Modern Duplex House Plan for a Rear Sloping Lot

Heated S.F.
4,504
Units
2
Width
Depth

Floor Plan

Plan 890093AH

Main Level
Main Level
Lower Level
Lower Level

Plan 890093AH

M-F 9am-5pm EST |

1-203-761-8500

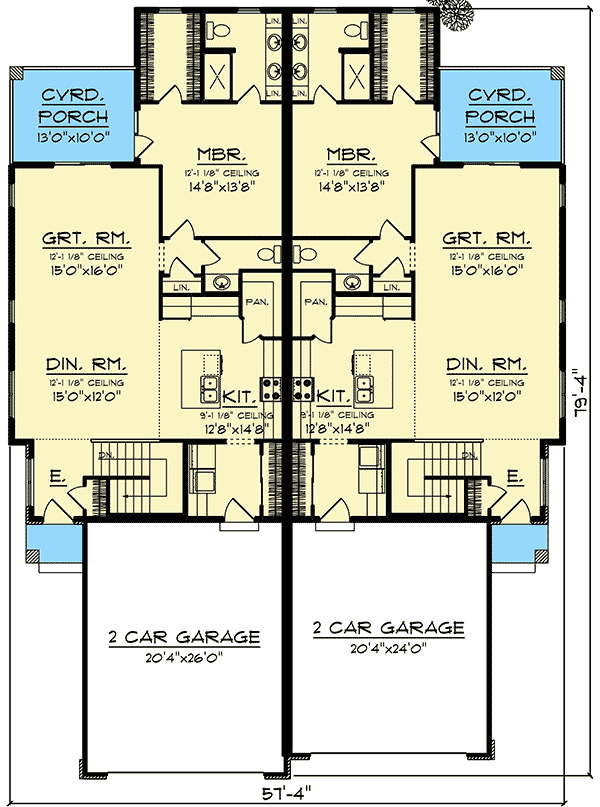

Main Level

Plan 890093AH: Modern Duplex House Plan for a Rear Sloping Lot - Floor Plan - Main Level - Northwest

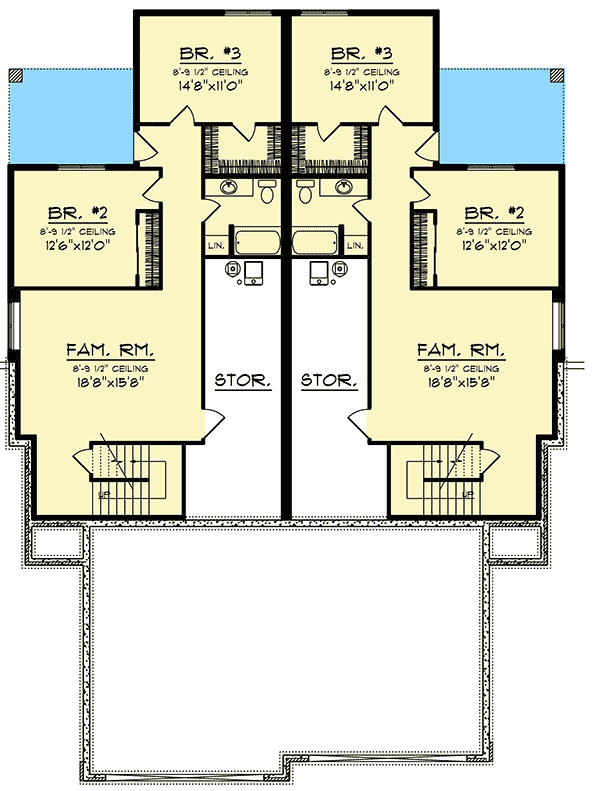

Lower Level

Plan 890093AH: Modern Duplex House Plan for a Rear Sloping Lot - Floor Plan - Lower Level - Northwest

Plan Details

  • This modern duplex was designed to have additional bedrooms in the lower level for visiting guests. Each unit gives you 2,252 sq. ft. of heated living space (1,295 sq. ft. on the main floor and 957 sq. ft. on the lower level).
  • The kitchen features a breakfast bar that looks over the dining and living room.
  • A covered porch is accessible from the living room.
  • The master bedroom has a spacious walk-closet and dual sinks.
  • On the lower level there are two additional bedrooms that share a bathroom right off the hallway.
  • At the end of the hallway you have a large family room that fits the whole family for a game night.
Unit A
Heated Area
2,252Sq. Ft.
957 Sq. Ft. LL
1295 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
532 Sq. Ft.
Dimensions
28' 8"width
79' 4"depth
19' 3"height
Unfinished Areas
532 Sq. Ft. Garage
Unit B
Heated Area
2,252Sq. Ft.
957 Sq. Ft. LL
1295 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
532 Sq. Ft.
Dimensions
28' 8"width
79' 4"depth
19' 3"height
Unfinished Areas
532 Sq. Ft. Garage

What's Included

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,504 sq. ft.

Lower Level

1,914 sq. ft.

1st Floor

2,590 sq. ft.

Deck

312 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 4"

Depth

79' 4"

Max Ridge Height

19' 3"

Garage

Type

Attached

Area

1064 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Northwest

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

4,504 sq. ft.

Lower Level

1,914 sq. ft.

1st Floor

2,590 sq. ft.

Deck

312 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 4"

Depth

79' 4"

Max Ridge Height

19' 3"

Garage

Type

Attached

Area

1064 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Northwest

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room
