Plan 818199JSS

Modern Farmhouse House Plan with Split Bedroom Layout and Open Flow

Heated S.F.
1,710
Beds
3
Baths
2
Stories
1
Cars
2

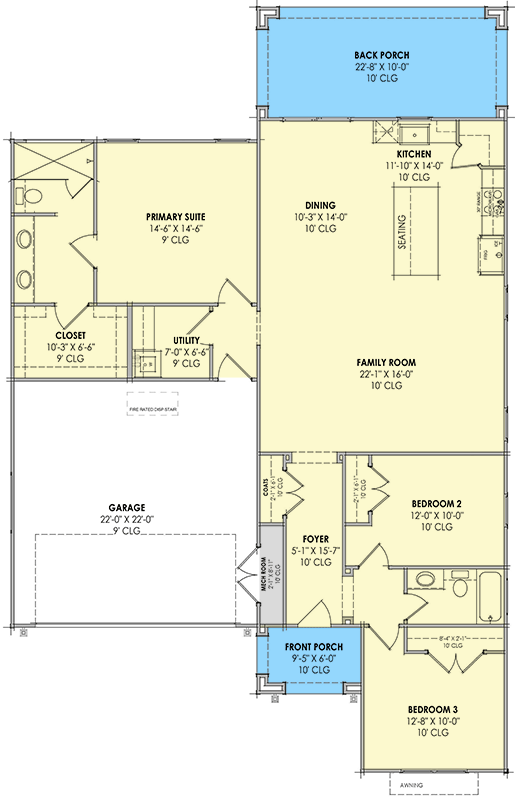

Floor Plan

Plan 818199JSS

Main Level
Main Level

Plan 818199JSS

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 818199JSS: Modern Farmhouse House Plan with Split Bedroom Layout and Open Flow - Floor Plan - Main Level - Country, Modern Farmhouse, Transitional

Plan Details

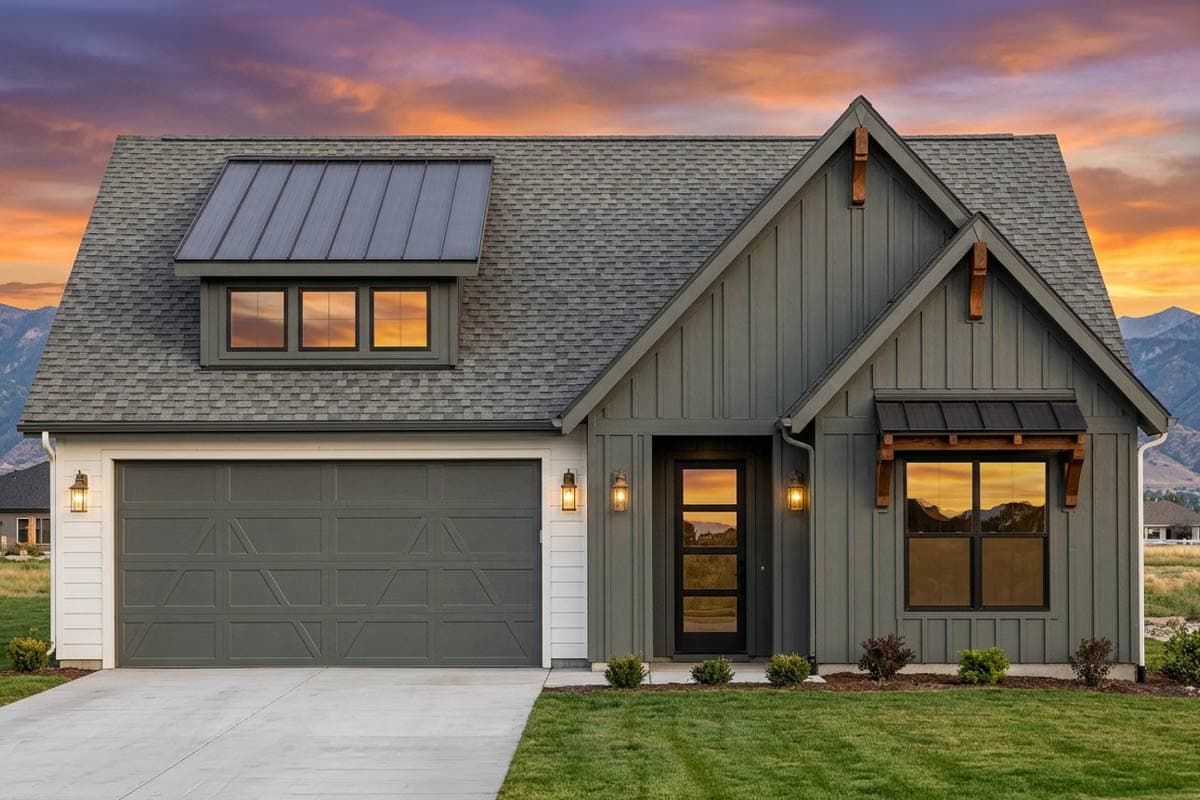

  • This 1,710 sq. ft. home features 3 bedrooms and 2 bathrooms, plus a spacious 2-car attached garage, all wrapped in an inviting modern farmhouse exterior.
  • A welcoming covered front porch leads to an airy foyer with 10-foot ceilings that draws you into the heart of the home, filled with natural light and clear sightlines through the family room.
  • The kitchen centers the open living space as a true gathering spot, highlighted by a large island, ample pantry storage, and seamless connection to the dining and family room.
  • A split-bedroom design gives the primary suite its own private wing, while two secondary bedrooms and a full bath are tucked on the opposite side of the home for guest or family privacy.
  • The laundry-equipped utility room doubles as a practical drop zone right off the garage, making daily routines and organization a breeze.
  • The back porch, with its generous coverage, extends your living area outdoors—ideal for relaxing or entertaining in any season.

What's Included

  • Foundation plan
  • Detailed floorplans
  • Roof plan

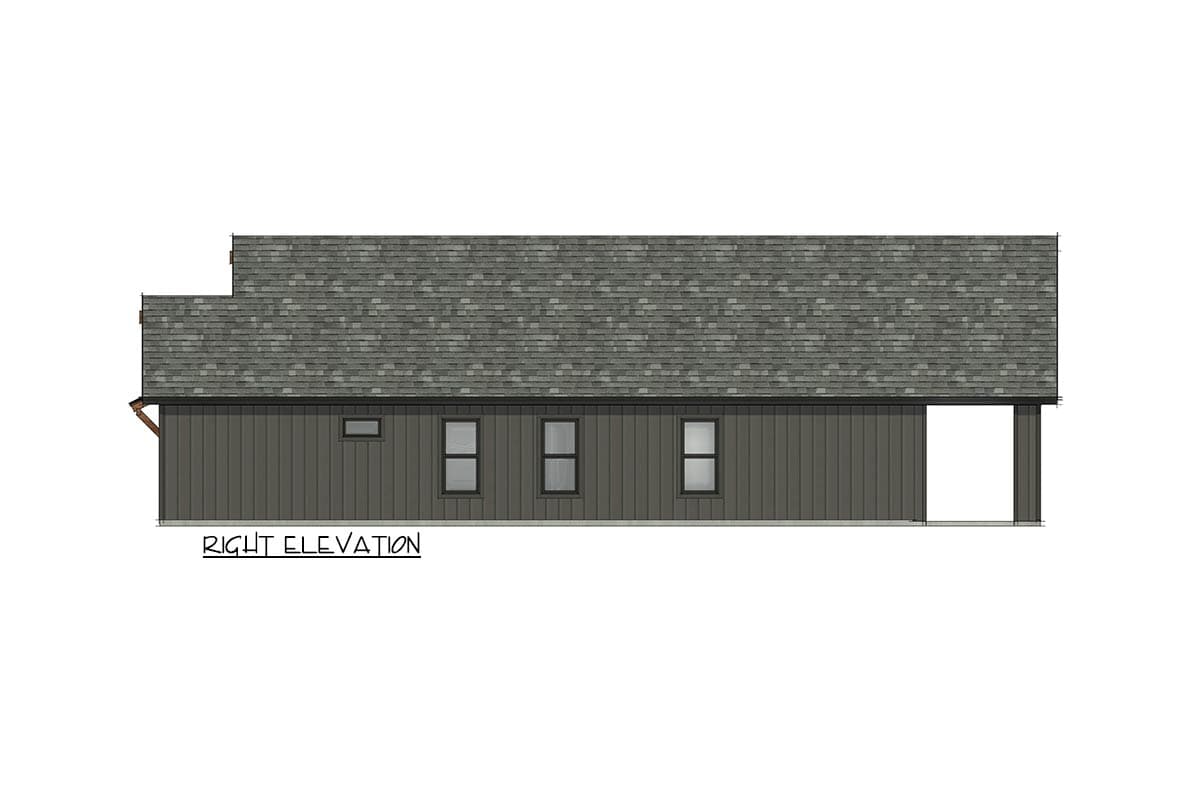

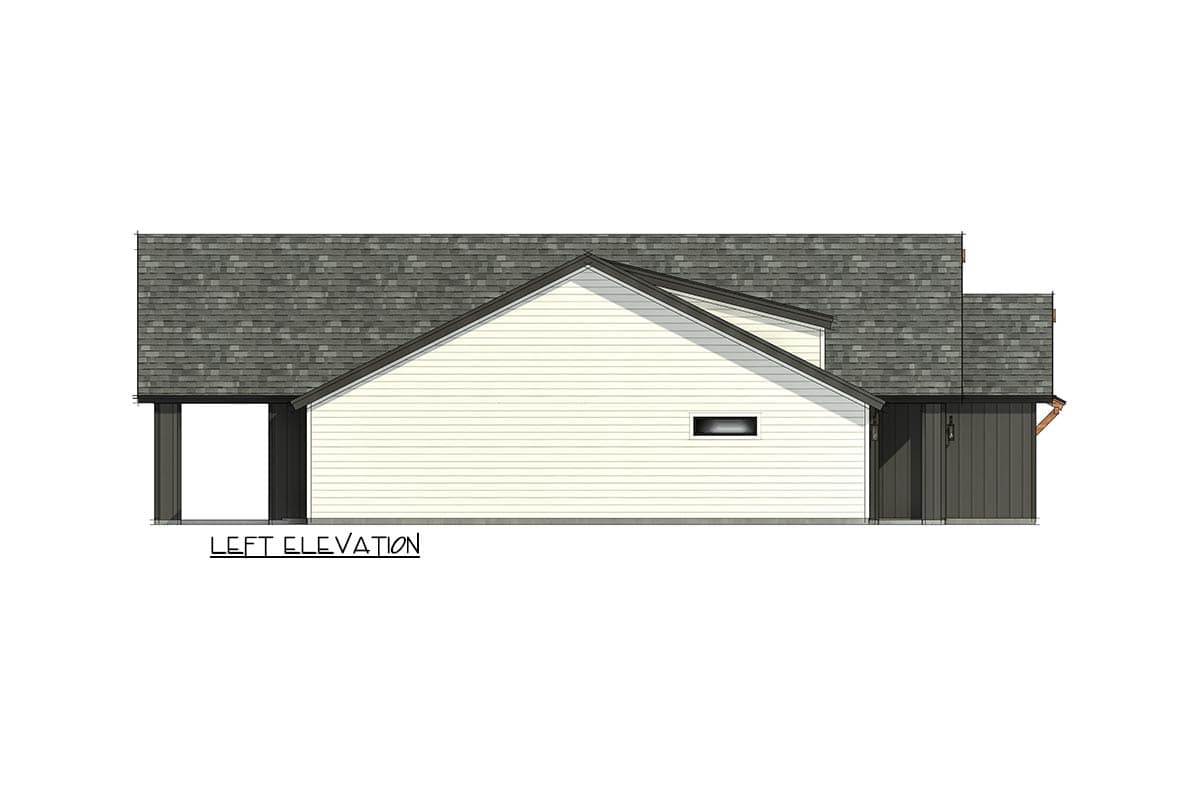

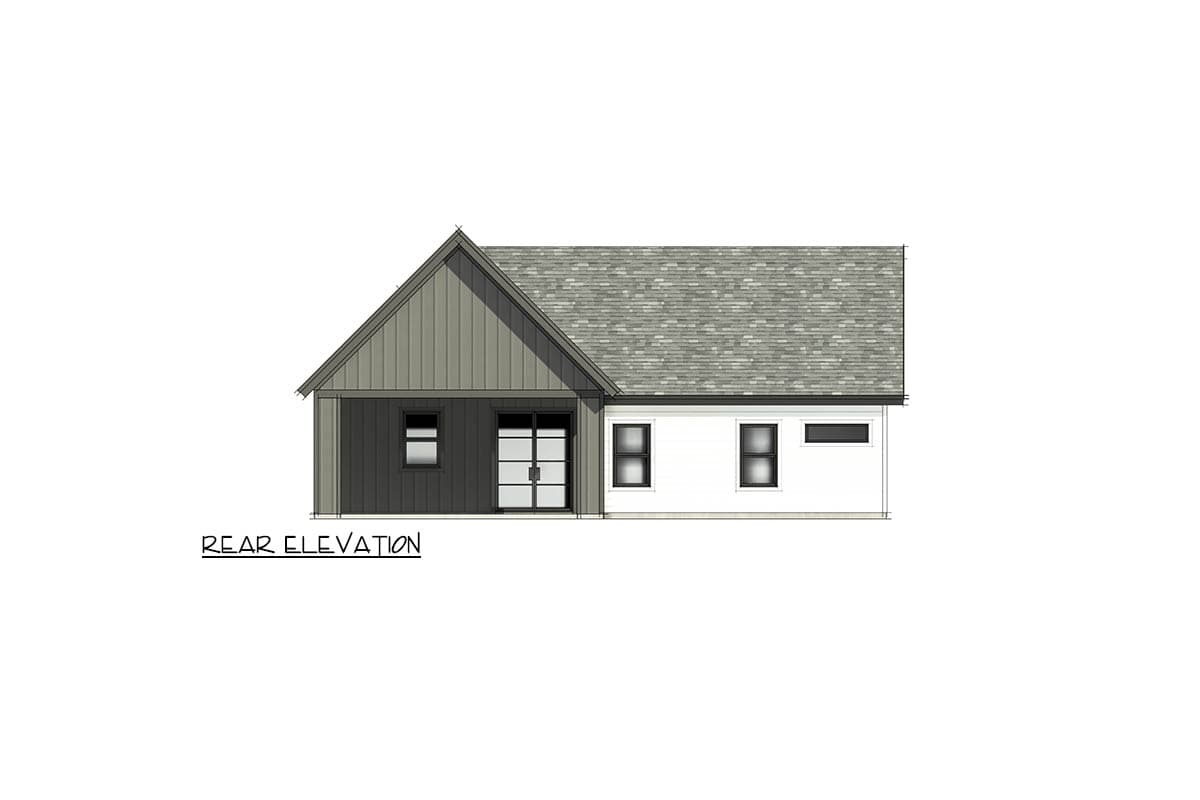

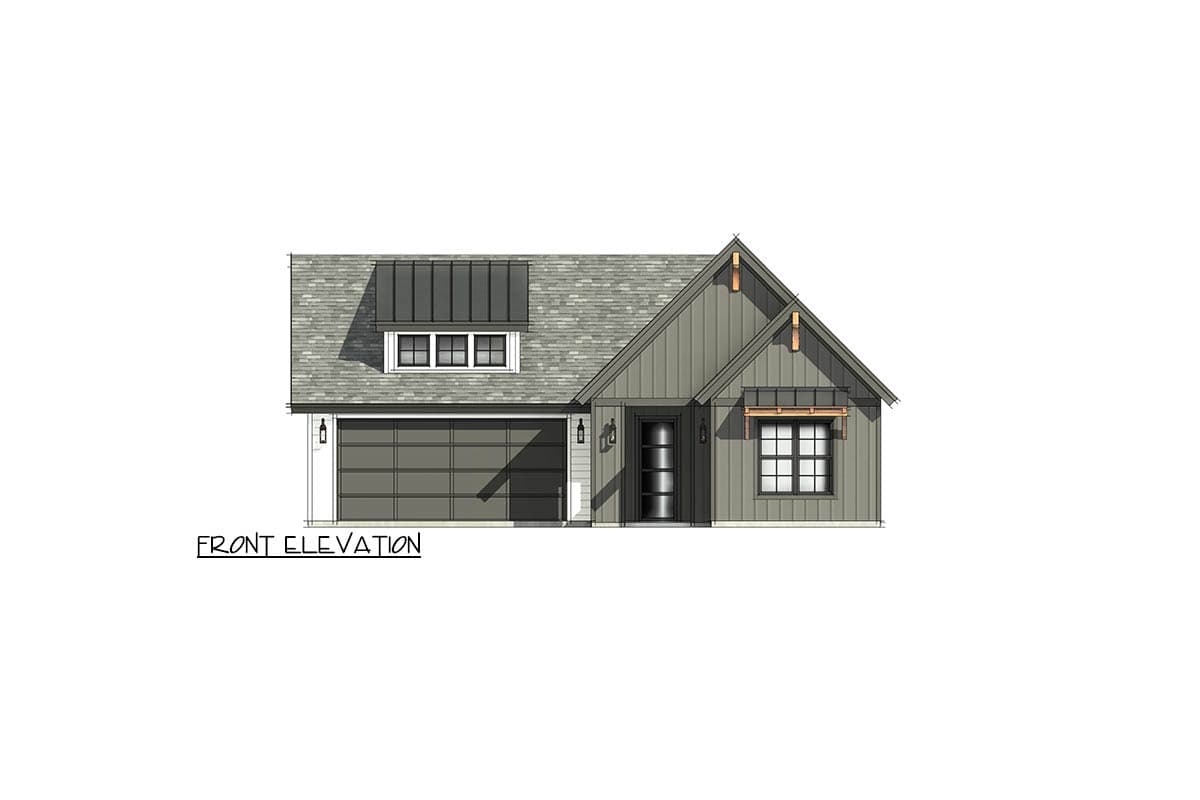

  • Exterior elevations
  • Electrical schematic
  • Cross section(s)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Framing
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,710 sq. ft.

1st Floor

1,710 sq. ft.

Porch, Combined

284 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

45' 0"

Depth

69' 4"

Max Ridge Height

22' 5"

Garage

Type

Standard, Attached

Area

497 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Master Bedroom

9' 0''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Modern Farmhouse

Transitional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,710 sq. ft.

1st Floor

1,710 sq. ft.

Porch, Combined

284 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

45' 0"

Depth

69' 4"

Max Ridge Height

22' 5"

Garage

Type

Standard, Attached

Area

497 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Master Bedroom

9' 0''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Modern Farmhouse

Transitional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
