Plan 623470DJ
Modern Farmhouse Multi-Family House Plan with 3-Bed Units - 1483 Sq Ft Per Unit
Heated S.F.
2,966
Units
2
Width
Depth
Tour
Floor Plan

Plan 623470DJ

Main Level
slide image 0

Plan 623470DJ

1-800-854-7852

1-262-521-4596

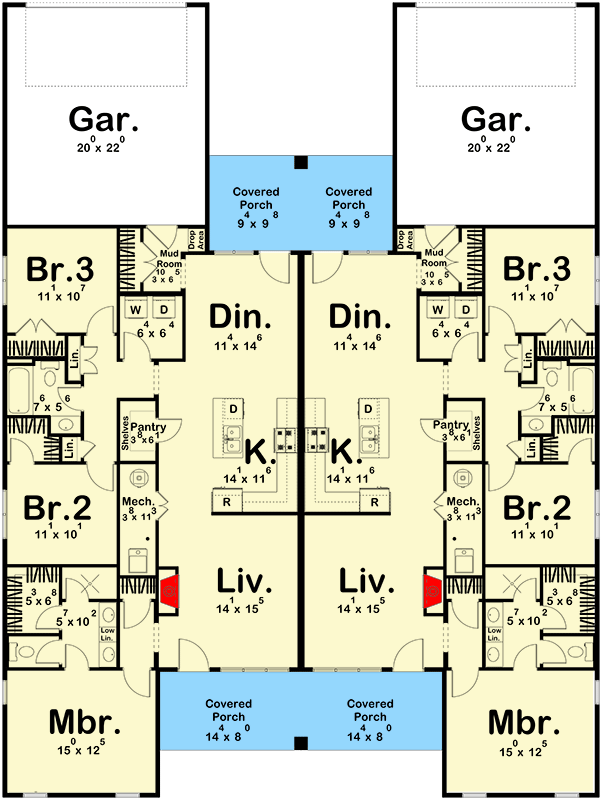

Main Level
floor plan image Main Level
Plan Details
  • This single-story, modern farmhouse-style multi-family home features two units, each with a cozy living room and an open kitchen-dining area.

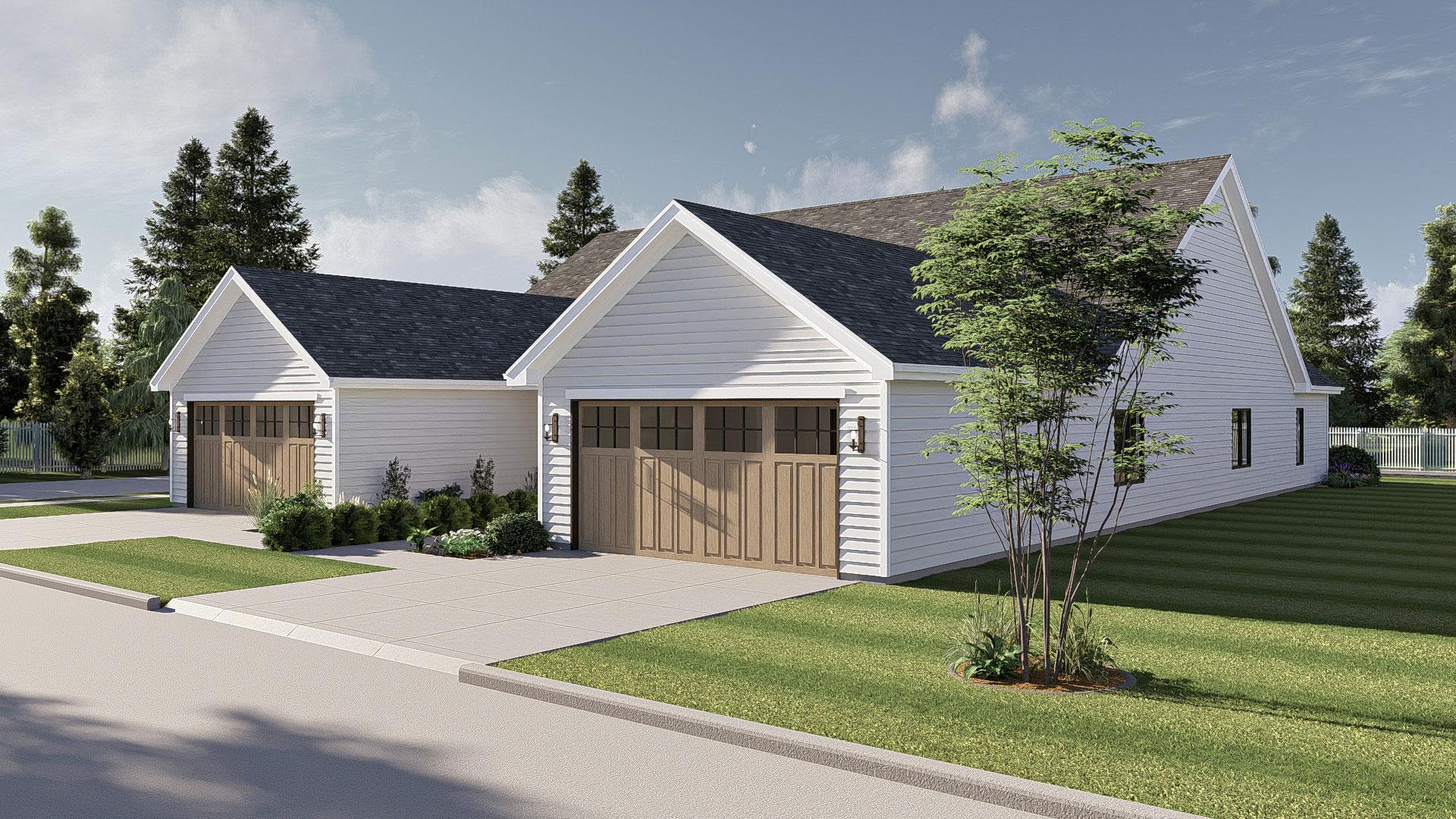

  • The narrow yet efficient layout places bedrooms near the main living space. The exterior blends lap siding, board-and-batten accents, and wood shutters, complemented by front and rear covered porches.
  • A discreet rear garage adds convenience without affecting curb appeal, making this home a practical choice with a timeless farmhouse look.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
1,483Sq. Ft.
1483 Sq. Ft.
1st Floor
3Beds
2Full Baths
2Vehicle
Attached
462 Sq. Ft.
30'width
80'depth
Unit B
1,483Sq. Ft.
1483 Sq. Ft.
1st Floor
3Beds
2Full Baths
2Vehicle
Attached
462 Sq. Ft.
30'width
80'depth
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,966 sq. ft.

1st Floor

2,966 sq. ft.

Porch, Combined

410 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 0"

Depth

80' 0"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

924 sq. ft.

Count

4 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Architectural Style

Country

Farmhouse

Modern Farmhouse

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,966 sq. ft.

1st Floor

2,966 sq. ft.

Porch, Combined

410 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 0"

Depth

80' 0"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

924 sq. ft.

Count

4 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Architectural Style

Country

Farmhouse

Modern Farmhouse

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
