Modern Farmhouse Plan Just Under 1500 Square Feet

Plan 444117GDN

  • 1,497

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

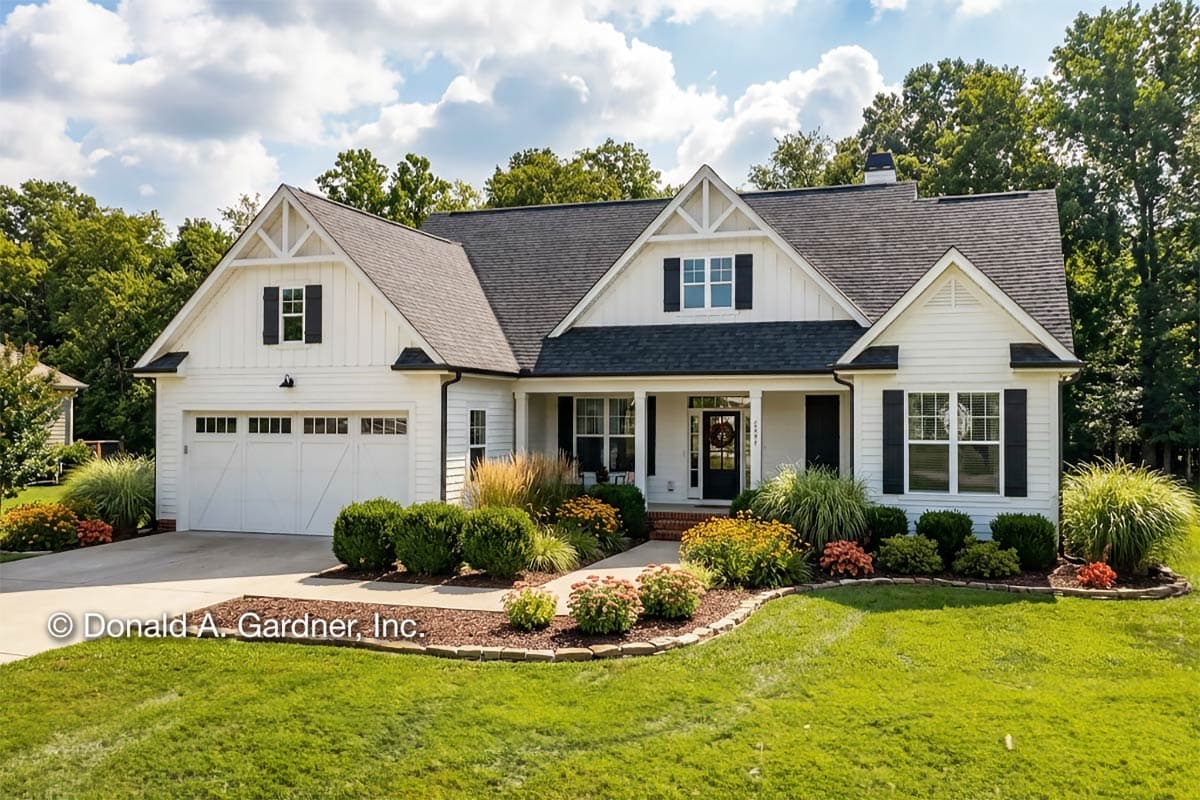

  • This modern farmhouse design features decorative wooden brackets and a welcoming 7' deep front porch. Vertical and horizontal siding wraps the exterior and shutters frame the windows.

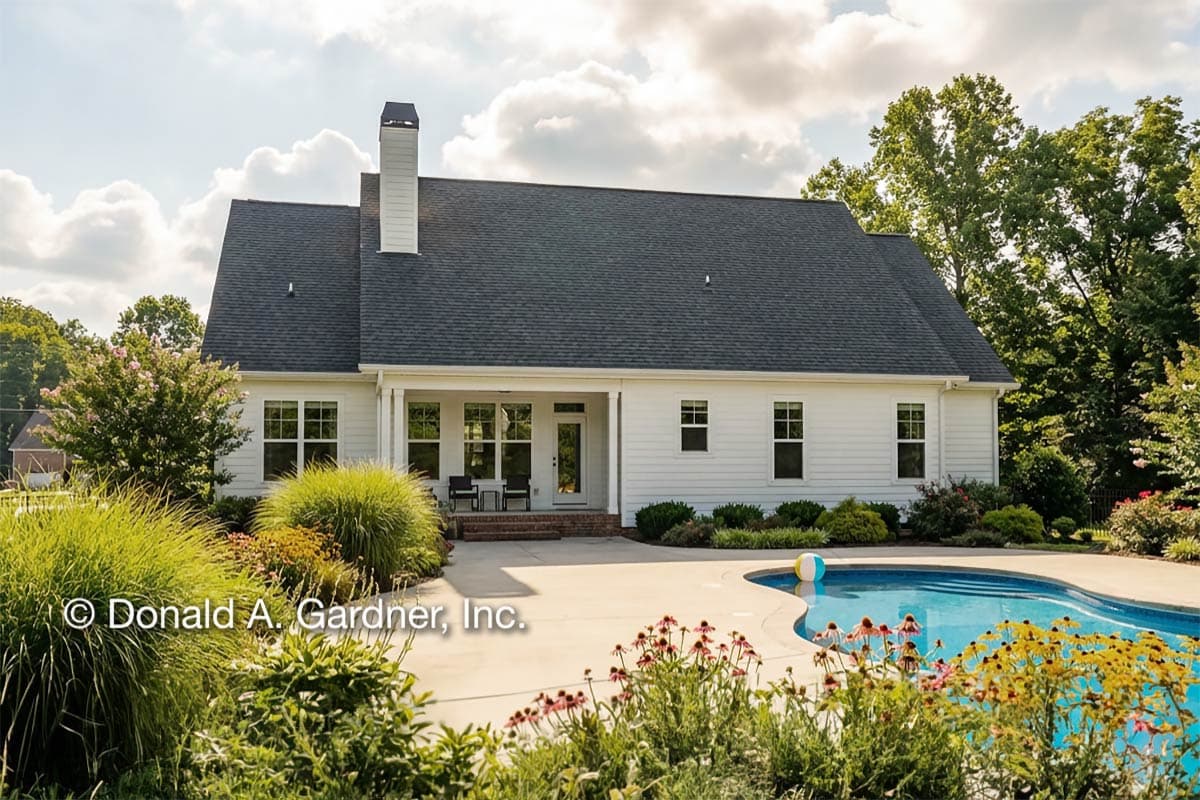

  • The open floor plan enjoys a great room with a fireplace and a 15'5" cathedral ceiling, an island kitchen with a sun tunnel and a window over the sink, and a rear porch (17'2" wide and 7' deep) with skylights.
  • The dining room has a 10'1" tray ceiling and serves casual and formal meals equally well.
  • Separated from the secondary bedrooms, the master suite boosts a 14'9" cathedral ceiling, skylights, a dual-sink vanity, a massive shower and an oversized walk-in closet.
  • The utility room is conveniently just outside the suite.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Farmhouse Plan Just Under 1500 Square Feet - 444117GDN floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,497 sq. ft.
  • 1st Floor: 1,497 sq. ft.
  • Covered Patio: 318 sq. ft.
  • Porch, Rear: 118 sq. ft.
  • Porch, Front: 187 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 59' 4"
  • Depth: 45' 8"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 499 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Modern Farmhouse Plan Just Under 1500 Square Feet

  • 1,497

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $955
  • PDF - Single-Build $1,155
  • 5 Sets + PDF $1,355
  • CAD Unlimited + PDF $2,310
  • View all purchase option online

About This Plan

  • This modern farmhouse design features decorative wooden brackets and a welcoming 7' deep front porch. Vertical and horizontal siding wraps the exterior and shutters frame the windows.
  • The open floor plan enjoys a great room with a fireplace and a 15'5" cathedral ceiling, an island kitchen with a sun tunnel and a window over the sink, and a rear porch (17'2" wide and 7' deep) with skylights.
  • The dining room has a 10'1" tray ceiling and serves casual and formal meals equally well.
  • Separated from the secondary bedrooms, the master suite boosts a 14'9" cathedral ceiling, skylights, a dual-sink vanity, a massive shower and an oversized walk-in closet.
  • The utility room is conveniently just outside the suite.
