Plan 54051LK

Modern Farmhouse Plan with 3 Bedrooms and 12' Ceilings

Name: Plan 54051LK: Modern Farmhouse Plan with 3 Bedrooms and 12' Ceilings
Brand: Architectural Designs
SKU: 54051LK
Price: 1995.0 USD
Availability: InStock

Heated S.F.

2,305

Beds

Baths

Stories

Cars

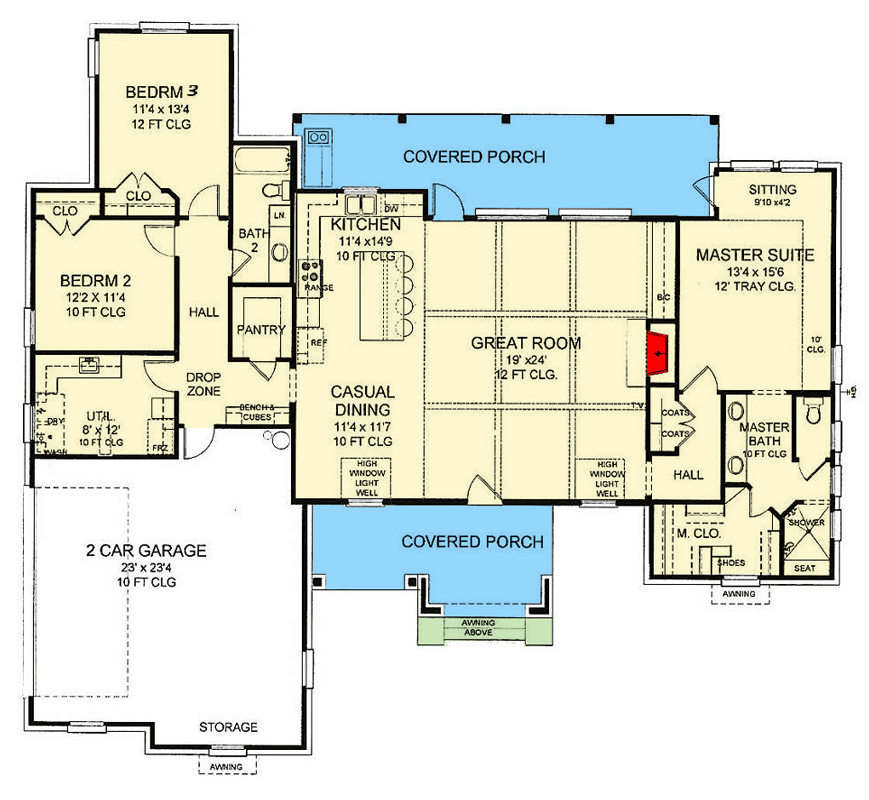

Floor Plan

Main Level

Plan Details

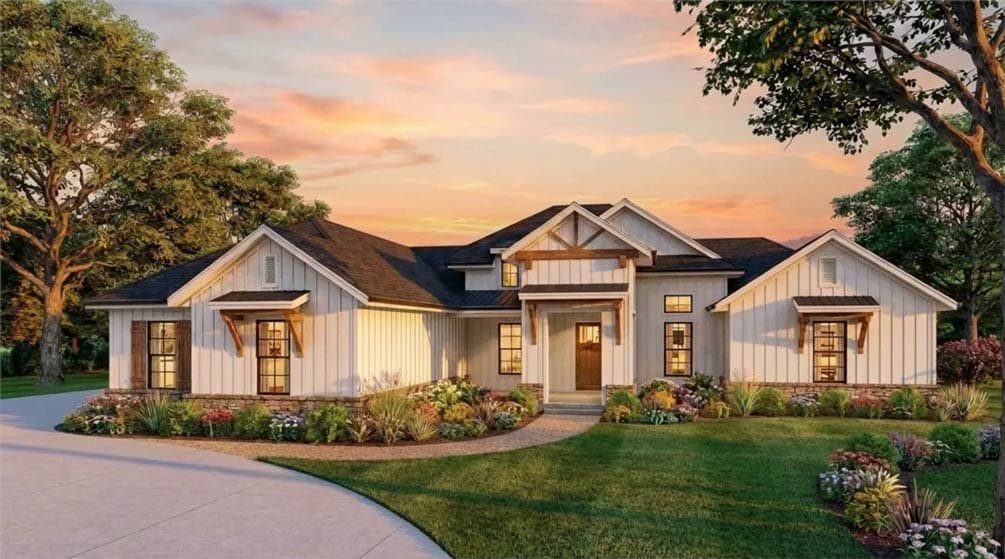

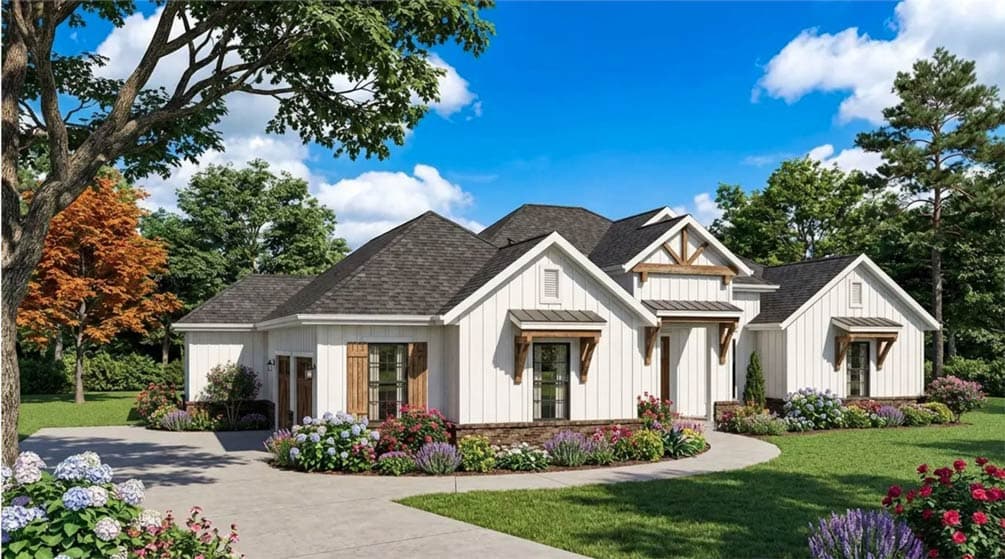

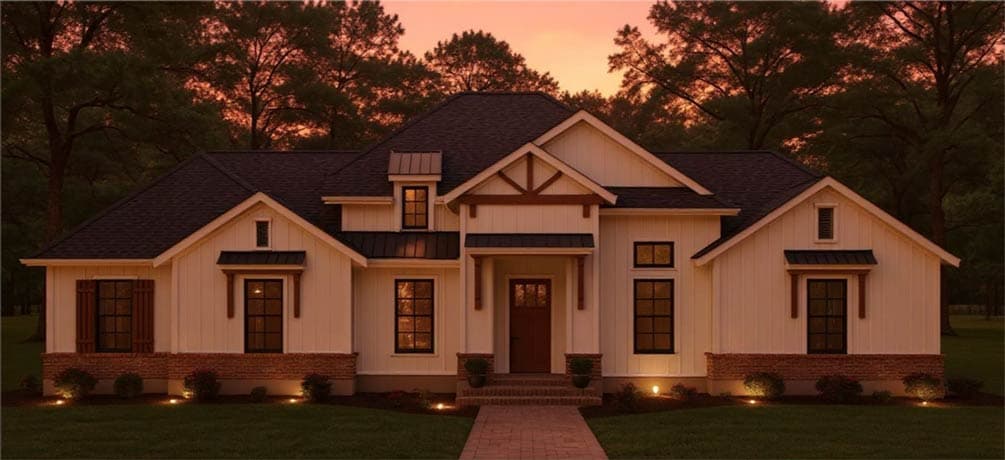

Boasting 2,305 finished sq ft, 3 bedrooms, 2 full baths, and a 641 sq ft 2-car attached garage, this inviting Modern Farmhouse plan features board-and-batten siding and a classic gable roof.
A welcoming covered porch leads into an entryway that opens directly into the main living areas, with a convenient mudroom and laundry located off the garage entry.
Experience an open-concept flow through the main living areas, featuring impressive 12-foot ceilings and a well-appointed kitchen with a walk-in pantry and a cozy breakfast nook.
The private primary suite offers a serene sitting area and is thoughtfully separated from the two secondary bedrooms for ultimate privacy.
Enjoy outdoor living on the generous 467 sq ft combined porch area, perfect for morning coffee or evening relaxation.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.

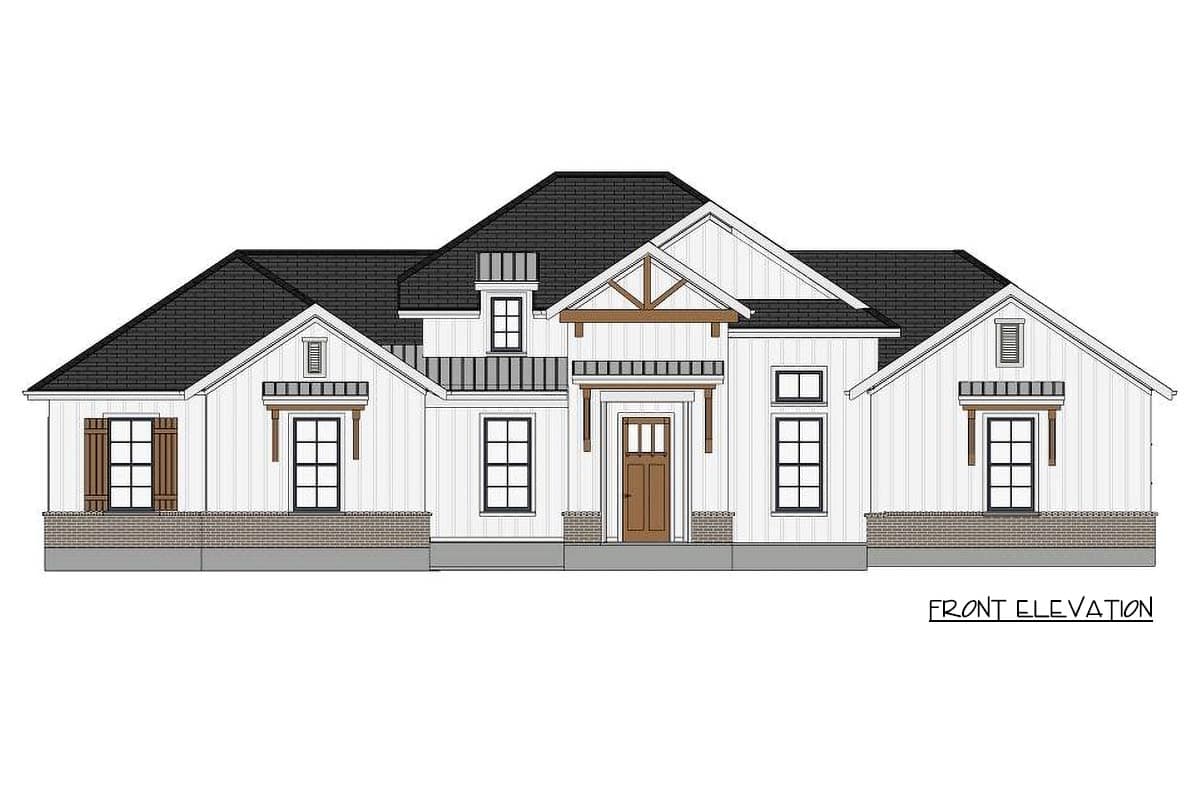

ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
